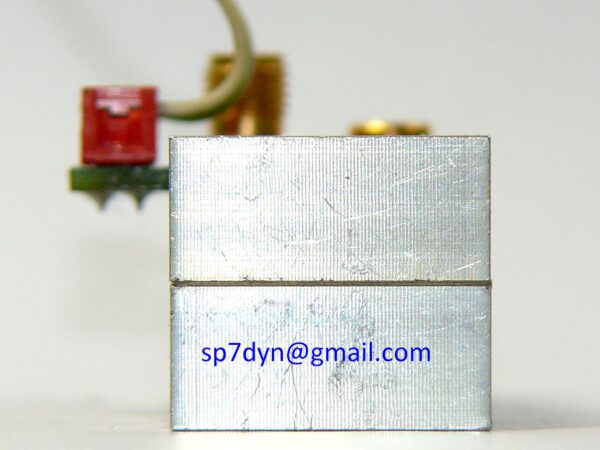

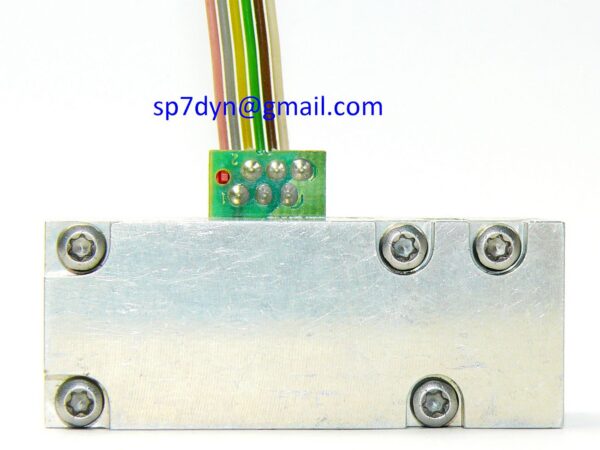

WR42 RX Down-Converter Mixer with LNA CHA2069
Converter is used, removed from the functioning device,
cosmetic scratches and stains!
The device is tested and functions in technical good
condition – real photos.
The module is in original condition, without modifications,
sold as is!
Helpful links:
CHA2069 ————————————————- PDF
SGA-3286 ———————————————— PDF
24GHz Project —————————————– PDF
Specifications: Frequency range LNA CHA2069 -- 18 - 31GHz Frequency oryginal of module - 19 - 21GHz W-e Connector -- WR-42 not standard spacing of screws! Local oscillator input org. -- 11.0-12.5GHz 8 to 10dBm IF out ----------------------- 100-2500MHz org.1.2GHz LO connector ----------------- SMA IF conector ------------------ MCX Power supply ----------------- +5.0VDC - Price is for ----------------- 1 piece

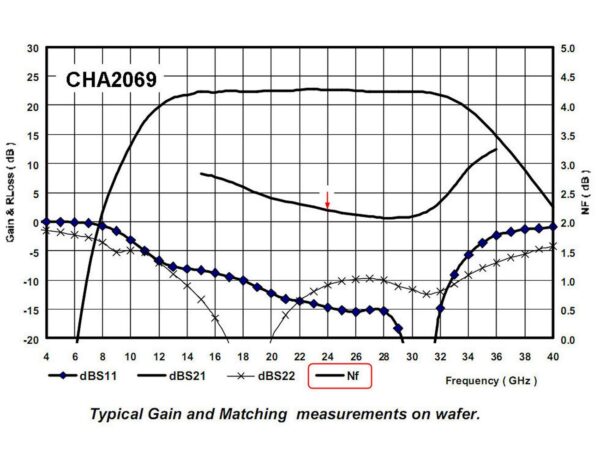

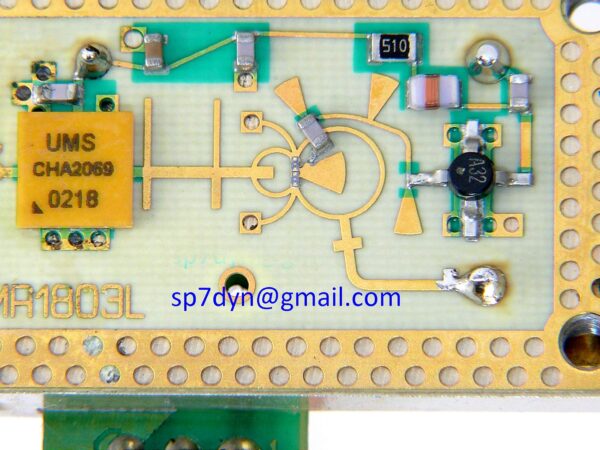

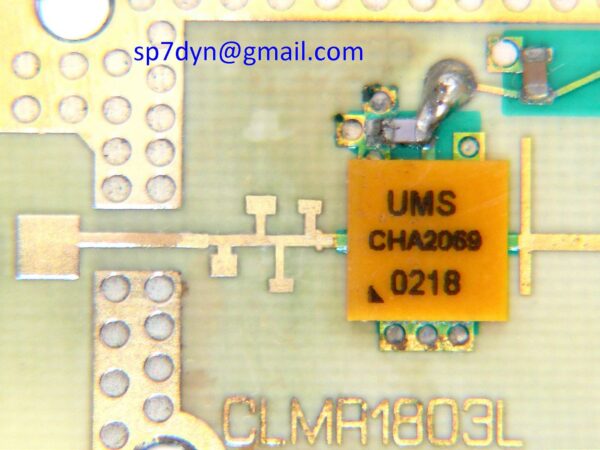

Frequency range LNA | CHA2069 18-31GHz |
---|---|
Frequency oryginal of module | 19-21GHz |

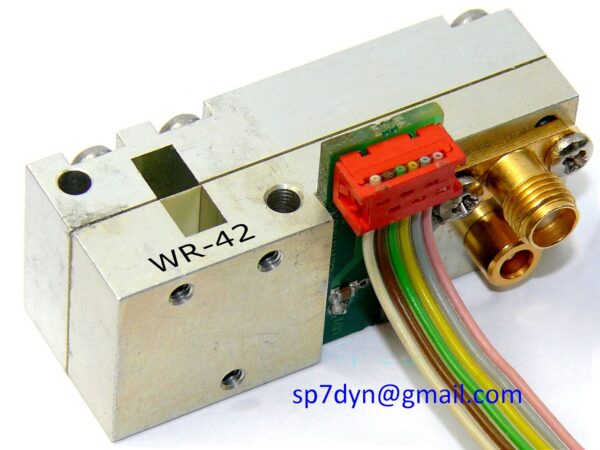

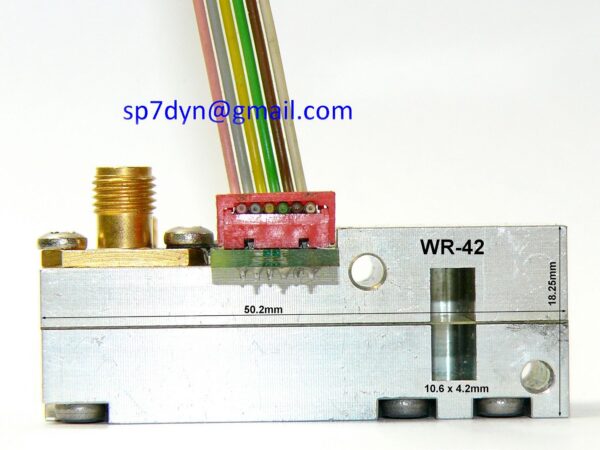

Waveguide Connector | WR-42 Not standard spacing of screws! |
Local oscillator input org | 11.000 to 12.500GHz (8 to 10dBm) |
IF out | 100 to 2500MHz (org.1.2GHz) |

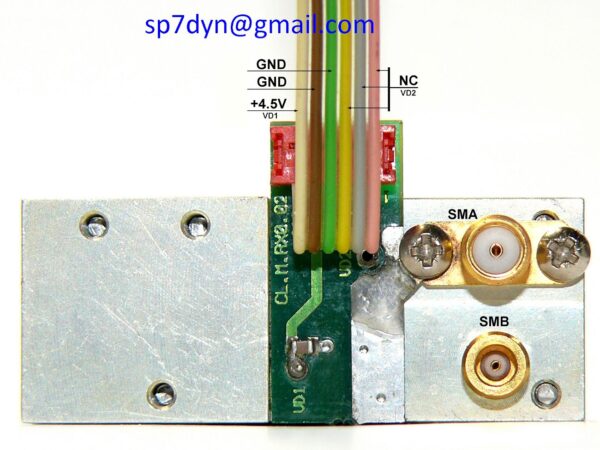

LO connector | SMA |
IF conector | MCX |
Supply voltage | +5.0VDC |
Condition | 100%OK Real photos |
Order - How to place an order | Please place your order via e-mail: |
Shipping - method and cost | The price of the item does not include the shipping cost! |
Important information:
Please ask questions or raise concerns before placing your order.
By placing a order, you agree to all stated terms.
Offered prices is not including any taxes, customs fees.
All devices so it is sold as-is, no returns, no refund!
Order – How to place an order:
Please place your order via e-mail:
contact@sp7dyn.com
sp7dyn@gmail.com
In your order, please provide the title of the item,
the SKU number and the link to the item on my website.
Shipping – method and cost:
The price of the item does not include the shipping cost!
Before ordering, click here and check the shipping costs and
delivery time STANDARD or PRIORITY of your choice – click here.
I combine purchases – with multiple purchases, you pay for shipping once.
After ordering, please give me exact shipping address with phone number.
