24GHz Gunn Oscillator Sweeper
$125,00
SKU: 116
Only price1 left in stock!
1 in stock
Price does not include shipping cost !

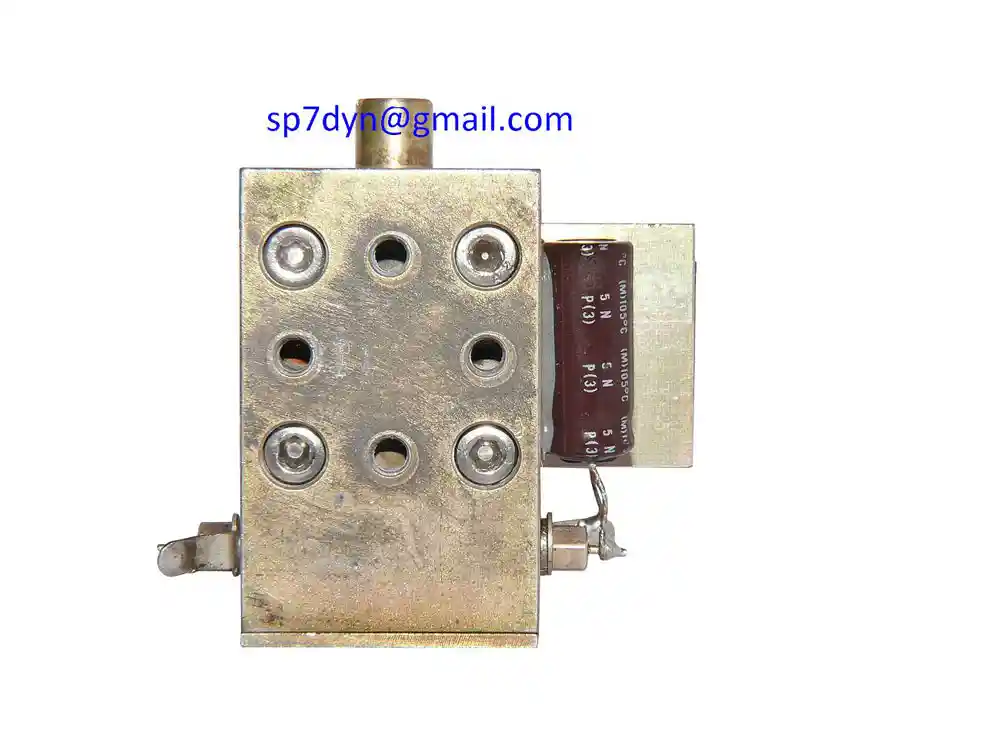

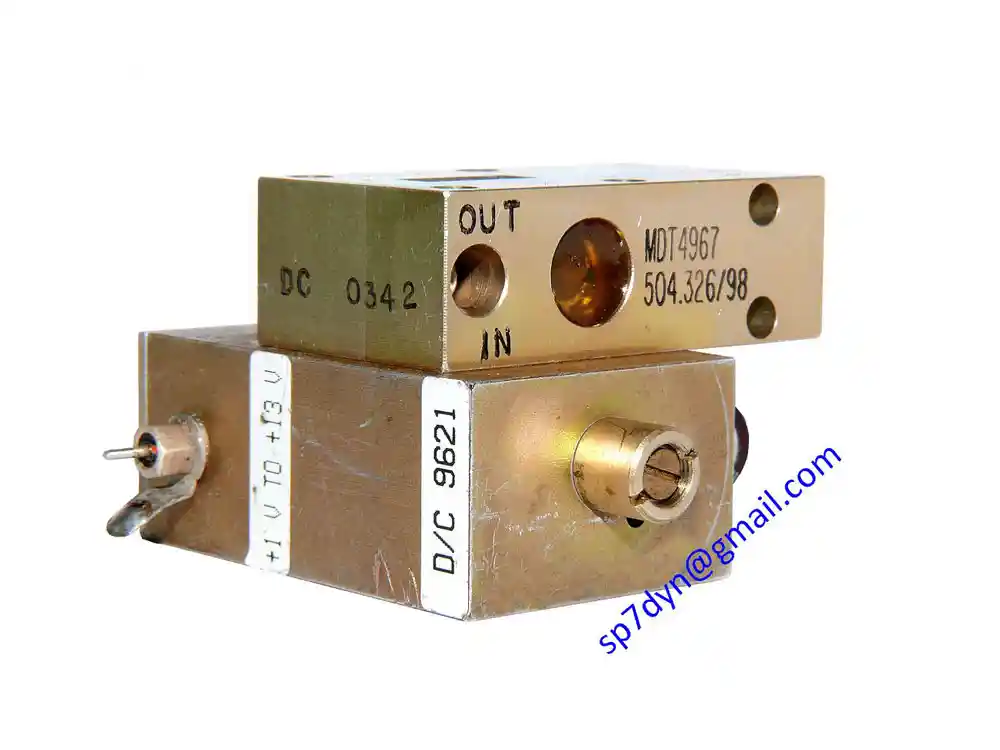

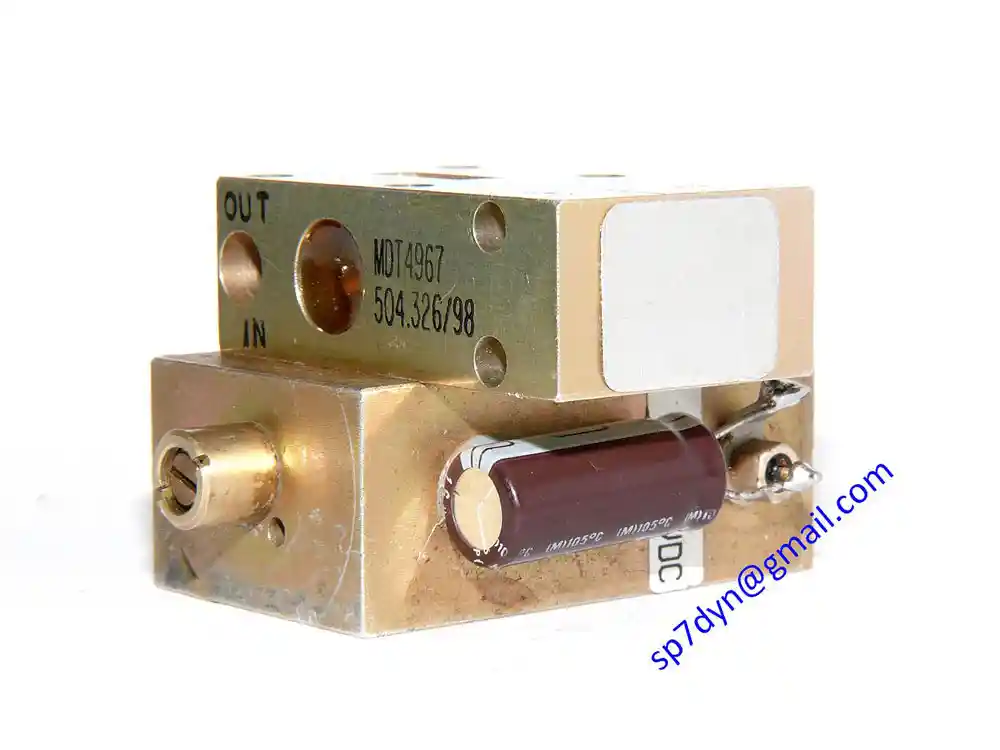

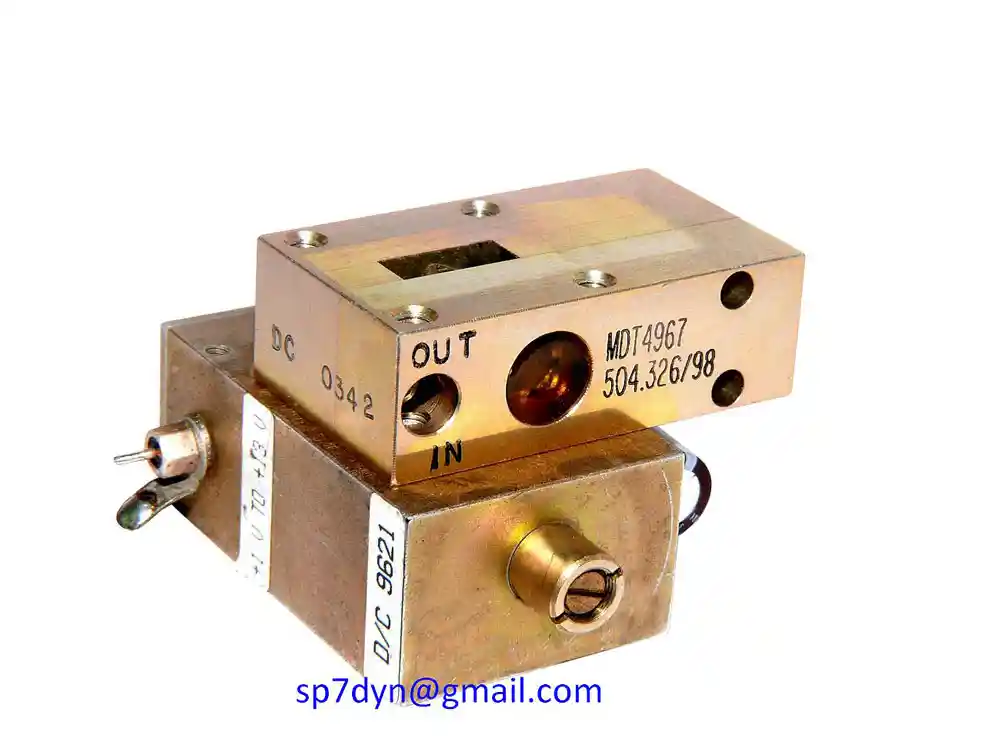

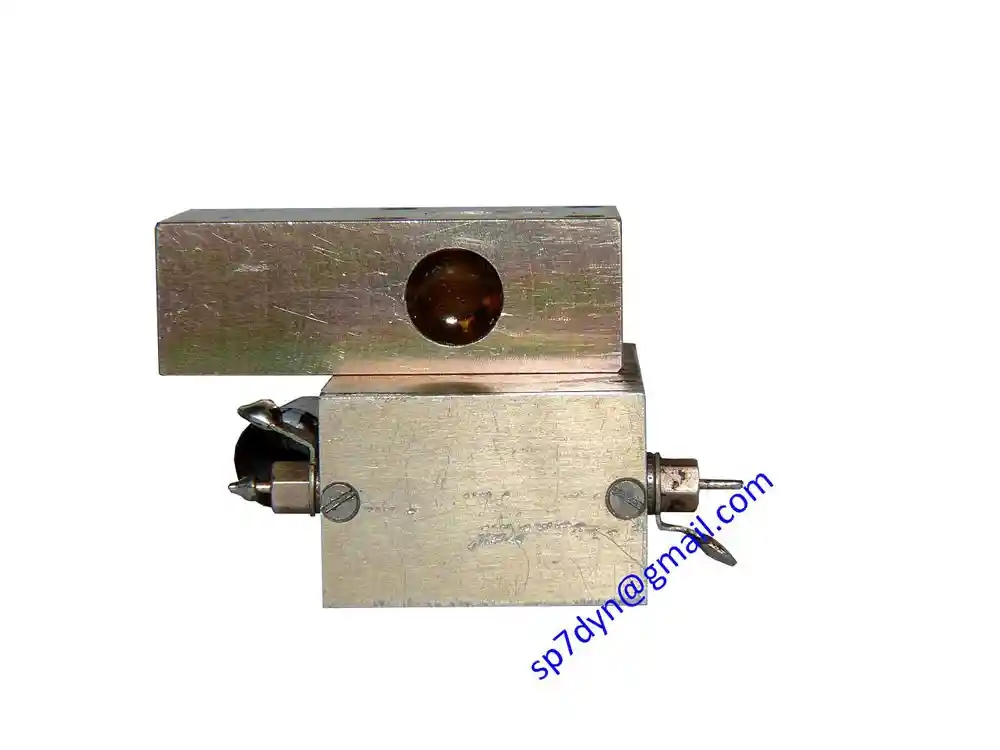

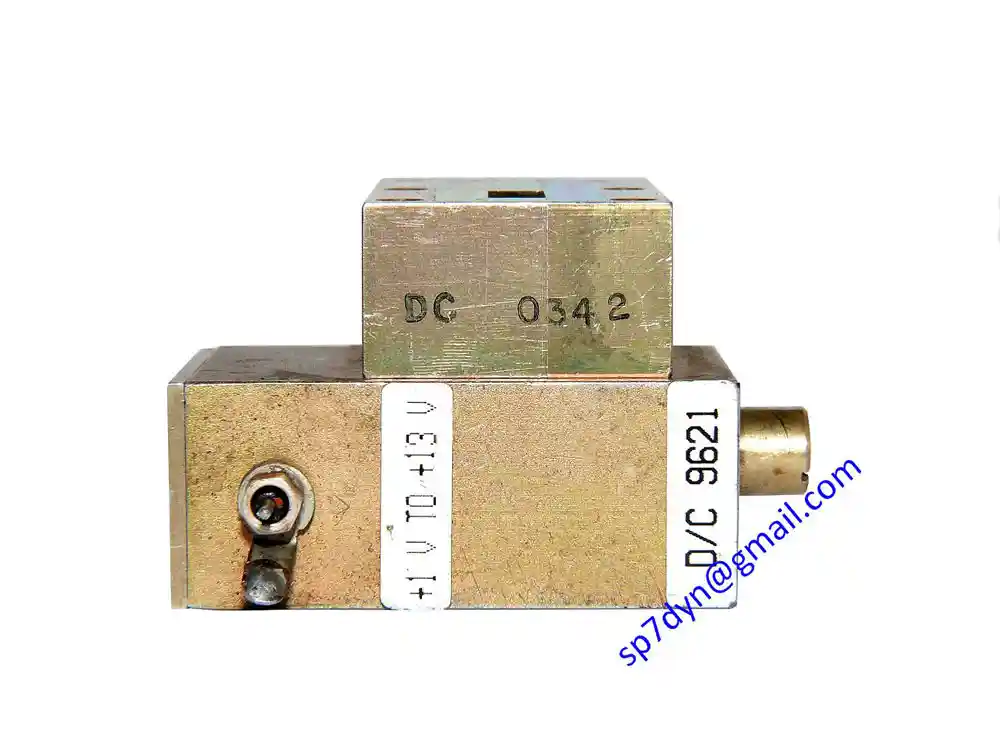

24GHz Gunn Oscillator Sweeper with isolator
21.5 to 26.5GHz 11.2dBm 13mW
functions test OK! in technical good condition – real photos
Specifications: No datasheet, measurements taken in my lab! Connector ------------------ WR-42 Frequency work ------------- 21.50 to 26.5GHz Frequency manual. adj. ----- 21.50 to 26.5GHz Frequency sweep (varactor) - 467MHz 0-14VDC Power out --------- 11.2dBm 13.2mW on 24.0GHz Power out max -------------- 16.1mW Supply GUNN ---- +6.0VDC (see on the device) Currentconsumption GUNN ---- 420 - 450mA Supply Varactor ------------ DC to +14V SN ------------------------- 01 - Isolator Isolation --------- 20dB min - Price is for 1 piece
Module Type | Gunn Oscillator |
---|---|
Frequency work | 21.50 to 26.500GHz |
Frequency manual. adj. | 21.50 to 26.500GHz |
Frequency sweep (varactor) | 467MHz 0-14VDC |

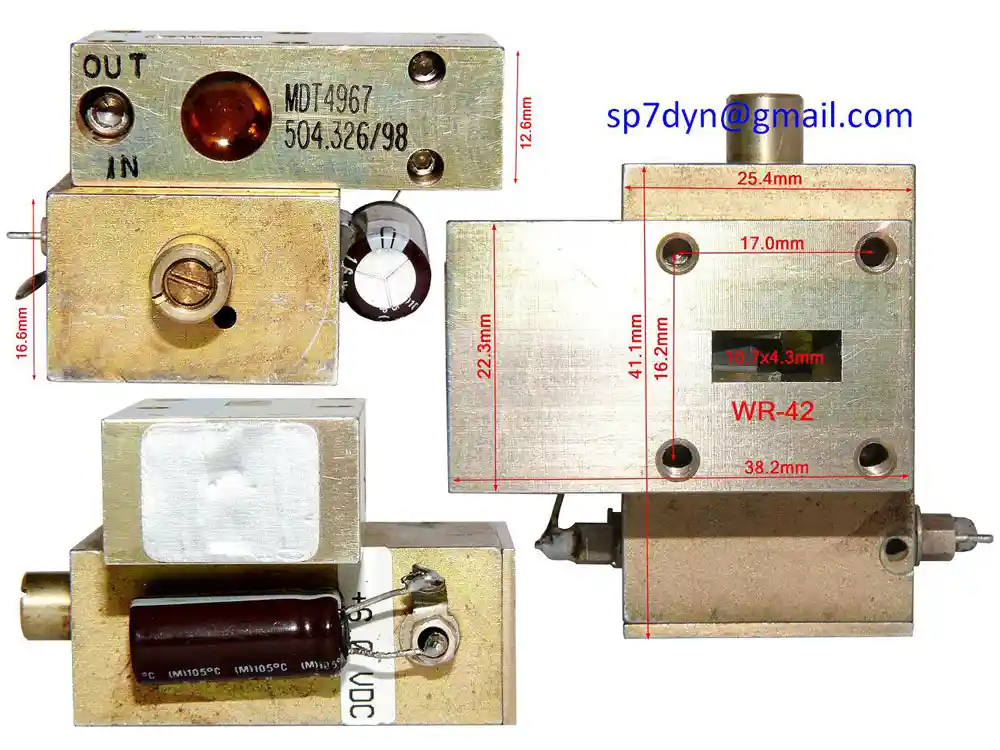

Connector Type | WR42 |
Power out | 11.2dBm 13.2mW on 24.000GHz |
Power out max | 16.1mW |
Supply GUNN | +6VDC |
Currentconsumption GUNN | 420 to 450mA |

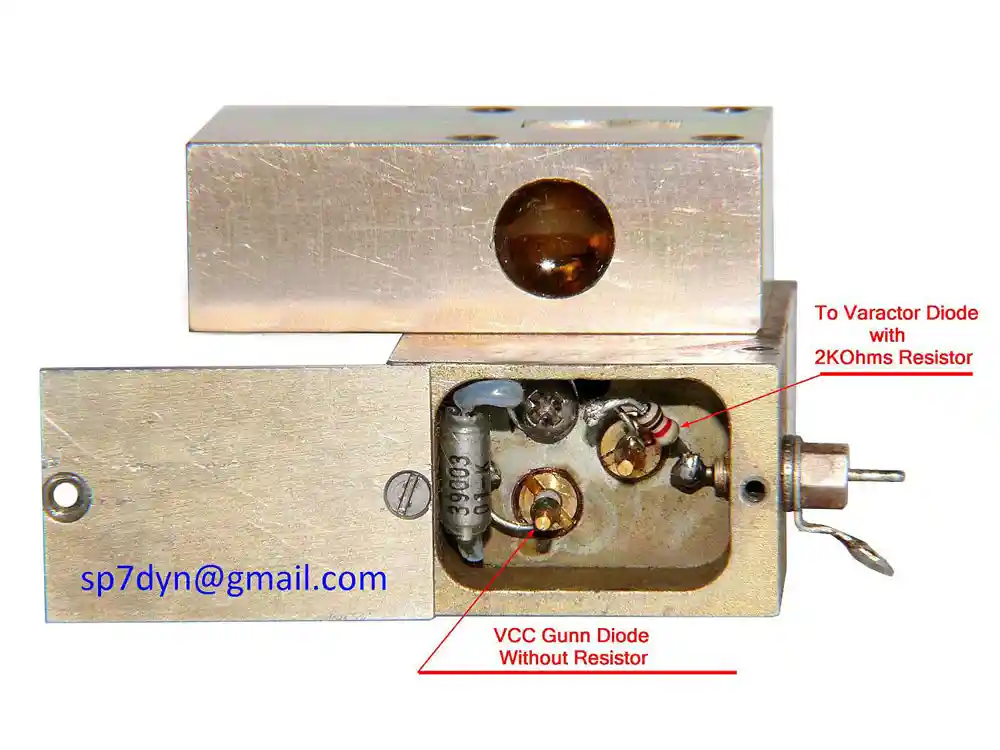

Supply Varactor | 0 to +14VDC Necessarily with a 2KOhms resistor! |
Condition | Device is used, cosmetic scratches and stains, tested and |
Isolator Isolation | 20dB min |
SN | 01 |
Price is for | 1 piece |
Order - How to place an order | Please place your order via e-mail: |
Shipping - method and cost | The price of the item does not include the shipping cost! |
Important information:
Please ask questions or raise concerns before placing your order.
By placing a order, you agree to all stated terms.
Offered prices is not including any taxes, customs fees.
All devices so it is sold as-is, no returns, no refund!
Order – How to place an order:
Please place your order via e-mail:
contact@sp7dyn.com
sp7dyn@gmail.com
In your order, please provide the title of the item,
the SKU number and the link to the item on my website.
Shipping – method and cost:
The price of the item does not include the shipping cost!
Before ordering, click here and check the shipping costs and
delivery time STANDARD or PRIORITY of your choice – click here.
I combine purchases – with multiple purchases, you pay for shipping once.
After ordering, please give me exact shipping address with phone number.
