23GHz TX Up-Converter Mixer Low Band
$110,00
SKU: 356
8 in stock
8 in stock
Price does not include shipping cost !

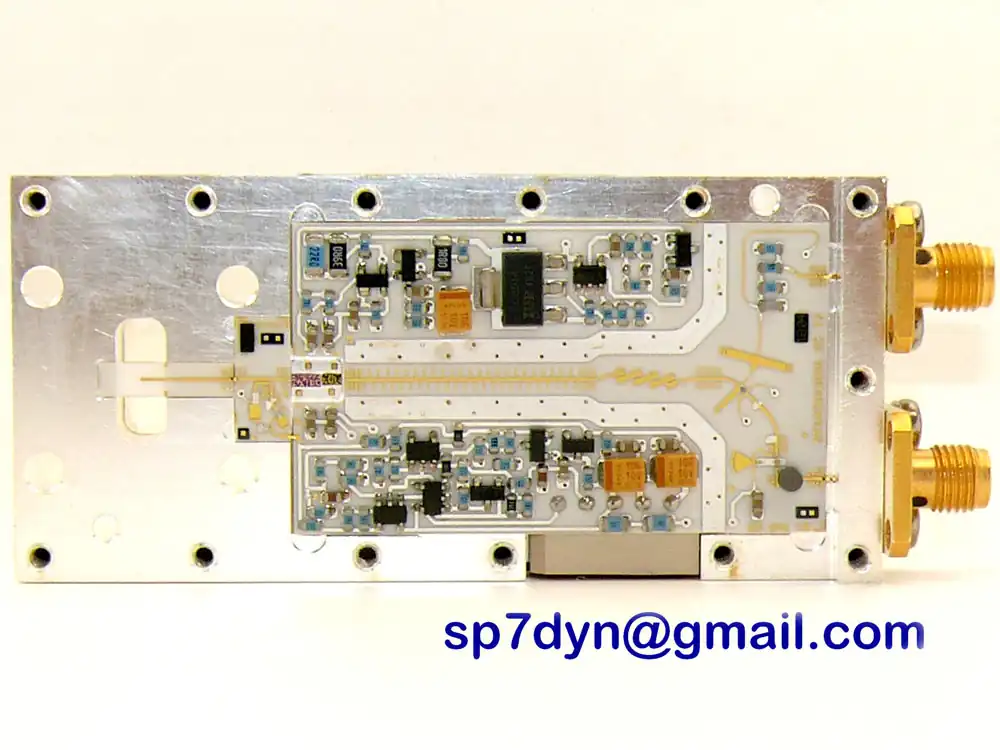

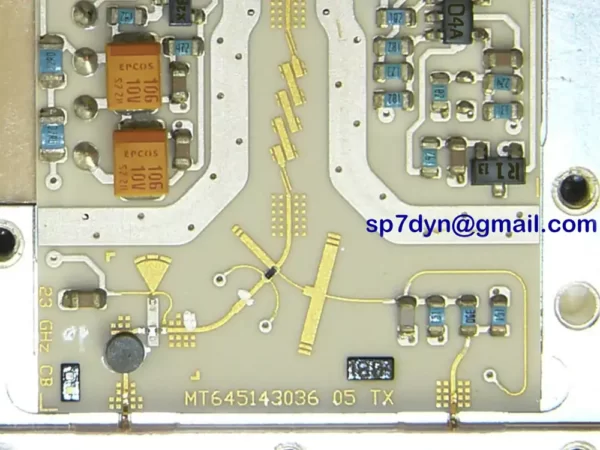

23GHz TX Up-Converter Mixer Low Band
Used, removed from the functioning
device, Cosmetic Scratches and stains!
The device is tested and functions in
technical good condition – real photos.
23GHz TX Up-Converter was tested in the
original factory device only!
The converter is sold as is!
Important note!

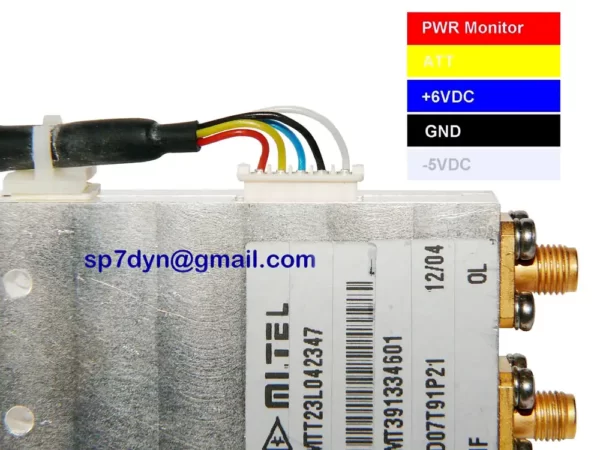

Keep the order of the supply voltages
Always first connect -5VDC then the others!!
No cable with plug included!
See also 23GHz RX module —- click here
Specifications: Frequency --------------- Low Band of 23GHz Waveguide Connector ---- WR-42 Power output ------------ 20dBm (100mW) Local oscillator input -- 10.900 to 11.800GHz (8 to 10dBm) IF input ---------------- 100 to 1200MHz (org.1.2GHz, level - unknown) Control input ----------- 0 to +5VDC Power supply ------------ +6.0VDC Power supply ------------ -5.0VDC. Remember that it is always connected first!! Coax connectors -------- SMA Price is for ------------ 1 piece
Frequency | Low Band of 23GHz |
---|---|

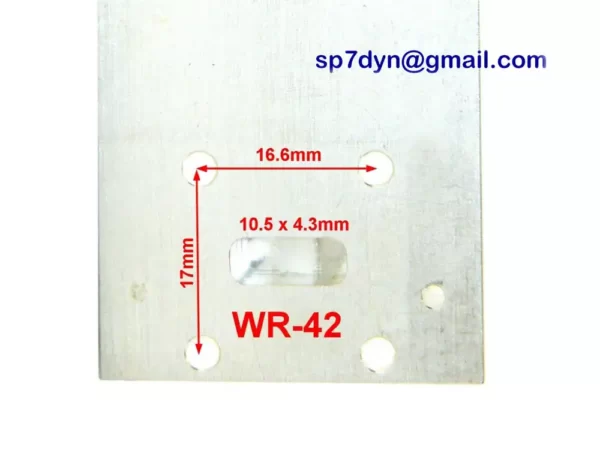

Waveguide Connector | WR-42 |
Power output | 20dBm (100mW) |
Local oscillator input | 10.900 to 11.800GHz (8 to 10dBm) |
IF input | 100 to 1200MHz (org.1.2GHz, level – unknown) |
Control input | 0 to +5VDC |
Power supply | -5.0VDC Remember that it is always connected first!! |

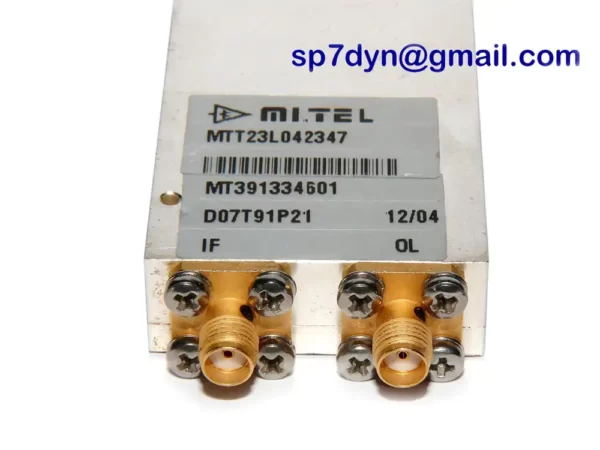

Coax connectors | SMA |
Price is for | 1 piece |
Order - How to place an order | Please place your order via e-mail: |
Shipping - method and cost | The price of the item does not include the shipping cost! |
Important information:
Please ask questions or raise concerns before placing your order.
By placing a order, you agree to all stated terms.
Offered prices is not including any taxes, customs fees.
All devices so it is sold as-is, no returns, no refund!
Order – How to place an order:
Please place your order via e-mail:
contact@sp7dyn.com
sp7dyn@gmail.com
In your order, please provide the title of the item,
the SKU number and the link to the item on my website.
Shipping – method and cost:
The price of the item does not include the shipping cost!
Before ordering, click here and check the shipping costs and
delivery time STANDARD or PRIORITY of your choice – click here.
I combine purchases – with multiple purchases, you pay for shipping once.
After ordering, please give me exact shipping address with phone number.
