23GHz RX Down-Converter Mixer High Band
$115,00
SKU: 049
4 in stock
4 in stock
Price does not include shipping cost !

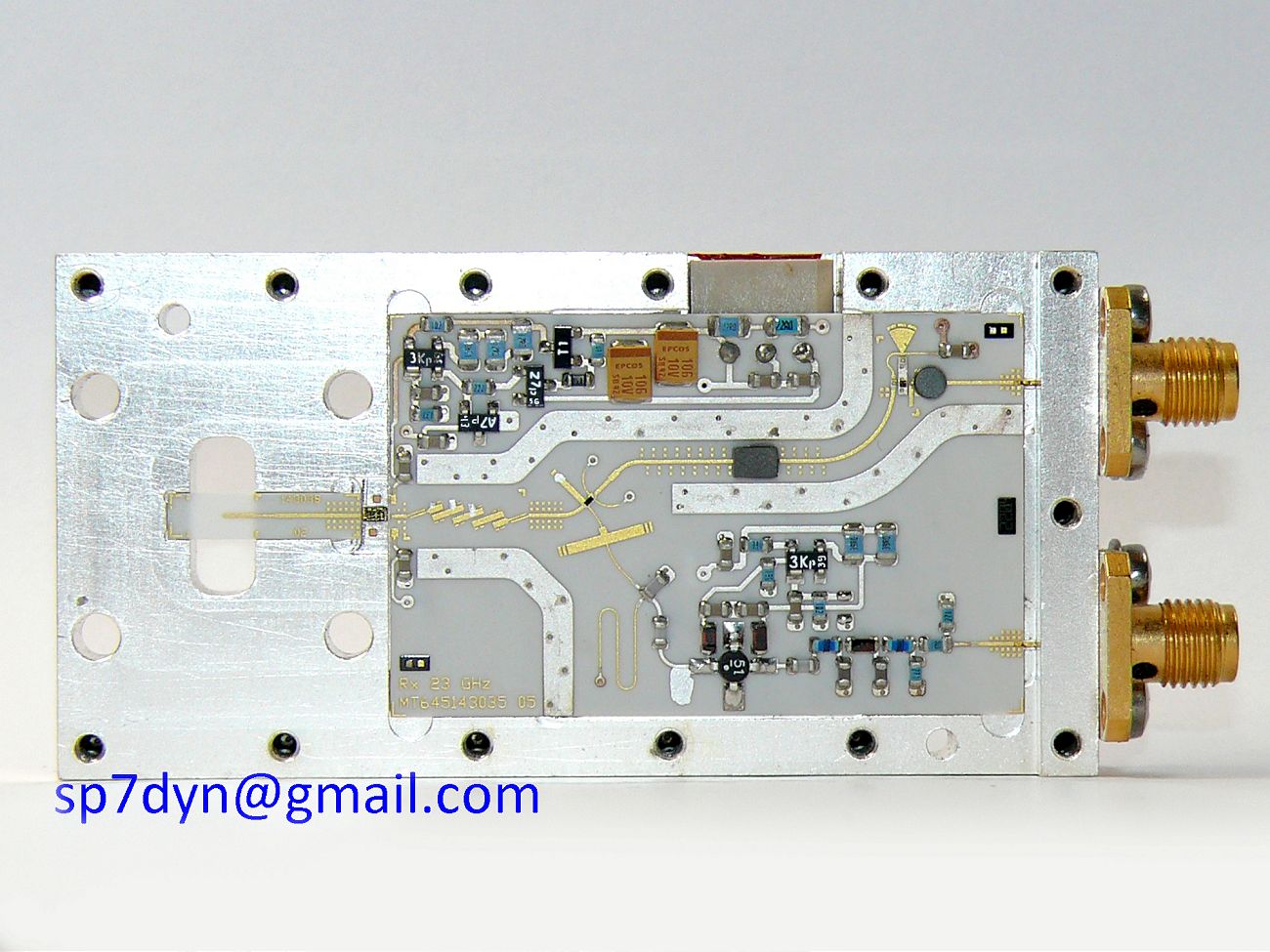

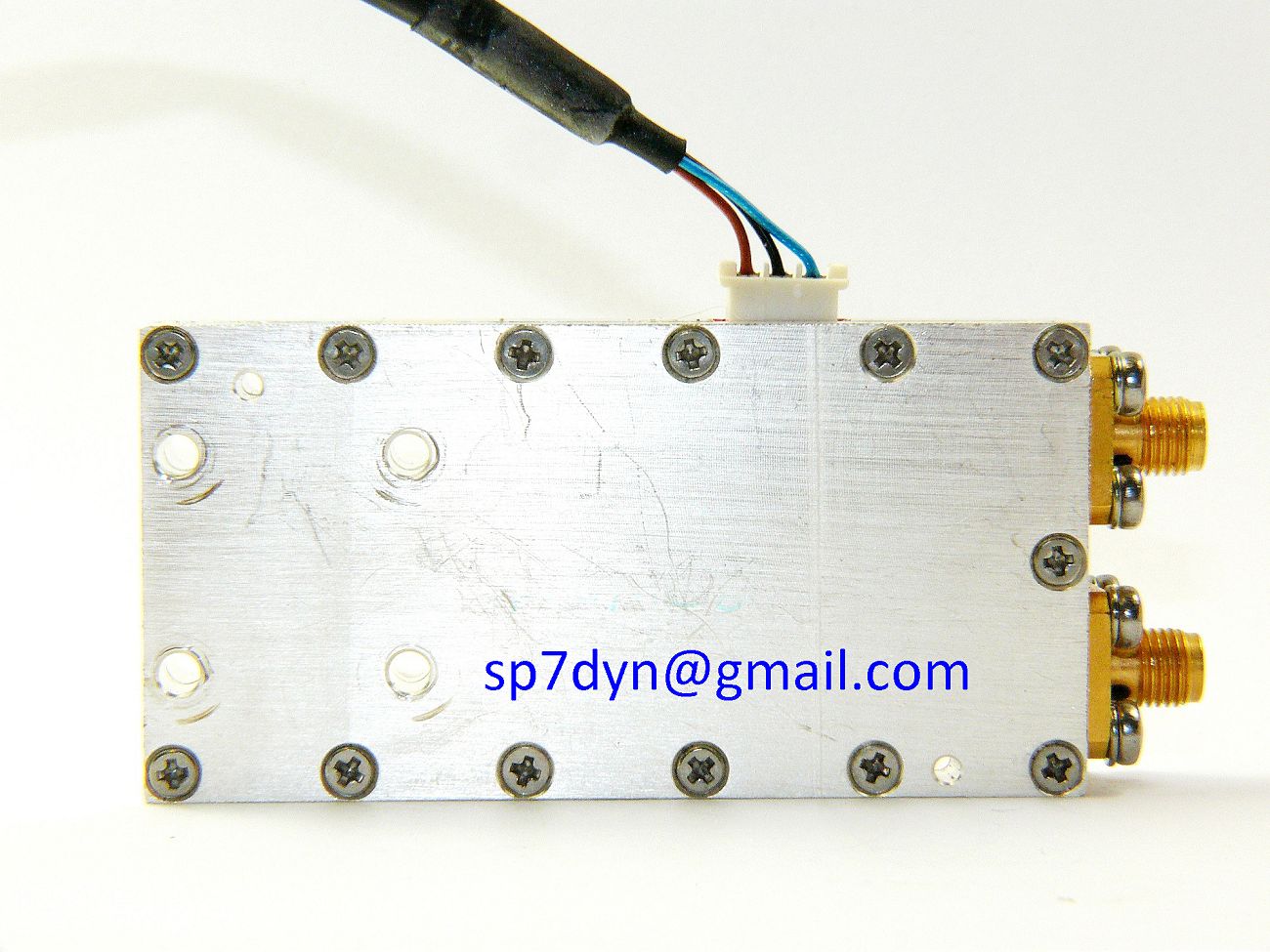

23GHz RX Down-Converter Mixer High Band
The device is tested and functions in
technical good condition – real photos.
The module was tested in the original
factory device only, is sold as is!
Link to Local Oscillator 13.238GHz —– Click Here
Link to 26GHz RX Module ——————— Click Here
Important note!

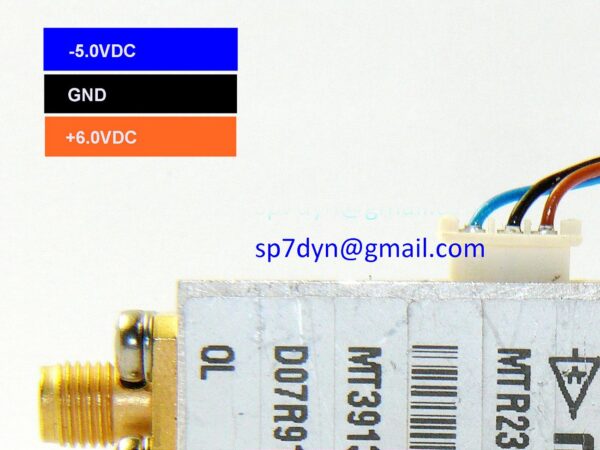

Keep the order of the supply voltages
Always first connect -5VDC then the others!
Specifications:
Frequency ------------- 23GHz High Band

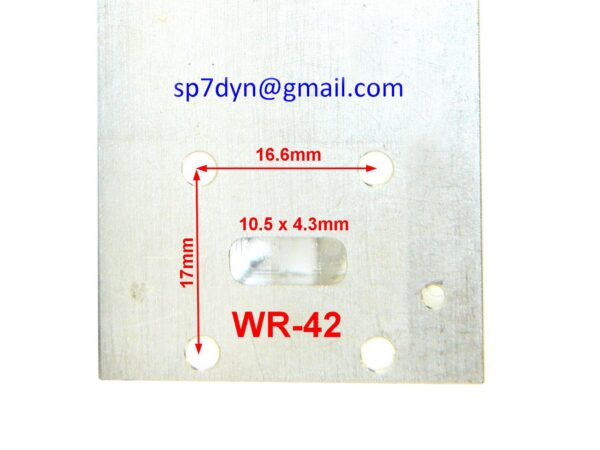

Waveguide Connectors -- WR-42
LO input -------------- 11.2-12.3GHz 8-10dBm
IF out ---------------- 100-1200MHz org.1.2GHz
Power supply ---------- +6.0VDC
Power supply ---------- -5.0VDC
Coax connectors ------- SMA
-
Price is for ---------- 1 piece
Frequency | 23GHz High Band |
---|---|
Waveguide Connectors | WR-42 |
Local oscillator input | 11.200 to 12.300GHz (8-10dBm) |
IF out | 100 to 1200MHz (org.1.2GHz) |
Supply voltage - | -5.0VDC (always first) |
Coax Connectors | SMA |
Condition | Converter is used, removed from the functioning device, Cosmetic Scratches and stains!The device is tested and functions in technical good condition – real photos. The converter is sold as is! |
Order - How to place an order | Please place your order via e-mail: |
Shipping - method and cost | The price of the item does not include the shipping cost! |
Important information:
Please ask questions or raise concerns before placing your order.
By placing a order, you agree to all stated terms.
Offered prices is not including any taxes, customs fees.
All devices so it is sold as-is, no returns, no refund!
Order – How to place an order:
Please place your order via e-mail:
contact@sp7dyn.com
sp7dyn@gmail.com
In your order, please provide the title of the item,
the SKU number and the link to the item on my website.
Shipping – method and cost:
The price of the item does not include the shipping cost!
Before ordering, click here and check the shipping costs and
delivery time STANDARD or PRIORITY of your choice – click here.
I combine purchases – with multiple purchases, you pay for shipping once.
After ordering, please give me exact shipping address with phone number.
