WR-42 Waveguide Isolator 20dB Isolation
$67,00
SKU: 347
6 in stock
6 in stock

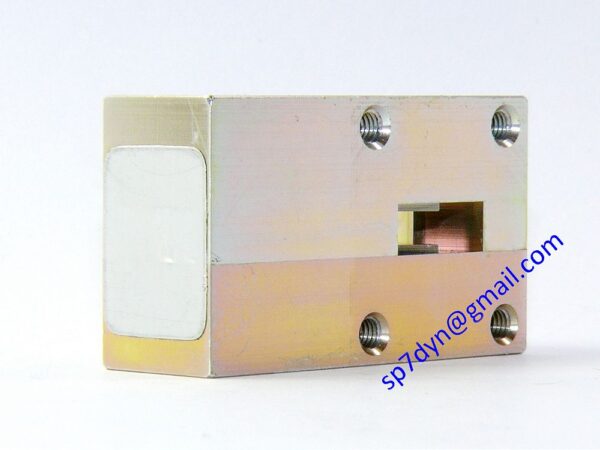

WR-42 Waveguide Isolator 20dB Isolation

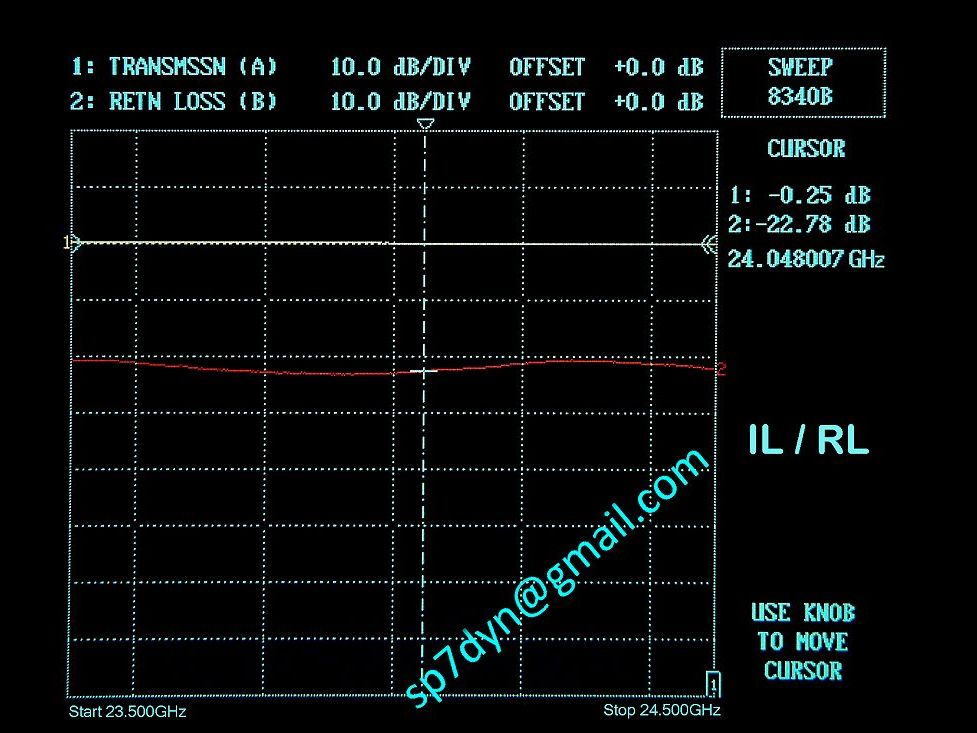

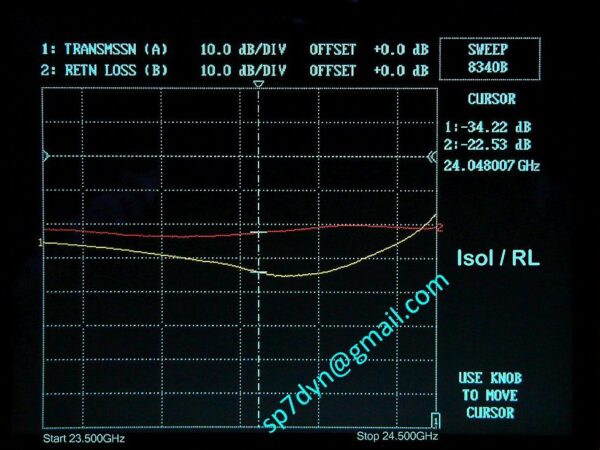

Device is great for 24GHz band – see photoplot.
WR42 Waveguide Isolator is tested and functions

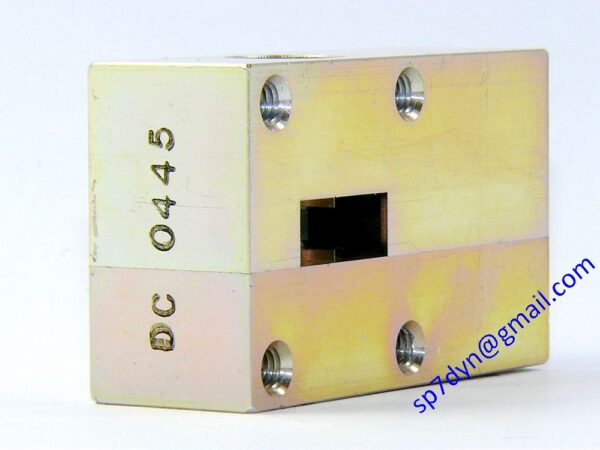

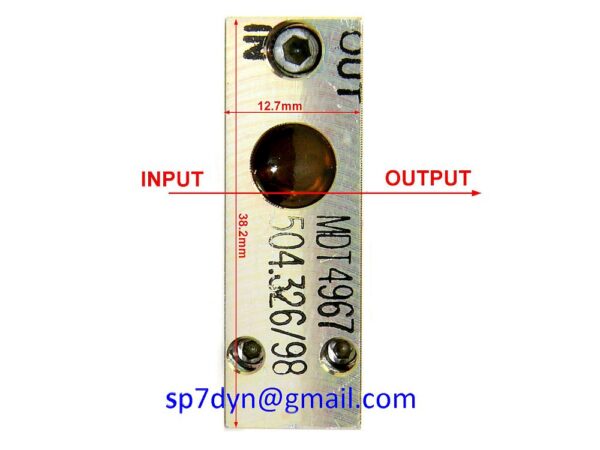

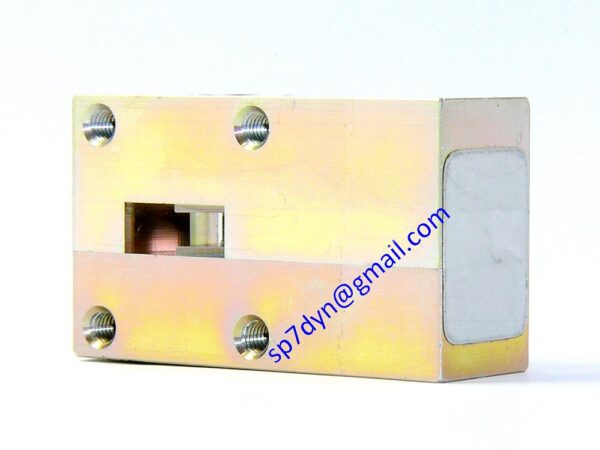

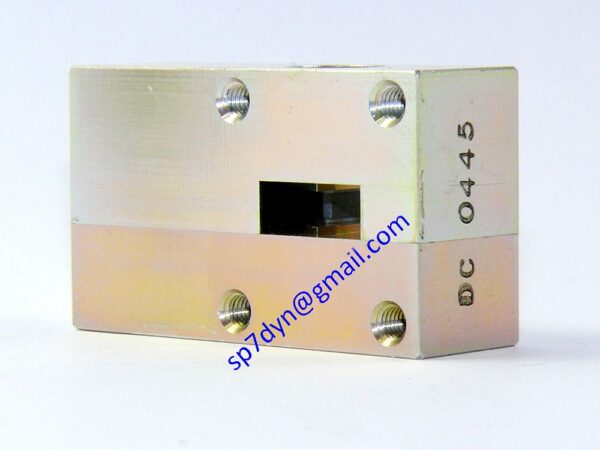

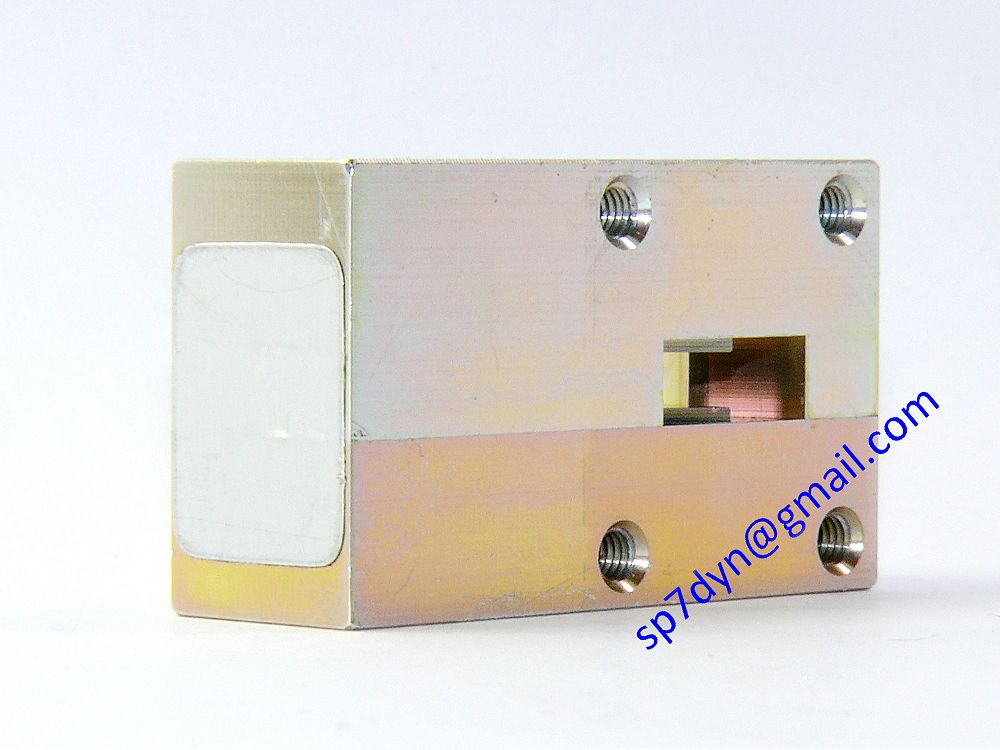

in technical good condition – real photos.
Warning!
The insulator is not a standard version,
This batch is of special military production.
The measurements were taken in my laboratory
See also WR42 Circulator ———- Click here

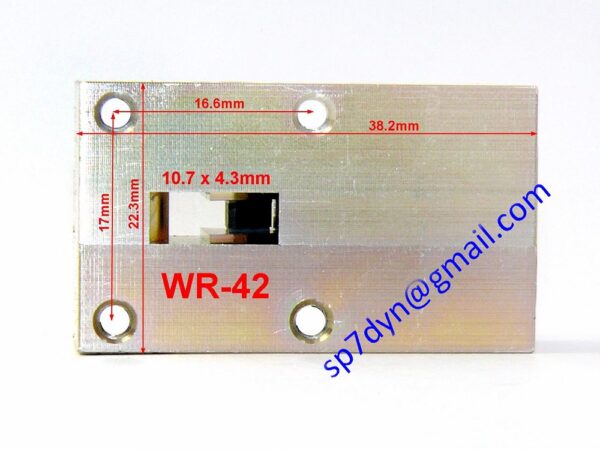

Specifications: Waveguide Connectors --- WR-42 Frequency range test --- 23.5 - 24.5GHz Isolation -------------- 20dB min typ 23dB Insertion loss IN-OUT -- 0.3dB +0.2/-0.2 error Return Loss ------------ 20dB min 23dB typ Power max -------------- 5Watts Material --------------- Aluminium The holes -------------- M3 - Price for -------------- 1 piece
| Marka | MaCom |
|---|---|
| Waveguide Connectors | WR-42 |
| Frequency range test | 23.5 – 24.5GHz |
| Isolation | 20dB min typ 23dB |
| Insertion loss IN-OUT | 0.3dB +0.2/-0.2 error |
| Return Loss | 20dB min 22dB typ |
| Power max | 5 Watts |
| Material | Aluminium |
| The holes | M3 |
| Price for | 1 piece |
| Order - How to place an order | Please place your order via e-mail: |
| Shipping - method and cost | The price of the item does not include the shipping cost! |
