WR-42 Waveguide Isolator 20dB Isolation
$67,00
SKU: 347
6 in stock
6 in stock
Price does not include shipping cost !
WR-42 Waveguide Isolator 20dB Isolation

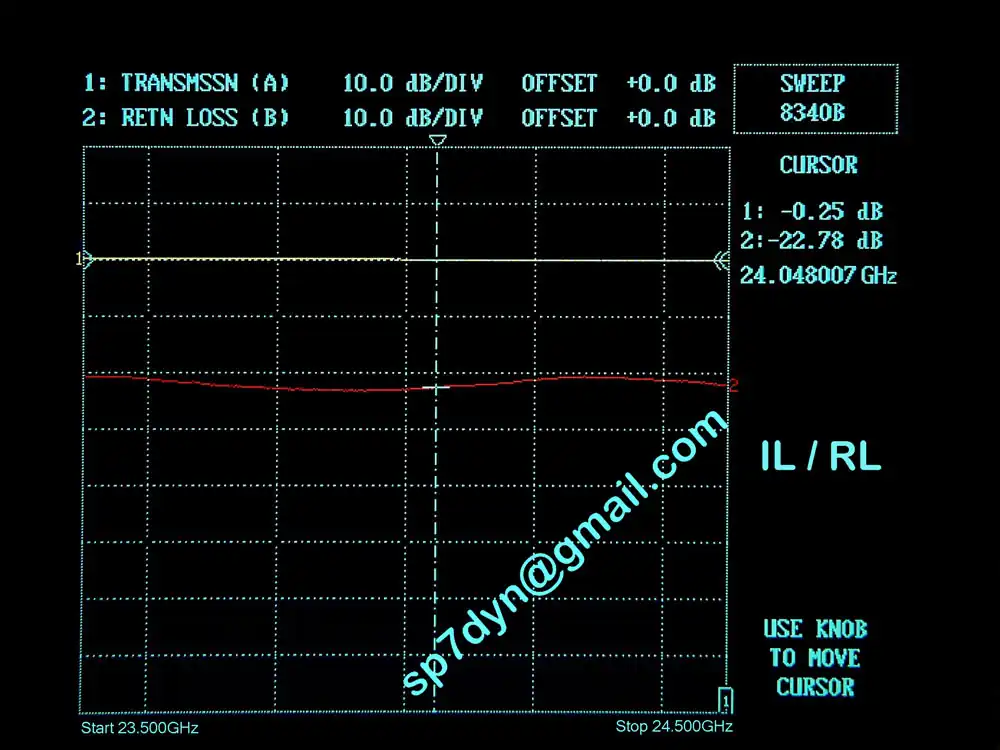

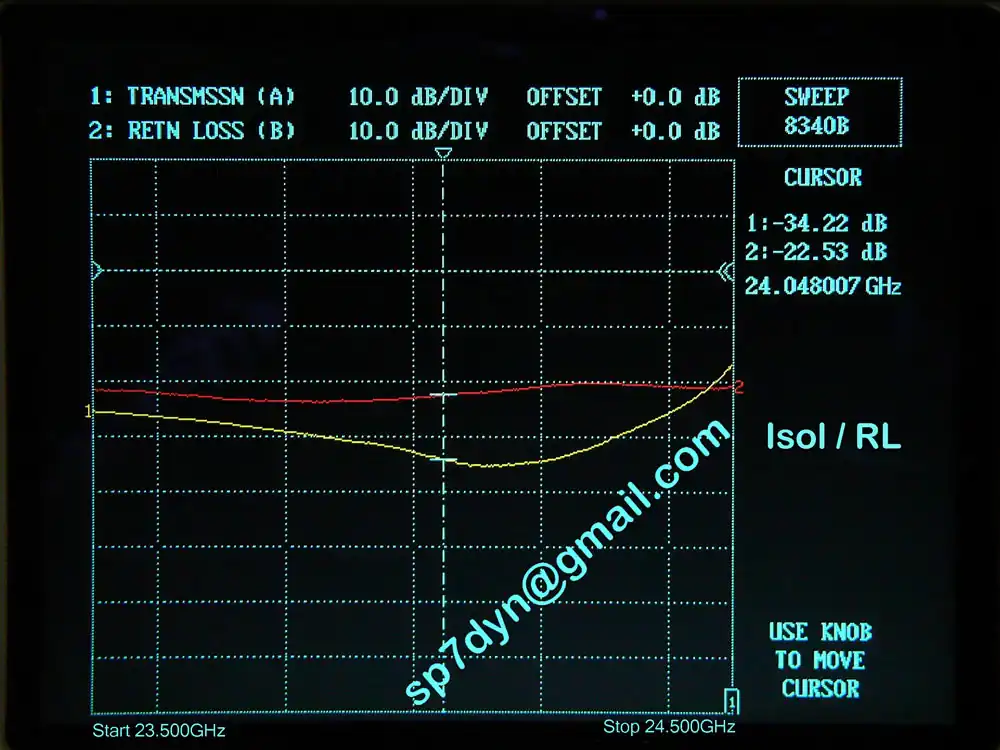

Device is great for 24GHz band – see photoplot.

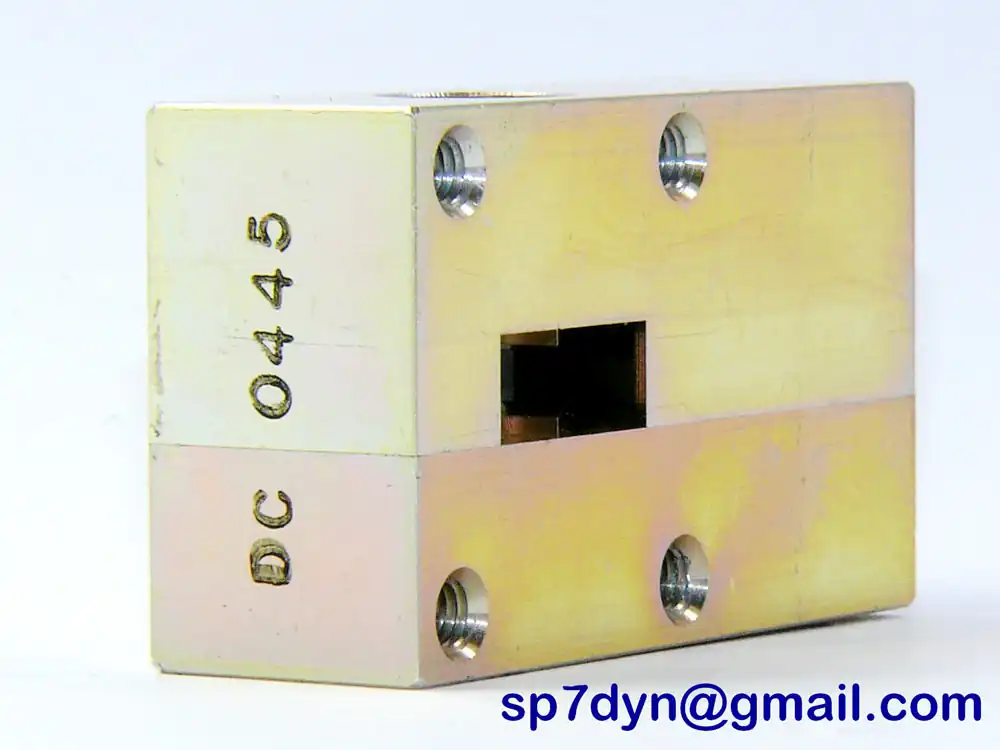

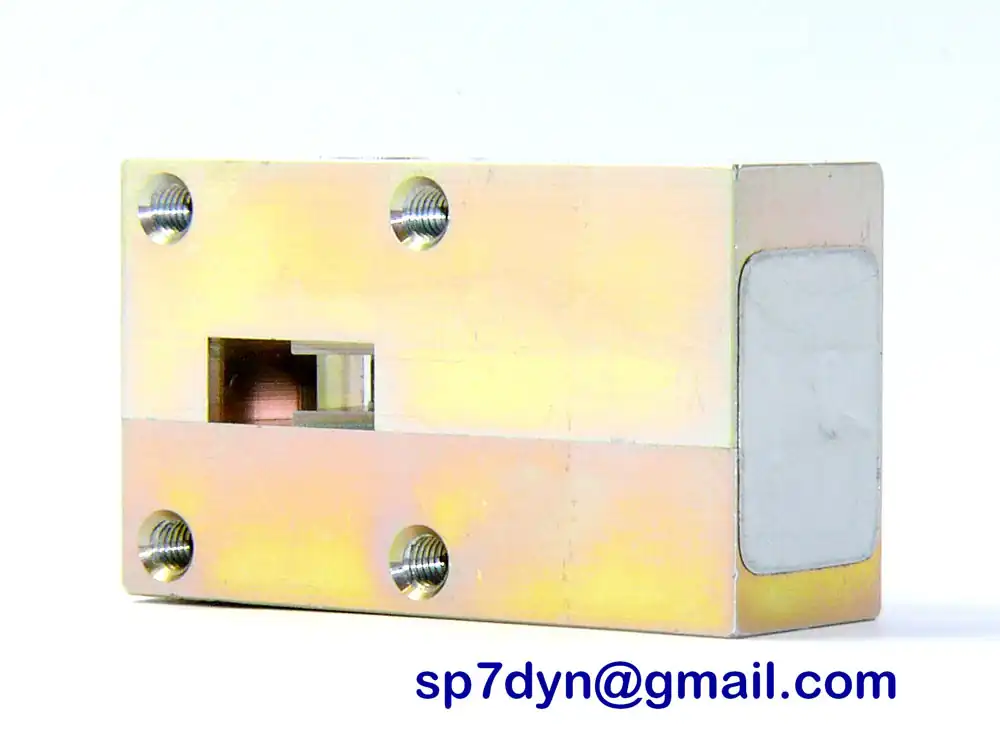

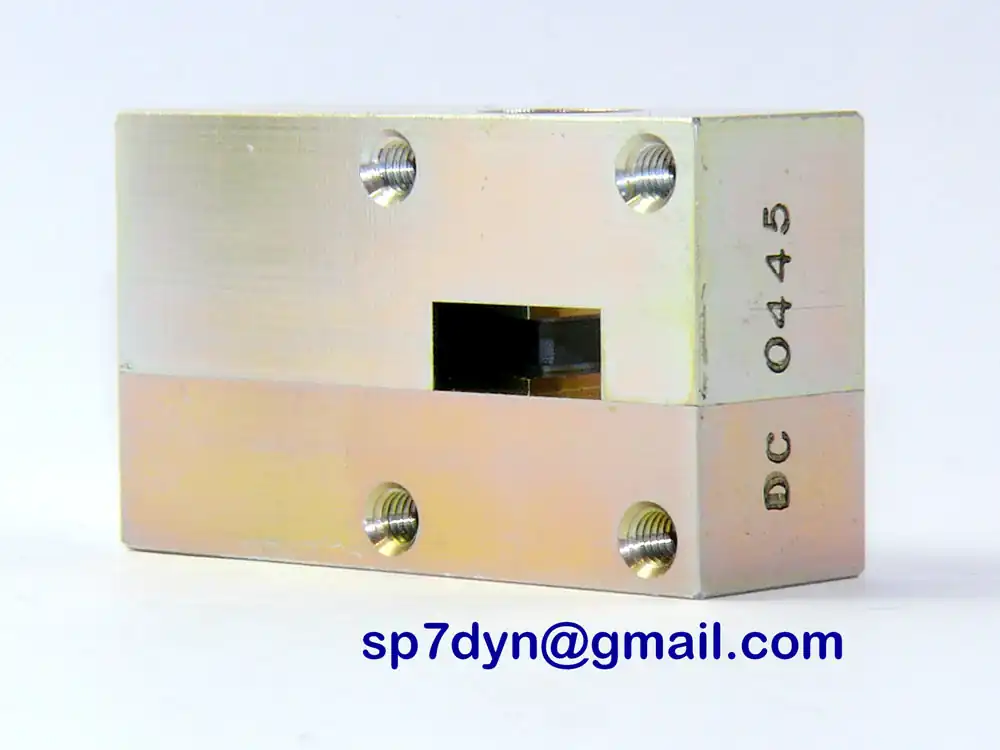

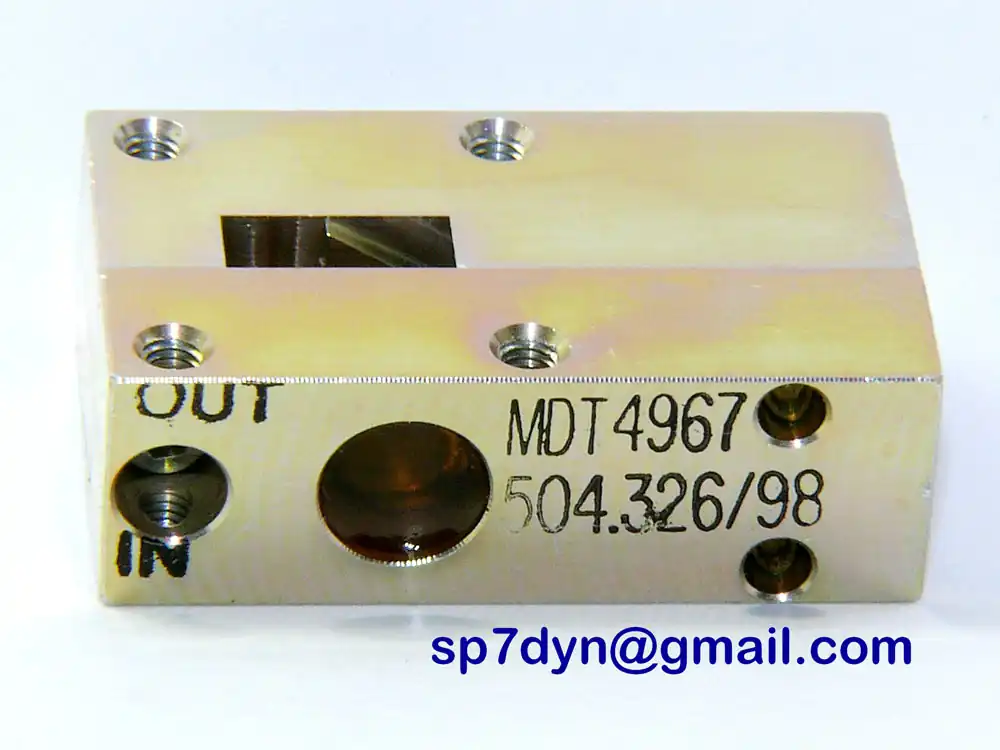

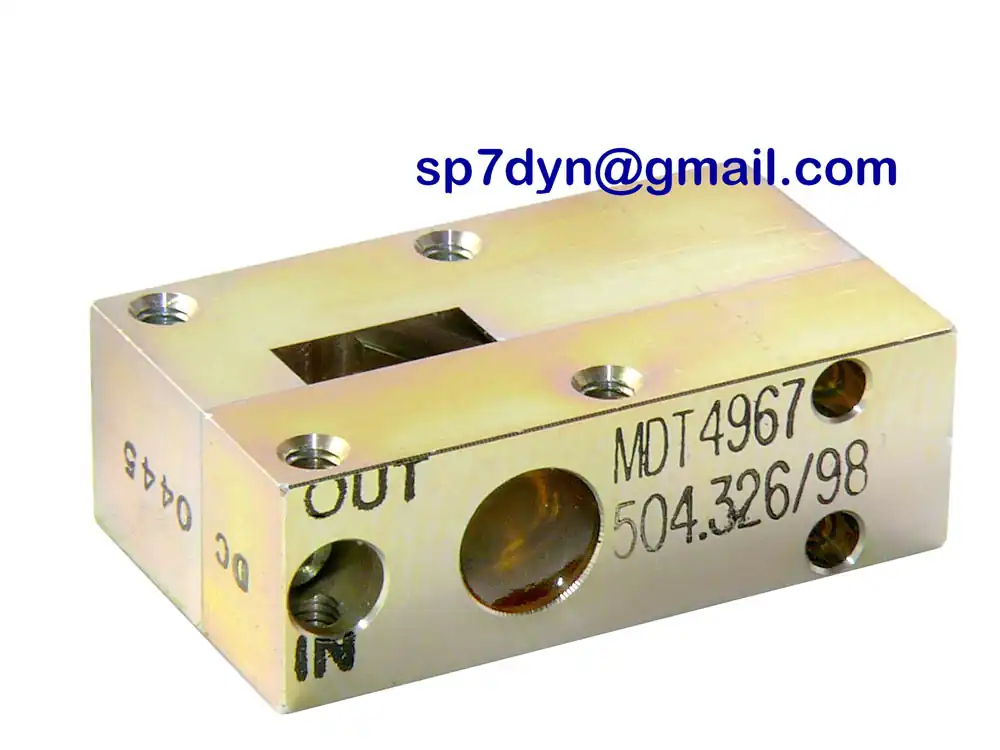

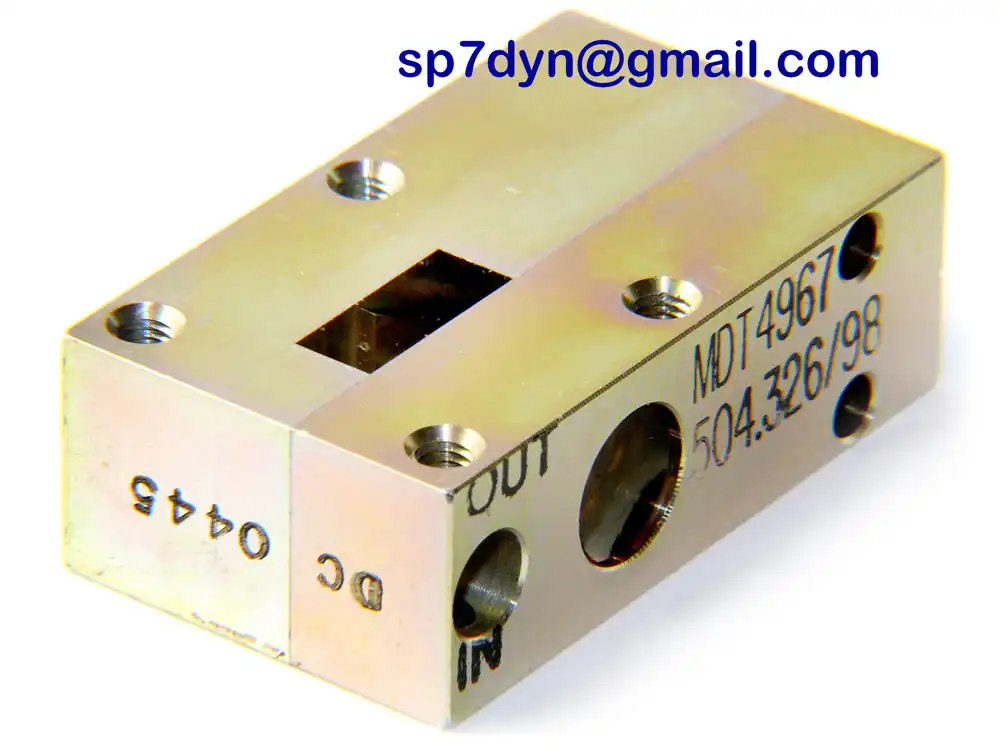

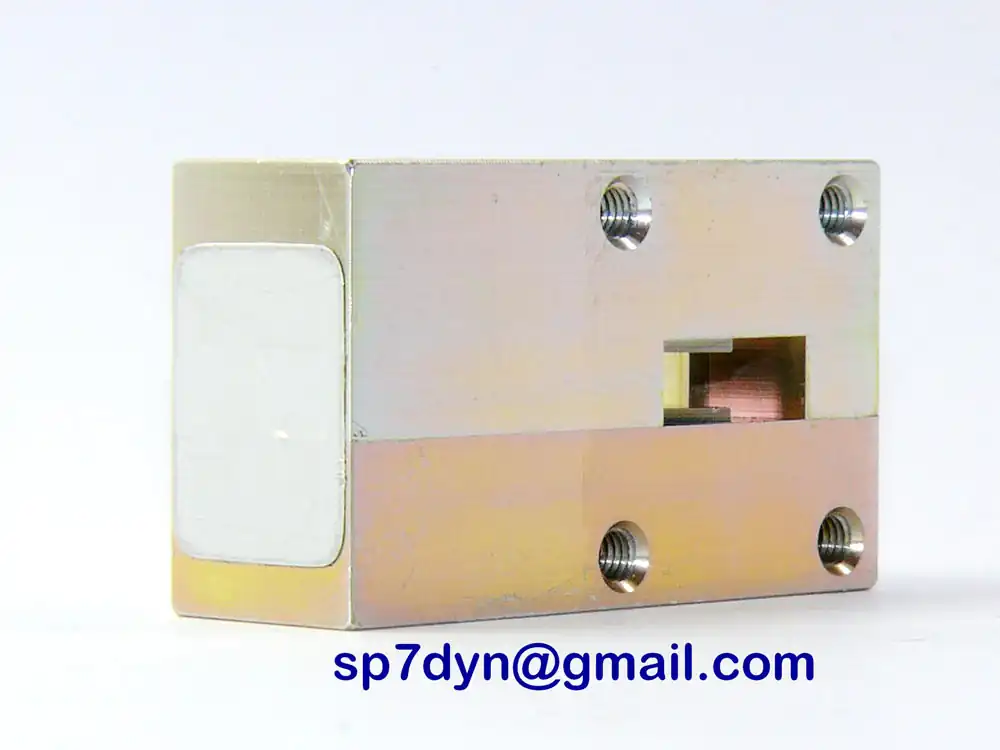

WR42 Waveguide Isolator is tested and functions
in technical good condition – real photos.
Warning!
The insulator is not a standard version,
This batch is of special military production.
The measurements were taken in my laboratory
See also WR42 Circulator ———- Click here

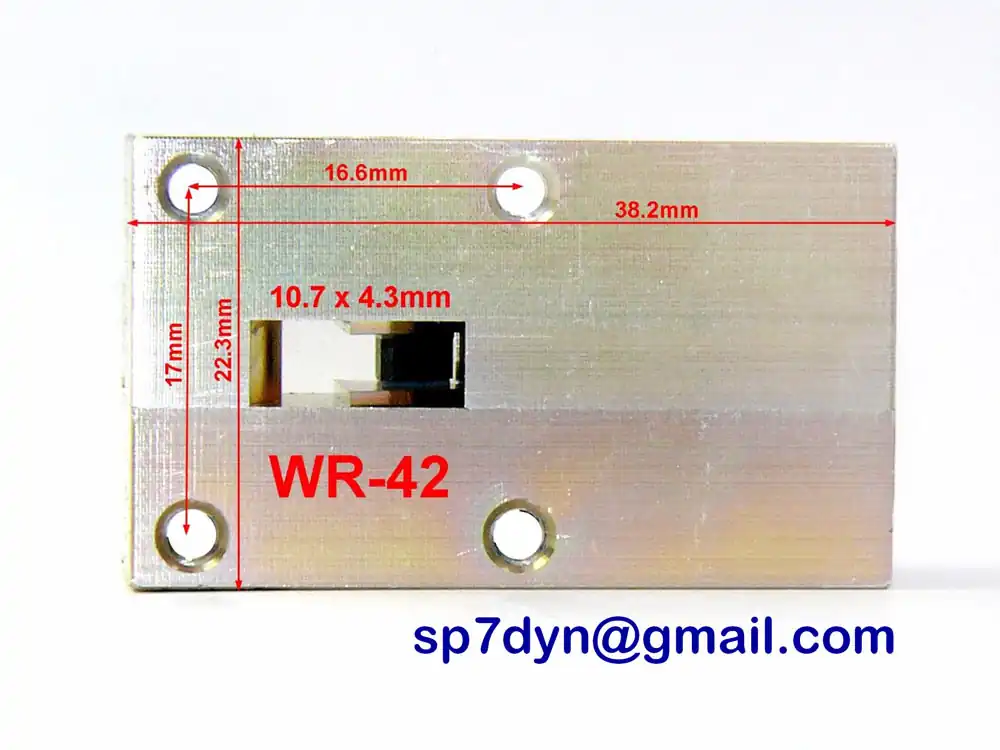

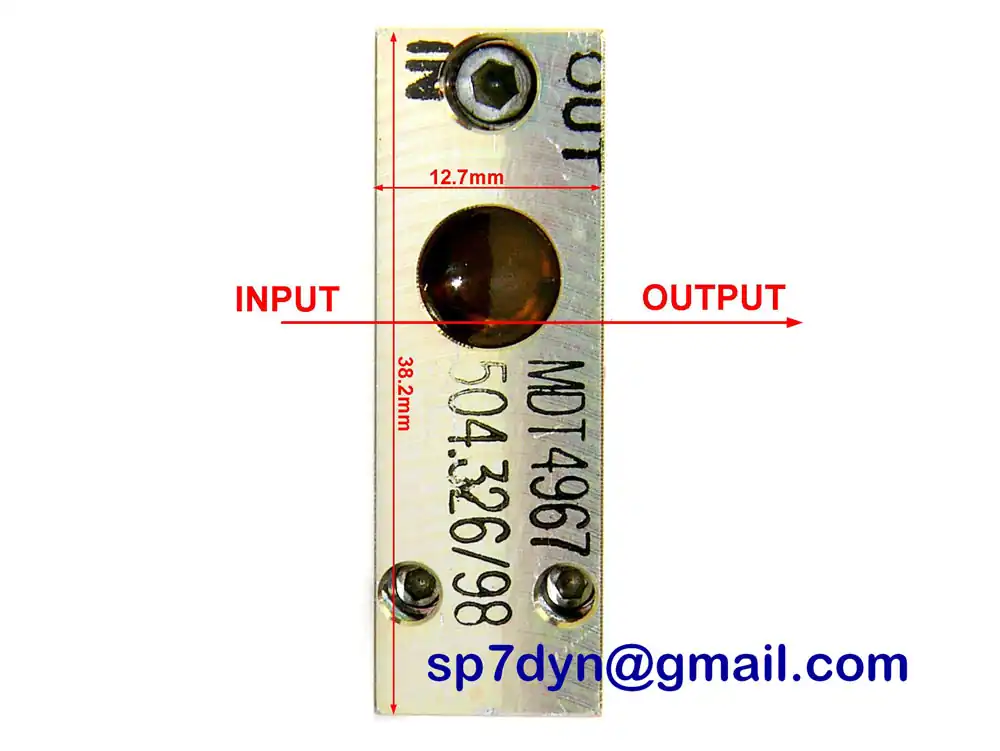

Specifications: Waveguide Connectors --- WR-42 Frequency range test --- 23.5 - 24.5GHz Isolation -------------- 20dB min typ 23dB Insertion loss IN-OUT -- 0.3dB +0.2/-0.2 error Return Loss ------------ 20dB min 23dB typ Power max -------------- 5Watts Material --------------- Aluminium The holes -------------- M3 - Price for -------------- 1 piece
Brand | MaCom |
---|---|
Waveguide Connectors | WR-42 |
Frequency range test | 23.5 – 24.5GHz |
Isolation | 20dB min typ 23dB |
Insertion loss IN-OUT | 0.3dB +0.2/-0.2 error |
Return Loss | 20dB min 22dB typ |
Power max | 5 Watts |
Material | Aluminium |
The holes | M3 |
Price for | 1 piece |
Order - How to place an order | Please place your order via e-mail: |
Shipping - method and cost | The price of the item does not include the shipping cost! |
Important information:
Please ask questions or raise concerns before placing your order.
By placing a order, you agree to all stated terms.
Offered prices is not including any taxes, customs fees.
All devices so it is sold as-is, no returns, no refund!
Order – How to place an order:
Please place your order via e-mail:
contact@sp7dyn.com
sp7dyn@gmail.com
In your order, please provide the title of the item,
the SKU number and the link to the item on my website.
Shipping – method and cost:
The price of the item does not include the shipping cost!
Before ordering, click here and check the shipping costs and
delivery time STANDARD or PRIORITY of your choice – click here.
I combine purchases – with multiple purchases, you pay for shipping once.
After ordering, please give me exact shipping address with phone number.
