WR42 Waveguide Circulator Isolator Switch
$76,00
SKU: 137
10 in stock
10 w magazynie
WR42 Waveguide Circulator Isolator Switch.
The item is perfect for working in the 24GHz band.
It can work as a cyculator, insulator, and as a switch.
The device is tested and functions

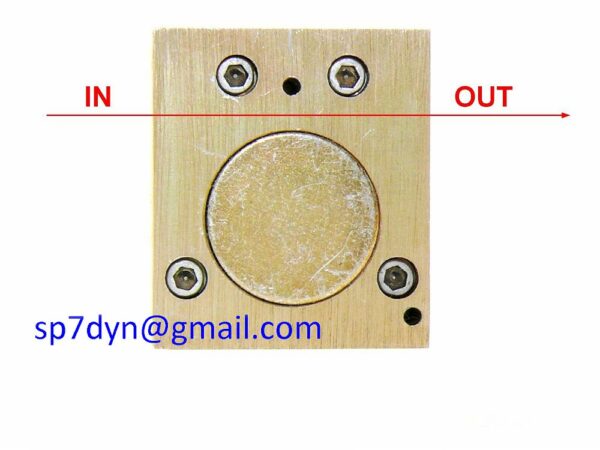

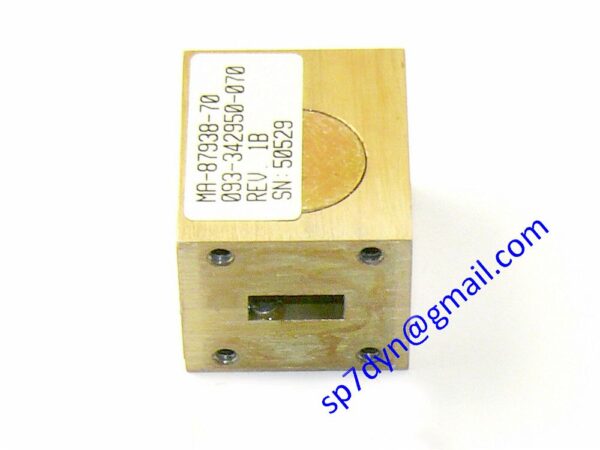

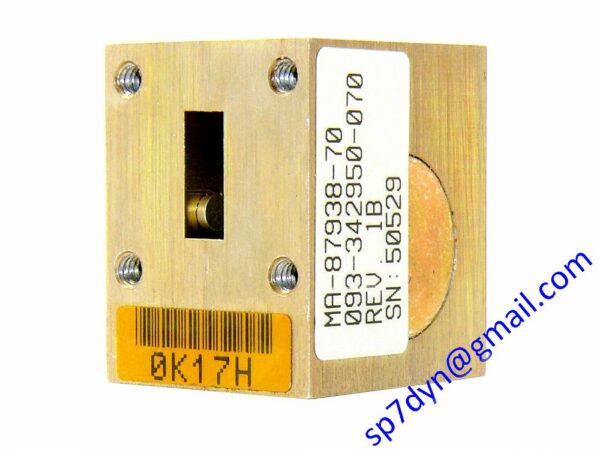

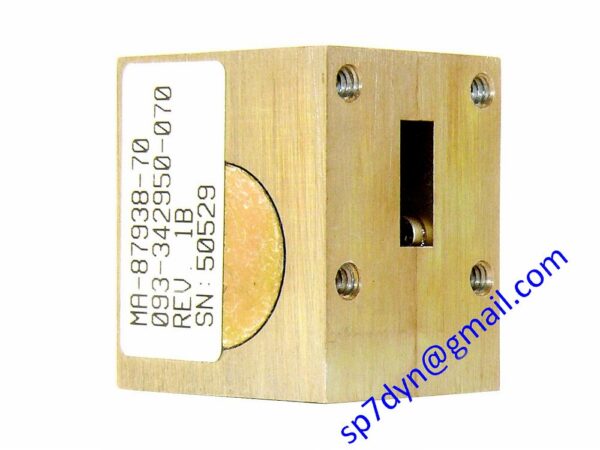

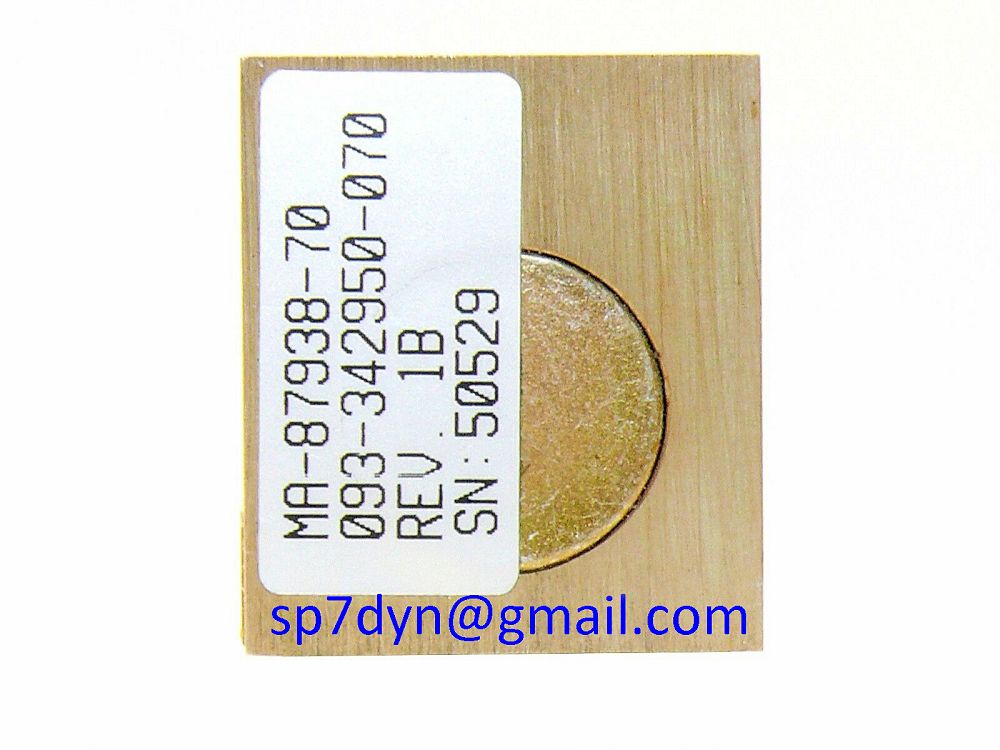

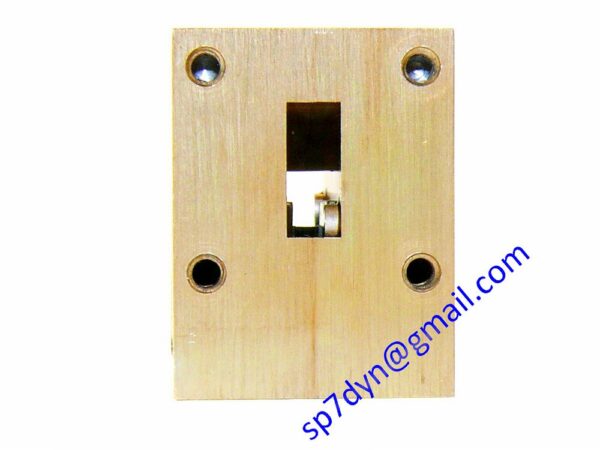

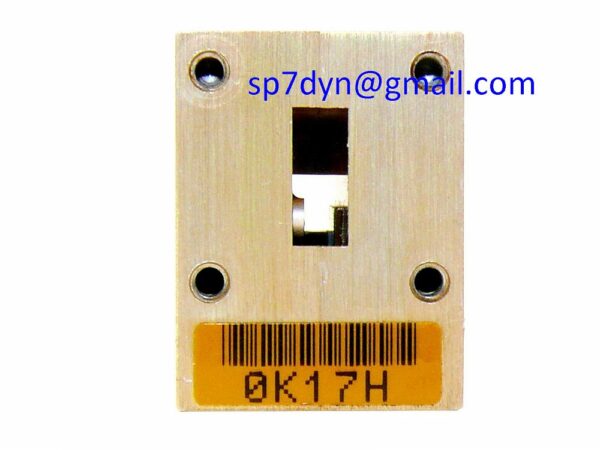

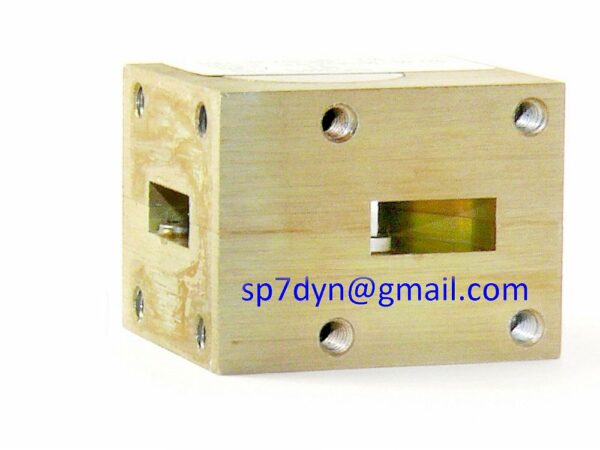

in technical good condition – real photos.
See also WR42 Isolator —————— Click here
Specifications: Brand -------------------- Military product Frequency Test on -------- 24.05GHz SWR 3xPorts less than 1.07 (max1.1) Waveguide Connectors x3 -- WR42 Isolation on 24.050 GHz--- Min.22dB Typ. 24dB Max 26dB Insertion loss IN-OUT ---- less than 0.11 dB Power max ---------------- 20 Watts Material ----------------- Aluminium - Price for 1piece
| Frequency Test on | 24.05GHz SWR 3xPorts less than 1.07 (max1.1) |
|---|---|

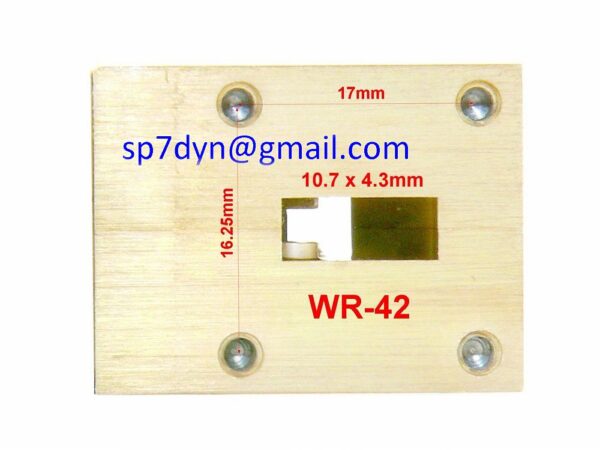

| Waveguide Connectors | 3x WR-42 |

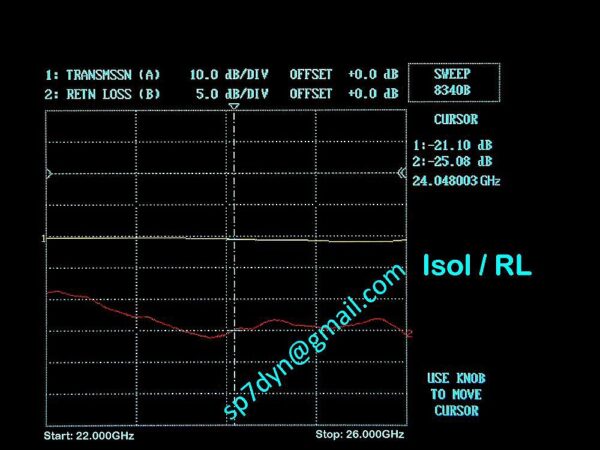

| Isolation | on 24.050 GHz – Min.22dB Typ. 24dB Max 26dB |

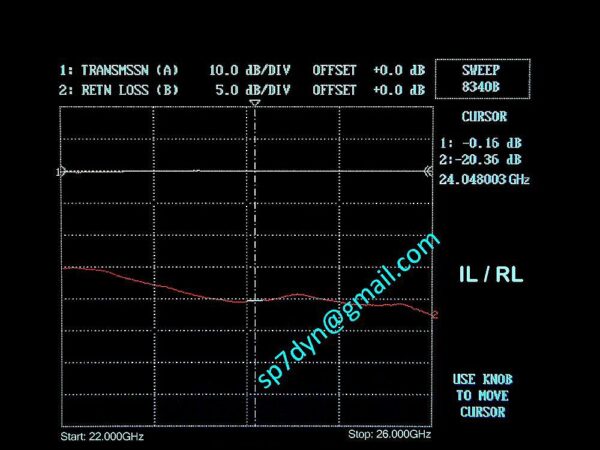

| Insertion loss | IN-OUT – less than 0.11 dB |
| Power | 20W max |
| Material | Aliminium |
| Order - How to place an order | Please place your order via e-mail: |
| Shipping - method and cost | The price of the item does not include the shipping cost! |
