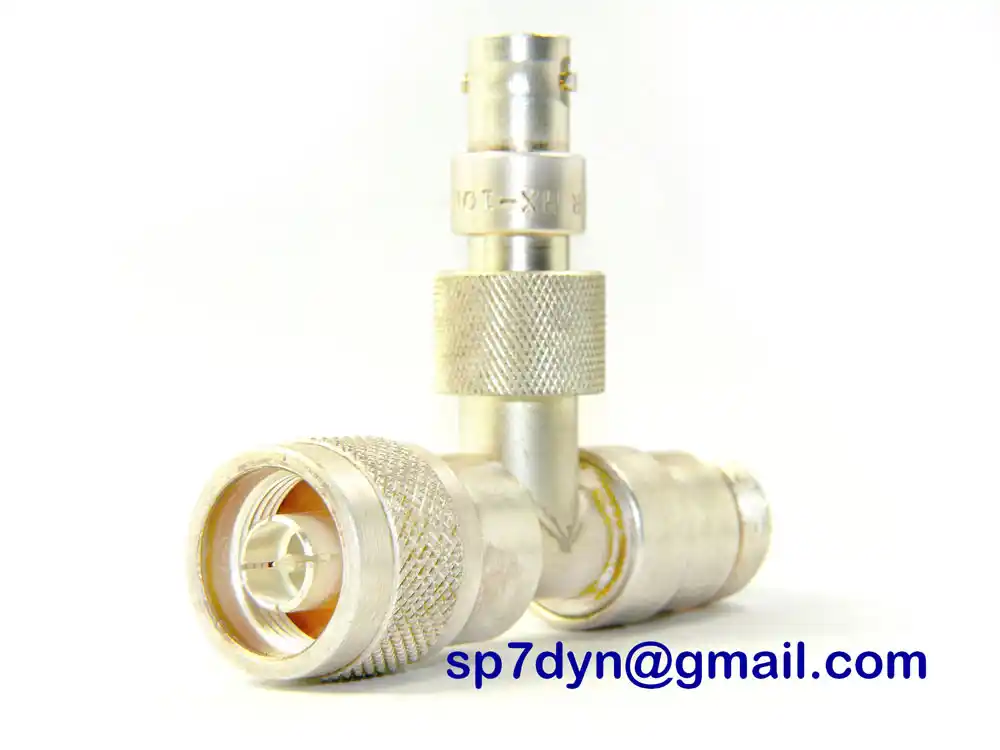

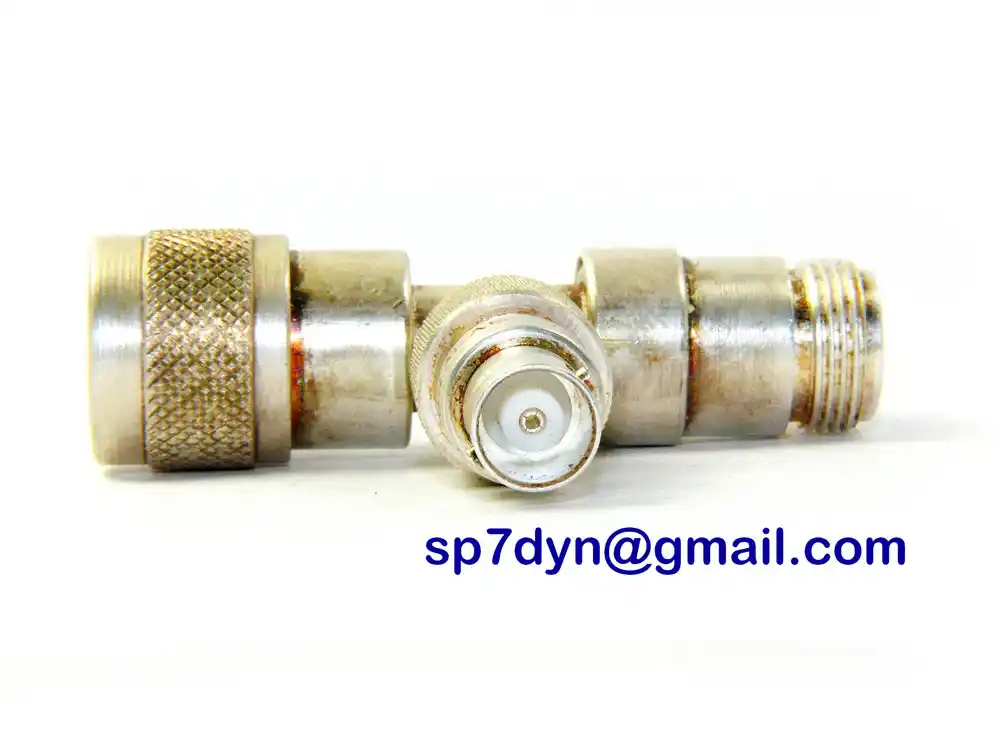

High Power Coupler Sampler 50-12000MHz Adj Coupling
Broad band, low loss -15 to – 95dB MICROLAB
Microlab Models HX series reactive samplers consist of aprobe
loosely coupled to a short length of 50 coaxial transmission line.
A small portion of the RF energy in the main line is coupled by
the probe to the auxiliary output, the balance being transmitted
to the output with negligible reflection or loss.
The coupling between probe and main line is continuously
adjustable and may be locked at any convenient position.

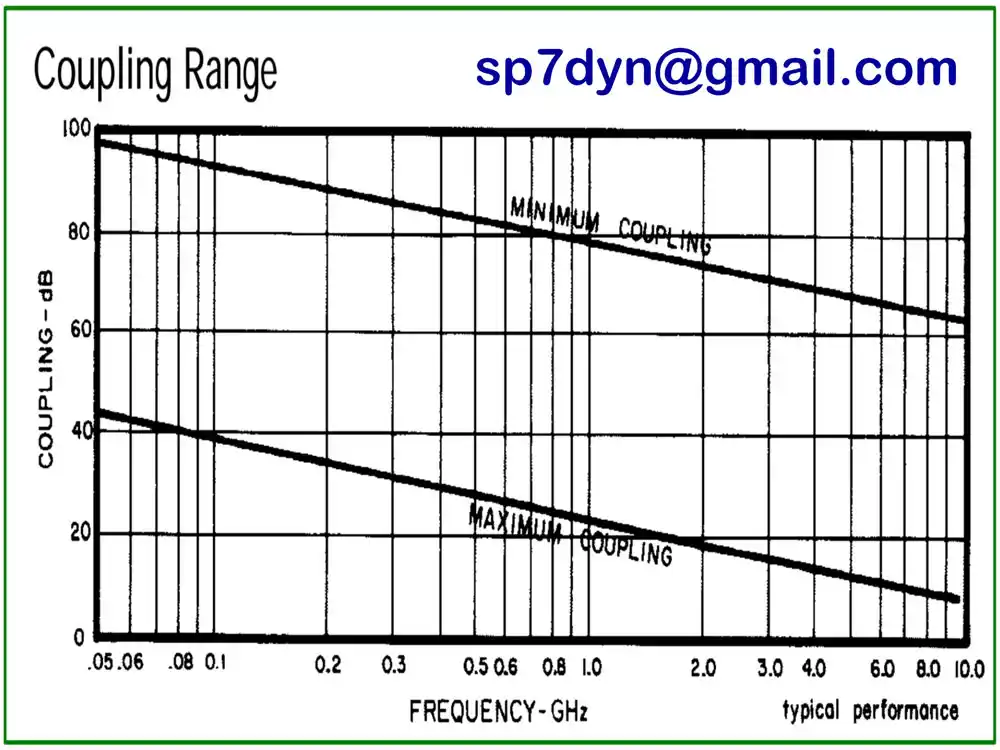

The coupling value is dependent on frequency falling at the
rate of 6 dB per octave as frequency increases.
Units consist of a low-loss main line with both terminals available.
–
The device has excellent broad band parameters,
is great fo ham radio, radio control, laboratory measurements.
These sampler is used, cosmetic scratches and stains, tested
and functions, removed from military equipment,
and guaranteed to your satisfaction, real photos, see data!
–

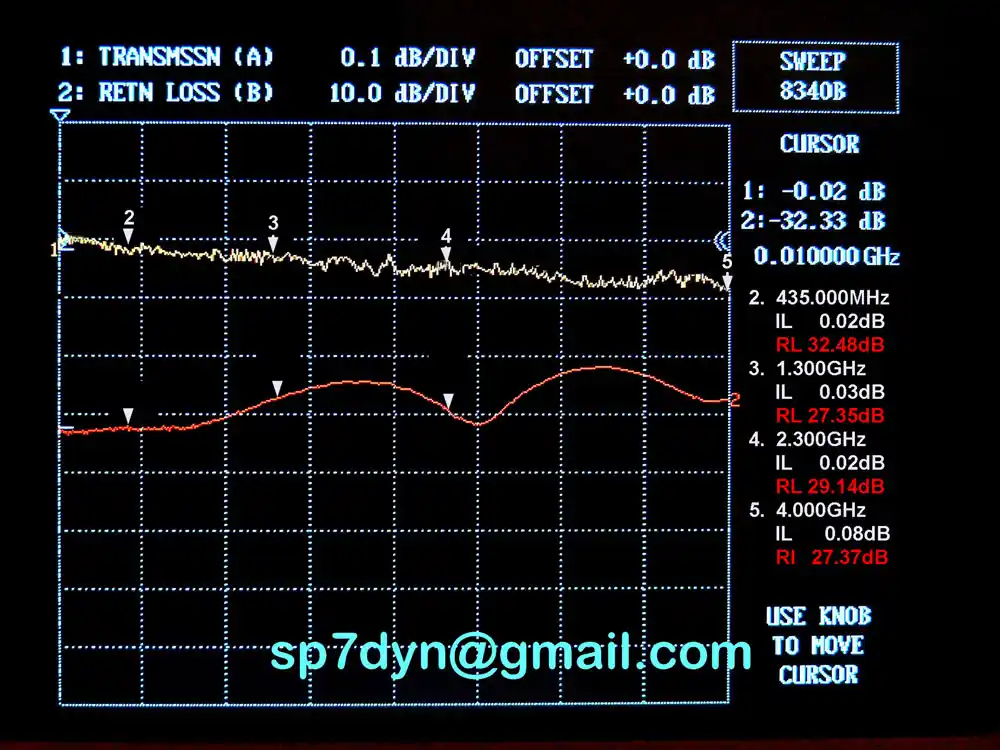

Each sampler has been tested for Insersion loss and return loss!

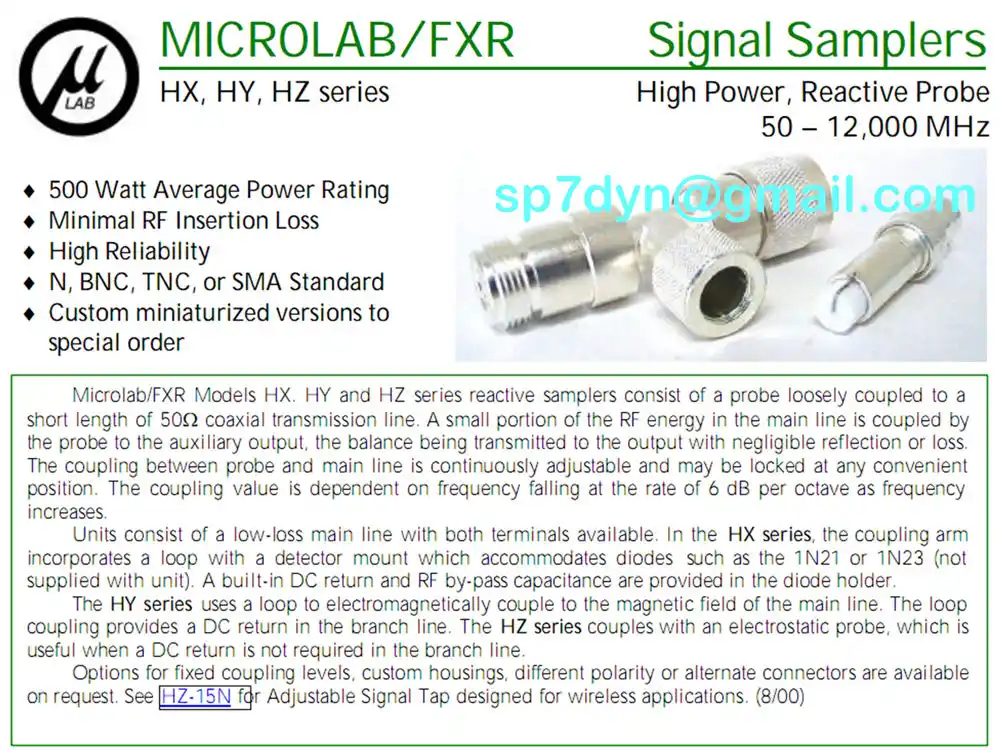

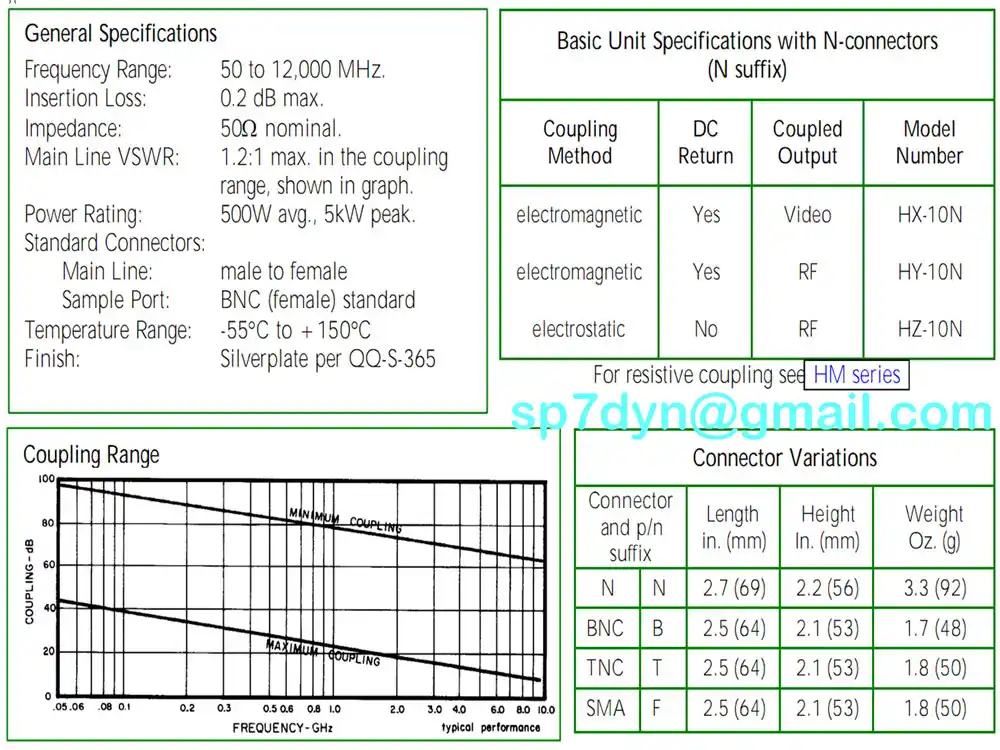

Link to ————————————– PDF
Link to ————————————– Diode
Specifications: Manufacturer ---------- MICROLAB (military product). Model ----------------- HX-10N Frequency work range -- 50-12000MHz Couplung output ------- -15 to -95dB Impedance ------------- 50 Ohms Insertion loss max----- 0.08dB Power test ------------ 1000Watts on 50MHz Warning! The diode can easily be damaged! Power test ------------ 500Watts on 2300MHz Connectors line ------- N Connector Cpl --------- BNC Diode detector -------- 1N23 can be replaced (Set includes diode) Link to Diode Housing --------------- Brass Silver Plating Super military production -- High quality & Reliability Weight ---------------- 0.1kg - Price is for ---------- 1 piece
Model | HX-10N Military Product |
---|---|
Frequency work range | 10MHz to 4GHz – tested |
Couplung output | -15 to -95dB |
Impedance | 50Ohms |
Insertion loss | 0.08dB max |
Power test on 50MHz | 1000Watts Warning! The diode can easily be damaged! |
Power test on 2300MHz | 500Watts |
VSWR | 1.15:1 |
Connectors line | N |
Connector Cpl | BNC |
Diode detector | 1N23 can be replaced (Set includes diode) |
Housing | Brass Silver Plating |
Quality | Super military production – High quality & Reliability |
Weight | 0.1kg |
Order - How to place an order | Please place your order via e-mail: |
Shipping - method and cost | The price of the item does not include the shipping cost! |
Important information:
Please ask questions or raise concerns before placing your order.
By placing a order, you agree to all stated terms.
Offered prices is not including any taxes, customs fees.
All devices so it is sold as-is, no returns, no refund!
Order – How to place an order:
Please place your order via e-mail:
contact@sp7dyn.com
sp7dyn@gmail.com
In your order, please provide the title of the item,
the SKU number and the link to the item on my website.
Shipping – method and cost:
The price of the item does not include the shipping cost!
Before ordering, click here and check the shipping costs and
delivery time STANDARD or PRIORITY of your choice – click here.
I combine purchases – with multiple purchases, you pay for shipping once.
After ordering, please give me exact shipping address with phone number.
