23GHz TX/HB Up Converter Mixer
$136,00
SKU: 134
Only price2 left in stock!
2 in stock
23GHz TX/HB Up Converter Mixer.
Device is tested and functions in.
technical good condition, see real photos.
–
Module was tested in the original,
factory device only, is sold as is!
See Local Oscillator 13.060GHz ———- Click Here
Link to Local Oscillator 13.238GHz —– Click Here
Link to 26GHz RX Module ——————— Click Here
–
Useful links – knowledge base :
Link to ————————————————–– F5DQK

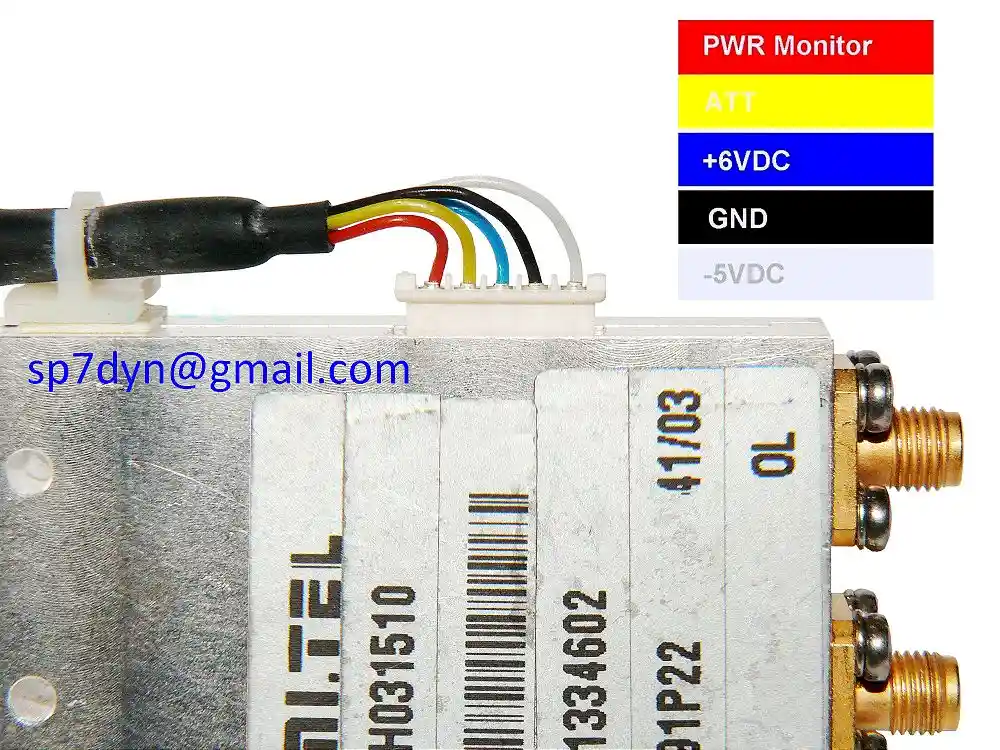

Important note! Keep the order of the supply voltages, always first connect -5VDC then the others! - No cable with plug included! - Specifications: No datasheet! Frequency --------------- High Band of 23GHz Waveguide Connectors ---- WR-42 Power output ------------ 20dBm (100mW) Local oscillator input -- 11.800 to 12.800GHz 8 to 10dBm IF input ---------------- 100 to 1200MHz org.1.2GHz, level 0 to 10dBm Control input ----------- 0 to +5VDC Power supply ------------ +6.0VDC Power supply ------------ -5.0VDC Remember that it is always connected first! Input connectors -------- SMA - Price is for 1 piece
| Frequency | 26GHz High Band |
|---|---|

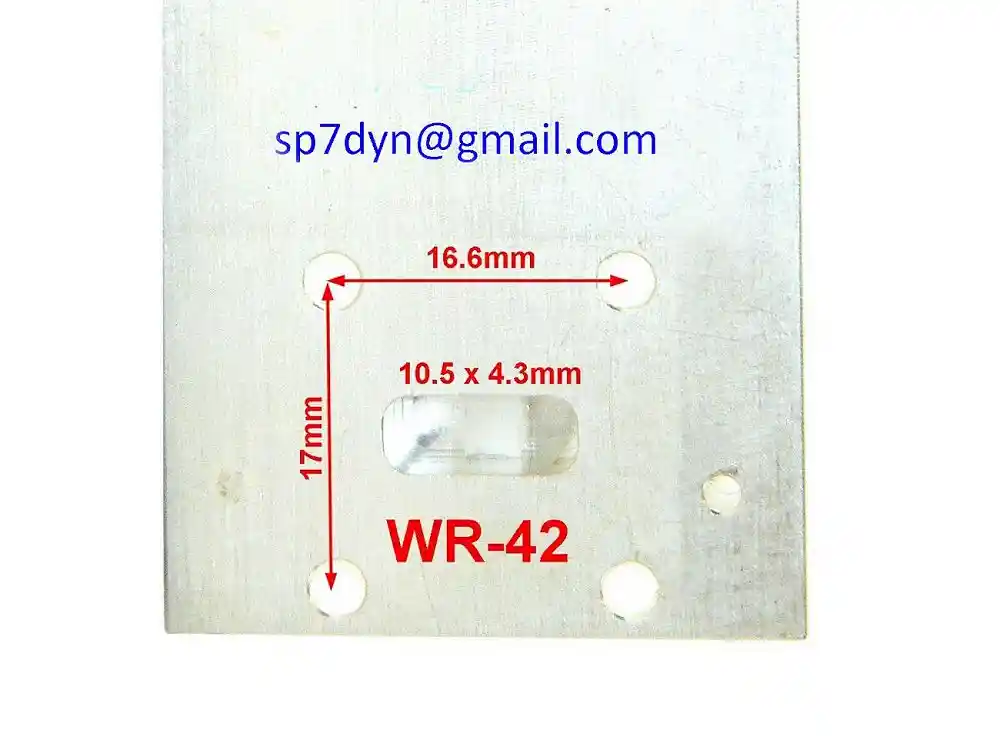

| Waveguide Connectors | WR-42 |
| Local oscillator input | 11.800 to 12.800GHz (8 to 10dBm) |
| Power Output | 20dBm (100mW) |
| Coax Connectors | SMA |
| Supply voltage | +6.0VDC |
| Condition | Converter is used, removed from the functioning device, Cosmetic Scratches and stains!The device is tested and functions in technical good condition – real photos. The converter is sold as is! |
| Order - How to place an order | Please place your order via e-mail: |
| Shipping - method and cost | The price of the item does not include the shipping cost! |
