WR75 Circulator Isolator Switch

$79,00

SKU: 073

Only price1 left in stock!

1 in stock

Price does not include shipping cost !

Shipping cost – info

WR75 Circulator Isolator Switch 9.4 to 13.2GHz  RACAL

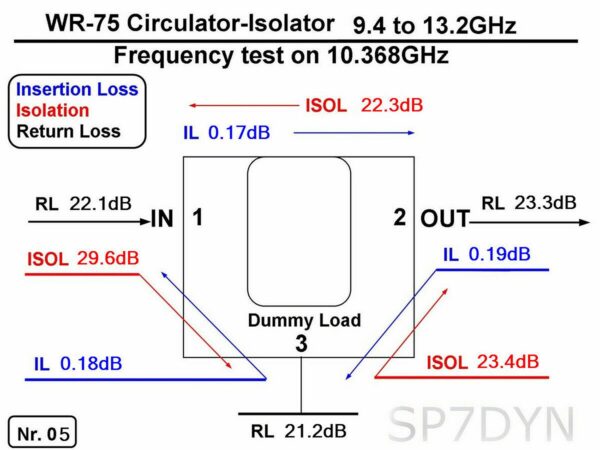

This circulator has been tested in my lab for isolation,
Insertion loss and return loss – see figure!

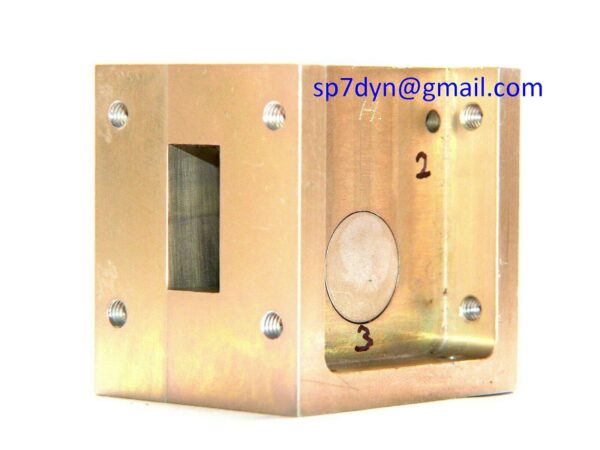

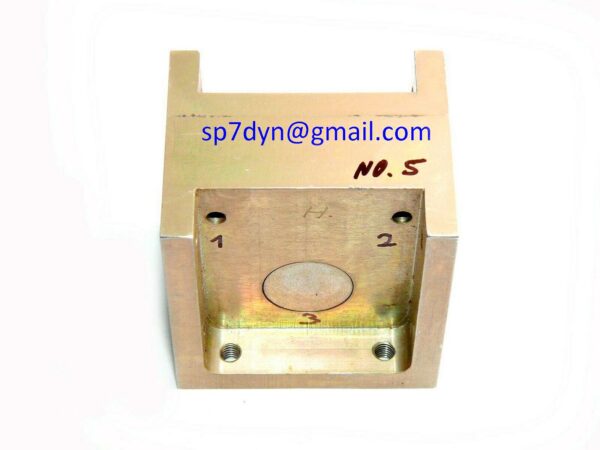

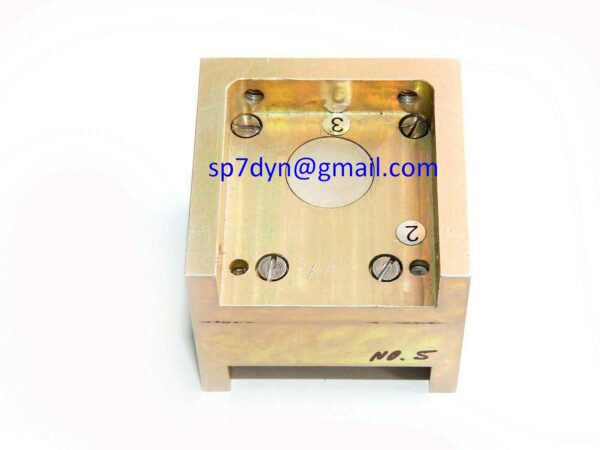

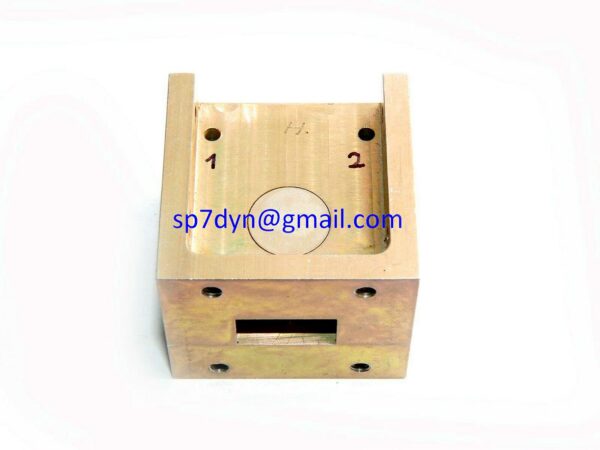

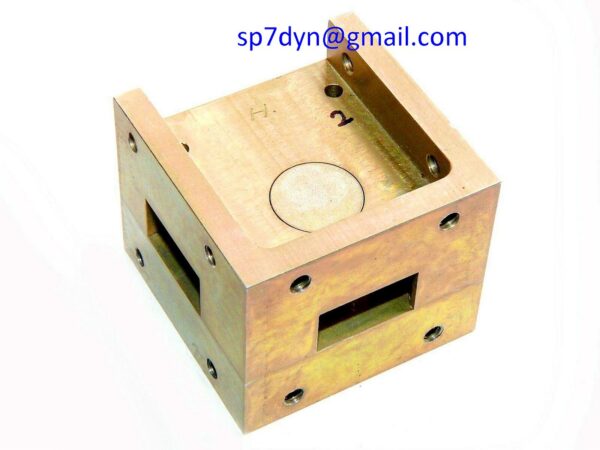

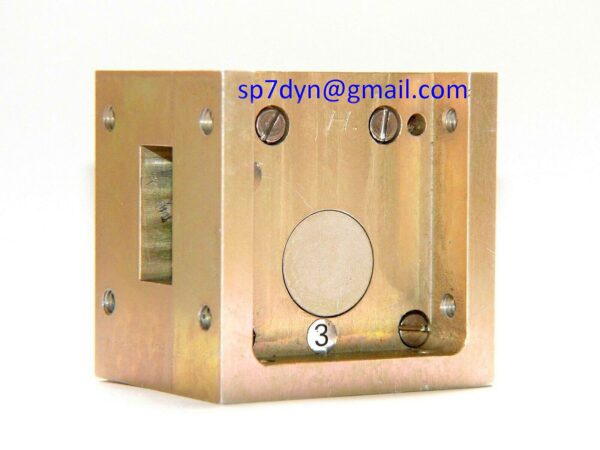

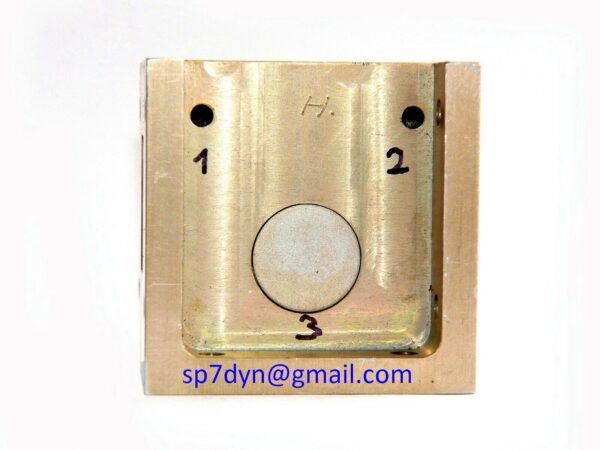

The device is in technical good condition, cosmetic
scratches and stains – pictures show the item for sale.

The circulator is great for 10GHz band, it is sold as-is!

Link to other WR75  ———– Clik Here

Specifications:

Manufacturer ------------ Racal Military Product

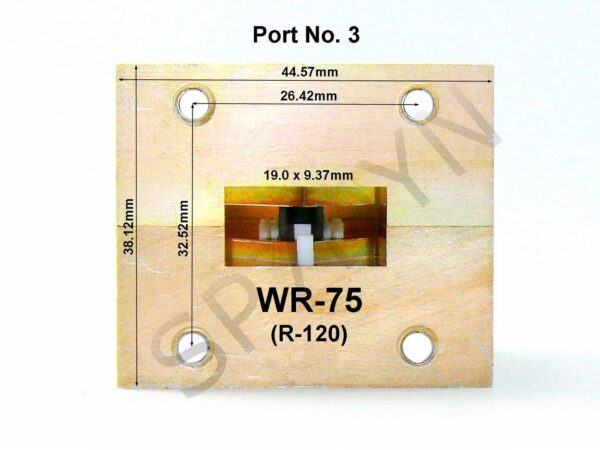

Waveguide connector ----- WR-75 (R-120)
Frequency work ---------- 9.4 to 13.2GHz
Frequency Test ---------- 10.368GHz
Return loss of ports 1 -- 22.1dB Min. see photos
Return loss of ports 2 -- 23.3dB Min. see photos
Return loss of ports 3 -- 21.2B Min. see photos
Insertion loss 1-2 ------ 0.17dB Typ, 0.19dB Max
Isolation 1-2 ----------- 22.3dB Typ -see photos
Power test -------------- 100 Watts
Condition --------------- Used In very technical
good condition - real photos!
SN ---------------------- 05
-
Price is for 1 piece
Brand

,

Waveguide connector

WR-75

Frequency work

9.4 to 13.2GHz

Frequency Test

10.368GHz

Return loss of ports 1

22.1dB Min. see photos

Return loss of ports 2

23.3dB Min. see photos

Return loss of ports 3

21.2dBMin. see photos

Insertion loss 1-2

0.17dB Typ, 0.19dB Max -see photos

Isolation 1-2

22.3dB Typ -see photos

Power test

100 Watts

Condition

Used In very technical good condition – real photos!

SN. Test

05
