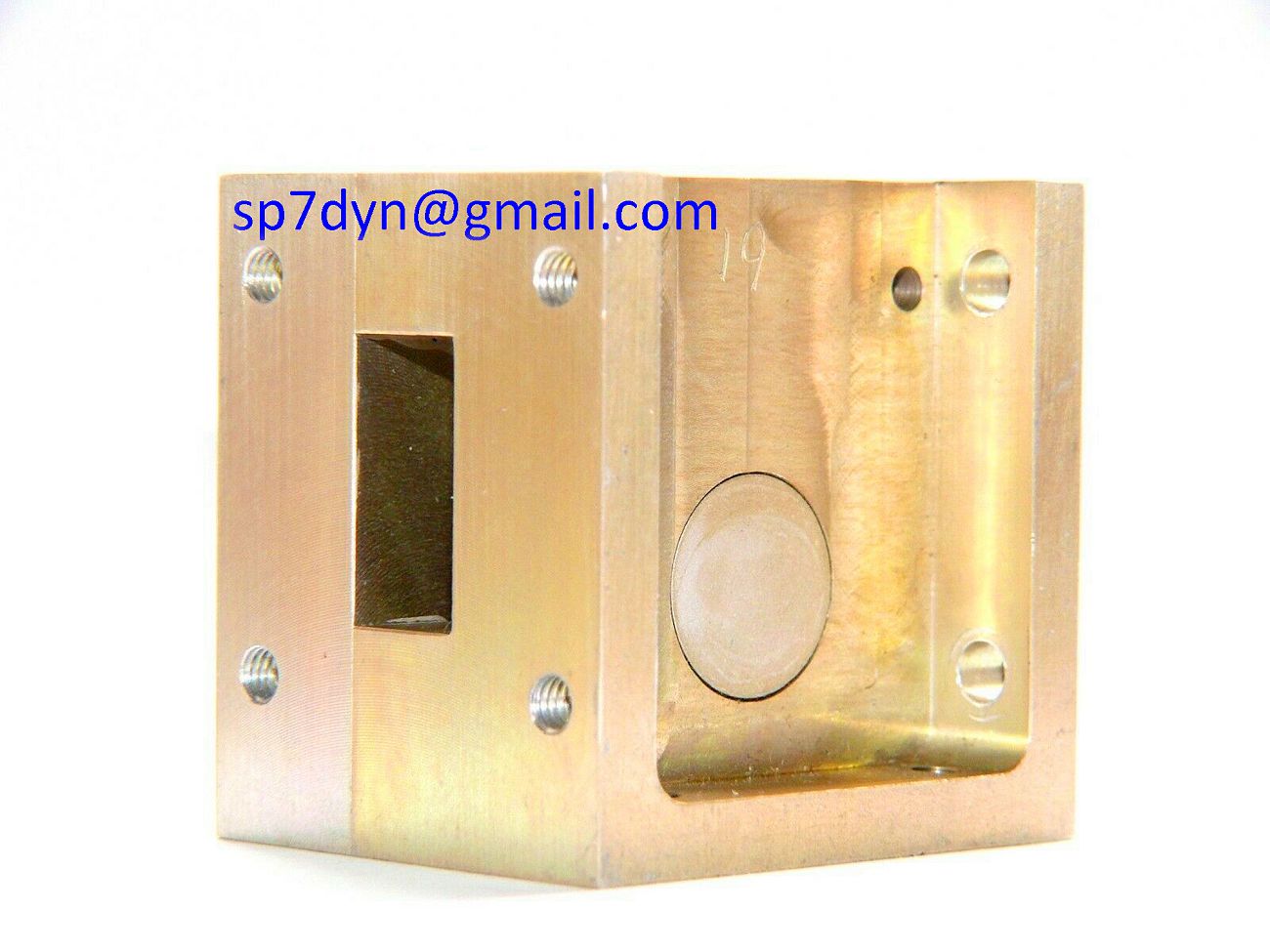

WR75 Circulator Isolator-SN04
Switch 9.4 to 13.2GHz Waveguide RACAL

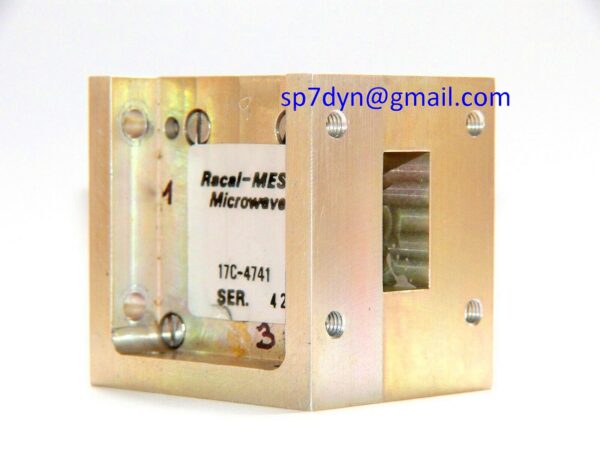

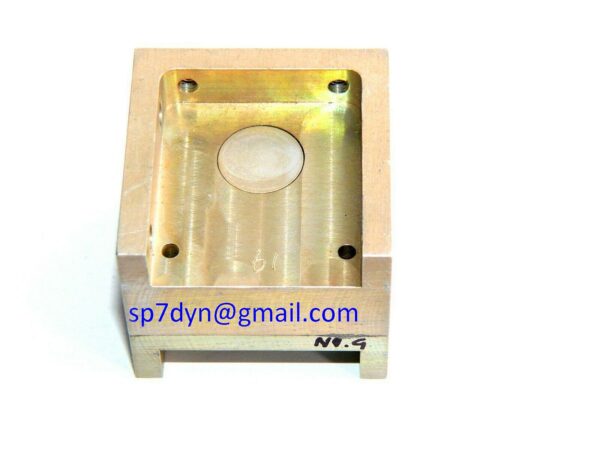

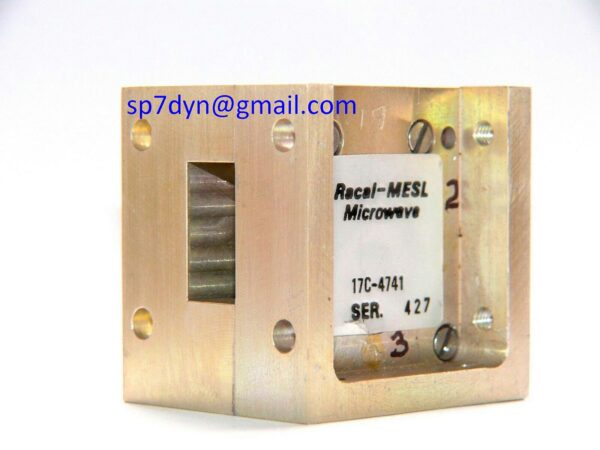

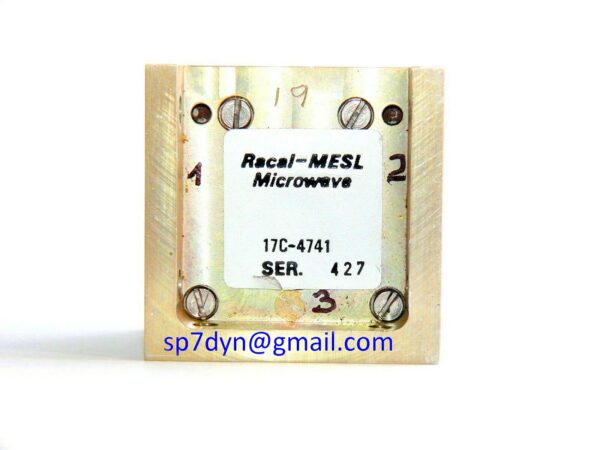

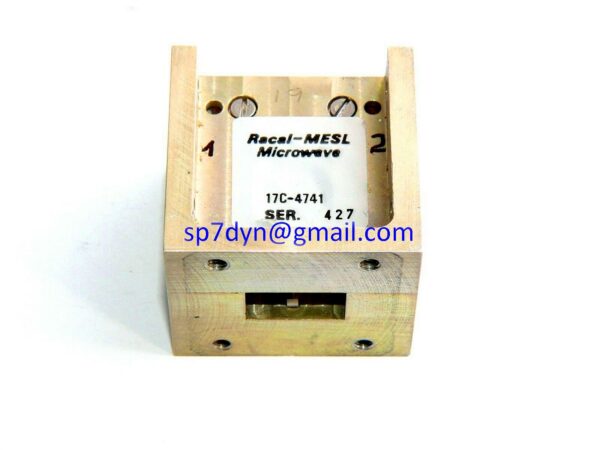

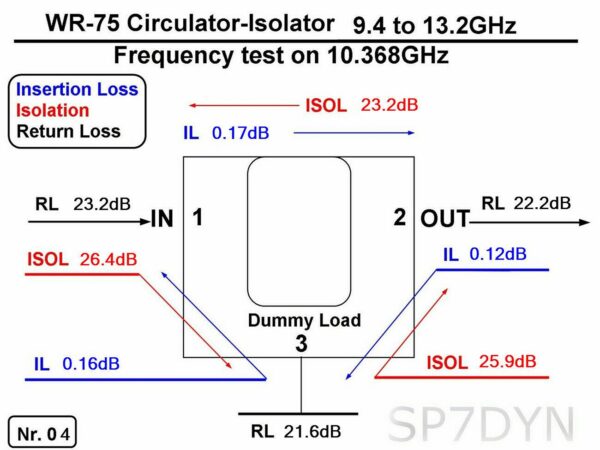

This circulator has been tested in my lab for isolation,
Insersion loss and return loss – sse dataplotts!
The device is in technical good condition, cosmetic
scratches and stains – pictures show the item for sale.
–
The circulator is great for 10GHz band, it is sold as-is!

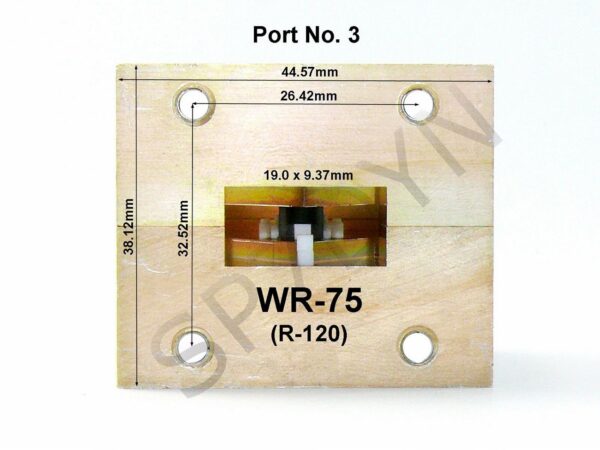

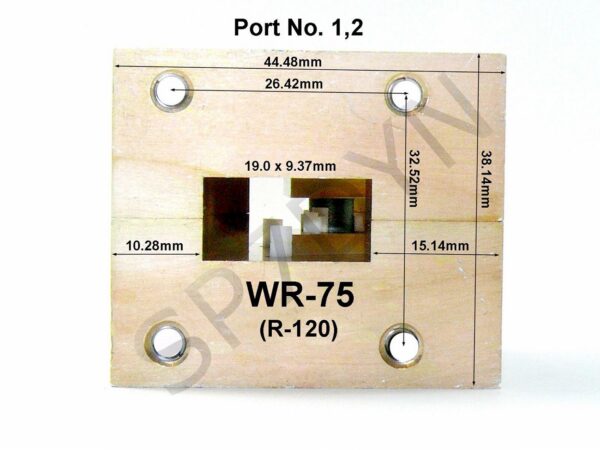

Specifications: Manufacturer ------------- Racal Military Product Waveguide connector ------ WR-75 (R-120) Frequency work ---------- 9.4 to 13.2GHz Frequency Test ---------- 10.368GHz Return loss of ports 1 -- 23.2dB Min see photos Return loss of ports 2 -- 22.2dB Min see photos Return loss of ports 3 -- 21.6dB Min see photos Insertion loss 1-2 ------ 0.17dB Typ 0.19dB Max s Isolation 1-2 ----------- 23.2dB Typ -see photos Power test -------------- 100 Watts Condition --------------- Used In very technical good condition - real photos! SN ---------------------- 04 - Price is for 1 piece
Waveguide connector | WR-75 |
---|---|
Frequency work | 9.4 to 13.2GHz |
Frequency Test | 10.368GHz |
Return loss of ports 1 | 23.2dB Min. see photos |
Return loss of ports 2 | 22.2dB Min. see photos |
Return loss of ports 3 | 21.6B Min. see photos |
Insertion loss 1-2 | 0.17dB Typ, 0.19dB Max -see photos |
Isolation 1-2 | 23.2dB Typ -see photos |
Power test | 100 Watts |
Condition | Used In very technical good condition – real photos! |
SN. Test | 04 |
Order - How to place an order | Please place your order via e-mail: |
Shipping - method and cost | The price of the item does not include the shipping cost! |
Important information:
Please ask questions or raise concerns before placing your order.
By placing a order, you agree to all stated terms.
Offered prices is not including any taxes, customs fees.
All devices so it is sold as-is, no returns, no refund!
Order – How to place an order:
Please place your order via e-mail:
contact@sp7dyn.com
sp7dyn@gmail.com
In your order, please provide the title of the item,
the SKU number and the link to the item on my website.
Shipping – method and cost:
The price of the item does not include the shipping cost!
Before ordering, click here and check the shipping costs and
delivery time STANDARD or PRIORITY of your choice – click here.
I combine purchases – with multiple purchases, you pay for shipping once.
After ordering, please give me exact shipping address with phone number.
