DC Block Inmet Aeroflex 7GHz

$34,00

SKU: 227

20 in stock

20 in stock

Price does not include shipping cost !

Shipping cost – info

DC Block Inmet Aeroflex 7GHz

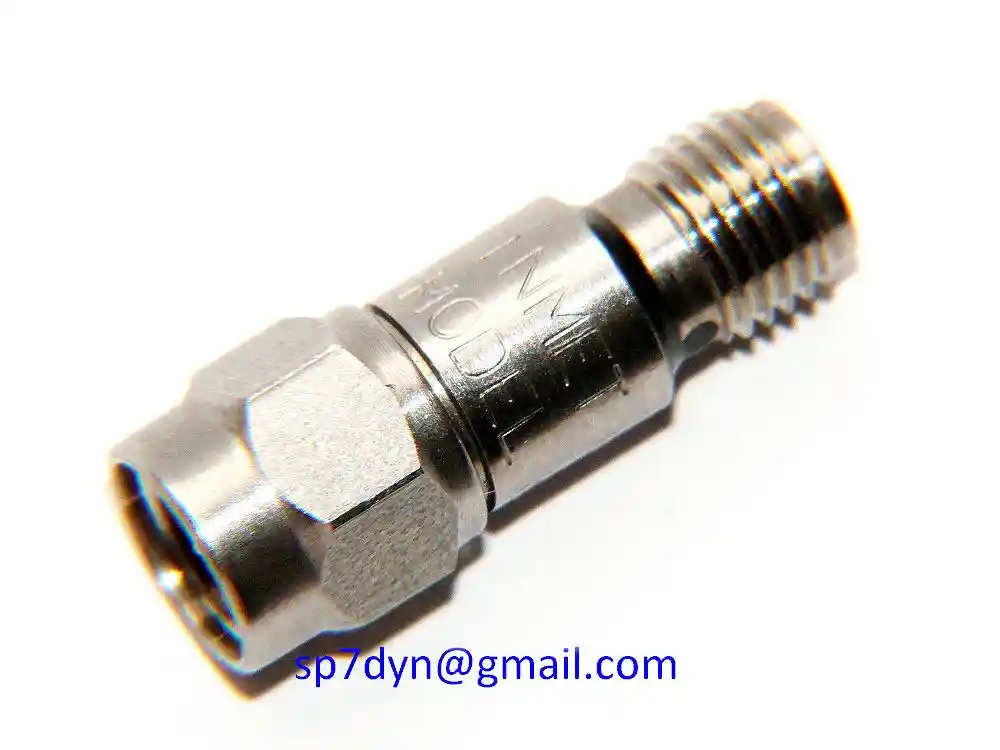

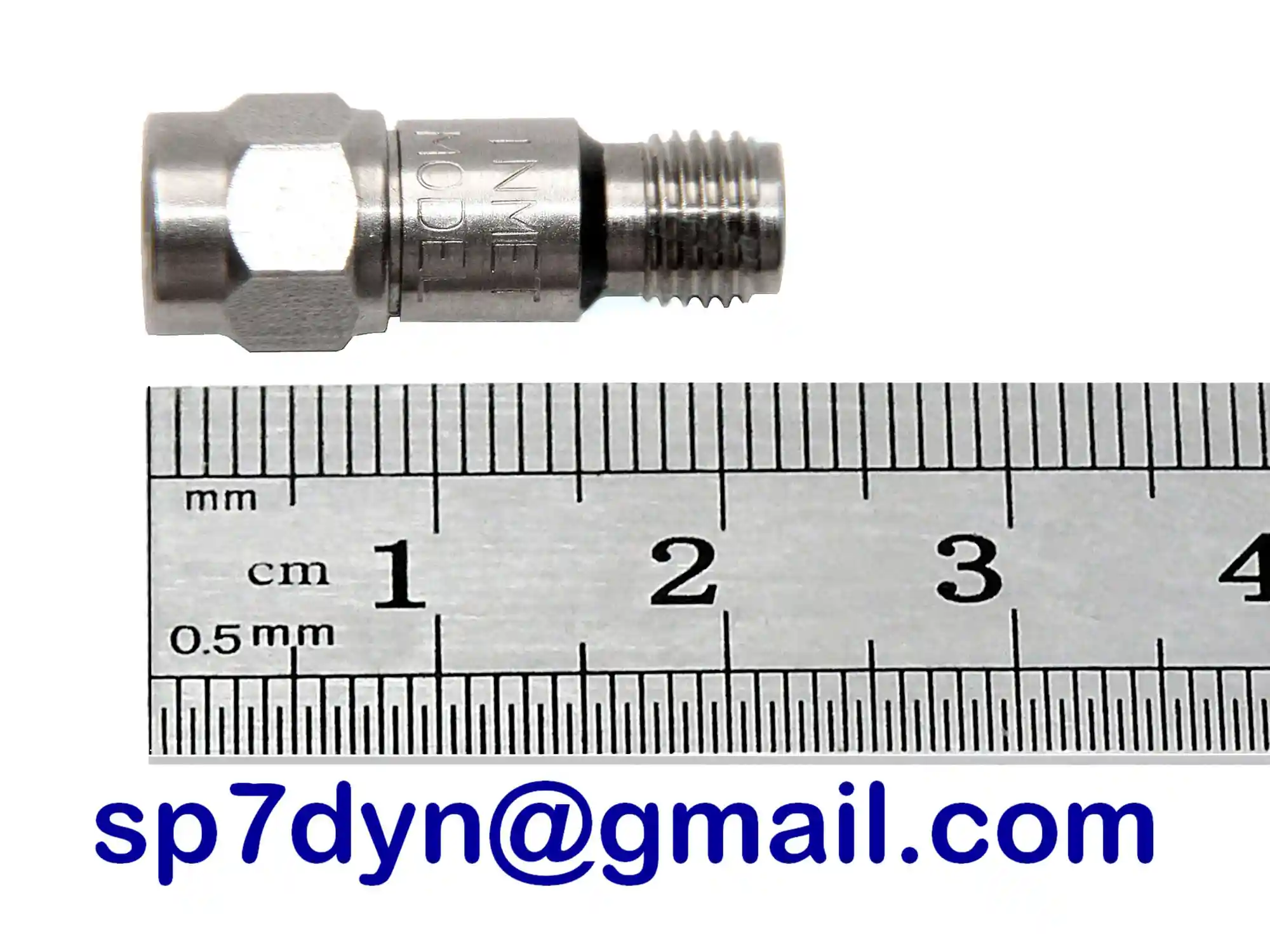

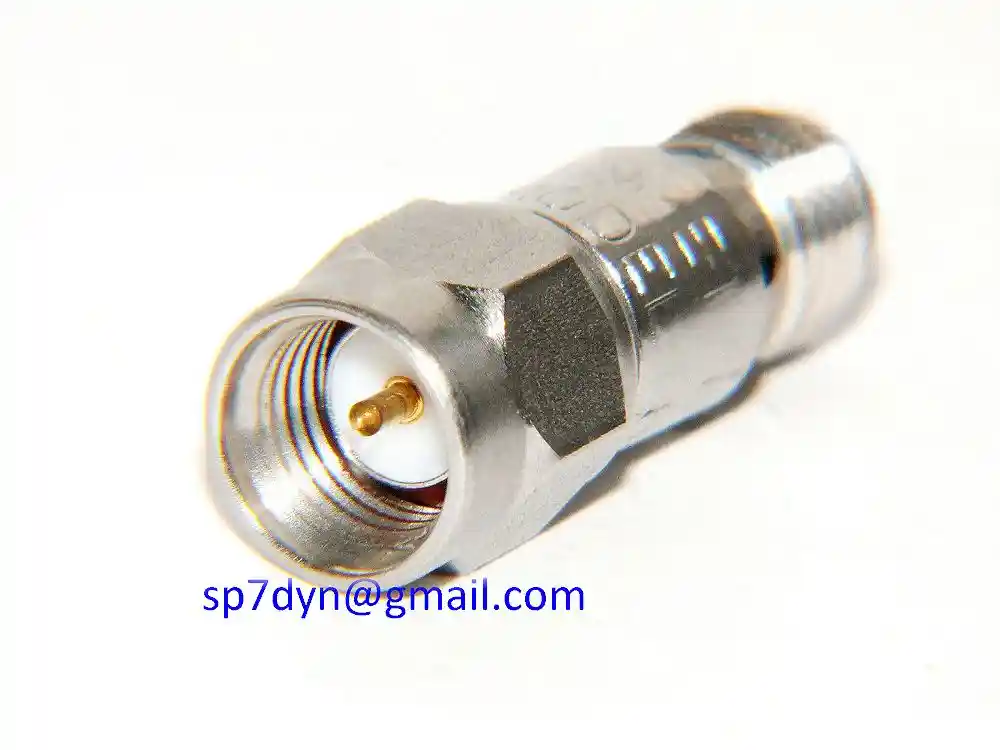

Block is brand new – see real photos.
DC Block is great for ham radio devices.

Device is fully tested, and functions in
technical good condition – see data & real photos.

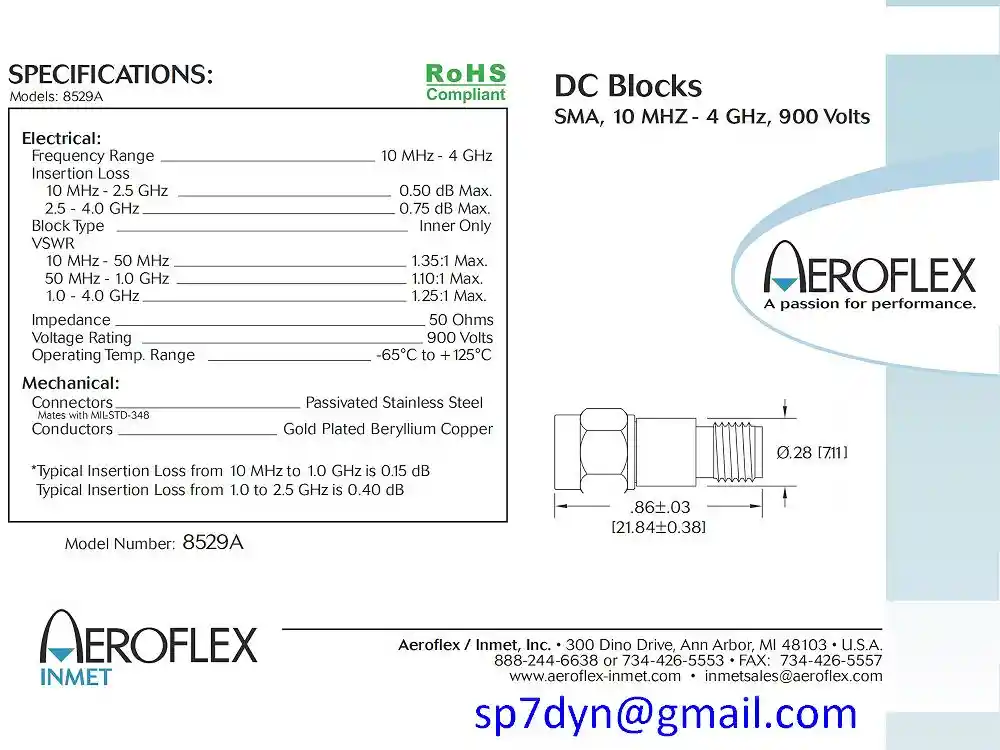

Helpful Link:
https://www.richardsonrfpd.com/docs/rfpd/8529A.PDF

SPECIFICATIONS:

Each DC Block has been tested in my lab,
for insersion loss and return loss!
This DC Block has much better
parameters than the manufacturer gives.

Brand ----------------- INMET / AEROFLEX

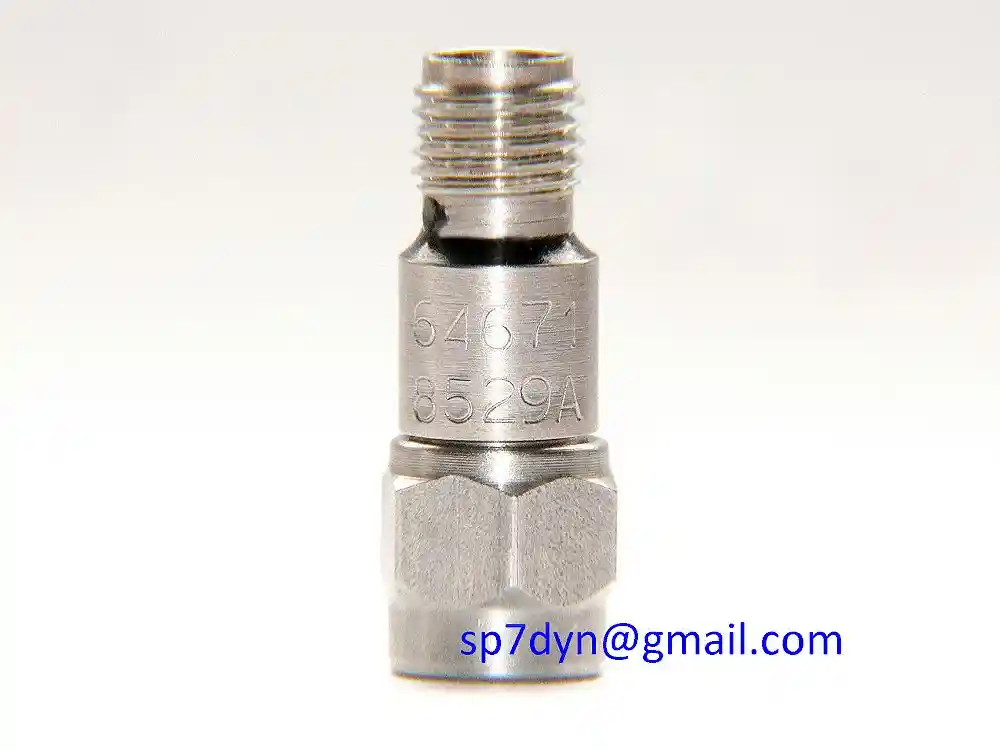

Model ----------------- 8529A

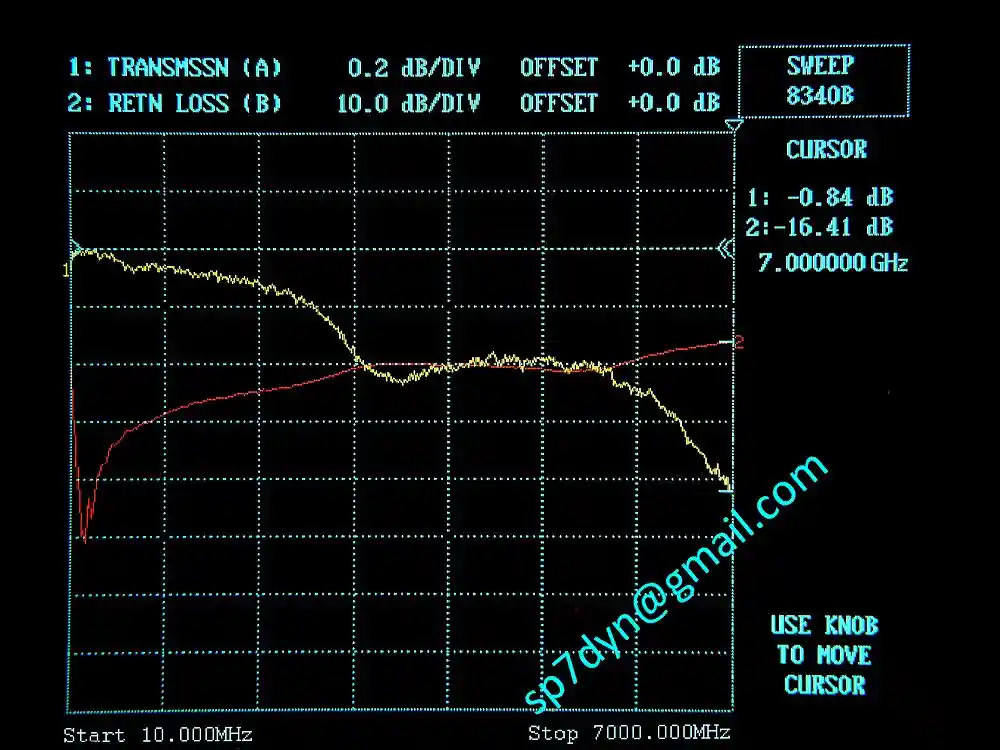

Frequency ------------- 10MHz to 7GHz see data plot
Insertion Loss -------- 10 MHz to 1.0 GHz - 0.11dB
Insertion Loss -------- 1.0GHz to 3.0 GHz - 0.40dB
Insertion Loss -------- 3.0GHz to 6.0 GHz - 0.50dB
Insertion Loss -------- 6.0GHz to 7.0 GHz - 0.90dB
Impedance ------------- 50Ohms
Return loss ----------- 10 MHz - 1.0GHz - 28dB min
Return loss ----------- 1.0 GHz - 6.0GHz - 19dB min
Return loss ----------- 6.0 GHz - 7.0GHz - 16dB min
Voltage Rating -------- 900 Volts
Operating Temp. Range - -65°C to +125°C

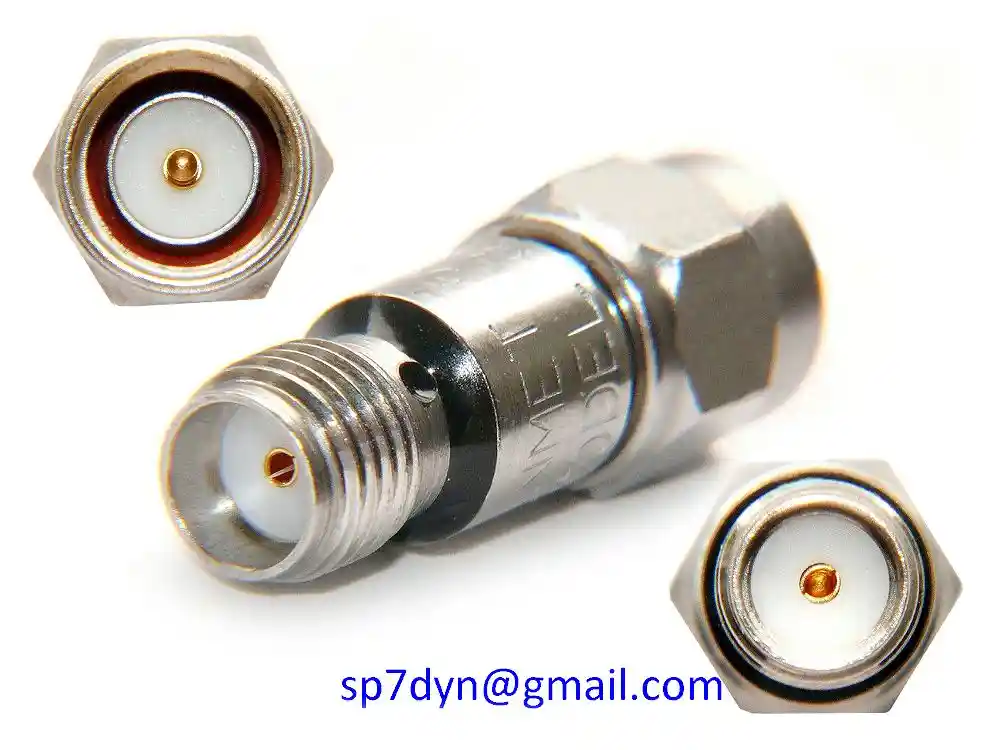

Connectors type ------- SMA - Passivated Stainless Stee
Mates with ------------ MIL-STD-348
Conductors ------------ Gold Plated Beryllium Copper
Condition ------------- Brand new
-
Price is for ---------- 1piece
Brand

INMET / AEROFLEX

Model

8529A

Frequency

10MHz to 7GHz see data plot

Insertion Loss

10 MHz to 1.0 GHz – 0.11dB
1.0GHz to 3.0 GHz – 0.40dB
3.0GHz to 6.0 GHz – 0.50dB
6.0GHz to 7.0 GHz – 0.90dB

Impedance

50Ohms

Return loss

10 MHz – 1.0GHz – 28dB min
1.0 GHz – 6.0GHz – 19dB min
6.0 GHz – 7.0GHz – 16dB min

Voltage Rating

900Volts

Operating Temp. Range

-65°C to +125°C

Connectors type

SMA – Passivated Stainless Stee

Mates with

MIL-STD-348

Conductors

Gold Plated Beryllium Copper

Condition

Price is for

1piece
