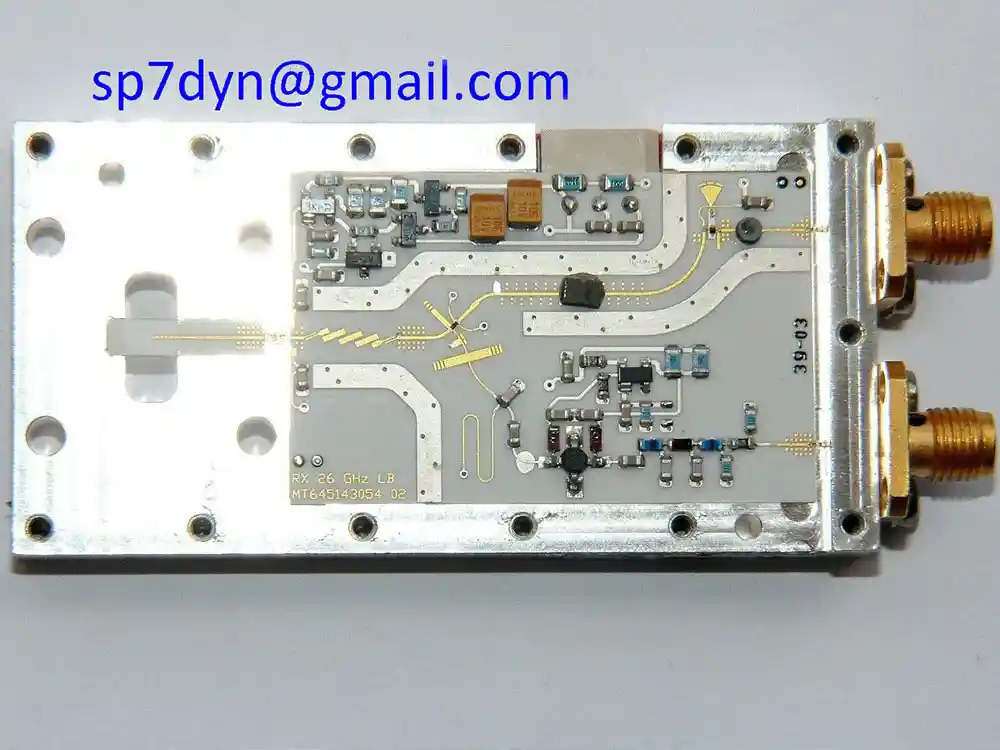

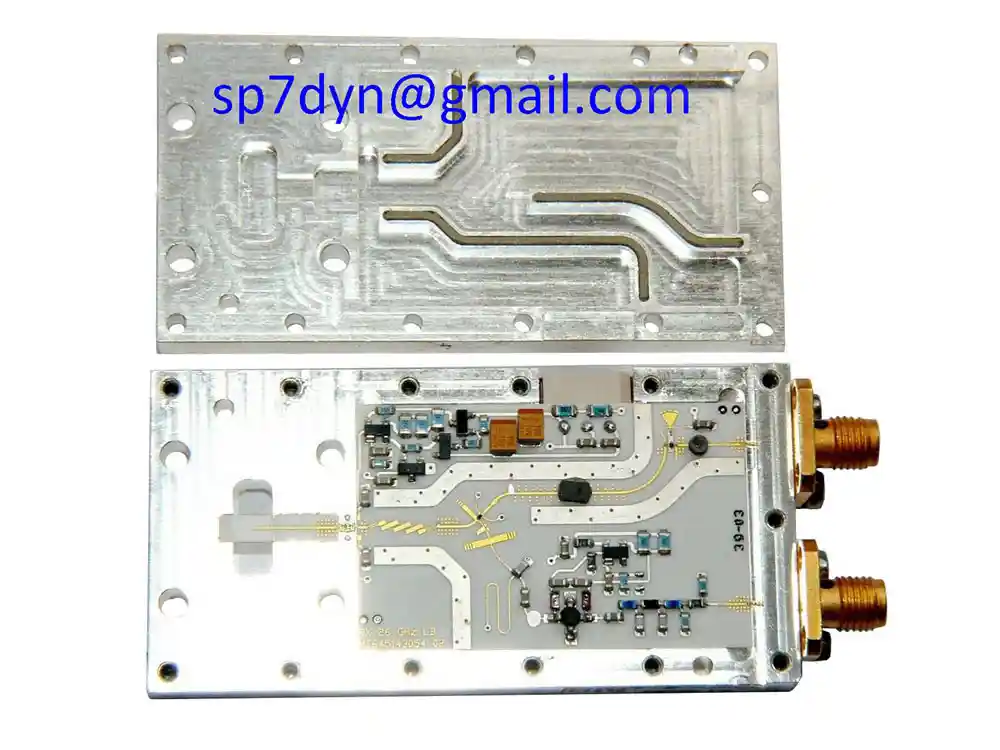

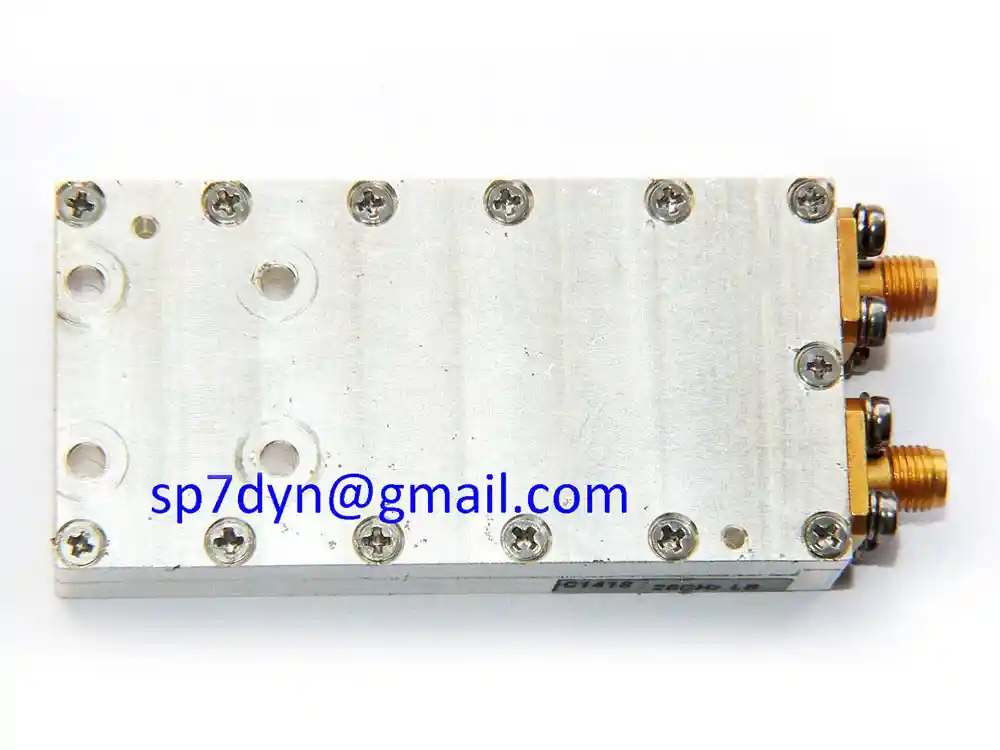

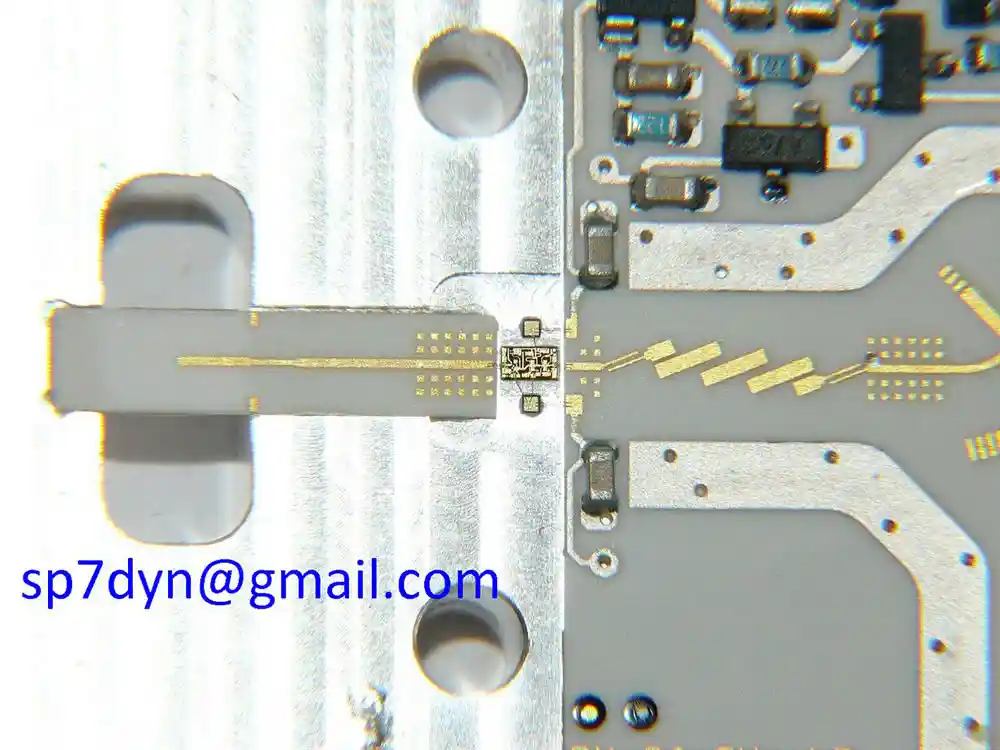

26GHz RX/LB Down Converter Mixer
SKU: 050
26GHz RX/LB Down Converter Mixer.
Device is tested and functions in
technical good condition – real photos.
Module was tested in the original
factory device only, is sold as is!
See Local Oscillator 13.060GHz ——— Click Here
Link to 26GHz RX Module —————— Click Here
–
Useful links – knowledge base :
Link to ————————————————– F5DQK

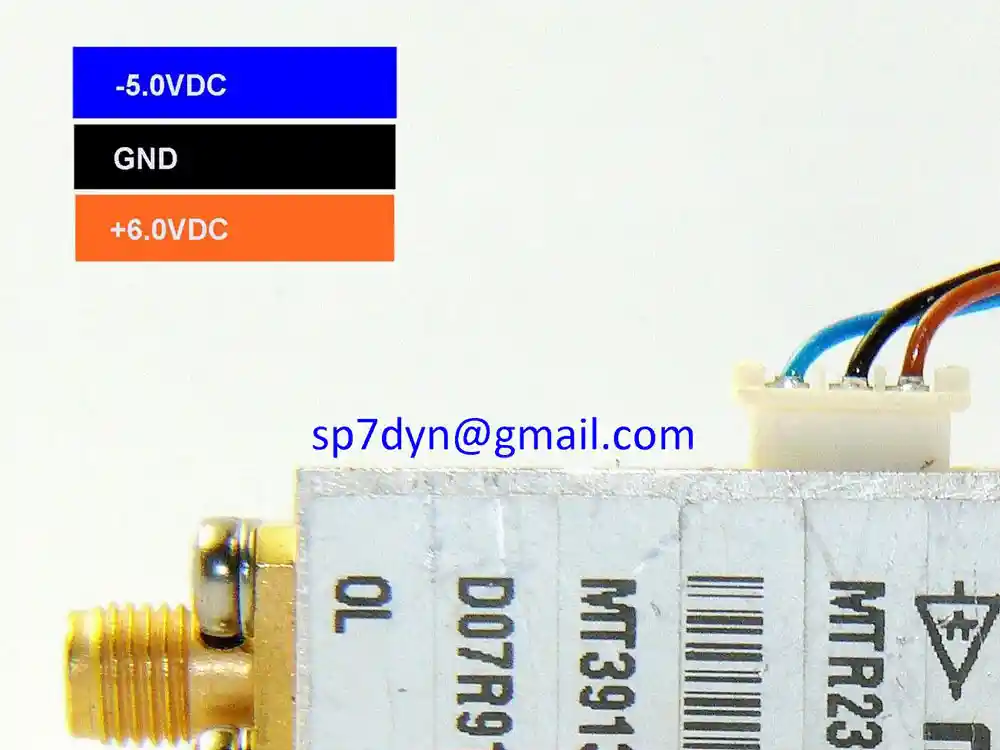

Important note! Keep the order of the supply voltages, always first connect -5VDC then the others! - No cable with plug included! - Specifications: Frequency -------------------- 26GHz Low Band Waveguide Connectors --------- WR-42 Local oscillator input ------- 11.6-12.6GHz 8-10dBm) IF out ----------------------- 100-1200MHz org.1.2GHz Power supply ----------------- +6.0VDC Power supply ----------------- -5.0VDC Remember that it is always connected first! Input connectors ------------- SMA - Price is for ----------------- 1 piece
| Frequency | 23GHz High Band |
|---|---|

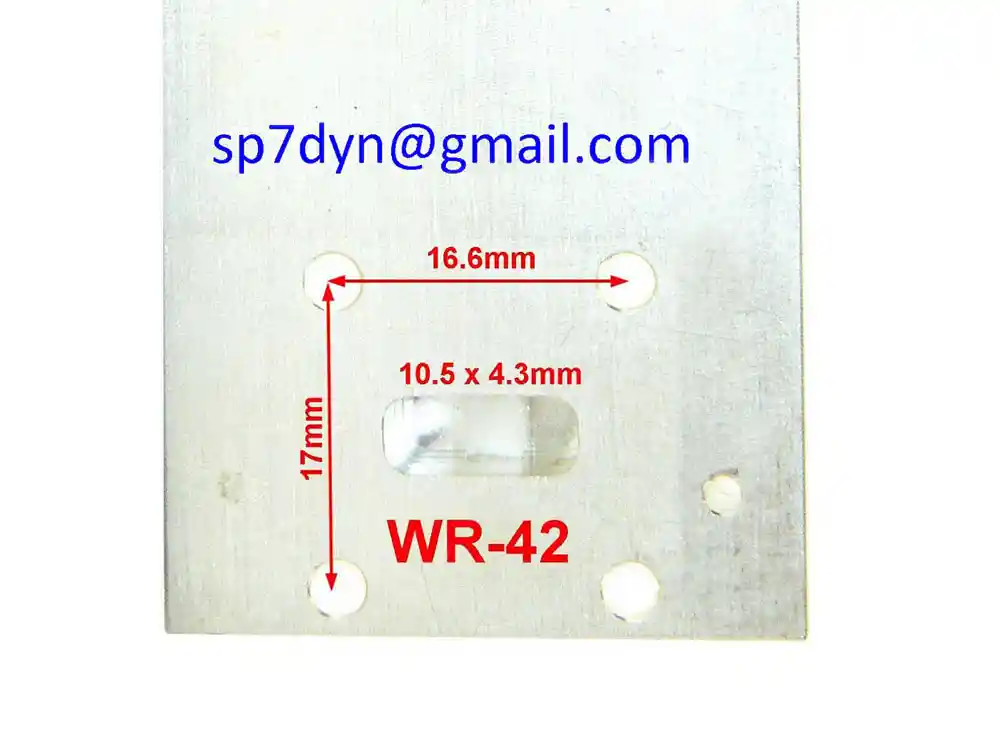

| Waveguide Connectors | WR-42 |
| Local oscillator input | 11.200 to 12.300GHz (8-10dBm) |
| IF out | 100 to 1200MHz (org.1.2GHz) |
| Supply voltage - | -5.0VDC (always first) |
| Coax Connectors | SMA |
| Condition | Converter is used, removed from the functioning device, Cosmetic Scratches and stains!The device is tested and functions in technical good condition – real photos. The converter is sold as is! |
| Order - How to place an order | Please place your order via e-mail: |
| Shipping - method and cost | The price of the item does not include the shipping cost! |
