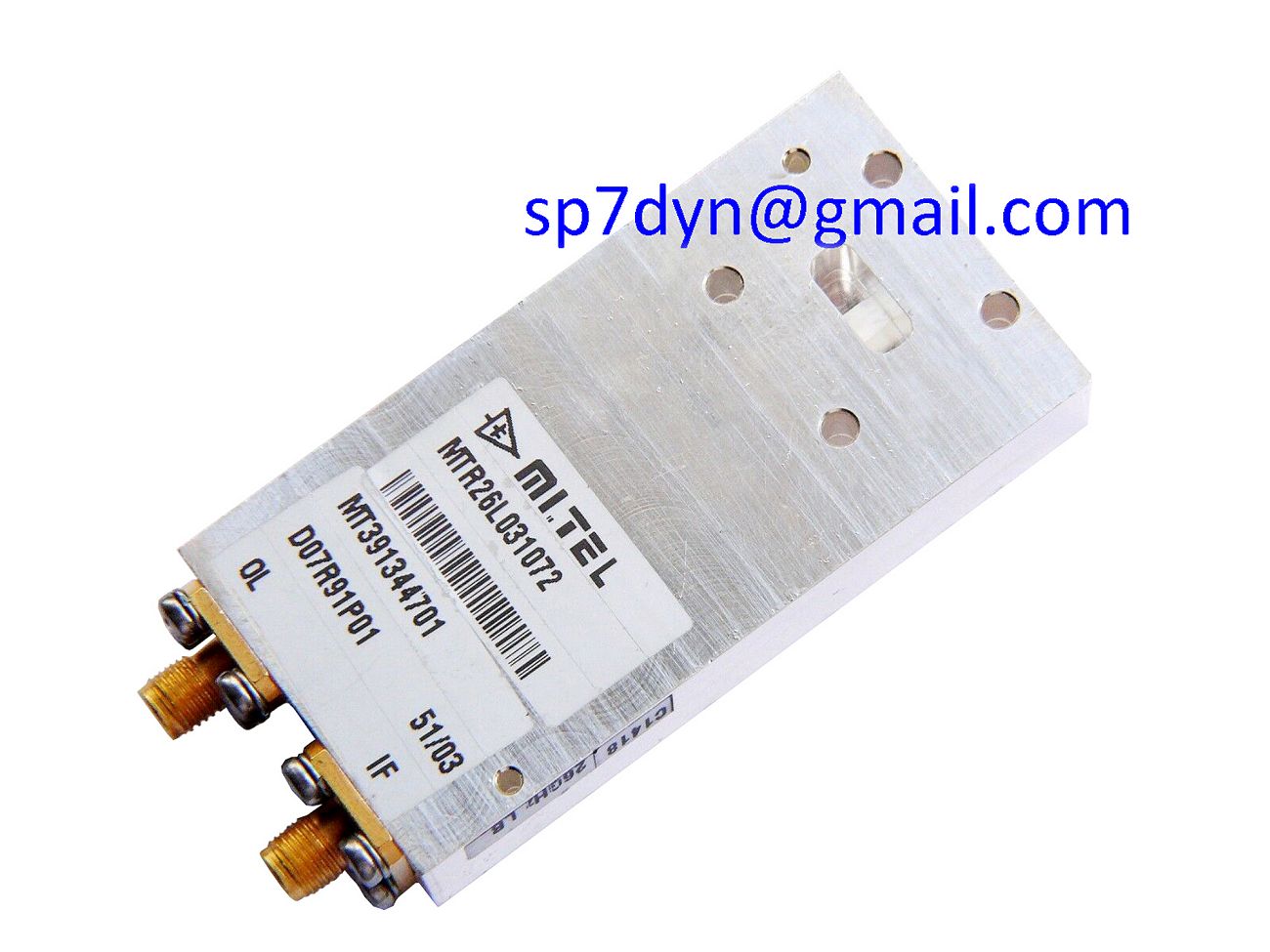

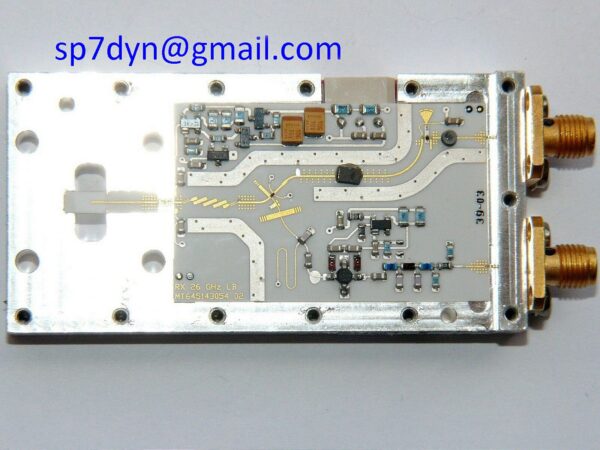

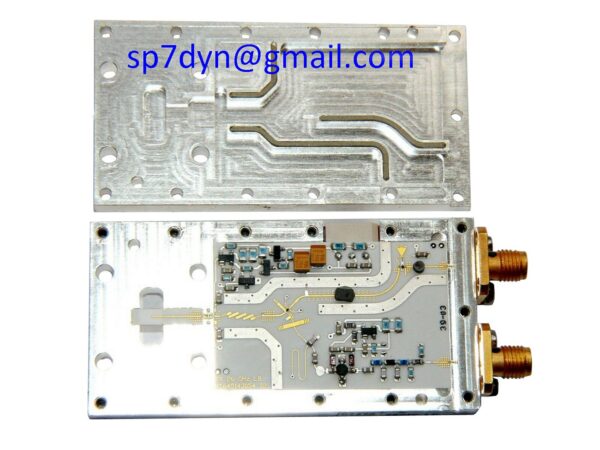

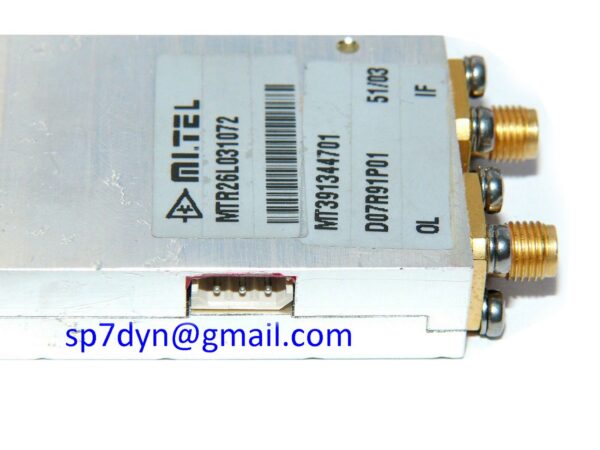

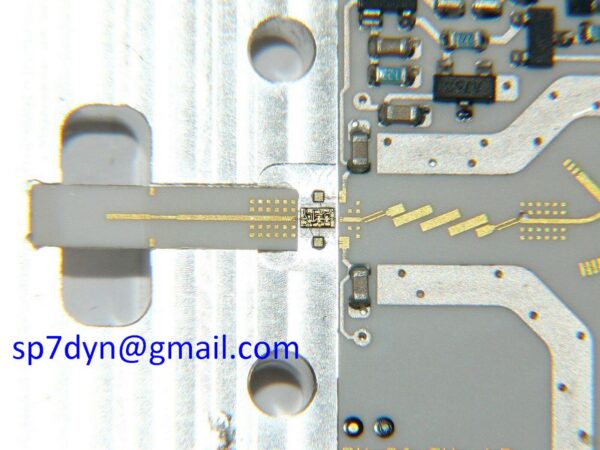

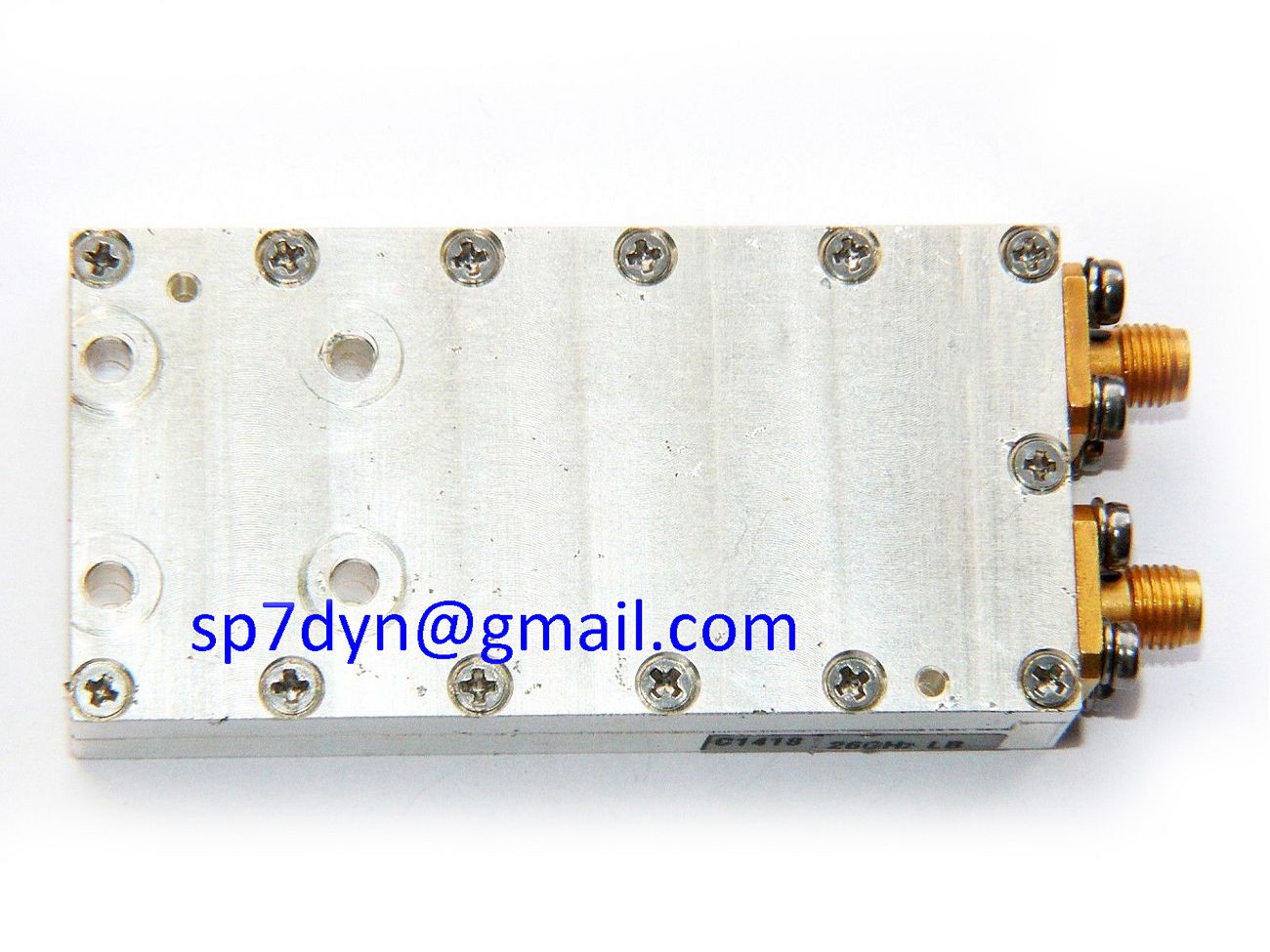

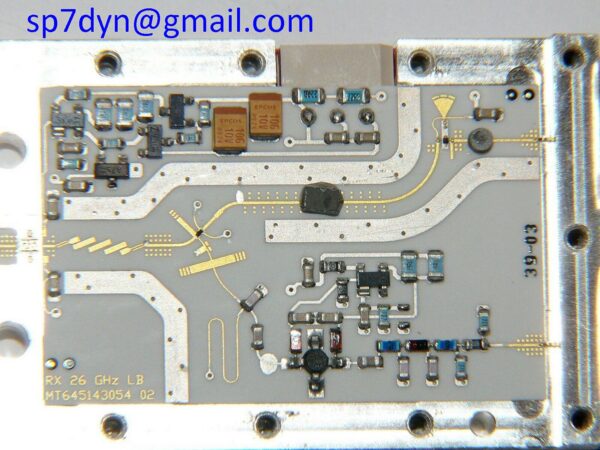

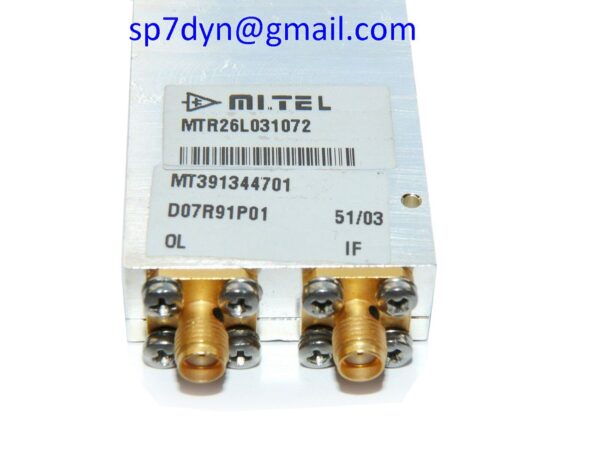

26GHz RX Down Converter Mixer Low Band
The device is tested and functions in
technical good condition – real photos.
The module was tested in the original
factory device only, is sold as is!
Link to Local Oscillator 13.238GHz —– Click Here
Link to 26GHz RX Module ——————— Click Here

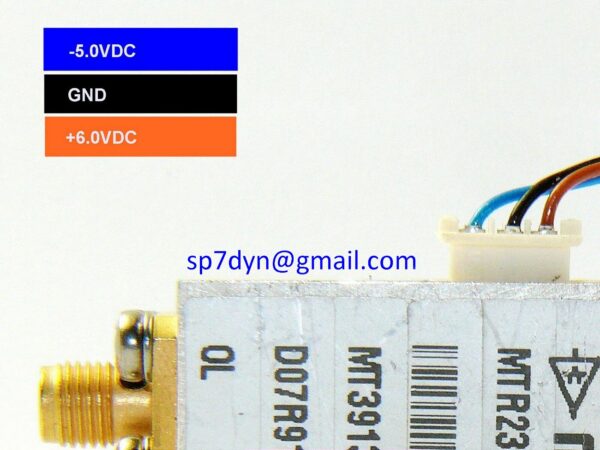

Important note! Keep the order of the supply voltages, always first connect -5VDC then the others! - No cable with plug included! - Specifications: Frequency --------------- 26GHz Low Band Waveguide Connectors ---- WR-42 Local oscillator input -- 11.6-12.6GHz 8-10dBm) IF out ------------------ 100-1200MHz org.1.2GHz Power supply ------------ +6.0VDC Power supply ------------ -5.0VDC Remember that it is always connected first! Input connectors -------- SMA - Price is for ------------ 1 piece
Frequency | 23GHz High Band |
---|---|

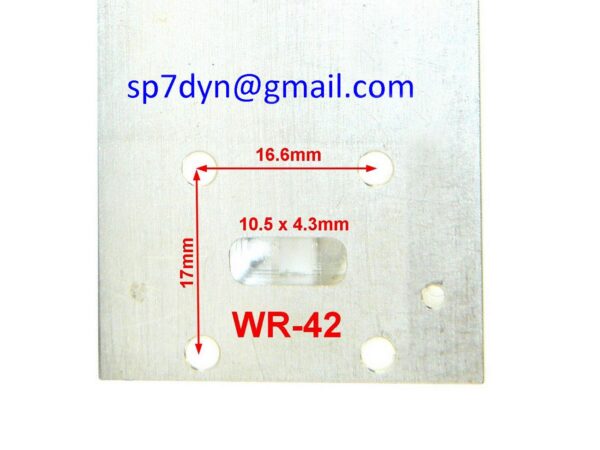

Waveguide Connectors | WR-42 |
Local oscillator input | 11.200 to 12.300GHz (8-10dBm) |
IF out | 100 to 1200MHz (org.1.2GHz) |
Supply voltage - | -5.0VDC (always first) |
Coax Connectors | SMA |
Stan | Converter is used, removed from the functioning device, Cosmetic Scratches and stains!The device is tested and functions in technical good condition – real photos. The converter is sold as is! |
Order - How to place an order | Please place your order via e-mail: |
Shipping - method and cost | The price of the item does not include the shipping cost! |
Zamawianie – jak zrobić zamówienie!
Wszystkie zamówienia proszę robić przez email:
contact@sp7dyn.com
sp7dyn@gmail.com
W każdym zamówieniu proszę podać nazwę przedmiotu,
numer SKU oraz link do zamawianego przedmiotu – tutaj.
Wysyłka – metody, koszty i czas dostawy!
Oferowana cena przedmiotu nie zawiera kosztu wysyłki!
Koszt wysyłki w PL, do 2kg /2cm, list polecony 12zł – tutaj.
–
Wysyłki zagraniczne – przed zamówieniem zapytaj o:
formę, koszt wysyłki oraz czas dostawy – tutaj.
Oferuję przesyłki Standardowe lub Priorytetowe do wyboru.
–
Łączę zakupy, przy zakupach mnogich płacisz raz.
–
Przy złożeniu zamówienia proszę o podanie
adresu do wysyłki w raz z numerem telefonu!
–
Wszelkie pytania proszę via email: sp7dyn@gmail.com
