Signal Sampler Detector Coupler 12GHz

$199,00

SKU: 277

10 in stock

10 in stock

Ceny nie zawierają kosztów dostawy !

Koszty dostawy – informacja

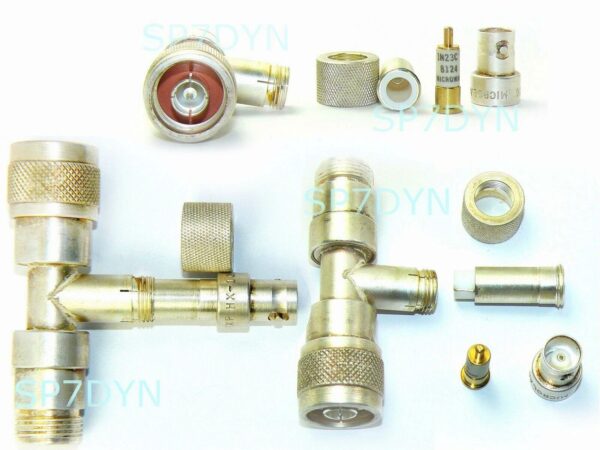

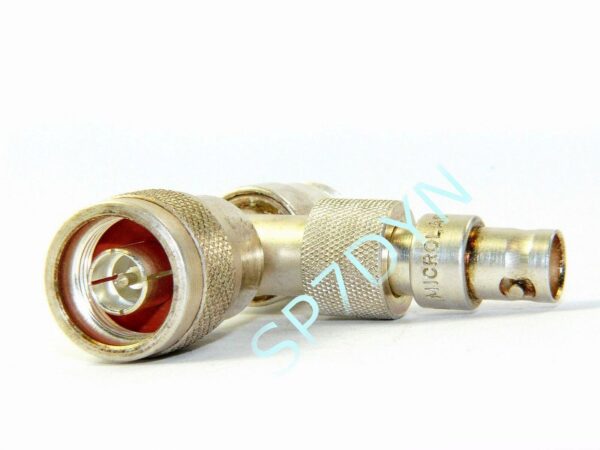

Signal Sampler Detector Coupler 12GHz Adj Coupling
Broad band,  low loss -15 to – 95dB MICROLAB

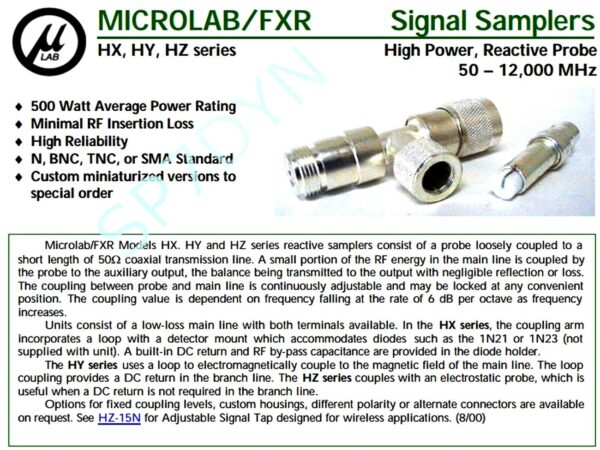

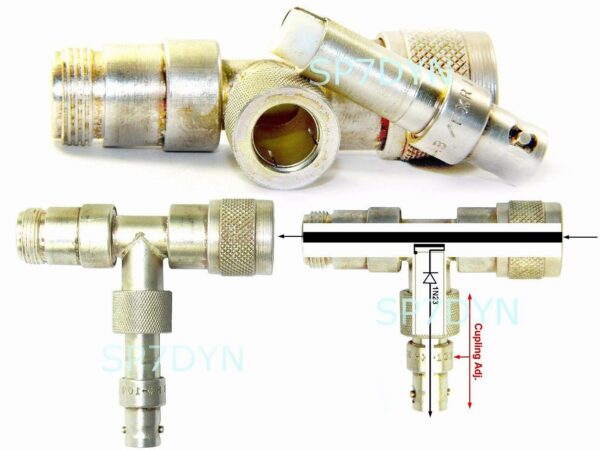

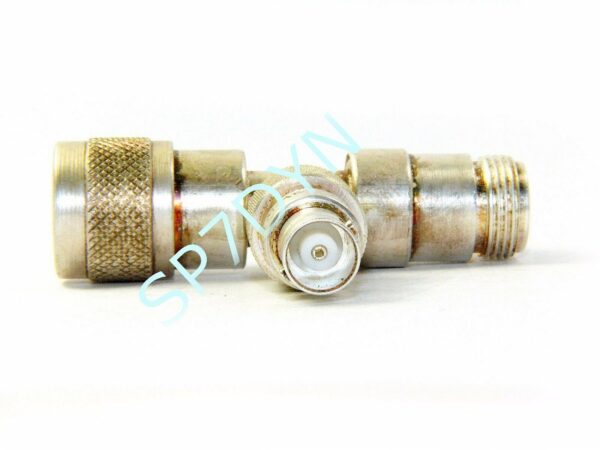

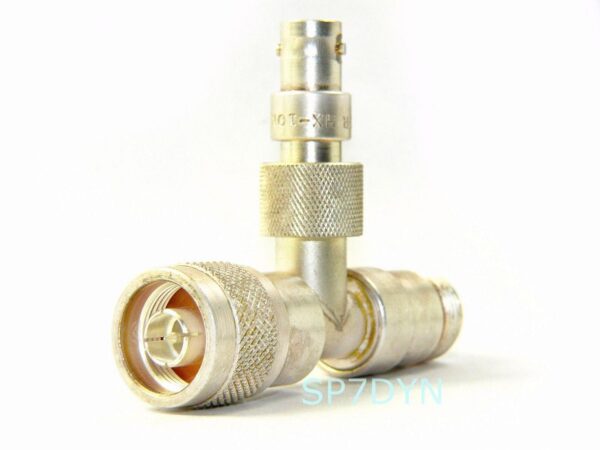

Microlab Models HX series reactive samplers consist of aprobe
loosely coupled to a short length of 50 coaxial transmission line.
A small portion of the RF energy in the main line is coupled by
the probe to the auxiliary output, the balance being transmitted
to the output with negligible reflection or loss.
The coupling between probe and main line is continuously
adjustable and may be locked at any convenient position.

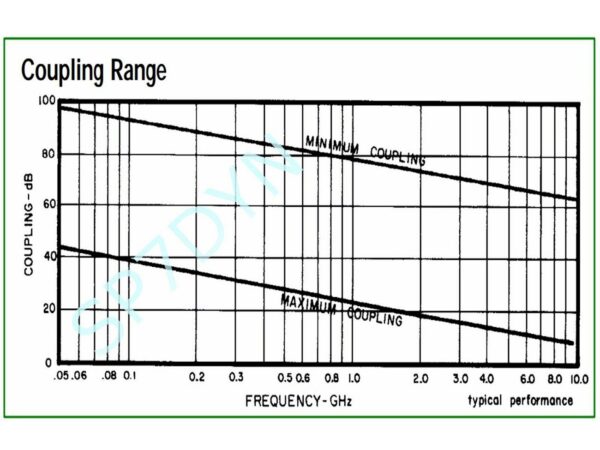

The coupling value is dependent on frequency falling at the
rate of 6 dB per octave as frequency increases.
Units consist of a low-loss main line with both terminals available.

The device has excellent broad band parameters,
is great fo ham radio, radio control, laboratory measurements.
These sampler is used, cosmetic scratches and stains, tested
and functions, removed from military equipment,
and guaranteed to your satisfaction, real photos, see data!

Each sampler has been tested for Insersion loss and return loss!

Link to ————————————–  PDF
Link to ————————————–  Diode

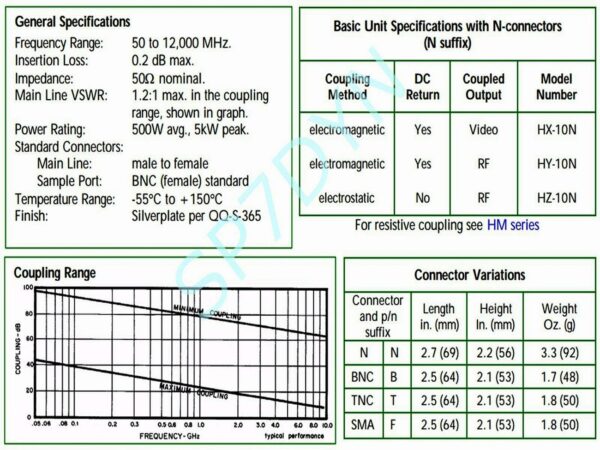

Specifications:
Brand ----------------- MICROLAB (military product).
Model ----------------- HX-10N
Frequency work range -- 50-12000MHz
Couplung output ------- -15 to -95dB
Impedance ------------- 50 Ohms
Insertion loss max----- 0.08dB
Power test ------------ 1000Watts on 50MHz
Warning! The diode can easily be damaged!
Power test ------------ 500Watts on 2300MHz
Connectors line ------- N
Connector Cpl --------- BNC
Diode detector -------- 1N23 can be replaced
(Set includes diode) Link to Diode
Housing --------------- Brass Silver Plating
Super military production -- High quality & Reliability
Weight ---------------- 0.1kg
-
Price is for ---------- 1 piece
Model

HX-10N Military Product

Frequency work range

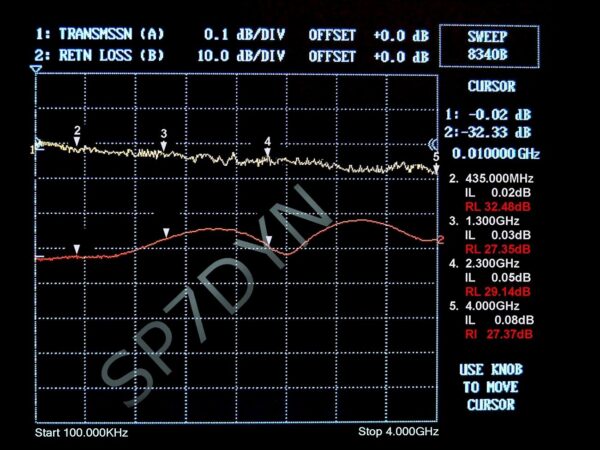

10MHz to 4GHz – tested

Couplung output

-15 to -95dB

Impedance

50Ohms

Insertion loss

0.08dB max

Power test on 50MHz

1000Watts Warning! The diode can easily be damaged!

Power test on 2300MHz

500Watts

VSWR

1.15:1

Connectors line

N

Connector Cpl

BNC

Diode detector

1N23 can be replaced (Set includes diode)

Housing

Brass Silver Plating

Quality

Super military production – High quality & Reliability

Weight

0.1kg
