Ferrite Core Bead 3W800
$18,00
SKU: 339
100 in stock
100 w magazynie
Ferrite Core Bead 3W800

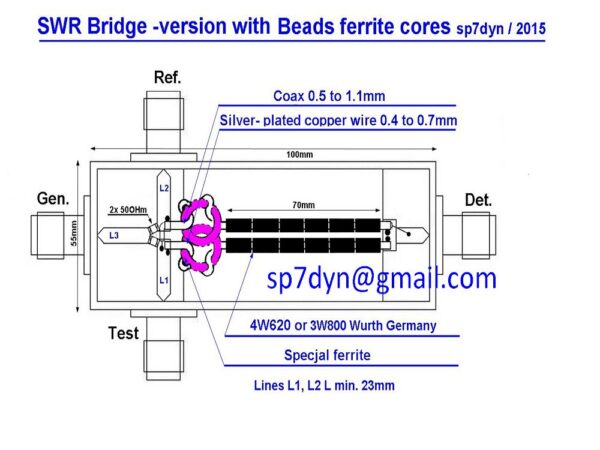

Core is ideal for the construction of the
bridge SWR. My bridge with those cores.
working from 1MHz to 2.5GHz -see here.
Dynamic range of -58 dB to -32 dB.
Recommended cables to the core max
diameter 1.2mm: UT034 (0.86mm)

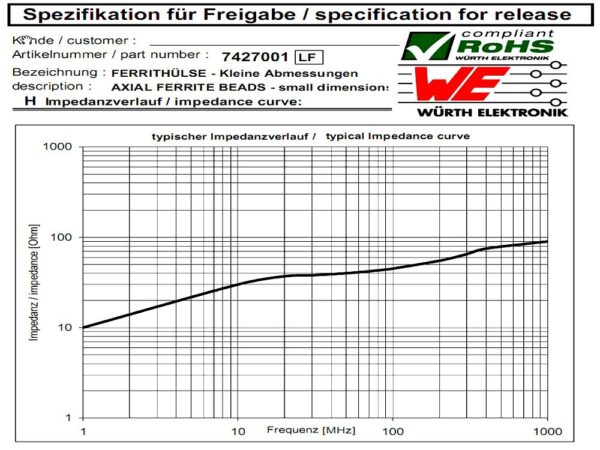

Link to PDF ———————— Click Here
See other ferrites ————- Click Here
–

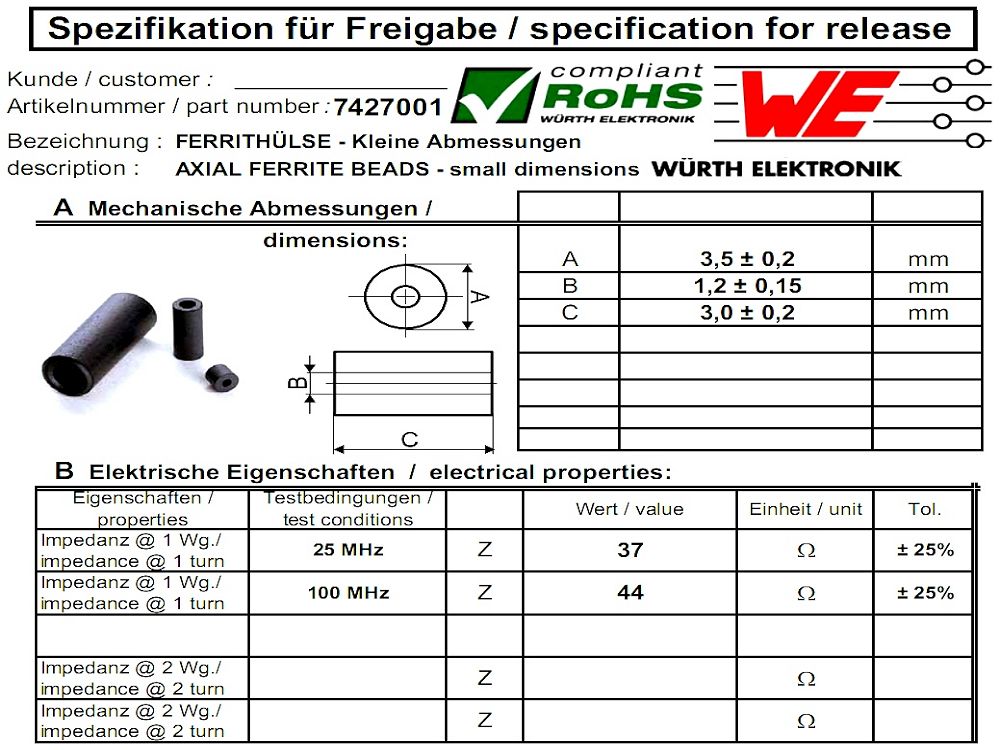

Specifications: Brand ----------------- Würth Part Number ----------- 742700 Dimensions diameter --- 3.45mmx1.25mm Length 3.07mm Can fit TO-220 TO-3P transistor pin Material -------------- 3W800 Initial permeability -- µ800 5turn ----------------- 19.8 µH 10turn ---------------- 70.7 µH Condition ------------- New - Price is for lot of --- 50 pieces
| Marka | Würth |
|---|---|
| Part Number | 742700 |
| Dimensions diameter | 3.45mmx1.25mm Length 3.07mm |
| Material | 3W800 |
| Initial permeability | µ800 |
| 5turn | 19.8 µH |
| 10turn | 70.7 µH |
| Stan | New |
| Price is for | lot of 50 pieces |
| Order - How to place an order | Please place your order via e-mail: |
| Shipping - method and cost | The price of the item does not include the shipping cost! |
