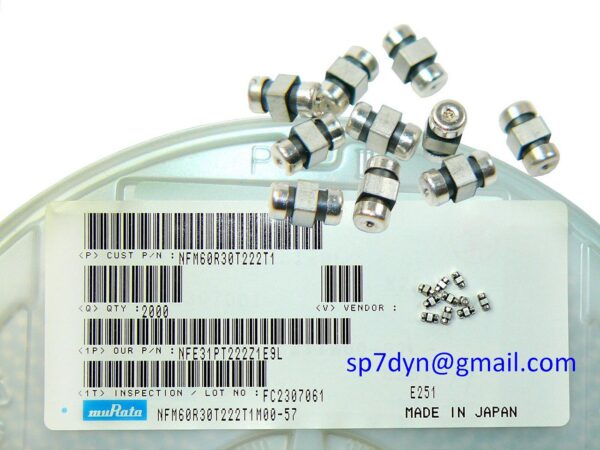

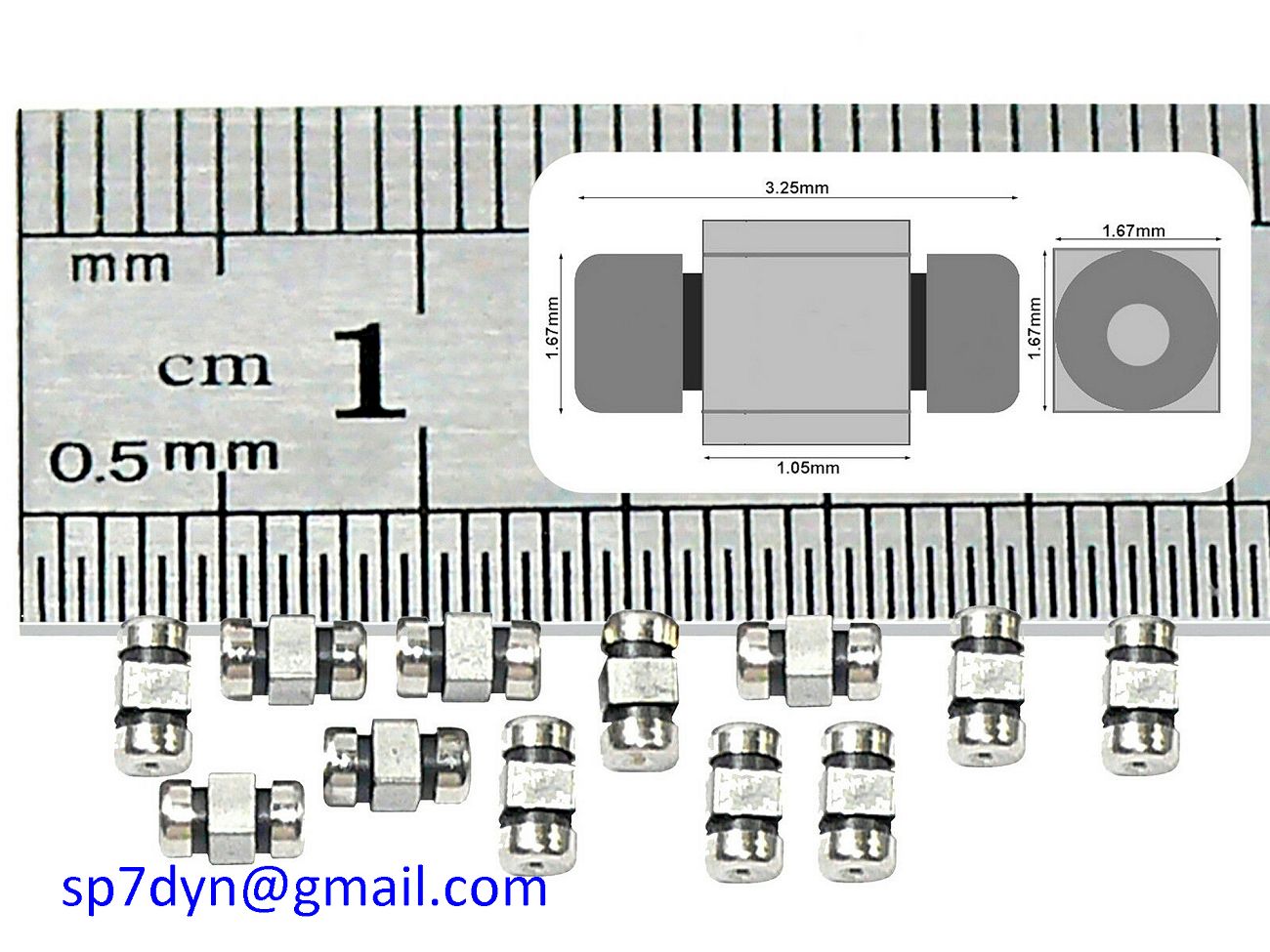

Feed Through Capacitor NFE31PT222Z1E9L
$7,00
SKU: 271
120 in stock
120 w magazynie
Feed Through Capacitor NFE31PT222Z1E9L
Filter is SMD (1206 size) BLOCK Type
Voltage 25VDC, Current 6Amps
EMI Suppression Filters is brand new.
See also —————————– Click here

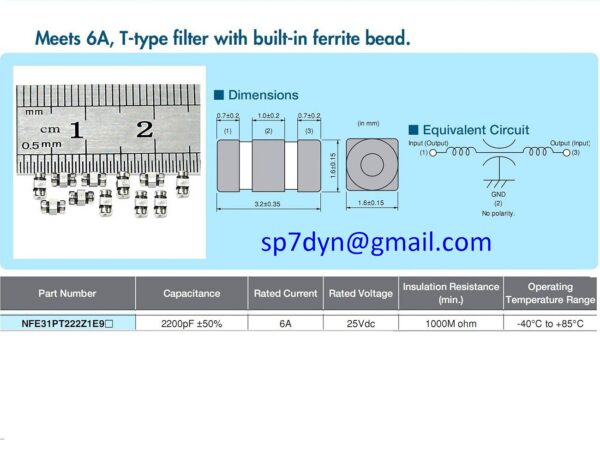

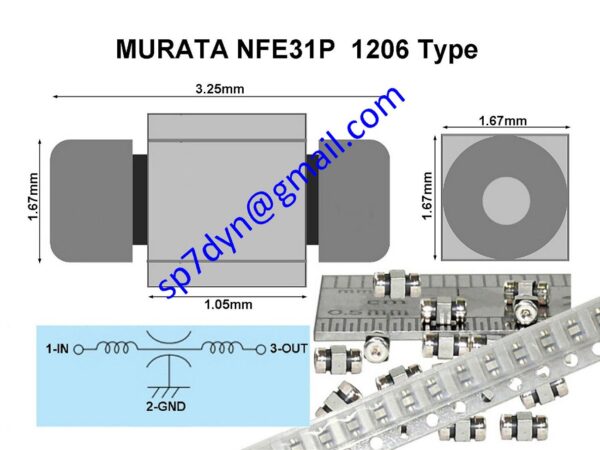

Specifications: Brand ------------------------ MURATA Filter Type ------------------ LPF 100KHz to 1GHz Capacitor Type --------------- Supression Effect High Capatitance ------------------ 2200pF Model ------------------------ NFE31PT222Z1E9L Nois Frequency --------------- Under 1GHz Rated Current ---------------- 6Amps Rated Voltage ---------------- 25VDC Insulation resistance min ---- 1000MOhms Operating Temperature Range -- -40 to +85°C SMD Size --------------------- 1206 Condition -------------------- New - Price is for ----------------- Lot of 25 pieces
| Brand | Murata |
|---|---|
| Filter Type | LPF 100KHz to 1GHz |
| Capacitor Type | Supression Effect High |
| Capatitance | 2200pF |
| Model | NFE31PT222Z1E9L |
| Nois Frequency | Under 1GHz |
| Rated Voltage | 25VDC |
| Rated Current | 6Amps |
| Insulation resistance min | 1000Ohms |
| Operating Temperature Range | -40 to +85°C |
| SMD Size | 1206 |
| Condition | Brand New |
| Price is for | lot of 25 pieces |
