24GHz Attenuator Variable Dummy Load 5 W 4798 NARDA
Call for Price
SKU: 131
On request, I can set any dB value!

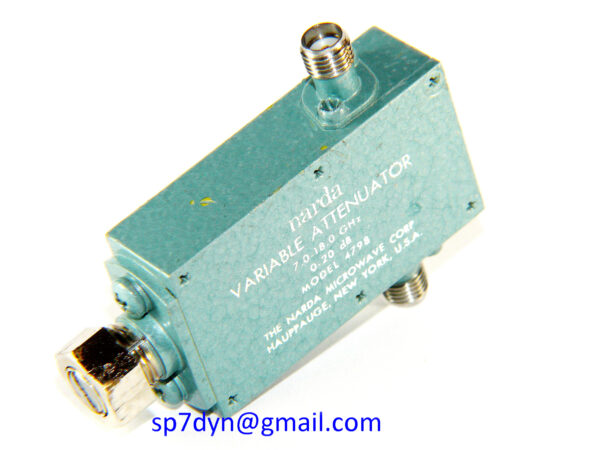

24GHz Attenuator Variable Dummy Load 5 W
5,5 – 26,5 GHz 0.7-22dB 4798 NARDA

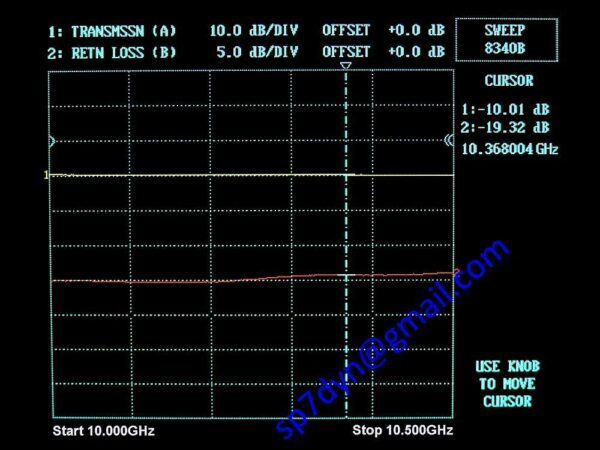

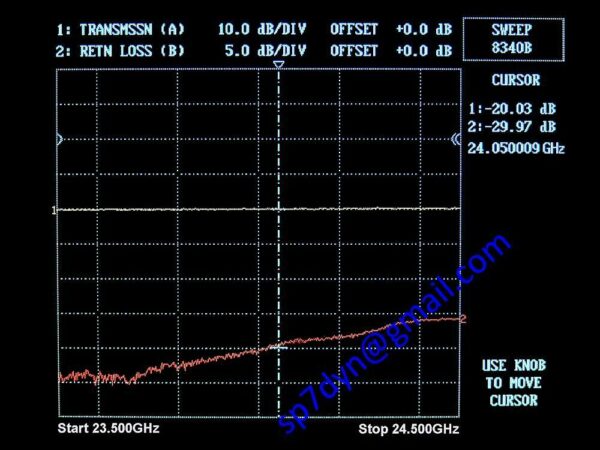

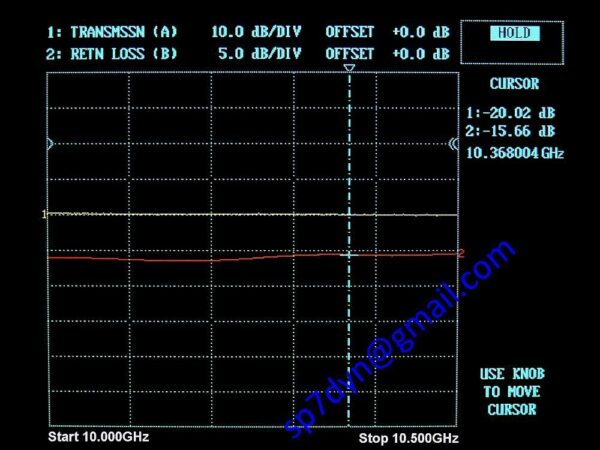

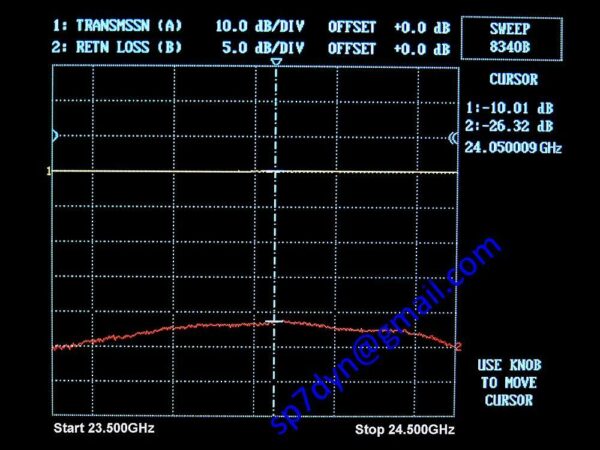

The device is tested (see measurements) and functions, in

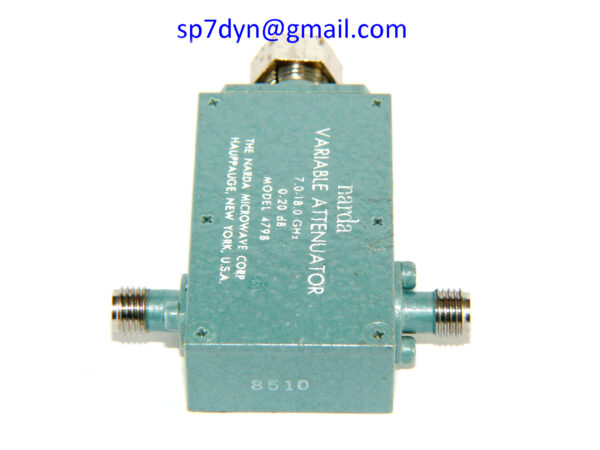

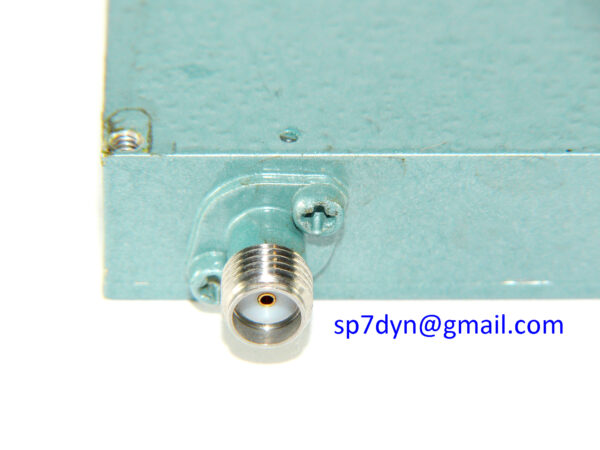

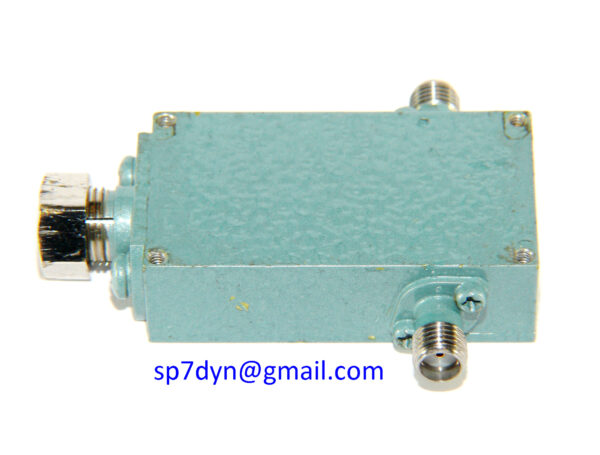

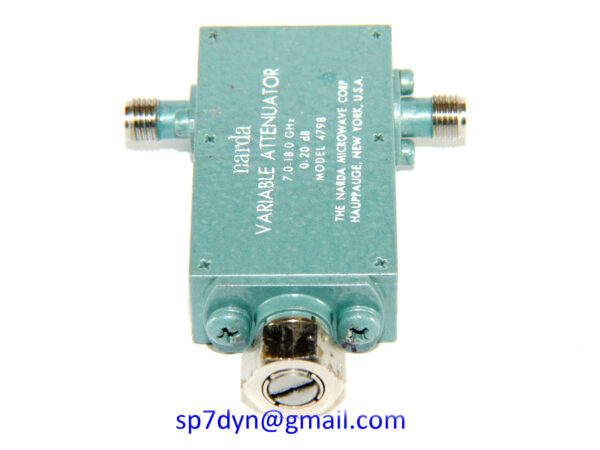

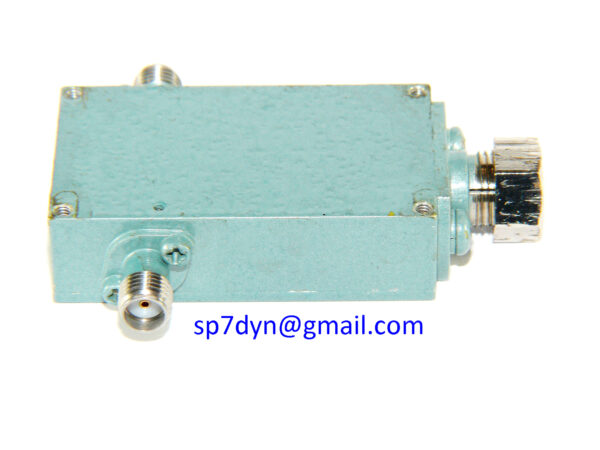

technical good condition, cosmetic scratches – see real photos!
–
Attenuator – dummy load is great for 5.8GHz, 10.36GHz and
24GHz(and all the other 5.5-26GHz) band – low VSWR see data -SN-01.
–

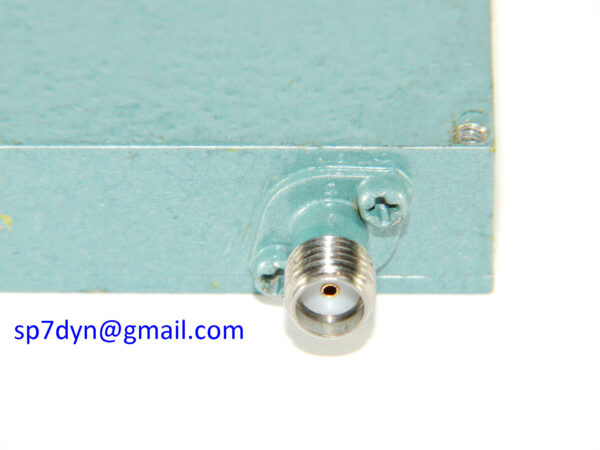

Attention! The offered attenuators have been chosen and selected (in my lab) among many items and can be described by the following specyfications: Manufacturer ------------- NARDA Model -------------------- 4798 Connectors --------------- 2x SMA F Frequency Range --- 5.5-26GHz SWR less than 1.4 Continuous power - 5W (10W-max 1min) Peak max 3KW Power test --------------- 10.3GHz 10W 1min Adj. Attenuations range -- 0.7 to 22dB Impedance ---------------- 50Ohm Frequency Atten VSWR - Port1 Port2 ----------------------------------------------- 5.80GHz 10dB 1.28 1.28 Typ. 1.25 5.80GHz 20dB 1.37 1.37 Typ. 1.33 10.36GHz 10dB 1.22 1.22 Typ. 1.20 10.36GHz 20dB 1.28 1.28 Typ. 1.25 24.05GHz 10dB 1.08 1.08 Typ. 1.06 24.05GHz 20dB 1.21 1.21 Typ. 1.19 At other frequencies the attenuation change! - Price for 1 piece
| Marka | |
|---|---|
| Stan | The attenuators offered here have been chosen and selected from among many items.The device is removed from the new device. Cosmetic Scratches. Tested (see measurements)and functions in technical good condition – see real photo! |
| Order - How to place an order | Please place your order via e-mail: |
| Shipping - method and cost | The price of the item does not include the shipping cost! |
