Variable Piston Trimmer Capacitor 0.8 – 12pF
$108,00
SKU: 130
10 in stock
10 w magazynie

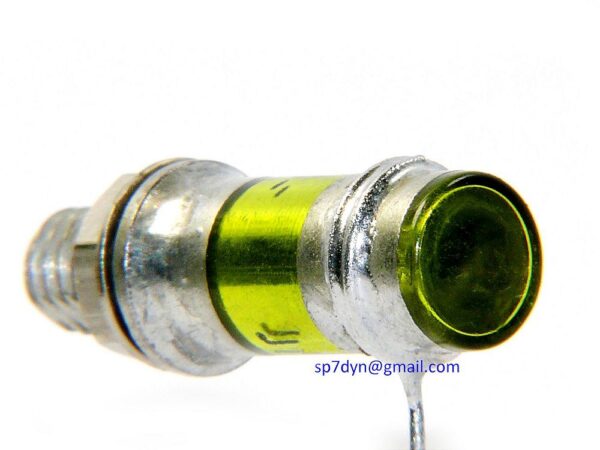

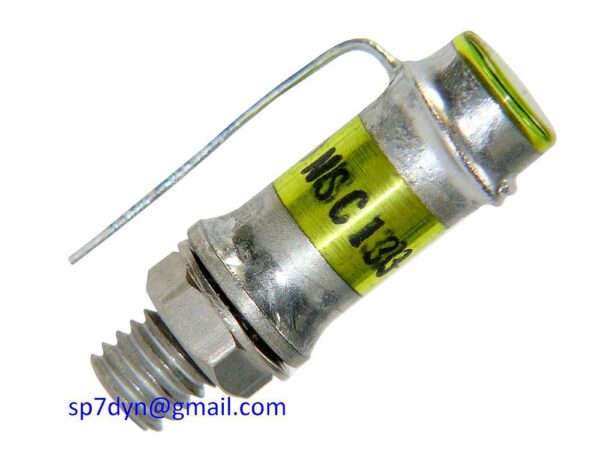

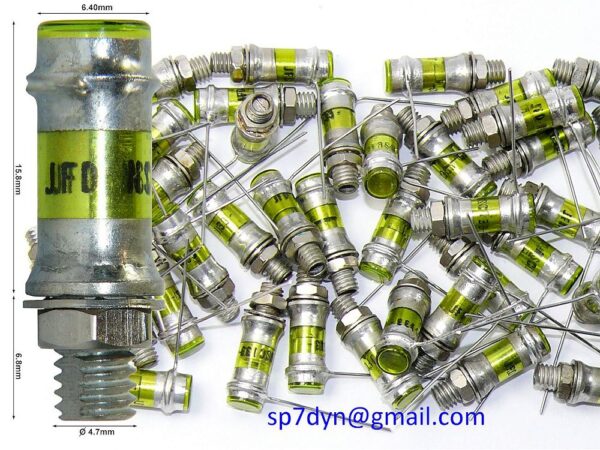

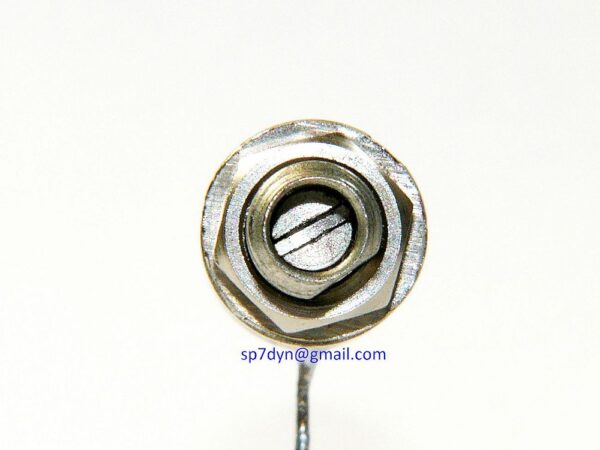

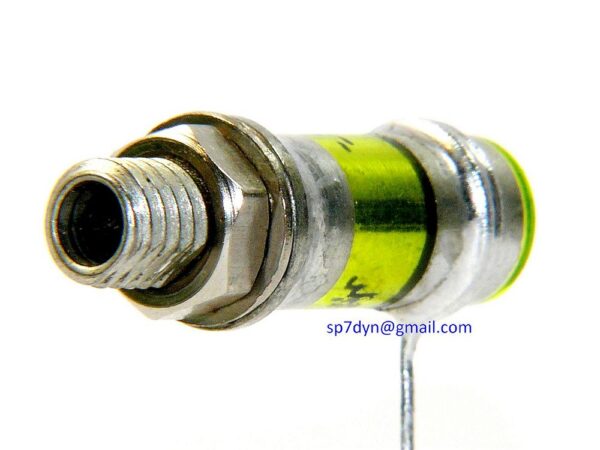

Variable Piston Trimmer Capacitor 0.8 – 12pF JFD NSC133
Variable Piston Trimmer Sprague Goodman USA Quality lot of 10pieces
Capacitor is used once – removed from a new device – see real photos
Other model —————-— Click here

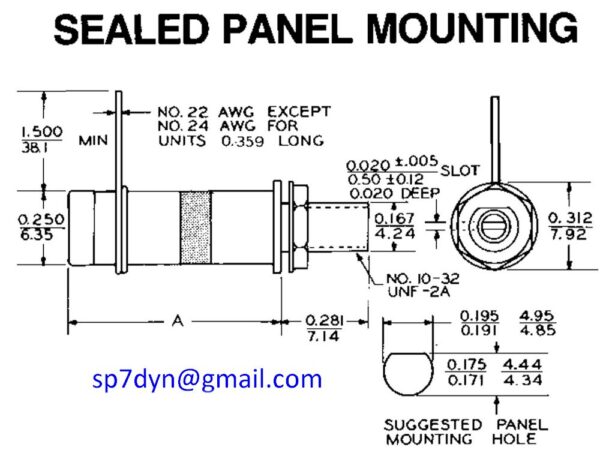

Specifications: Brand ----------------- Sprague-Goodman USA Type ------------------ Panel Mount Glass Trimmer Model ----------------- JFD NSC133 Military Design ------- PC38H120 Capacitance ----------- 0.8 – 12pF Q --------------------- 500 min Working Voltage. ------ 1250 DCWV Isolator -------------- Glass closed - Embedded Band Total Length ---------- 22.6mm Quality --------------- High quality made for the military Number of Turns ------- 15 Operating Temperature-- -55°C to +125°C Condition ------------- Used once - removed from a new device - Is available ---------- More than 120 pieces Price for ------------- lot of 10 pieces
| Capacitor type | Piston Trimmer Capacitor |
|---|---|
| Capacity | 08 – 12pF |
| Dielectric Material | Glass |
| Turns Adjustment | 15 |
| Quality factor | 500(20MHz) |
| Quality | High Quality |
| Operating Temperature range | -55 to -125° C |
| Stan | Used Like New – Tested 100% OK |
| Wire diameter | 0.8mm |
| Mounting hole - Ø | 5mm |
| Important Notes | Tested, Real Photos, Capacitor includes a washer and a nut, Price is for Lot of 10 Pieces |
| Is available | More than 120 pieces |
| Price for | lot of 10 pieces |
| Order - How to place an order | Please place your order via e-mail: |
| Shipping - method and cost | The price of the item does not include the shipping cost! |
