HP33003AH26 Generator Step Comb Diode 26GHz
$218,00
SKU: 165
Only price2 left in stock!
2 in stock

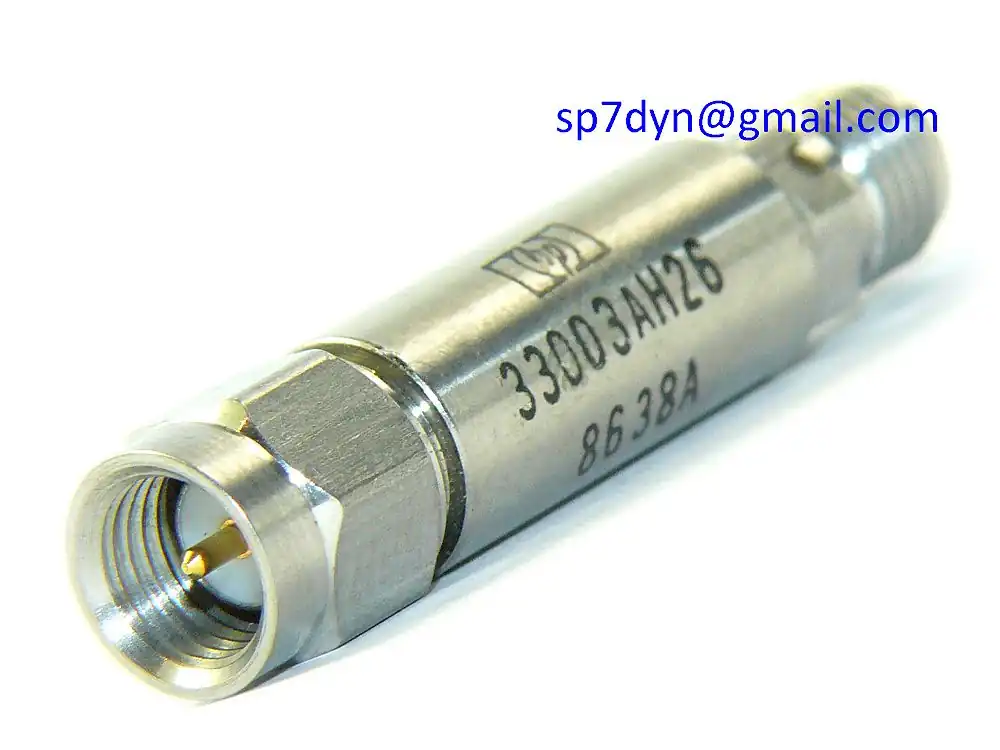

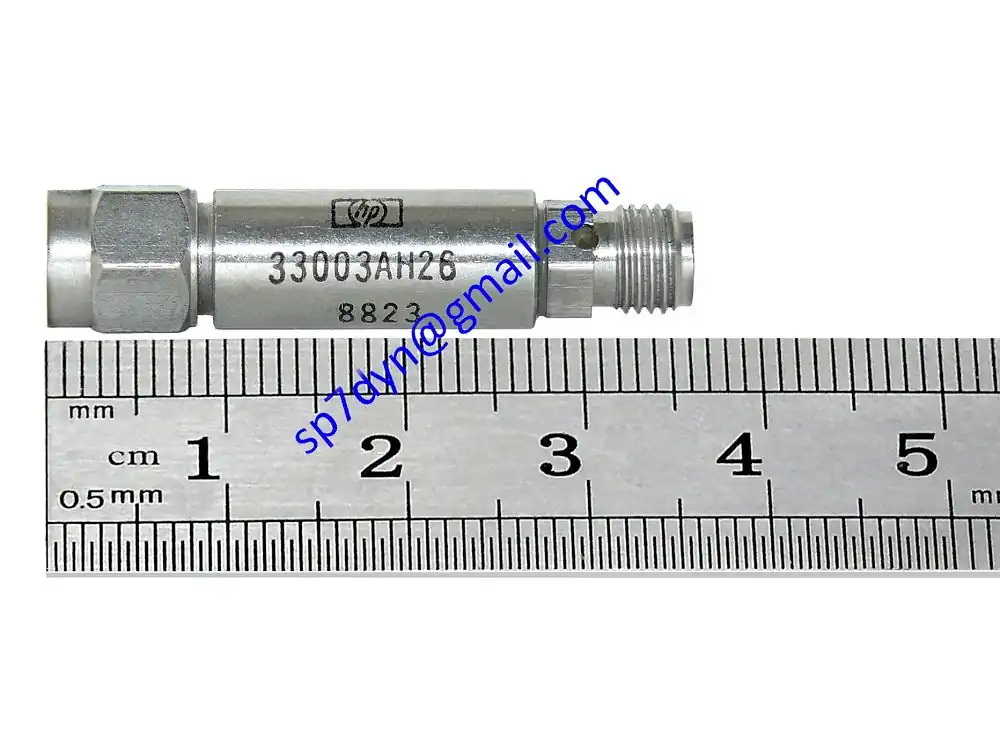

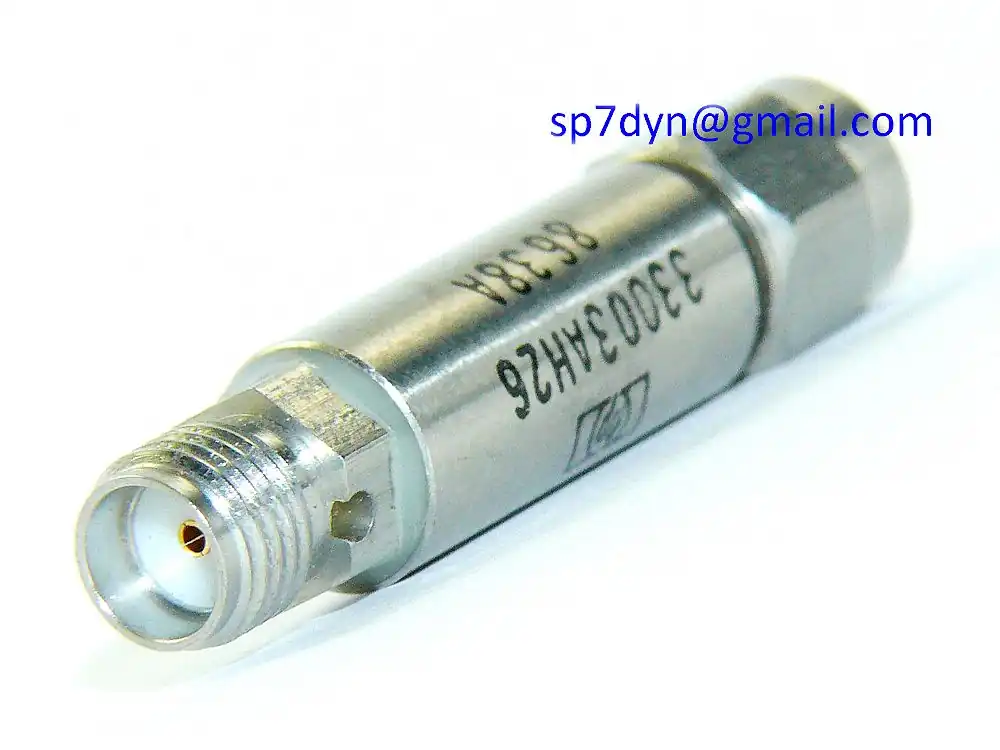

HP33003AH26 Generator Step Comb.
Harmonics Train Step Recovery Diode 26.5GHz.
Item Is great for applications:
———————————————————
Impulse Generator.
Frequency Multipliers.
Frequency Synthesizers.
Built-In-Self-Test Sources.
equipment, and guaranteed to your satisfaction, real photos.
Here have been chosen and selected from among many
items, and work up to 26.5GHz.
Devices not selected work only up to 18GHz!
HP33003AH26 module is not the same as HP33003!
Read parameters from measurements in my lab – see description.
Other oscillators —————————— Click Here
See useful links – knowledge base:
Specifications:
Note: This is not exactly HP33003 !
Offered It has a slightly lower output level!
Brand -------------------- HP USA
Model -------------------- HP33003AH26
Input Frequency ---------- 250MHz +- 25MHz
Output Frequency --------- 0.25 to 26GHz

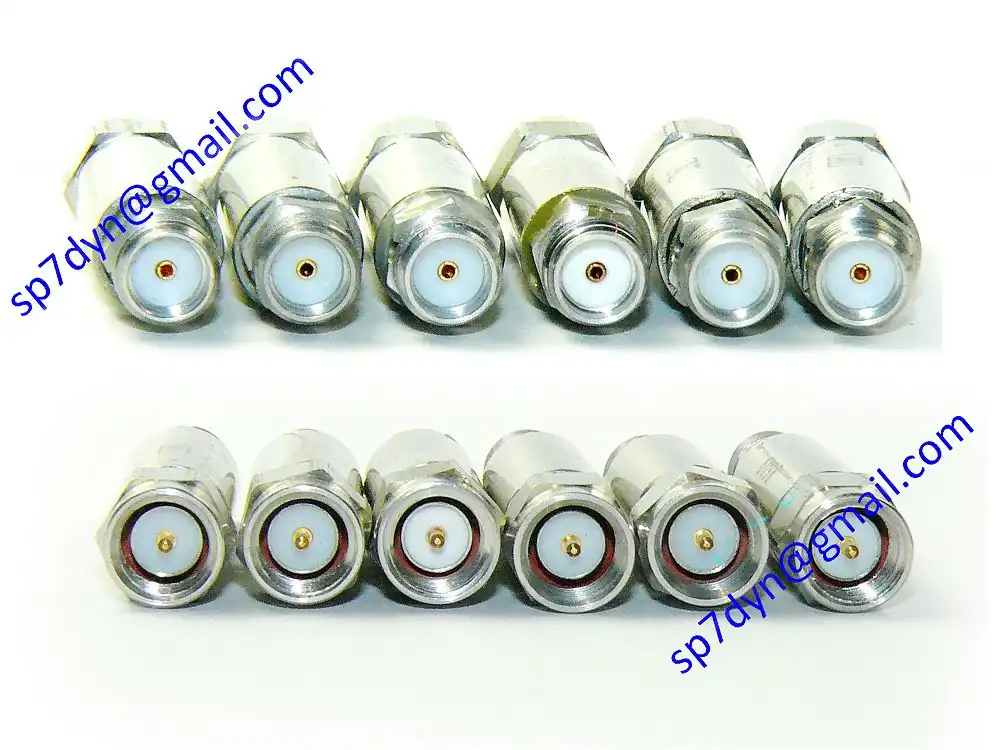

Input Output Connectror -- SMA Male / Female
Power Input Typ ---------- +27 to +28dBm 630mW
Power Input Max ---------- +30dBm (1W)
Temperature Range -------- -55 to +125°C
-
Power Input / Output on Frequency
---------------------------------
2.5GHz ------------------- -10dBm
5.8GHz ------------------- -20dBm
10GHz -------------------- -35dBm
14GHz -------------------- -45dBm
26GHz -------------------- -58dBm
Measurements may contain an error of +10% -20%
-
Test done in my lab, with 8 to 15dBm max power
input, this is too low level, but this is the
maximum of my measurement capabilities!
-
Price for 1piece
| Model | HP33003AH26 |
|---|---|
| Input Frequency | 250MHz +- 25MHz |
| Output Frequency | 0.25 to 26GHz |
| Input Output Connectror | SMA Male / Female |
| Power Input Typ | +27dBm |
| Power Input | +30dBm (1W) Max |
| Temperature Range | -55 to +125°C |
| Additional information | Test done in my lab, with 8 to 15dBm max power input, |
| Order - How to place an order | Please place your order via e-mail: |
| Shipping - method and cost | The price of the item does not include the shipping cost! |
