23GHz RX/TX module DMC
Device is tested only in the original set – test OK
Important informations:

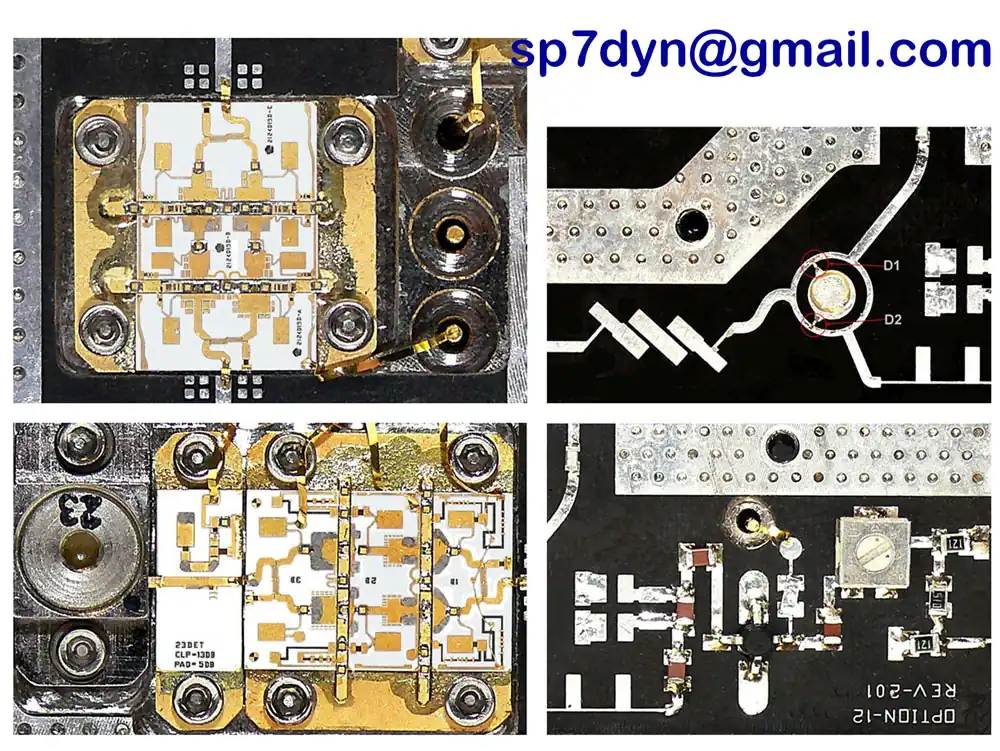

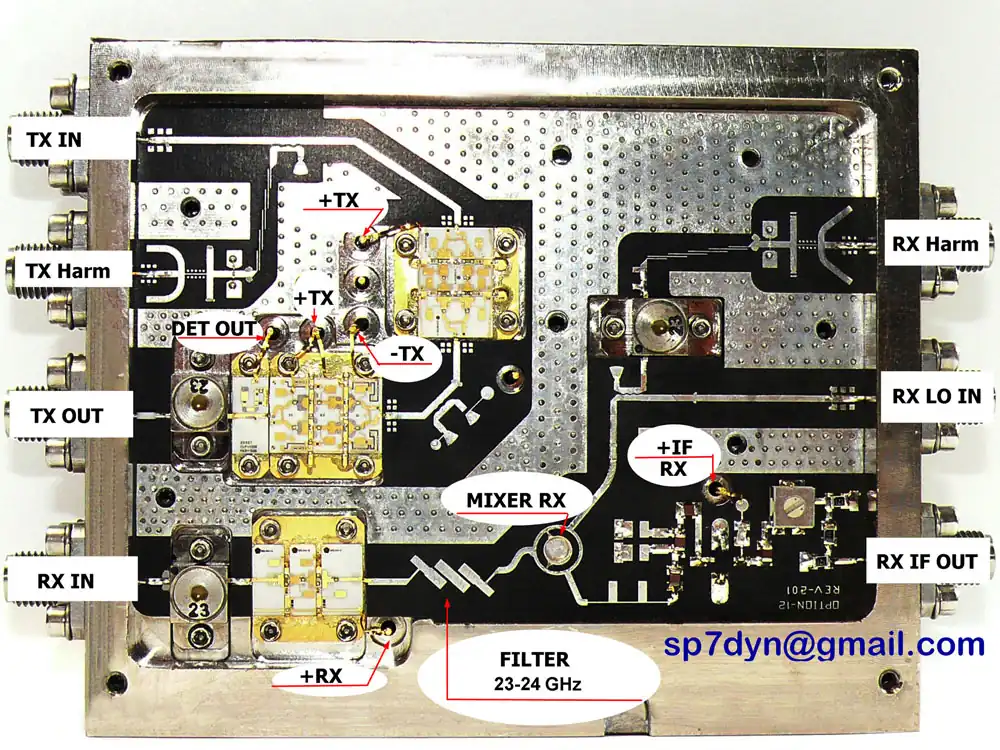

TX System without mixer – se real photos!
I don’t have schematics or factory data sheets!
Sequencing Requirements Supply Voltages:
Turn-on Procedure:
1) Apply -5VGS port
2) Apply +5VGS Power Supply port
Turn-off Procedure:
1) Turn off +5VDS Supply port
2) Turn off -5VGS port
Other Module ————————- Click Here
Useful links – knowledge base :
Link to ————————————— F5DQK
–

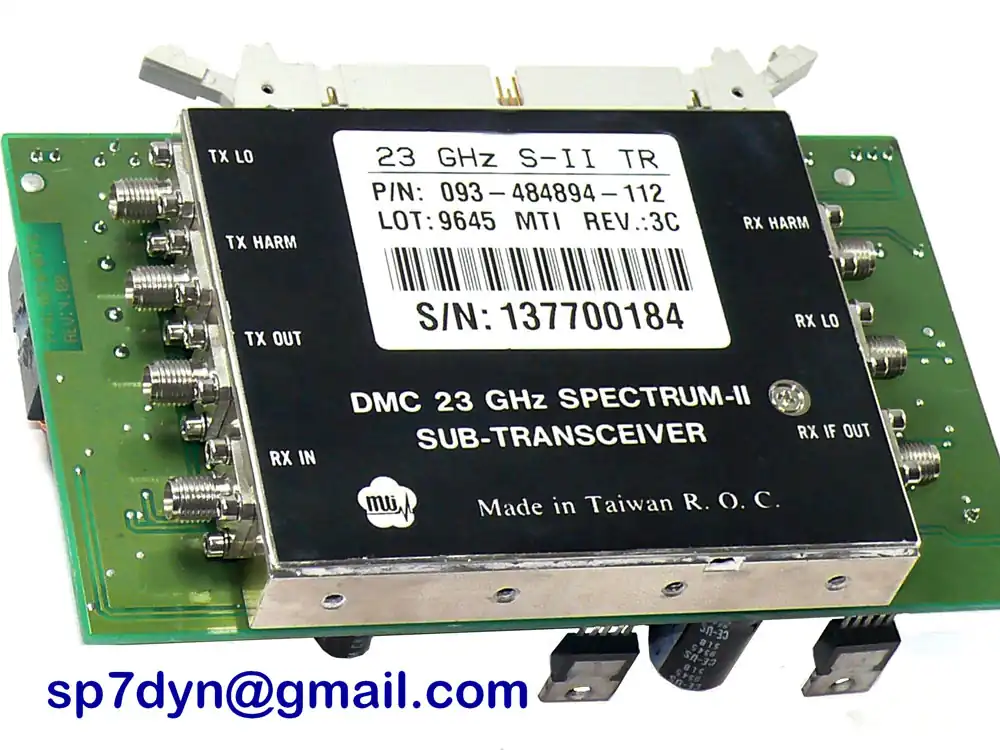

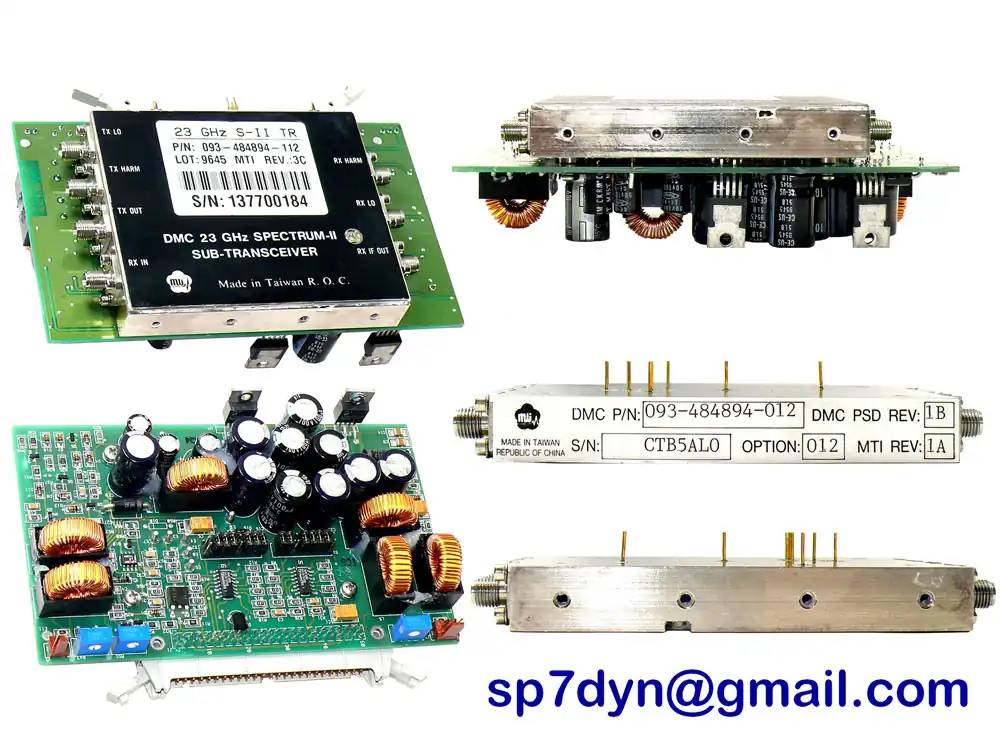

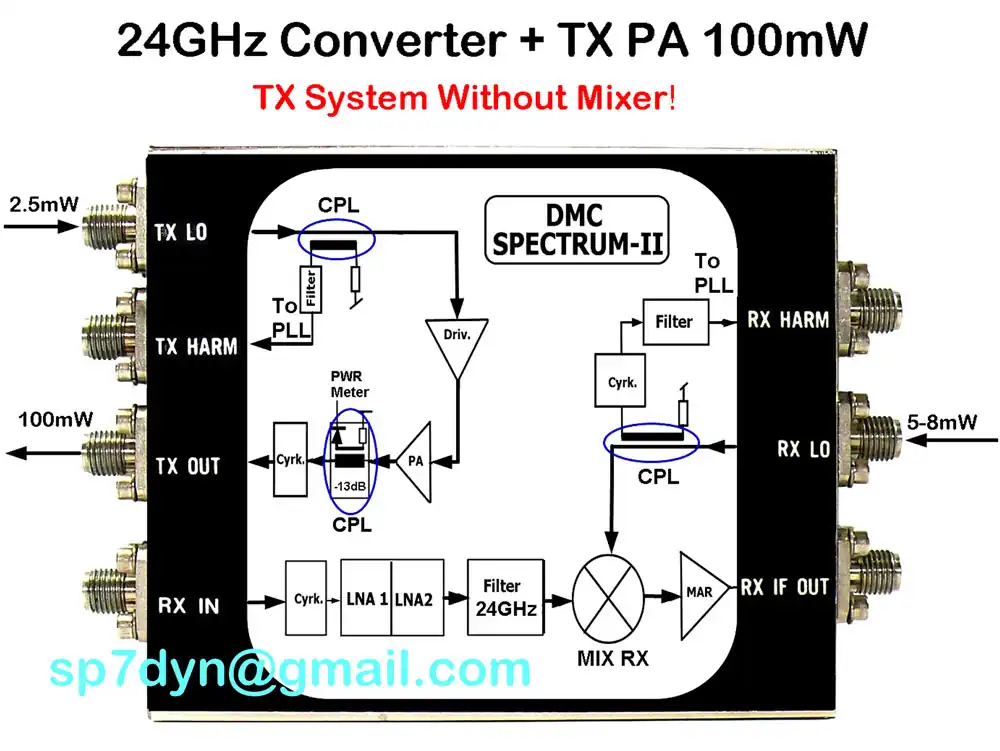

Specifications: Brand ---------------- Digital Microwave Corporation Type ----------------- 23GHz Converter + Power Amplifier Model ---------------- 093-484894-112 Oryginal Frequency --- 23 to 23.6GHz Oryginal IF ---------- 600MHz VDS ------------------ +5VDC VGS ------------------ -5VDC Connectors x 7 ------- SMA RX LO INP ------------ 5-8mW At the RX input ------ is an isolator and a two-stage LNA TX INP --------------- 2.5mW TX Power OUT --------- 100mW TX ------------------- is only Power Amplifier without mixer! Condition ------------ Pulled from working environment, good condition, see real photos. Module is tested only in the original set - test OK - Price is for --------- 1 piece
| Brand | Digital Microwave Corporation |
|---|---|
| Type | 23GHz Converter + Power Amplifier |
| Model | 093-484894-112 |
| Oryginal Frequency | 23 to 23.6GHz |
| Oryginal IF | 600MHz |
| VDS | +5VDC |
| VGS | -5VDC |
| Connectors x 7 | SMA |
| RX LO INP | 5-8mW |
| At the RX input | is an isolator and a two-stage LNA |
| TX INP | 2.5mW |
| TX Power OUT | 100mW |
| TX | is only a Power Amplifier without a mixer! |
| Condition | Module ulled from a working environment, |
| Price is for | 1 piece |
| Order - How to place an order | Please place your order via e-mail: |
| Shipping - method and cost | The price of the item does not include the shipping cost! |
