WR42 Waveguide Isolator 24GHz

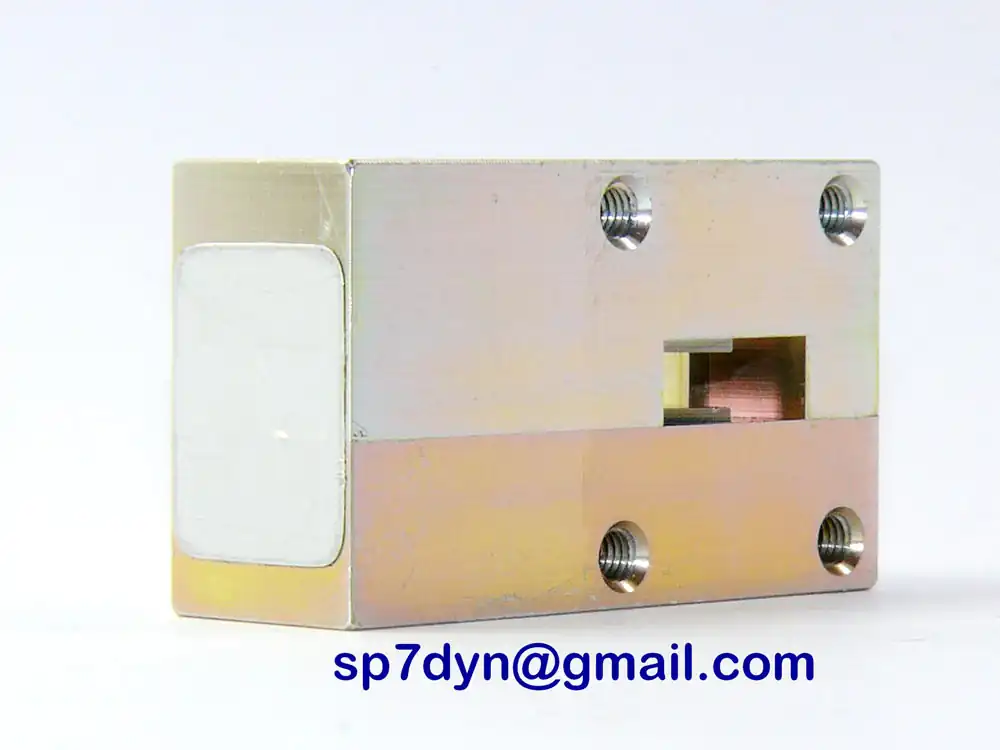

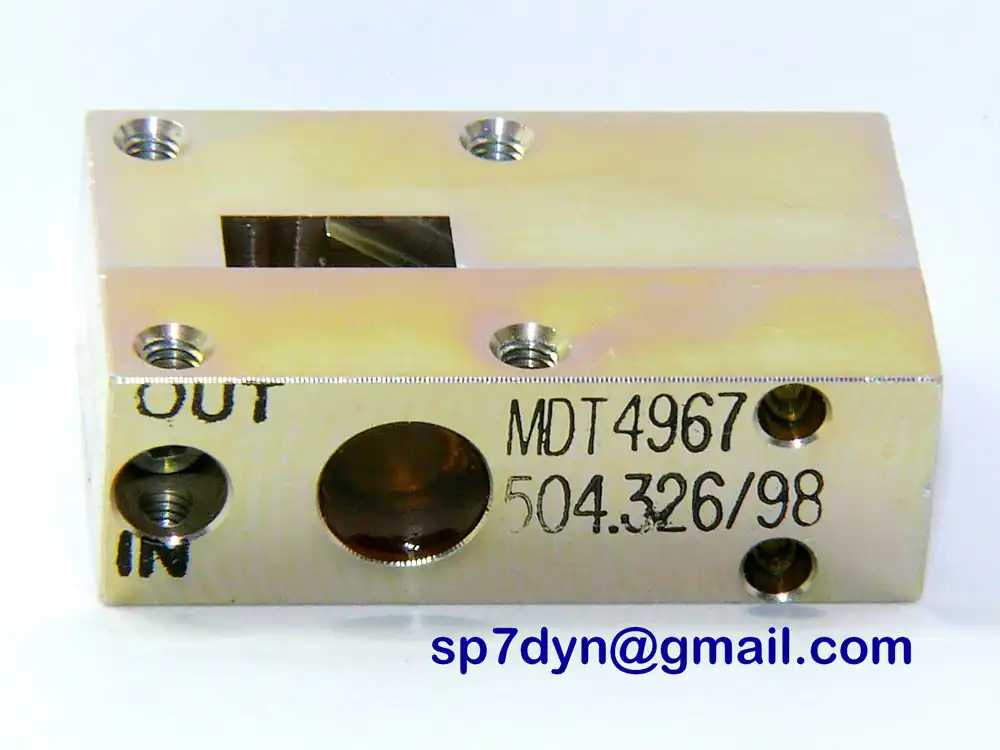

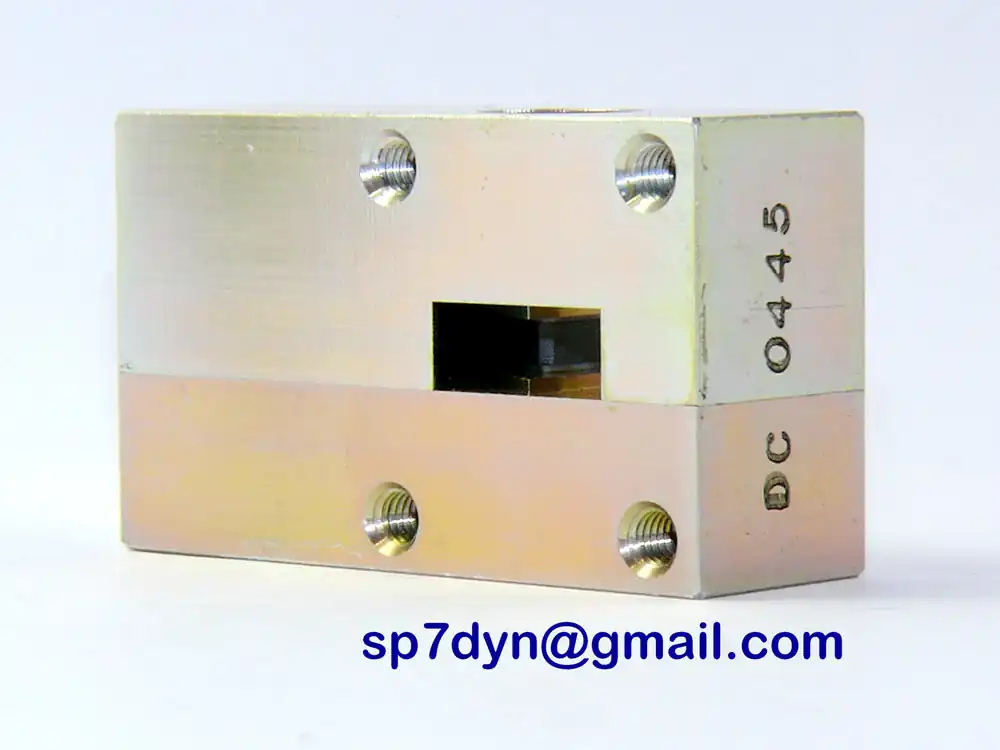

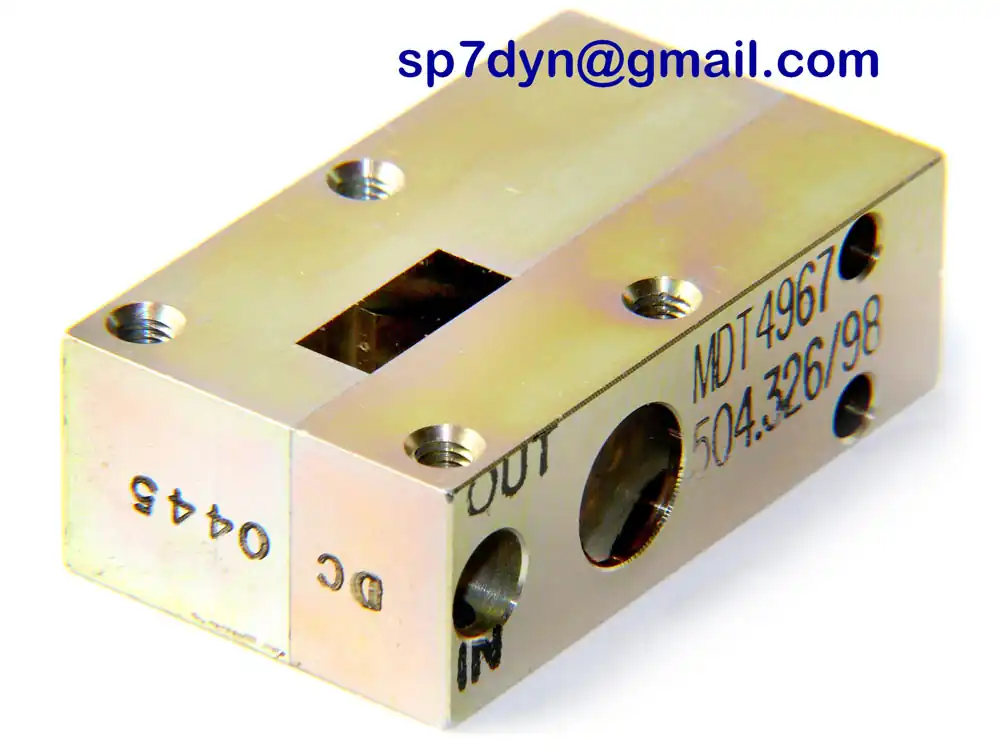

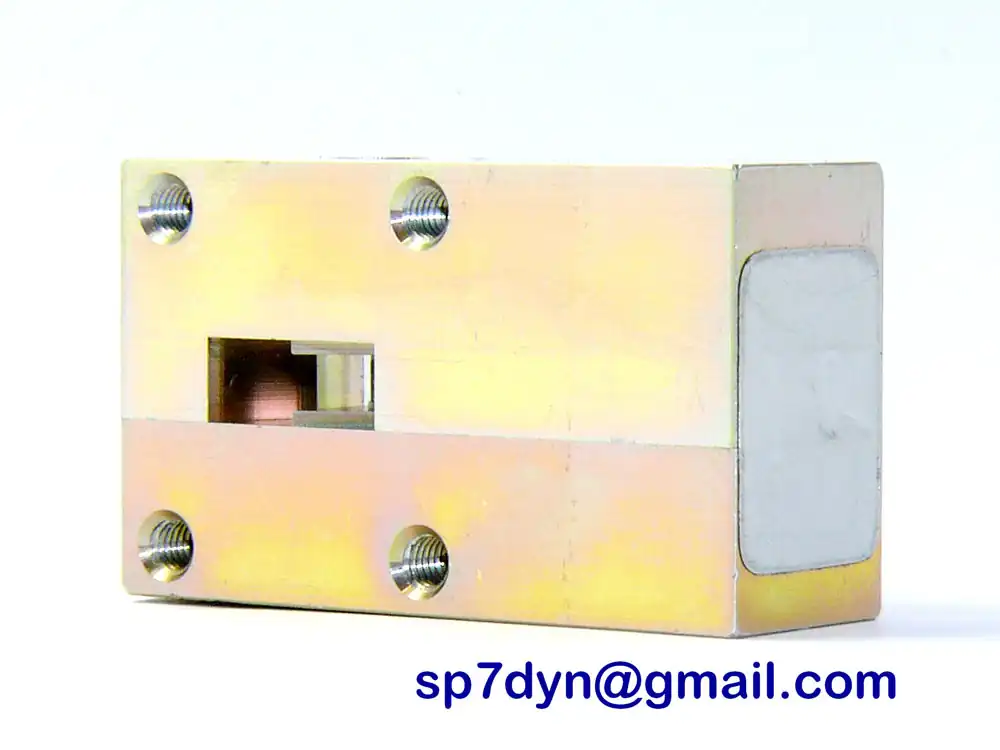

WR42 Waveguide Isolator is tested and functions
in technical good condition – real photos.
Warning!
The insulator is not a standard version,
This batch is of special military production.
The measurements were taken in my laboratory

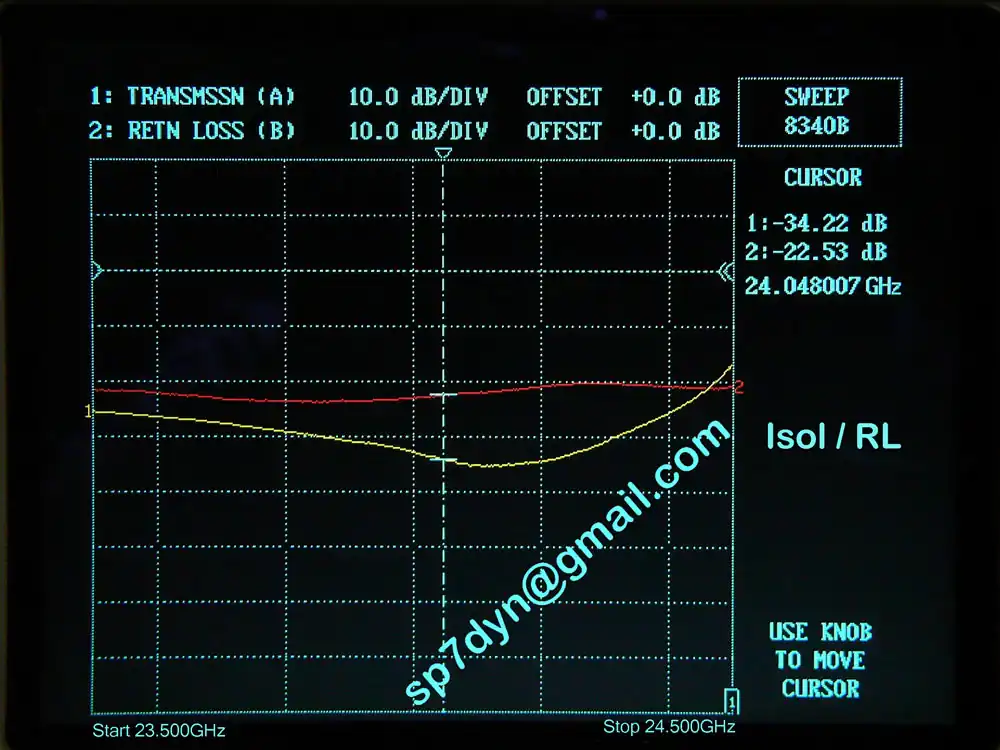

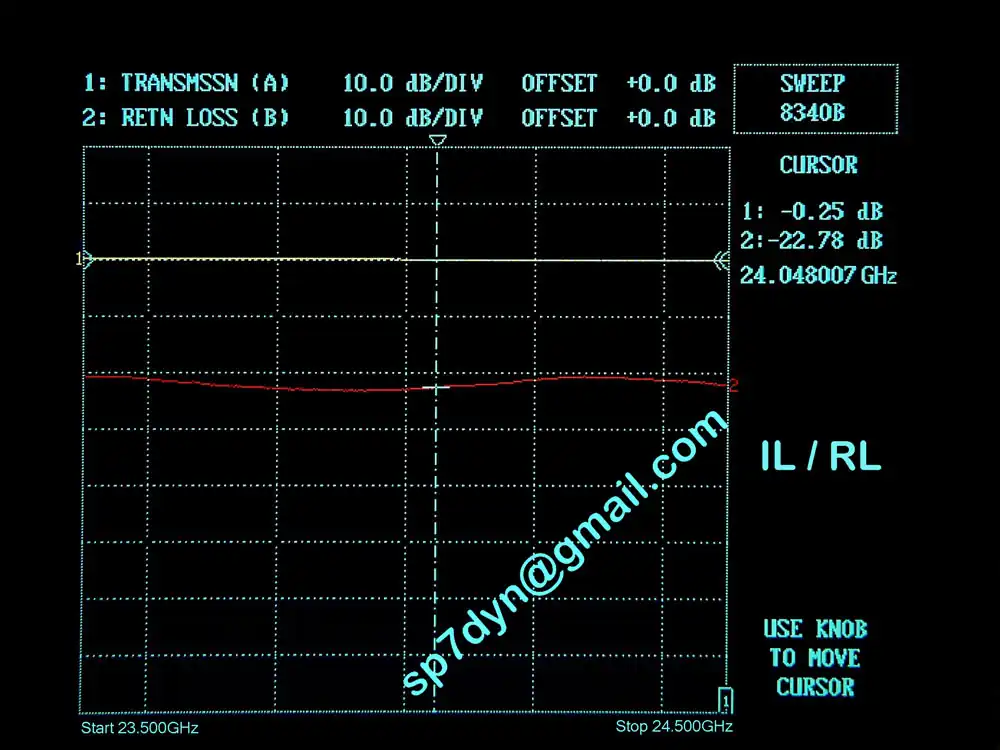

Device is great for 24GHz band – see photoplot.

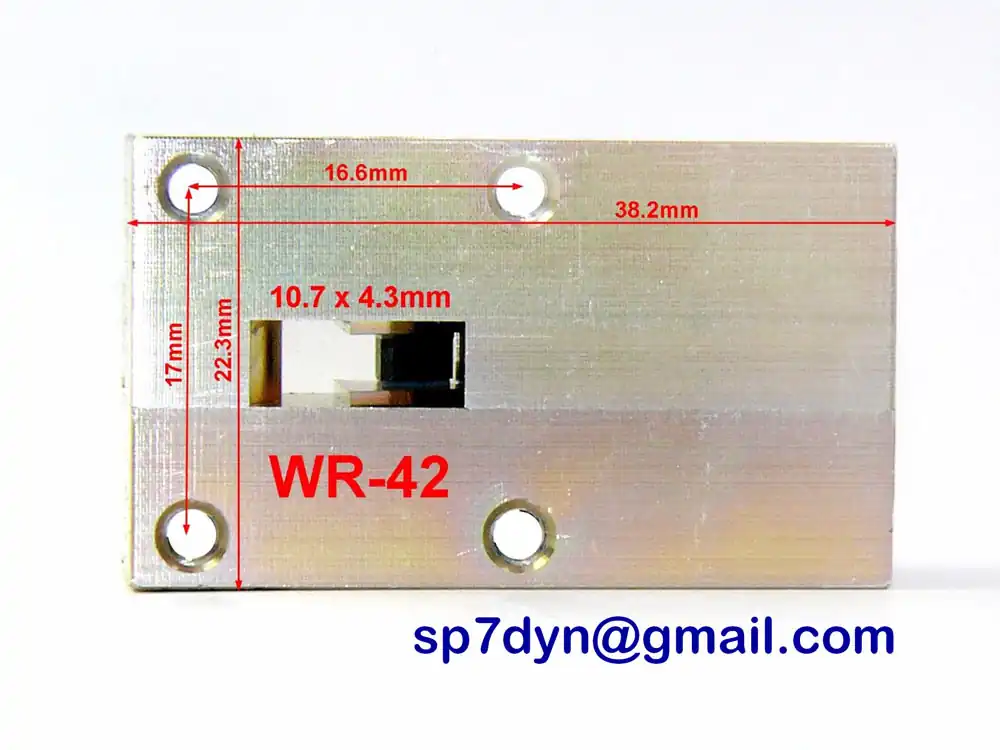

Specifications: Waveguide Connectors --- WR-42 Frequency range test --- 23.5 - 24.5GHz Isolation -------------- 20dB min typ 23dB Insertion loss IN-OUT -- 0.3dB +0.2/-0.2 error Return Loss ------------ 20dB min 23dB typ Power max -------------- 5Watts Material --------------- Aluminium The holes -------------- M3 - Price for -------------- 1 piece
