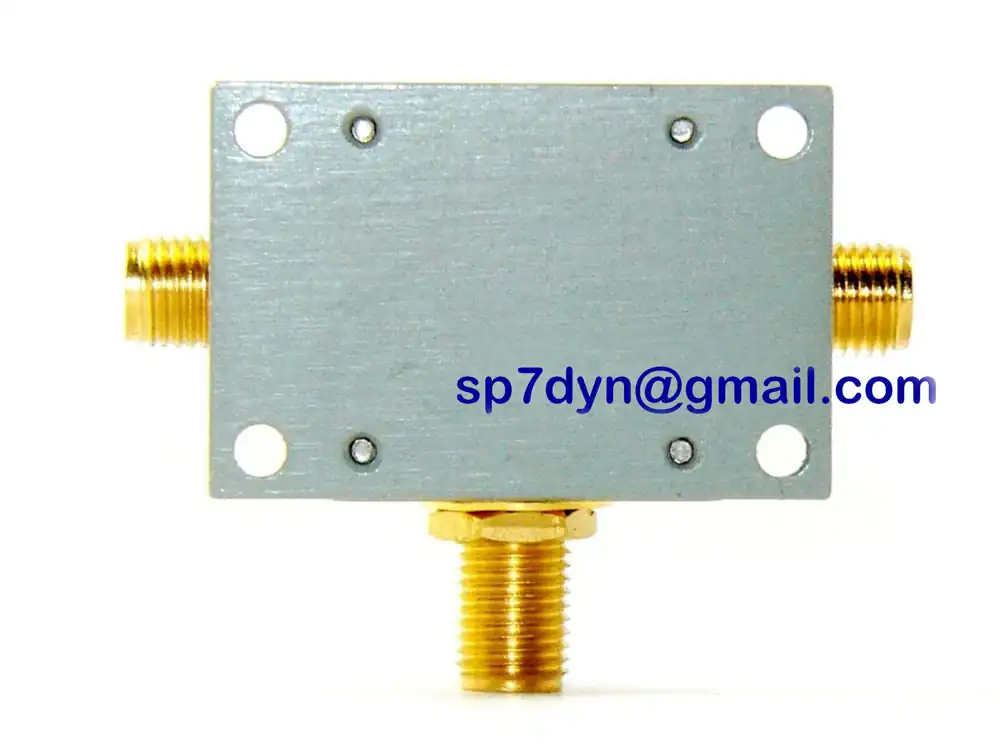

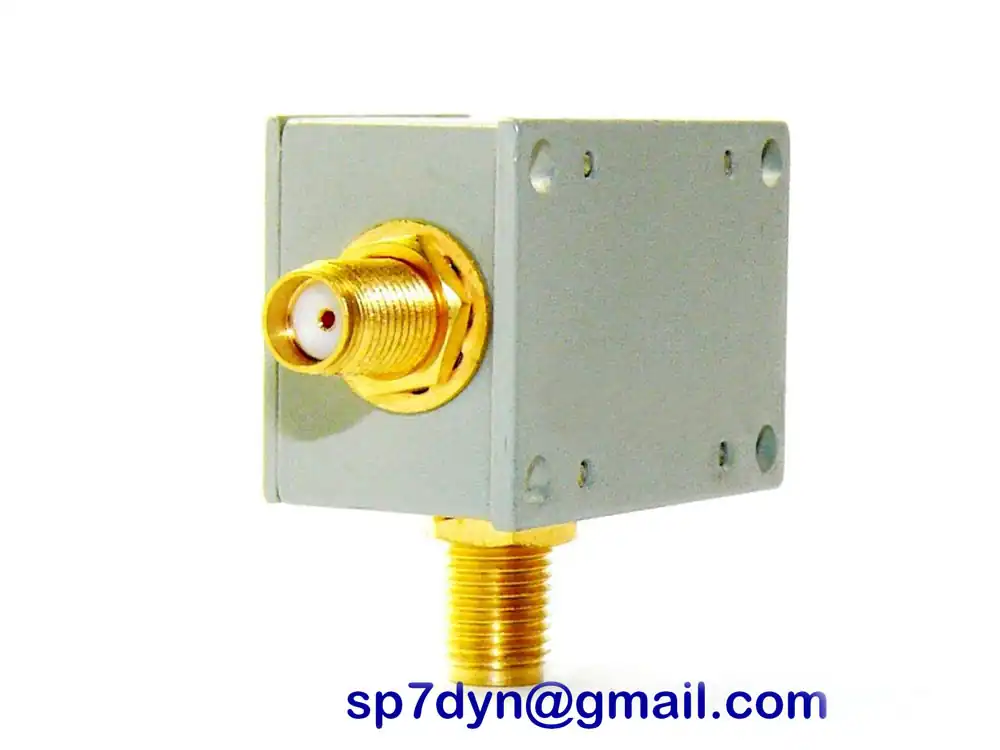

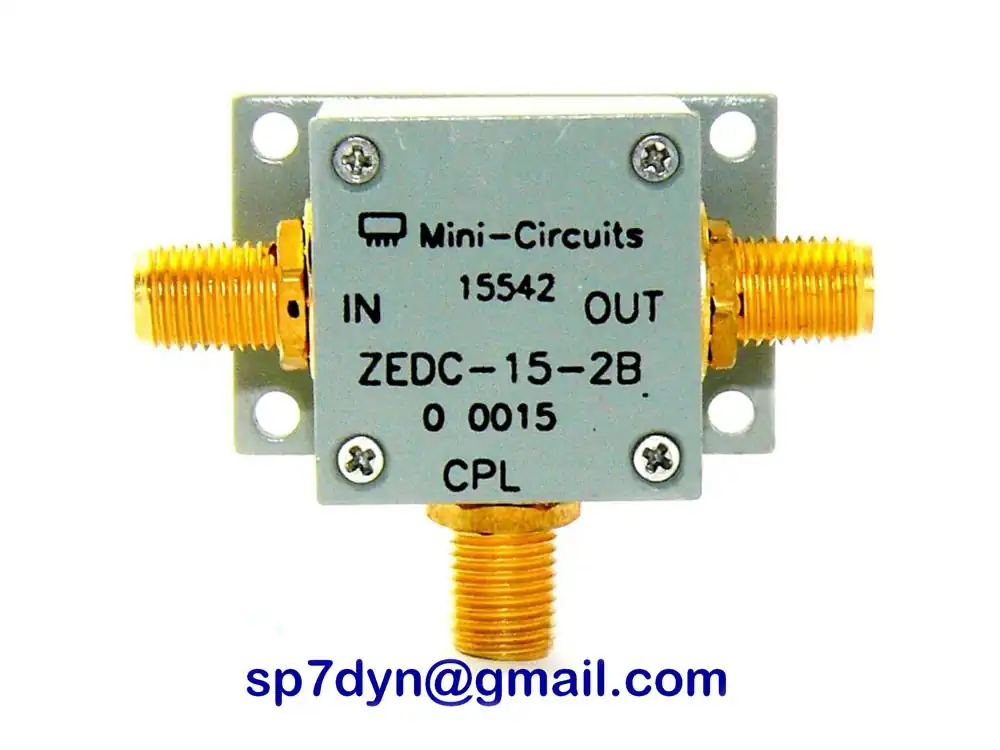

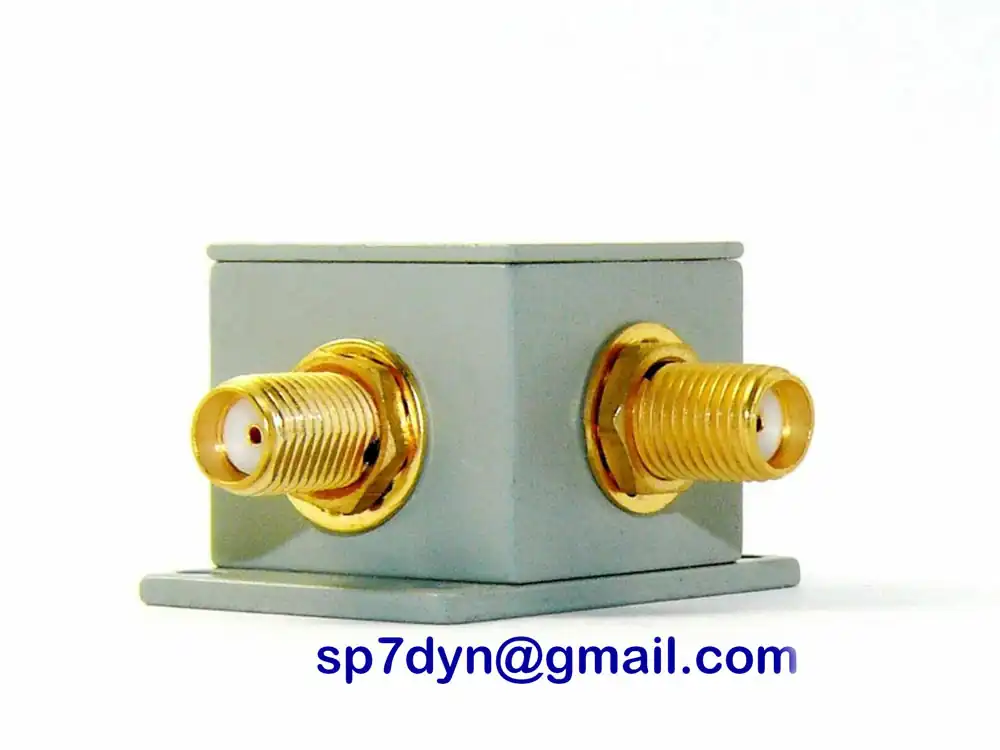

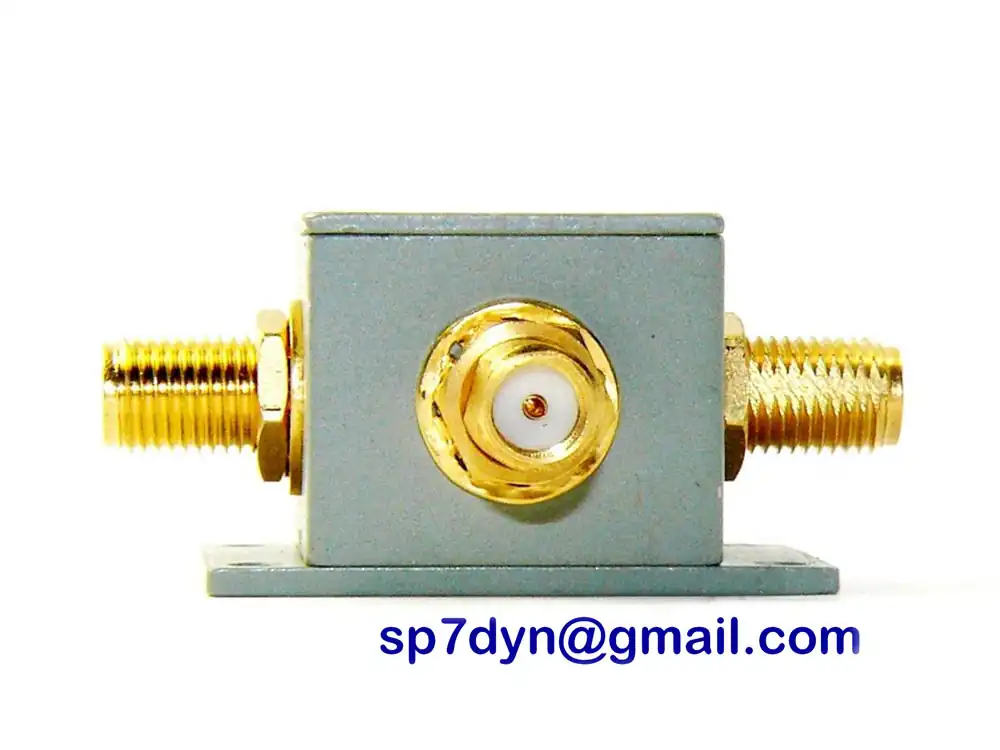

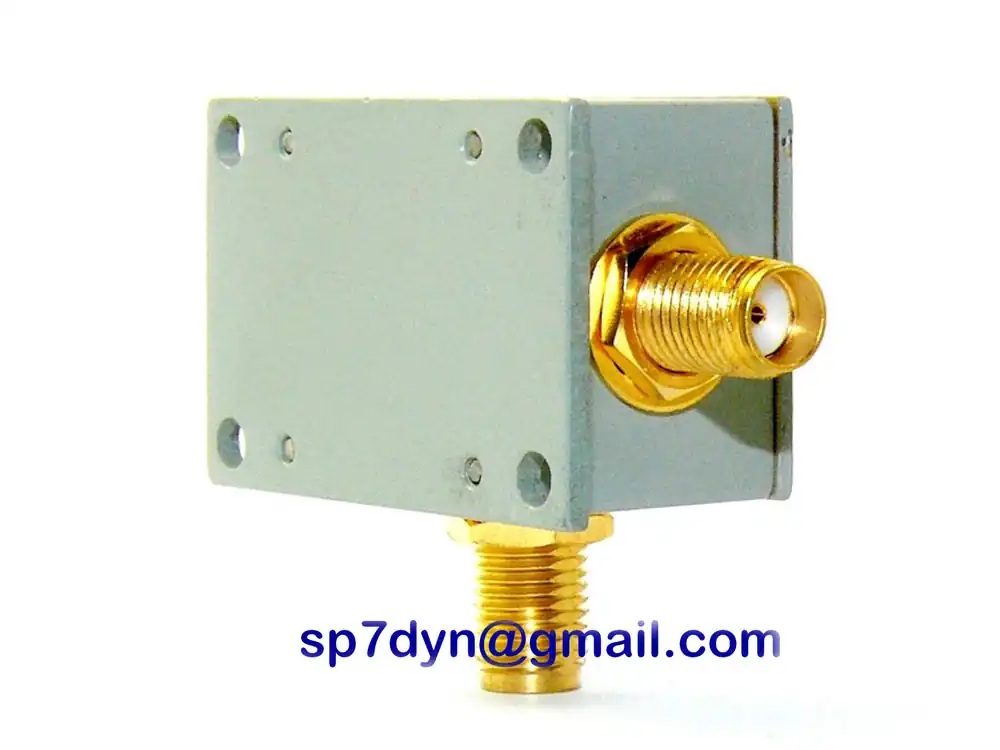

SWR Bridge ZEDC-15-2B Mini-Circuits
$60,00
SKU: 244
10 in stock
10 in stock
SWR Bridge ZEDC-15-2B Mini-Circuits
NWT500 Directional Coupler Bridge
–
Each coupler has been tested in my lab, for coupling,
directivity, insersion loss and return loss!
Sold coupler are special military production and work
1 to 1000MHz is great for NWT-500 analyzer & other
–

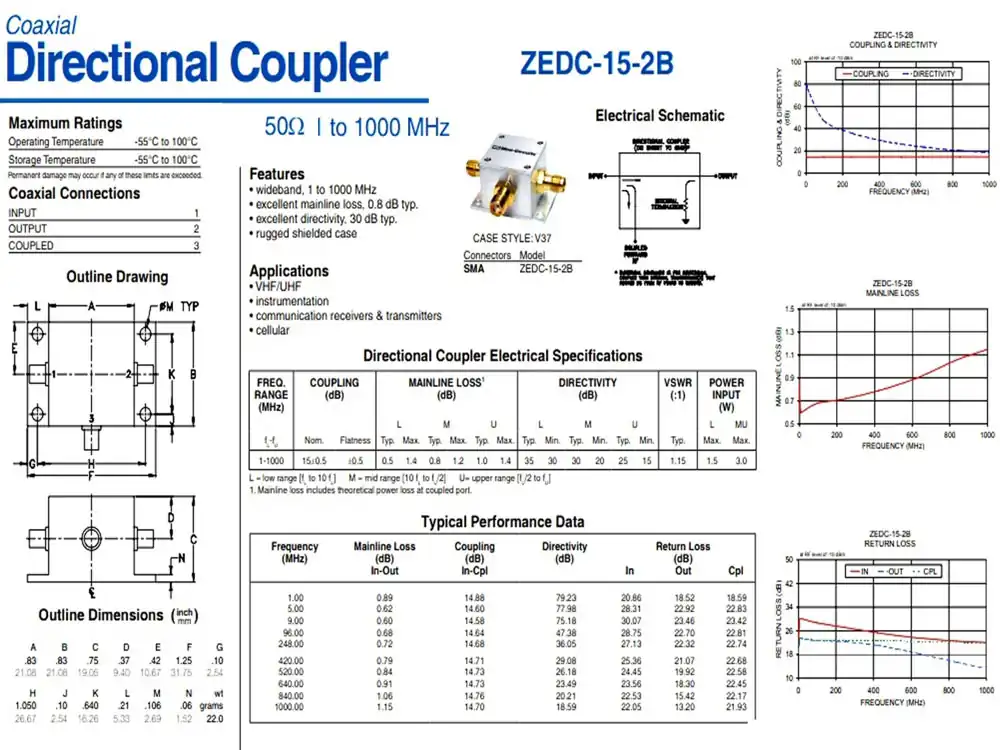

Specifications: Lnk to ------------------------ PDF Manufacturer ----------- Mini-Circuits Model ------------------ ZEDC-15-2B Frequency range -------- 1-1000MHz Impedance -------------- 50 Ohms Mainline loss ---------- 0.8dB Directivity ------------ 30dB typ Connectors 3x ---------- SMA Operating temperature -- -55°C to 100°C Condition -------------- Used - Like new - Price is for 1 piece
| Model | ZEDC-15-2B |
|---|---|
| Frequency range | 1-1000MHz |
| Impedance | 50Ohms |
| Mainline loss | 0.8dB |
| Directivity | 30dB typ. |
| Connectors | 3xSMA |
| Operating temperature | -55°C to 100°C |
| Order - How to place an order | Please place your order via e-mail: |
| Shipping - method and cost | The price of the item does not include the shipping cost! |
