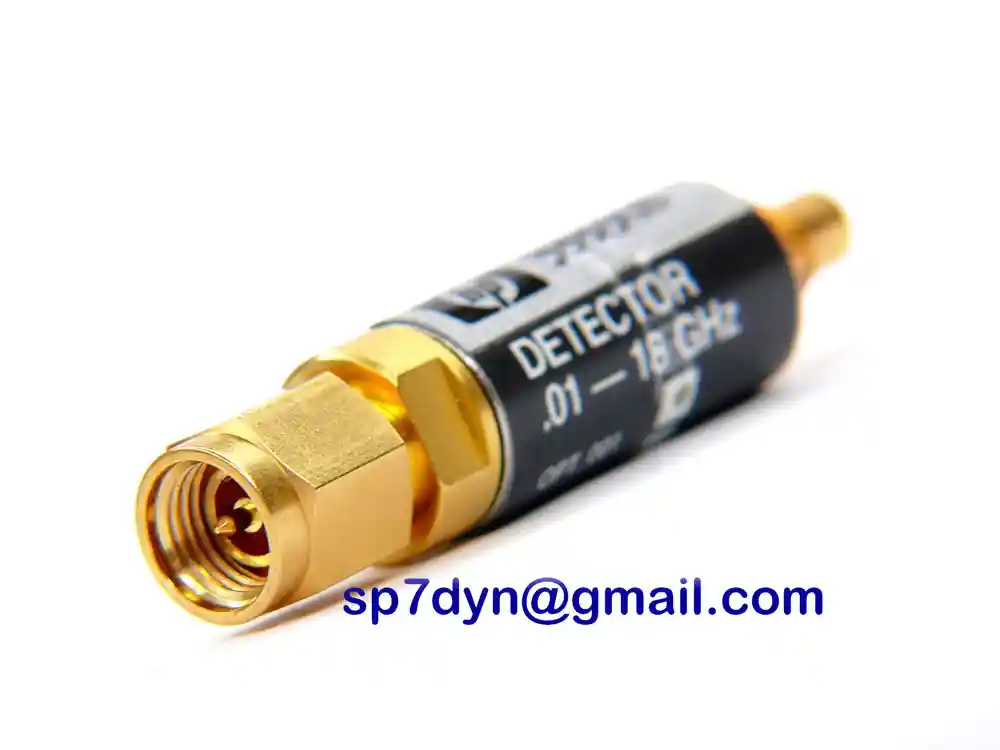

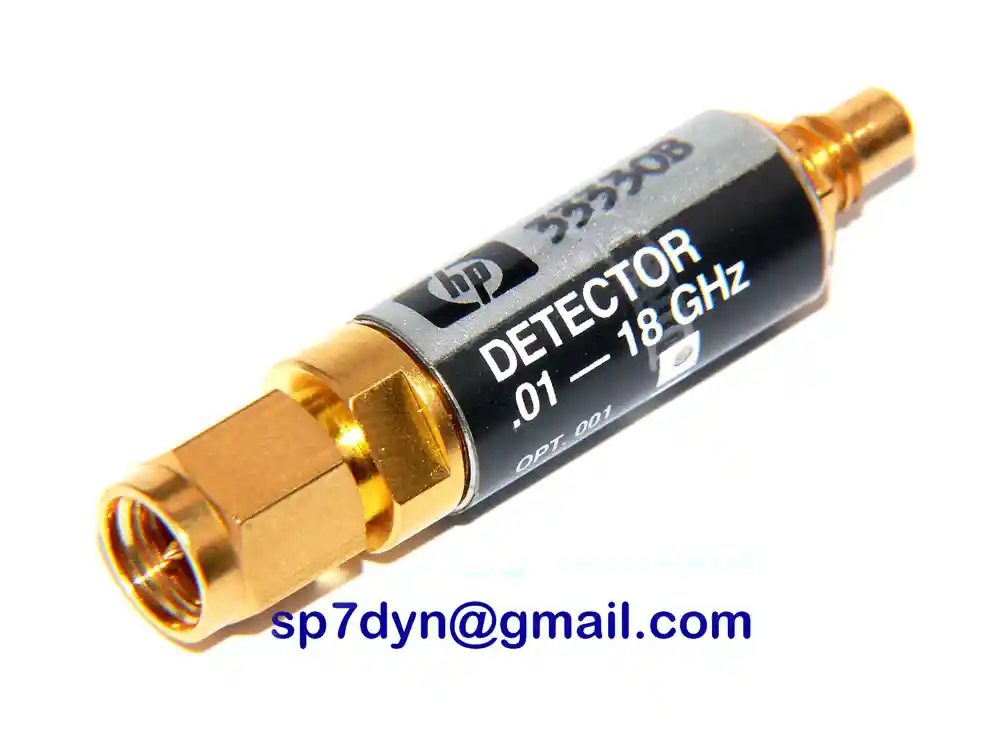

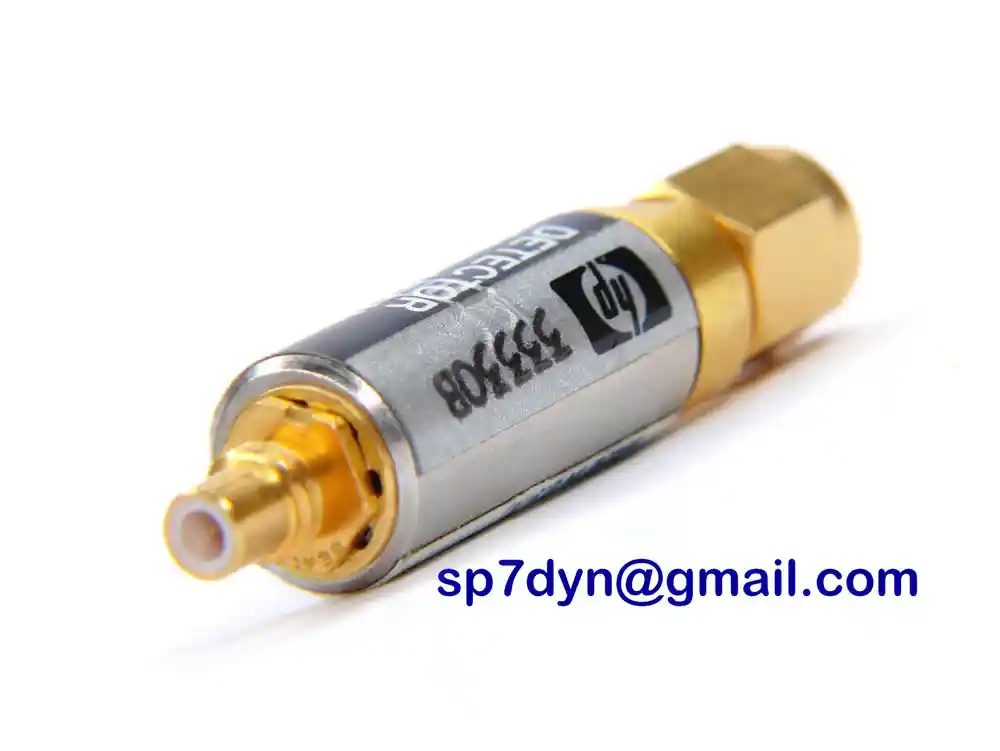

HP33330B Detector SN01 0.01-18GHz

HP33330B Detector SN01 0.01-18GHz
The item was removed from a new device is unused,
tested and functions in technical very good condition.
All pictures and measurement tables are real.

You will receive the exact item in the photo.

Link to PDF ——————————————-  Click Here
See power meter with this detector —-  Click Here
Watch the video with this detector —— Click here
See others detectors —————————–  Click Here

Sample measurements, VDC output on frequency and level.
The linearity of the detector is perfect, even up to 22.5GHz.
Excellent broadband flatness – see measurements below
Measurements made in my lab for Serial NO- 01019A only!

IN/dBm 10MHz/VDC   50MHz/VDC   145MHz/VDC  435MHz/VDC 1296MHz/VDC 2.4GHz/VDC  5.8GHz/VDC 10.368GHz/VDC 18.000GHz/VDC
====================================================================================================================
+20.00 2.525.100V  2.524.900V  2.524.870V  2.524.900V  2.524.900V  2.524.700V  2.524.200V  2.524.800V  2.524.700V
+10.00 0.820.500   0.820.500   0.819.900   0.820.500   0.820.200   0.820.700   0.820.400   0.820.100   0.822.700
+ 7.00   573.800     573.800     573.800     573.700   0.573.800   0.573.800   0.573.900   0.573.800   0.573.800
 00.00   214.760     214.870     214.920     214.903     214.600     214.550     214.520     215.560     215.300
-10.00    46.925      46.837      46.950      46.910      46.360      46.300      46.388      46.450      46.300
-20.00     6.061       6.058       6.052       6.049       6.043       6.050       6.044       6.052       6.047
-30.00     0.629       0.629       0.631       0.638       0.633       0.631       0.630       0.627       0.625
-40.00     0.087 mV    0.082 mV    0.082 mV    0.082 mV    0.082 mV    0.082 mV    0.082 mV    0.082 mV    0.074 mV

Note: Each different detector will have completely different measurement results!

SPECIFICATIONS:

Brand -------------- HP High Quality
Model -------------- HP33330B
Type --------------- Low Barrier Schottky diode detector
Frequency ---------- 0.01-18GHz
Linearity ---------- See the table with measurements
Input Max - Min ---- +20 to -41dBm
Impedance ---------- 50 Ohms

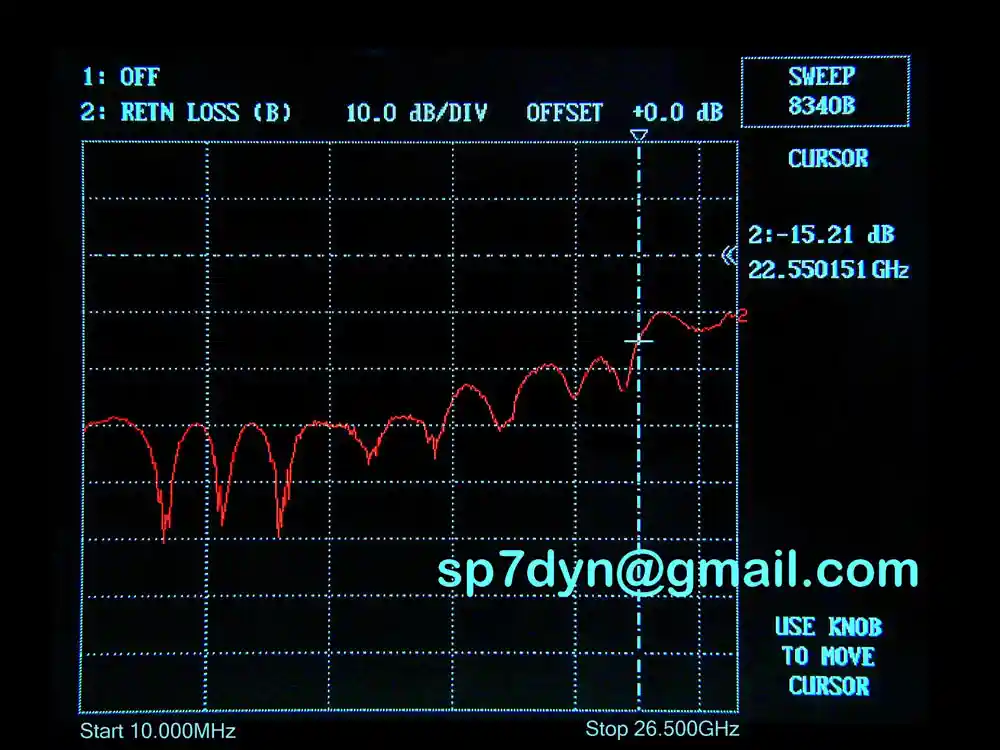

SWR ---------------- Perfect - see real photo data
Power max ---------- 200mW

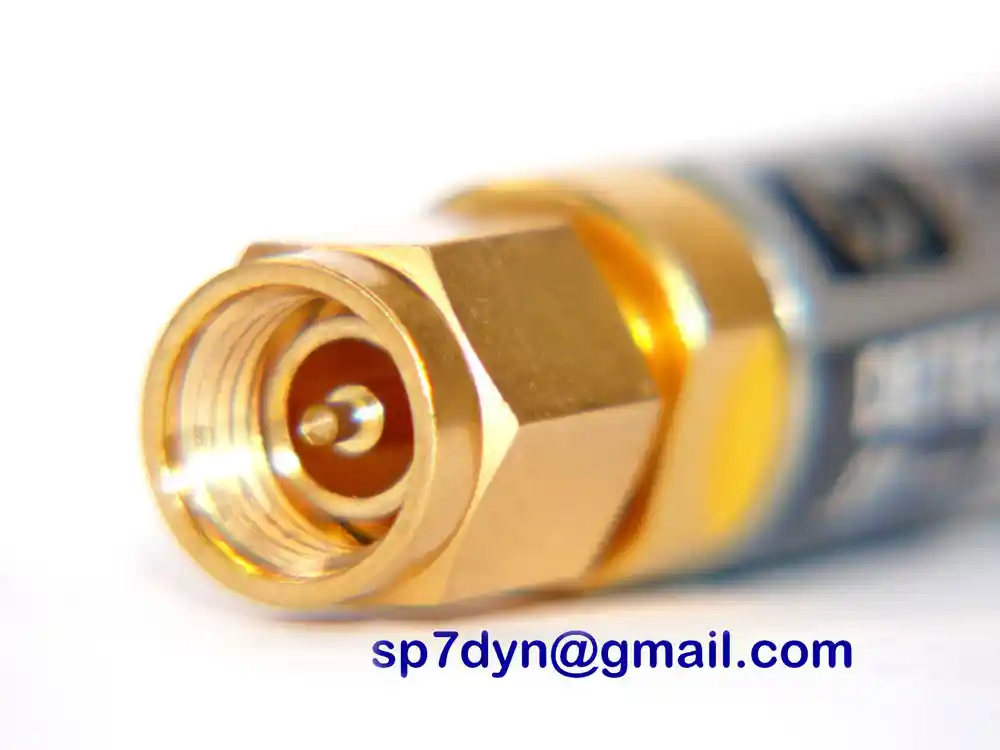

Connector inp ------ APC-3.5 male (SMA compatible)

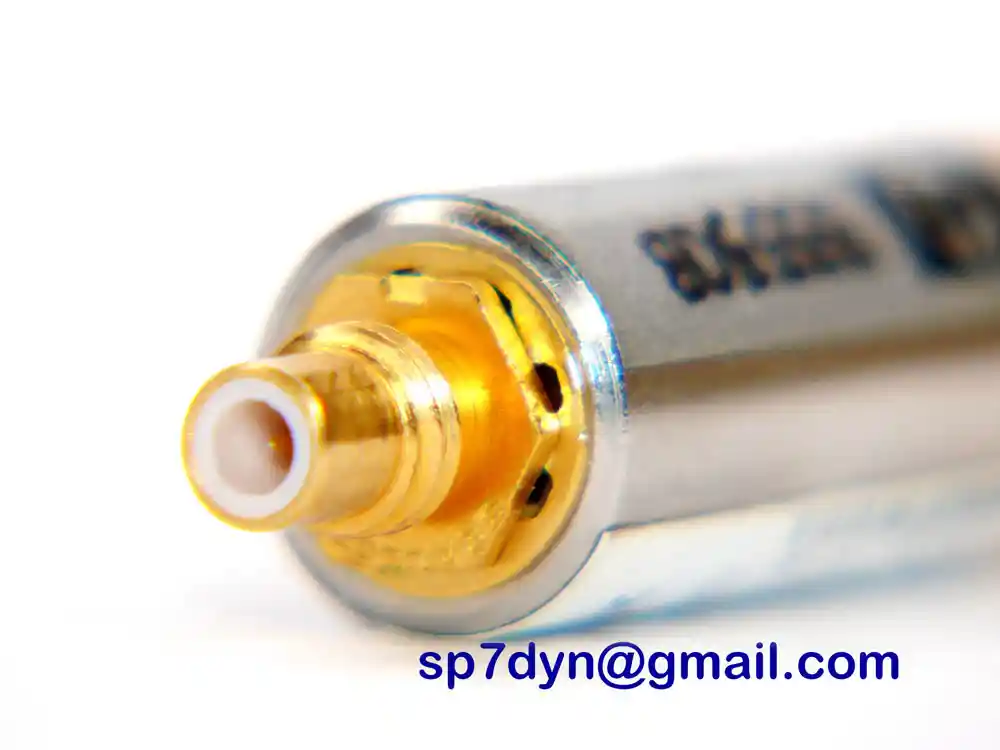

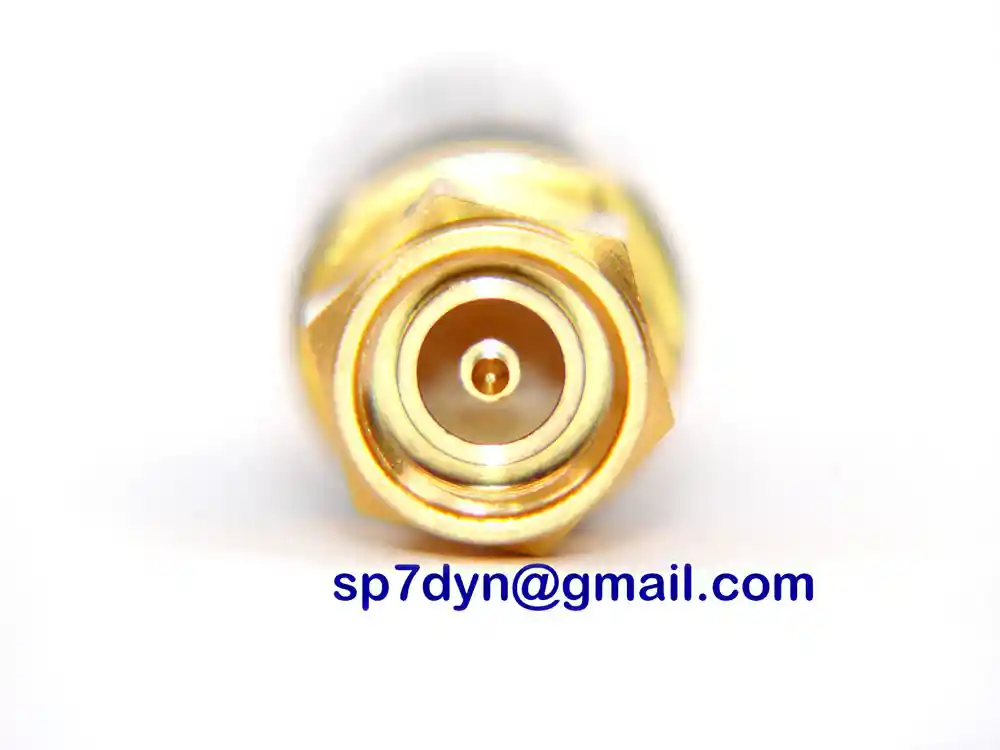

Connector DC-------- SMC
Output polarity ---- Negative
Contacts ----------- Gold plated
Material Housing --- Gold plated
Length ------------- 42.8mm
Option ------------- 001, 003

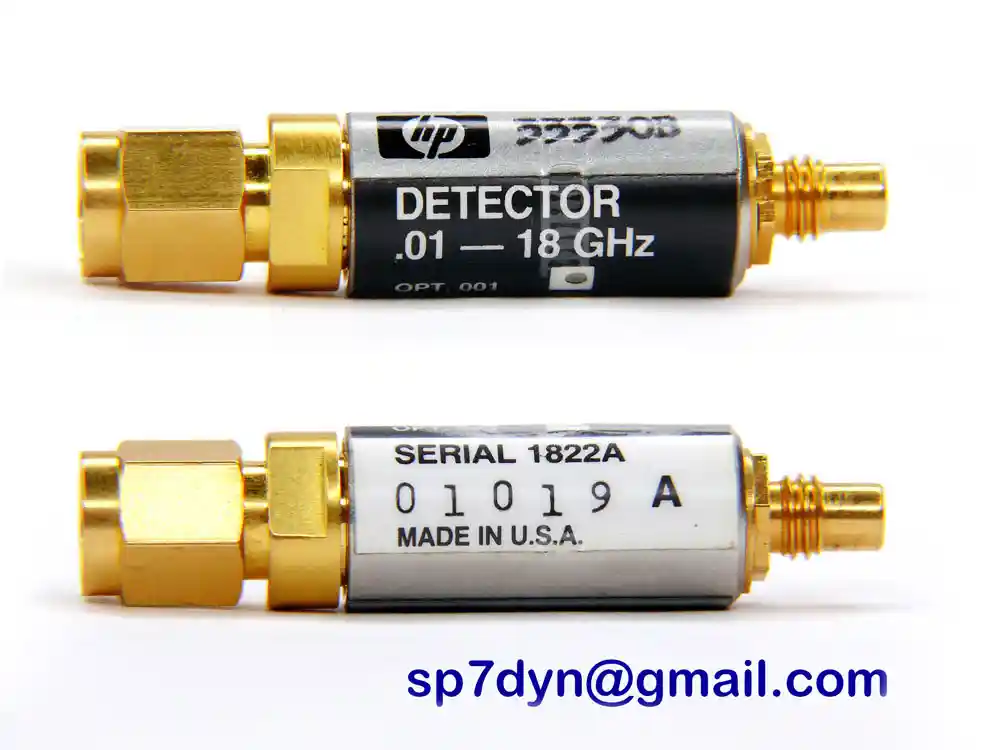

Serial NO ---------- 01019A-01
Condition ---------- Like new
-
Price is for ------- 1 piece
