High Power Directional Coupler 50 – 2500MHz SPINNER
Call for Price
SKU: 258
Only price1 left in stock!
High Power Directional Coupler 50 – 2500MHz WISI SPINNER
-Wide frequency range
-Variable coupling factor
-Low VSWR, high directivity
-Extremely compact

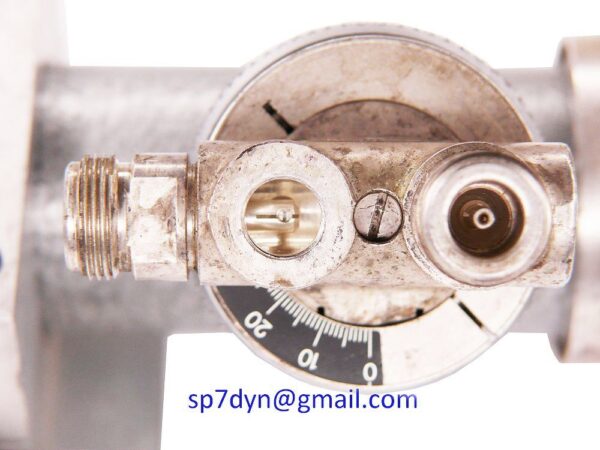

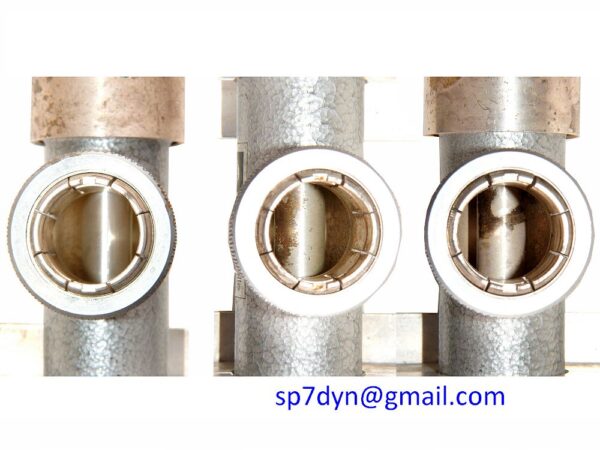

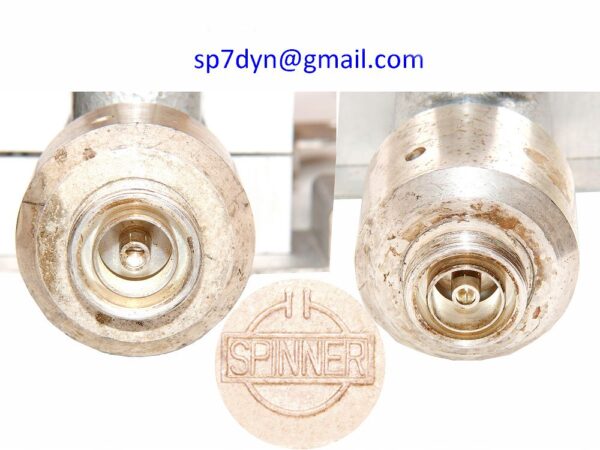

Coupler is used, cosmetic scratches and stains,
tested and functions, removed from TV equipment,
and guaranteed to your satisfaction, real photos, see data!
The device has excellent broad band parameters is great fo ham radio.
See also – click here:
https://sp7dyn.com/?s=coupler&product_cat=0&post_type=product

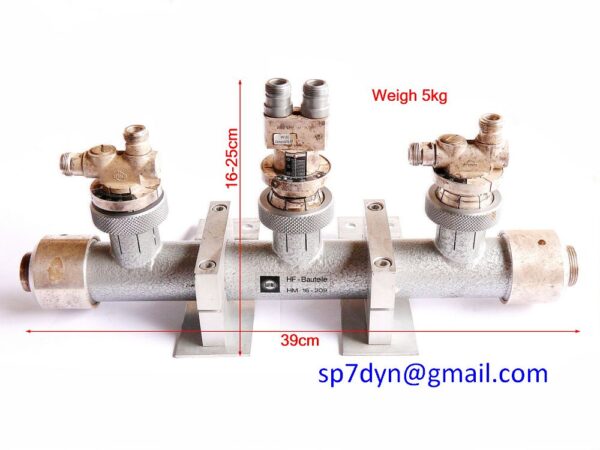

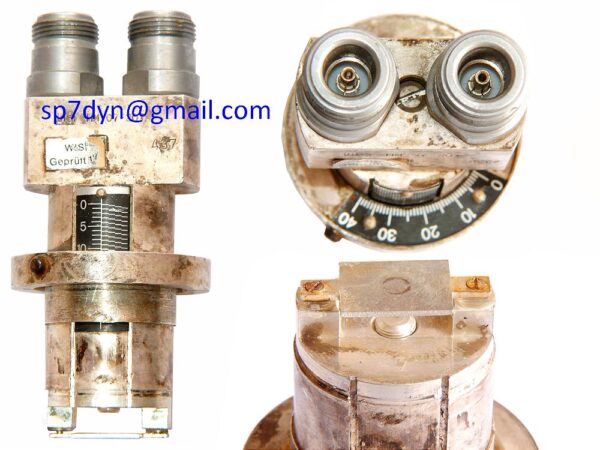

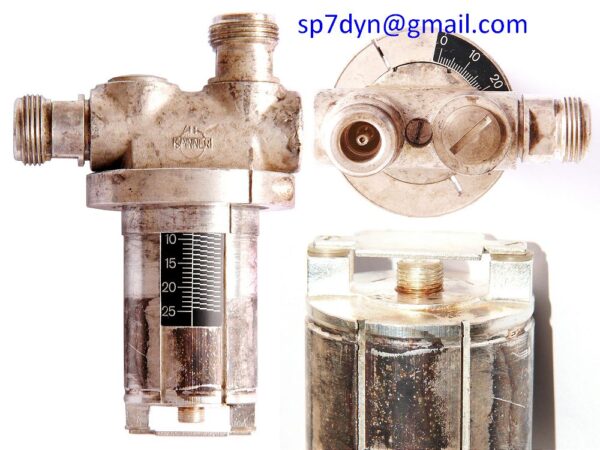

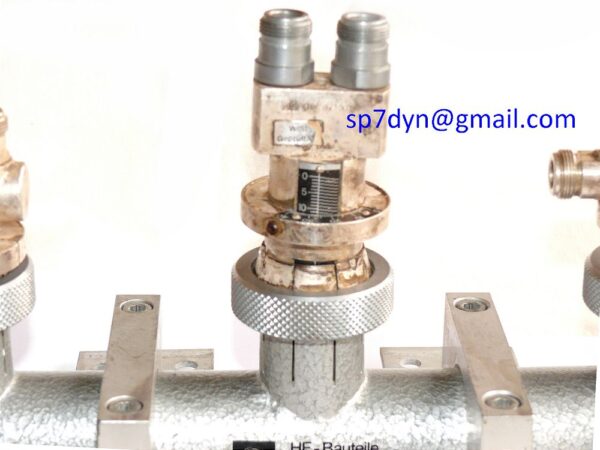

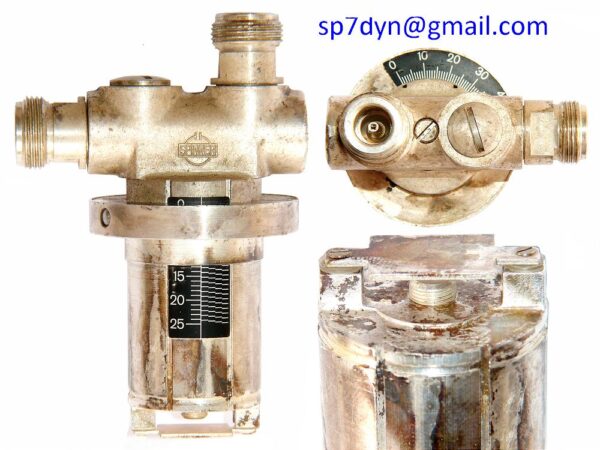

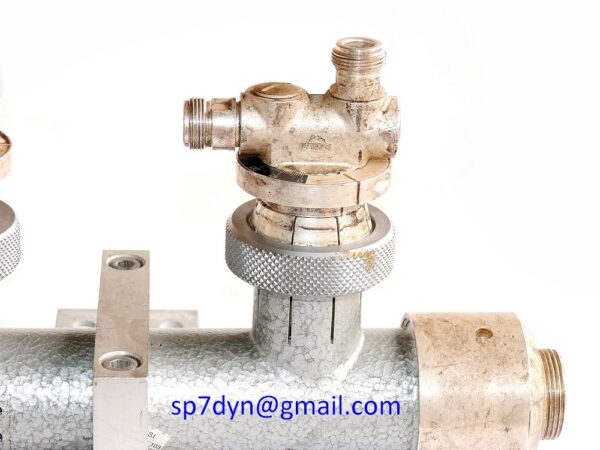

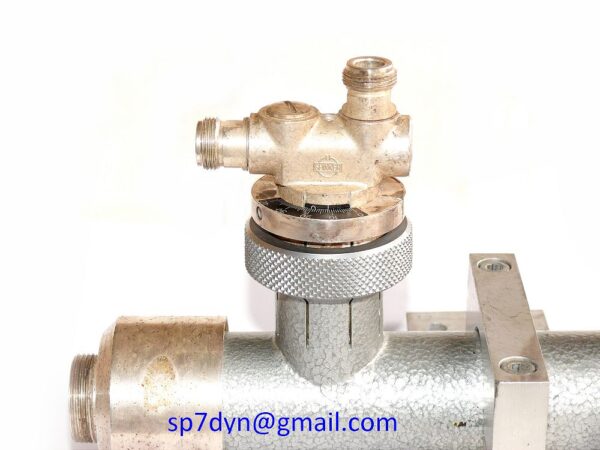

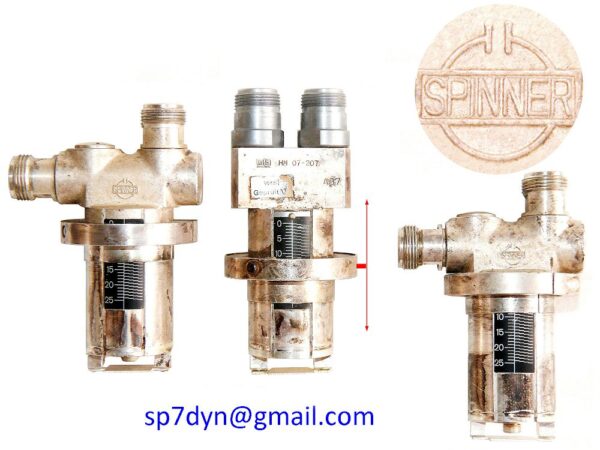

SPECIFICATIONS: Brand ------------------- WISI - SPINNER - Professional, high-quality Frequency --------------- 50 to 2500MHz - tested Type -------------------- High Power Diretctional Coupler Model ------------------- HM 16-209 Coupling ---------------- Adj. -10 to -70dB see data Directivity ------------- 18-37dB Line Coupler head ------- With impedance correction Main Connectors --------- 7/16 - SPINNER CPL Connectors ---------- N - SPINNER Power ------------------- Lots of kilowatts Condition --------------- Used, tested and functions - dark spots on silver - see real photos Main line material ------ Silvered brass Main body material------- Silvered brass Coupler head material---- Silvered brass Handles material -------- Steel, aluminium Dimesions --------------- L39 x H16-25cm Weight ------------------ 5kg - Price is for ------------ 1piece High Power Diretctional Coupler 100MHz to 2500MHz - data Measurements taken in my lab.
Frequency Coupling min Coupling max Mainline RL Mainline Loss Directiwity MHz dB dB dB dB dB --------------------------------------------------------------------------------- 50.00 -40 -70 25 0.005 28 70.00 -40 -70 25 0.005 28 145.00 -33 -70 26 0.007 28 435.00 -25 -64 25 0.010 28 1296.00 -17 -59 28 0.210 37 2320.00 -10 -56 25 0.670 18
| Brand | WISI/SPINNER – Professional, high-quality |
|---|---|
| Frequency | 50 to 2500MHz – tested |
| Type | High Power Diretctional Coupler |
| Model | HM 16-209 |
| Coupling | Adj. -10 to -70dB see data |
| Directivity | 18-37dB |
| Mainline Loss | 0.05-0.67dB |
| Mainline Return Loss | 25-28dB |
| Line Coupler head | With impedance correction |
| Main Connectors | 7/16 – SPINNER |
| CPL Connectors | N – SPINNER |
| Power | Lots of kilowatts |
| Condition | Used, tested and functions – dark spots on silver – see real photos. |
| Main line material | Silvered brass |
| Main body material | Silvered brass |
| Coupler head material | Silvered brass |
| Dimesions | L39cm x H16-25cm |
| Weight | 5kg |
| Price is for | 1piece |
| Order - How to place an order | Please place your order via e-mail: |
| Shipping - method and cost | The price of the item does not include the shipping cost! |
