Detector Radial R451539410N/03 Data 5.6GHz 10GHz
$49,00
SKU: 389
Only price1 left in stock!
1 in stock
Detector Radial R451539410N/03 Data 5.6GHz 10GHz.
Item unused, tested and functions in technical good condition.

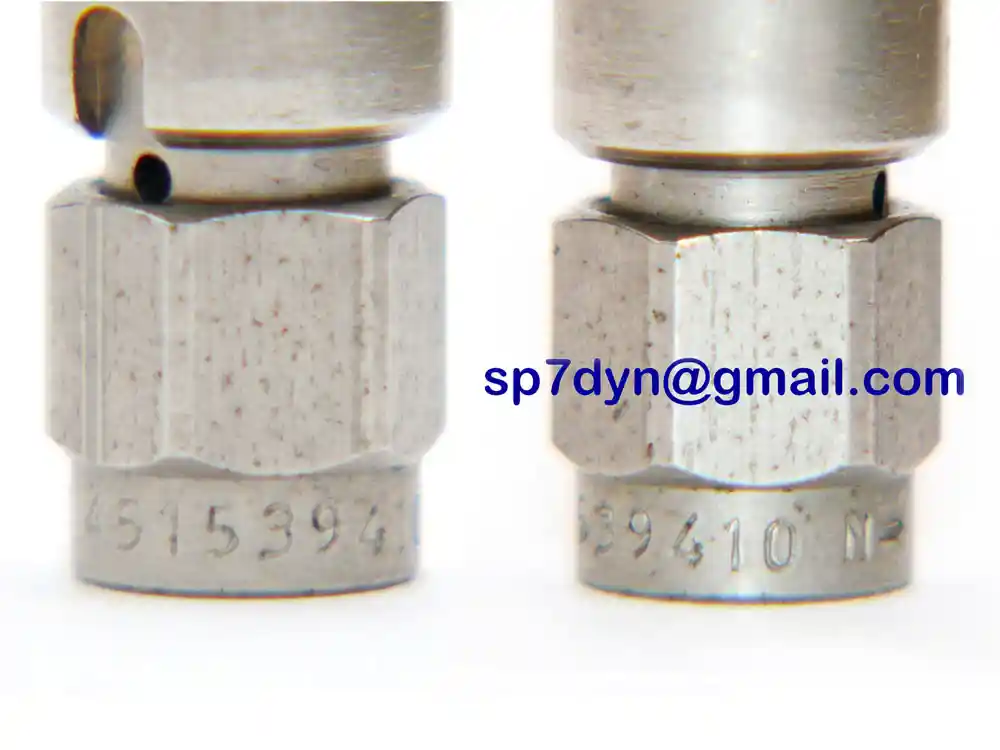

(scratches scratches on the body) – see data plotts, all photos are real.
I made measurements of the detector from 1-26.5GHz,
but the linearity is maintained only in the frequency range of 3-14GHz.

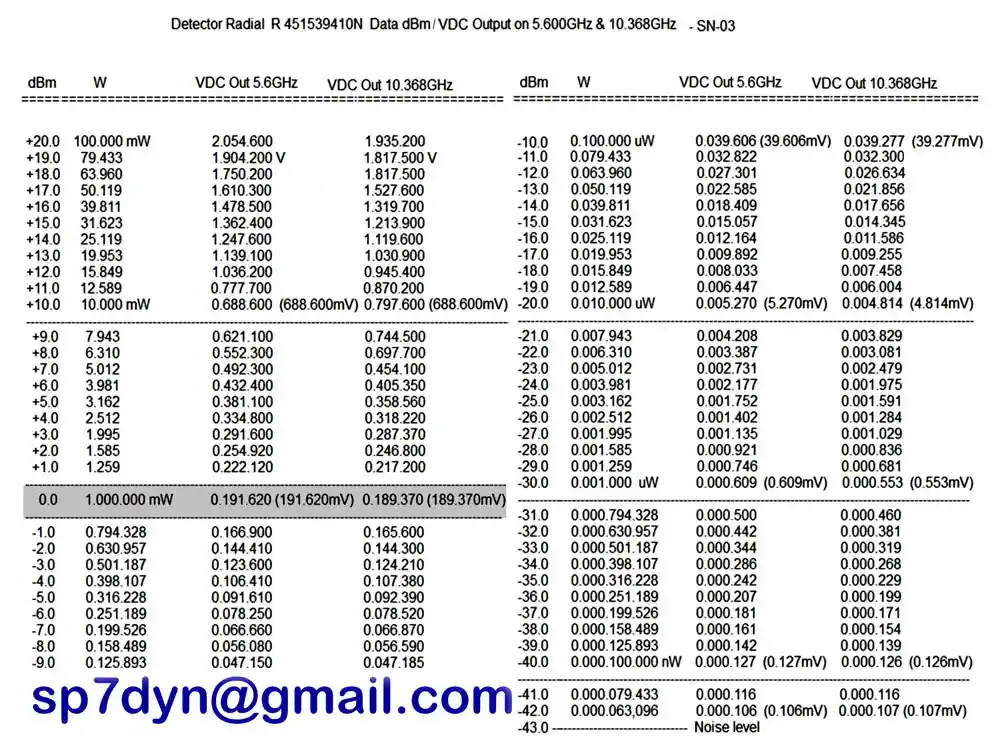

Measurement deviations of these two bands are shown in the measurement table
For measurements I used HP8340B, HP34401A, E4413A, E4419B with fresh calibration.
It is necessary to take into account measurement errors within the limit not worse than +-5%
See the table and list of measurements for the offered detector only.
Note! Each offered detector has an individual list of measurements!

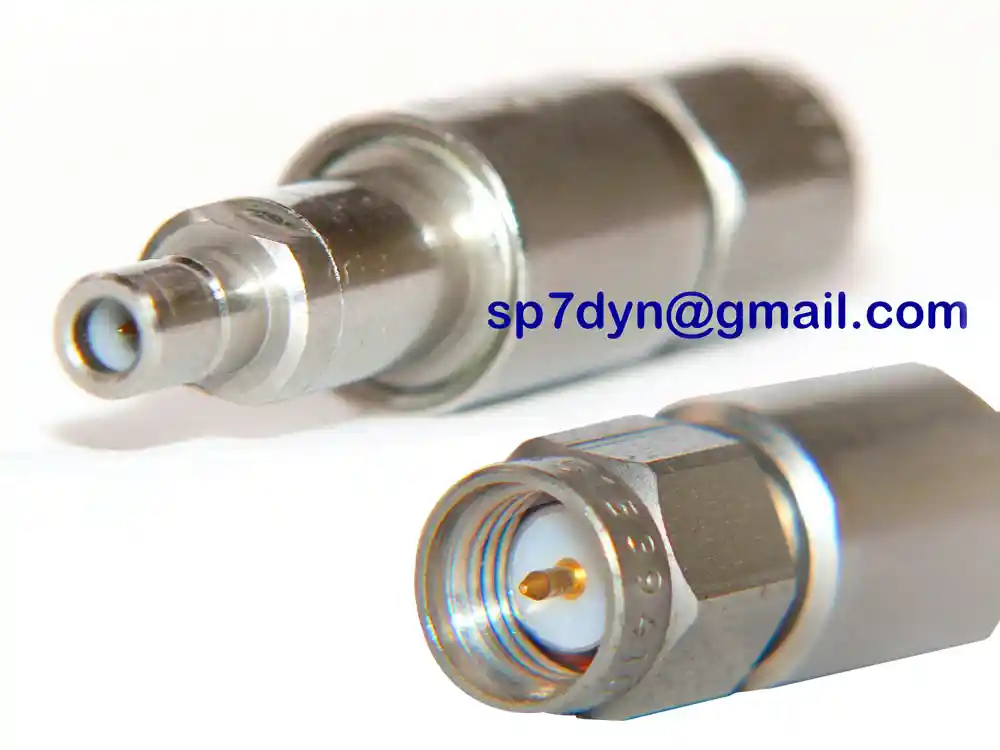

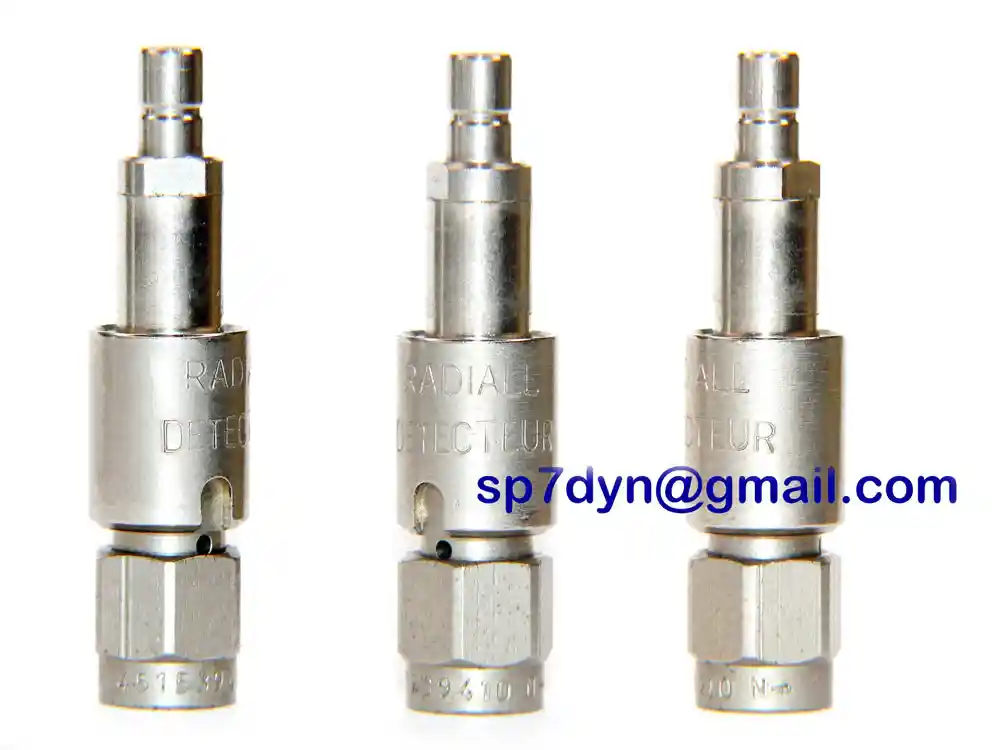

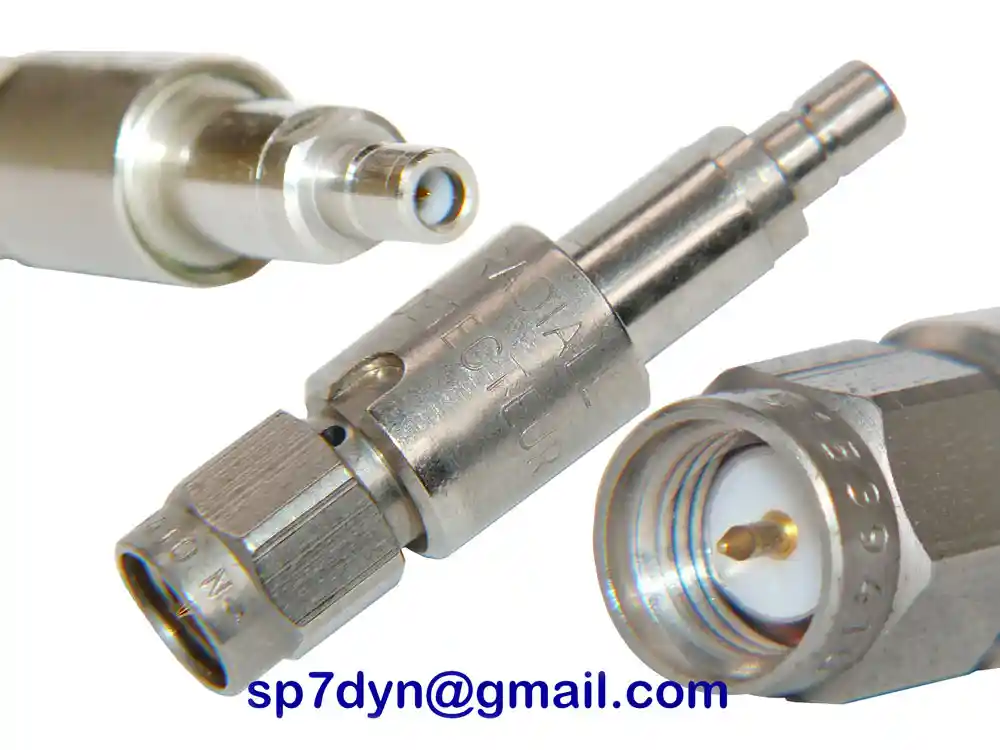

You will receive the exact item in the photo.

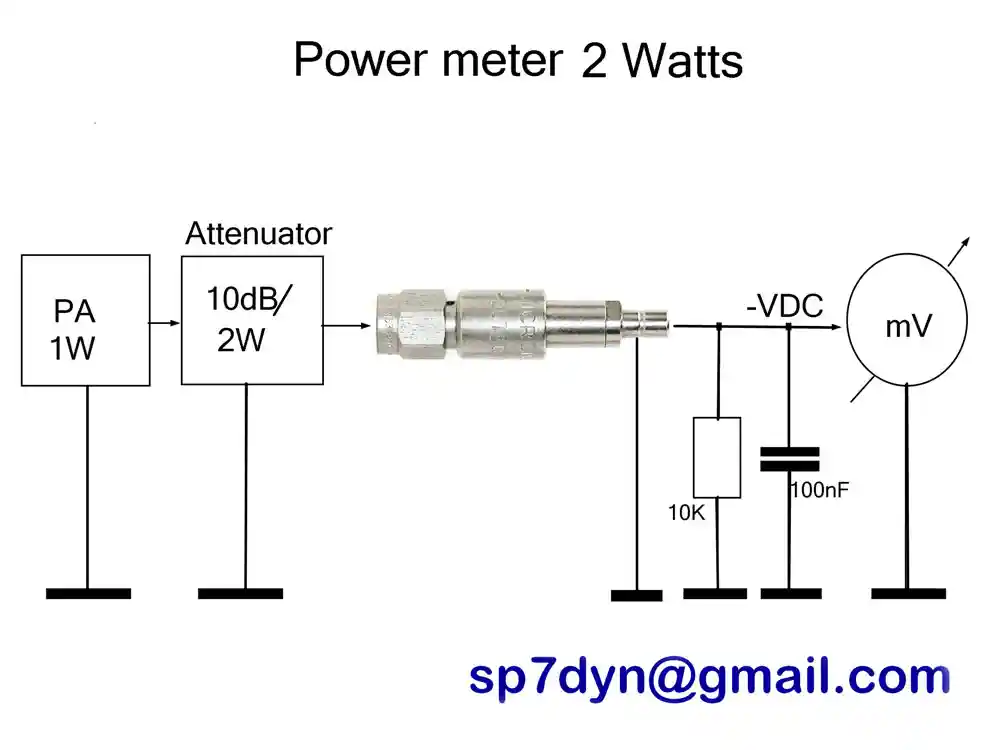

See power meter with this detector — Click Here
See other detectors —————————– Click here
–
SPECIFICATIONS: Brand ----------------- Radial Military product Model ----------------- R451539410N Frequency test -------- 1 - to 1-26.5GHz See Data Photos Plotts Linearity ------------- 3-14GHz only Measurement dynamics -- +20 to -41dBm (41dBm noise level) Impedance ------------- 50 Ohms SWR ------------------- 1-7.5GHz - 1.2, to 14GHz 1.4, to 26.5GHz 1.7 Power max ------------- 200mW Connector inp --------- SMA Connector DC----------- SMB Output polarity ------- Negative Insulation ------------ Teflon Contacts -------------- Gold plated Material Housing ------ Stainless Steel Length ---------------- 36.7mm SN -------------------- 03 Price is for ---------- 1 piece
| Brand | Radial Military product |
|---|---|
| Model | R451539410N |
| Frequency test | 1 – to 1-26.5GHz See Data Photos Plotts |
| Linearity | 3-14GHz only |
| Measurement dynamics | +20 to -41dBm (41dBm noise level) |
| Impedance | 50 Ohms |

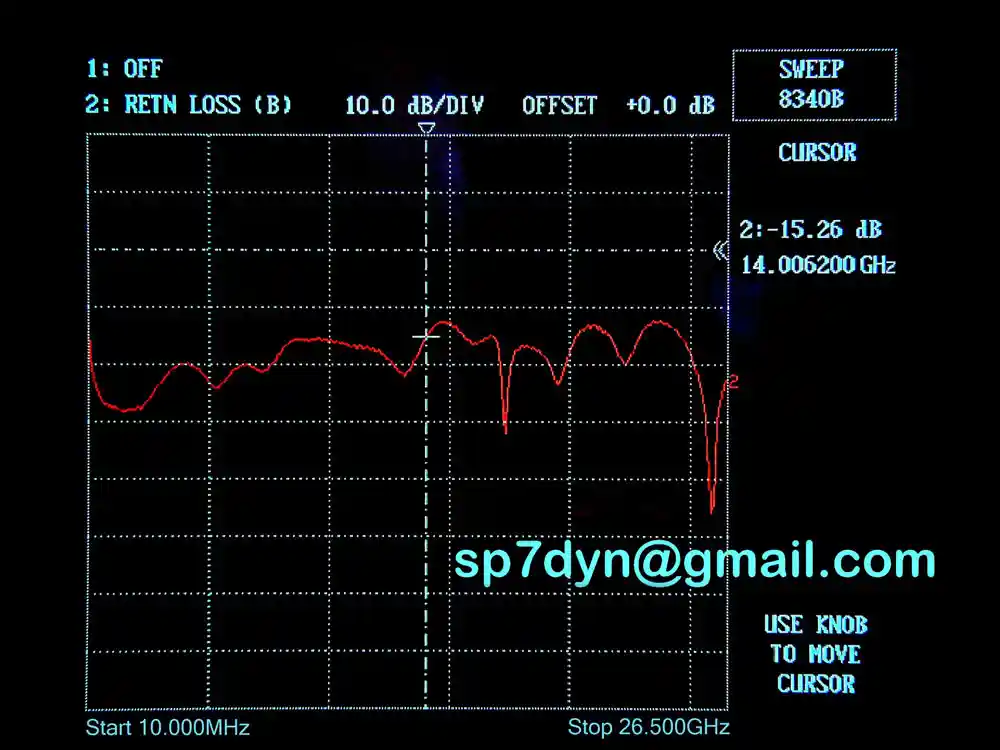

| SWR | 1-7.5GHz – 1.2, to 14GHz 1.4, to 26.5GHz 1.7 |
| Power max | 200mW |
| Connector inp | SMA |
| Connector DC | SMB |
| Output polarity | Negative |
| Insulation | Teflon |
| Contacts | Gold plated |
| Material Housing | Stainless Steel |
| Length | 36.7mm |
| SN | 03 |
| Price is for | 1 piece |
