50-12000MHz 500W FXR HZ-A22 Signal Sampler Microlab
$199,00
SKU: 401
6 in stock
6 in stock

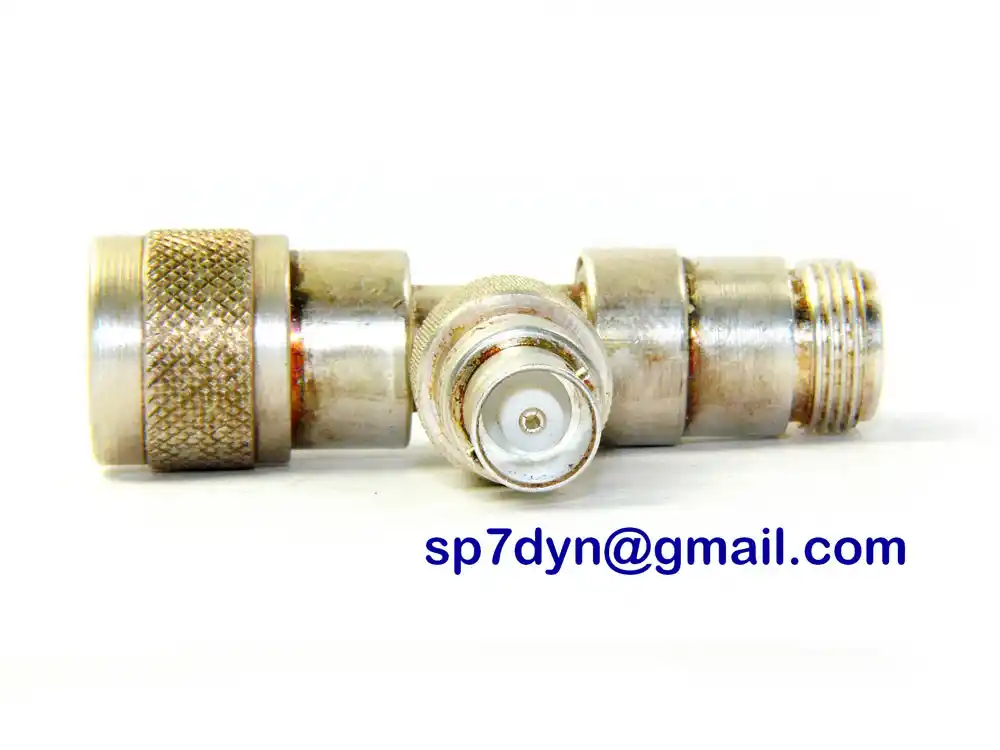

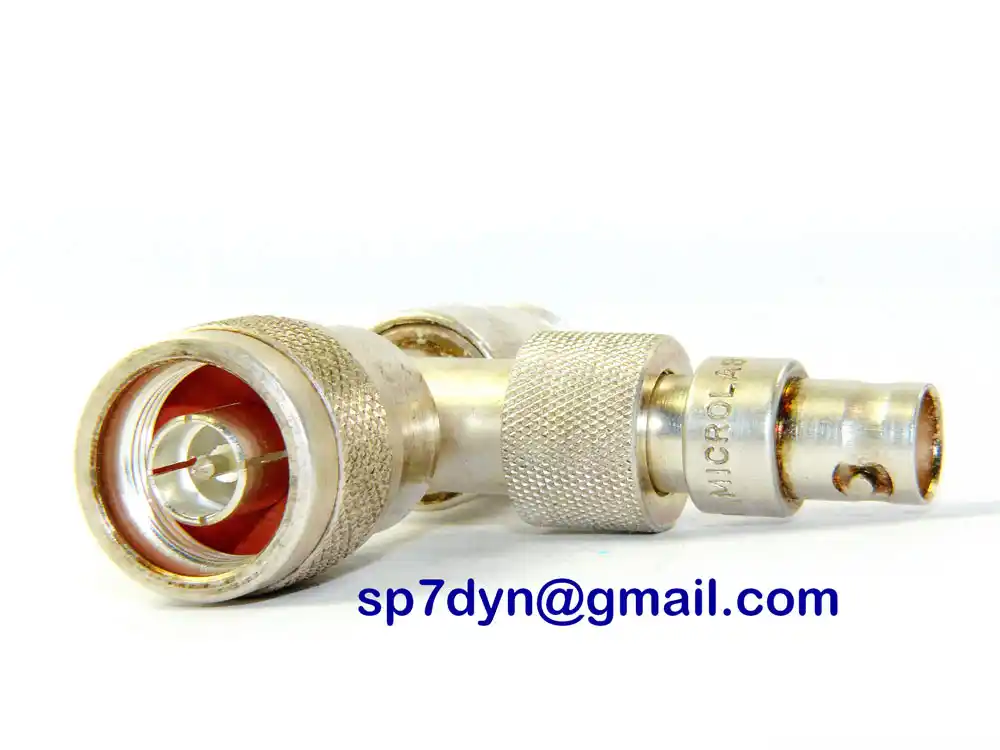

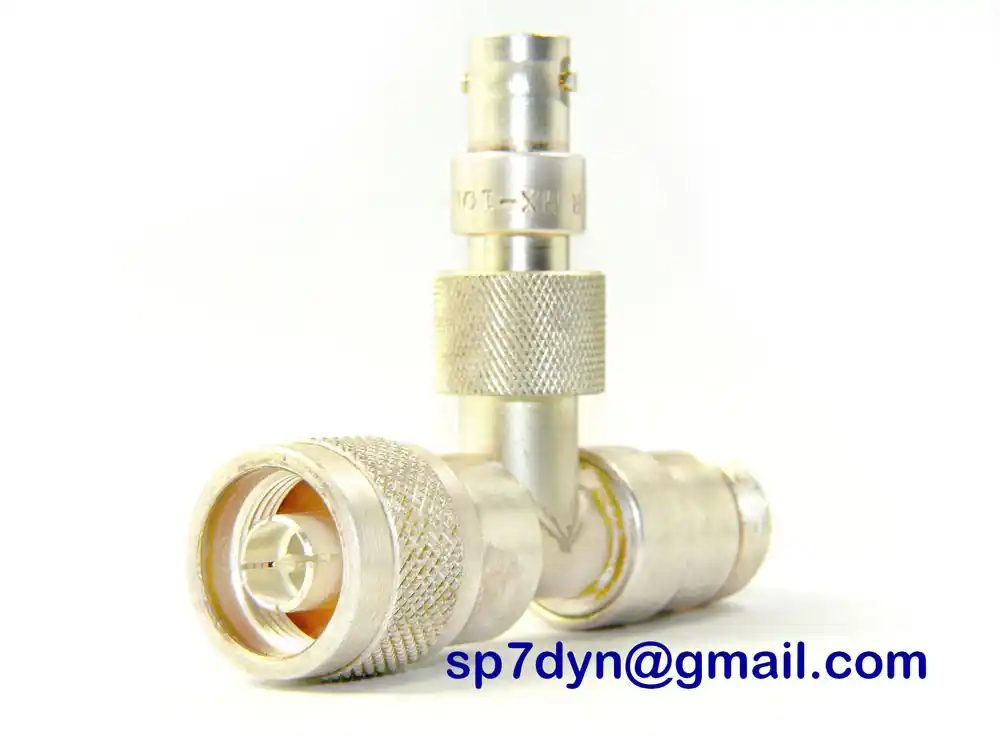

50-12000MHz 500W FXR HZ-A22 Signal Sampler
Broad band, low loss -15 to – 95dB MICROLAB

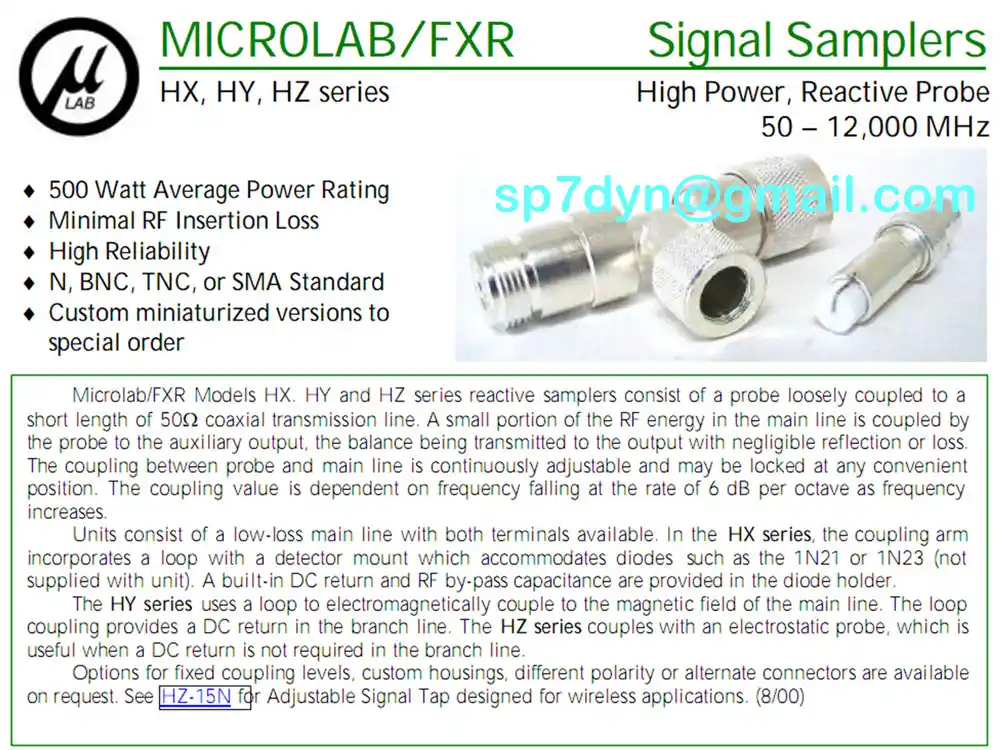

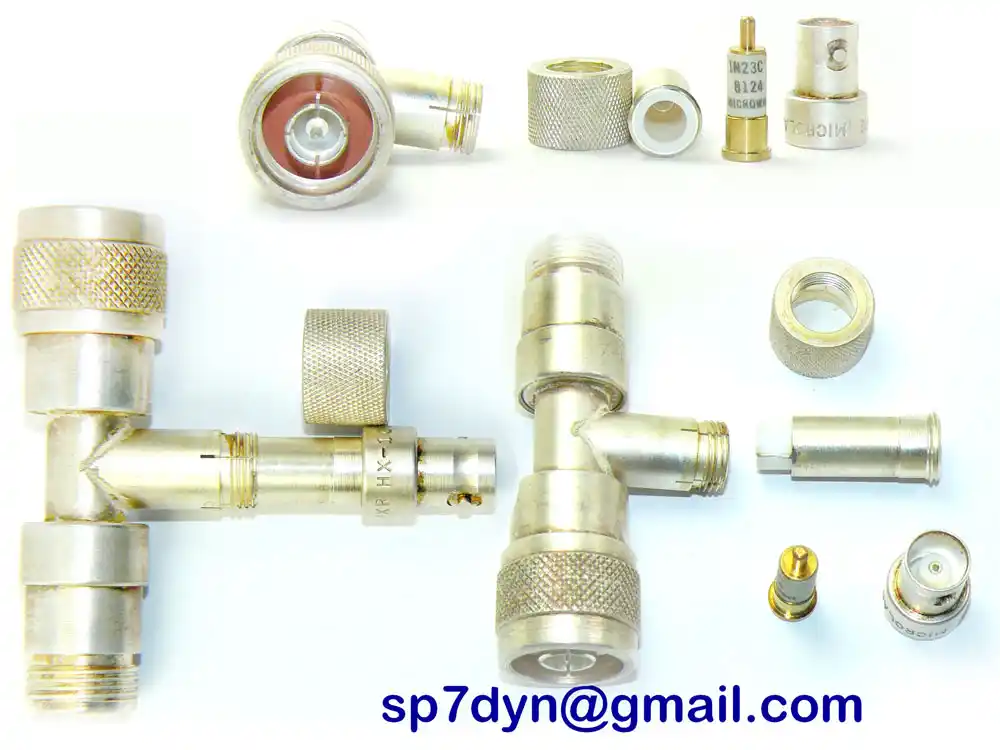

Models HX series reactive samplers consist of aprobe.
Loosely coupled to a short length of 50 coaxial transmission line.
A small portion of the RF energy in the main line is coupled by
Probe to the auxiliary output, the balance being transmitted.
To the output with negligible reflection or loss.

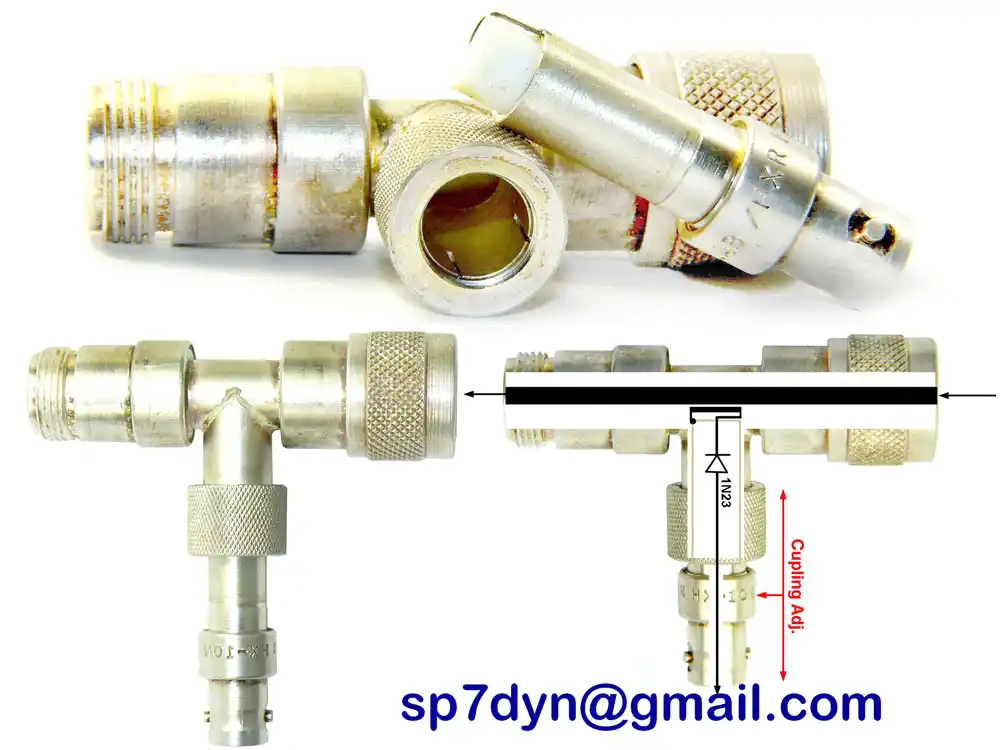

Coupling between probe and main line is continuously
adjustable and may be locked at any convenient position.

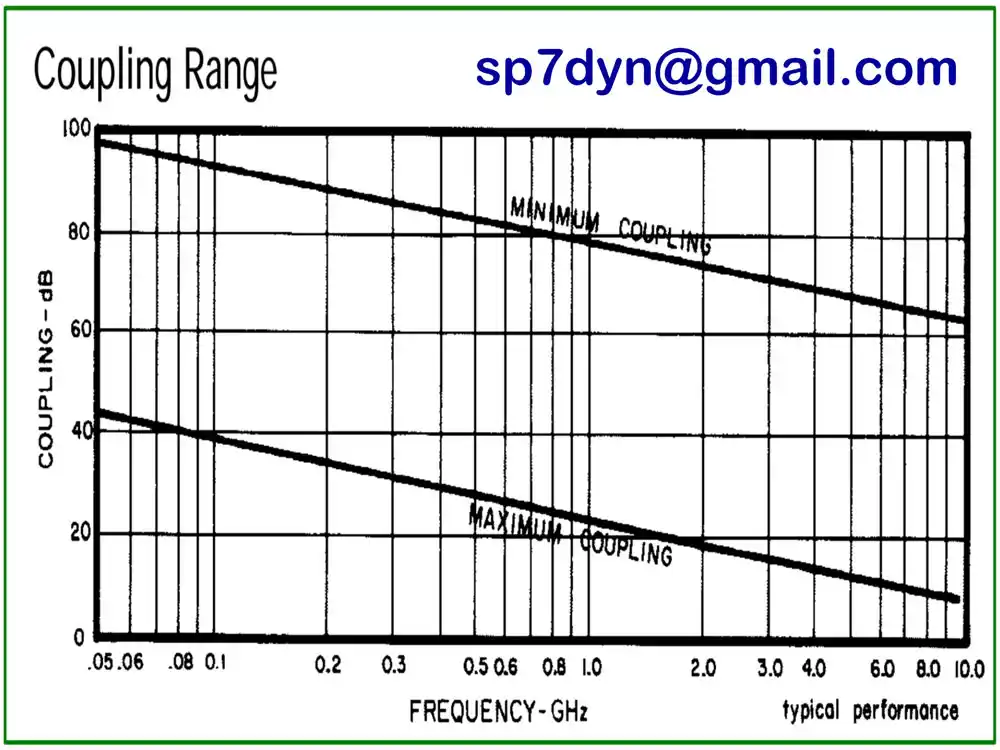

Coupling value is dependent on frequency falling at the
rate of 6 dB per octave as frequency increases.
Units consist of a low-loss main line with both terminals available.
–
Device has excellent broad band parameters,
is great fo ham radio, radio control, laboratory measurements.
Sampler is used, cosmetic scratches and stains, tested,
functions, removed from military equipment.
I guaranteed to your satisfaction, real photos, see data!
–
Each High Power Coupler Sampler has been

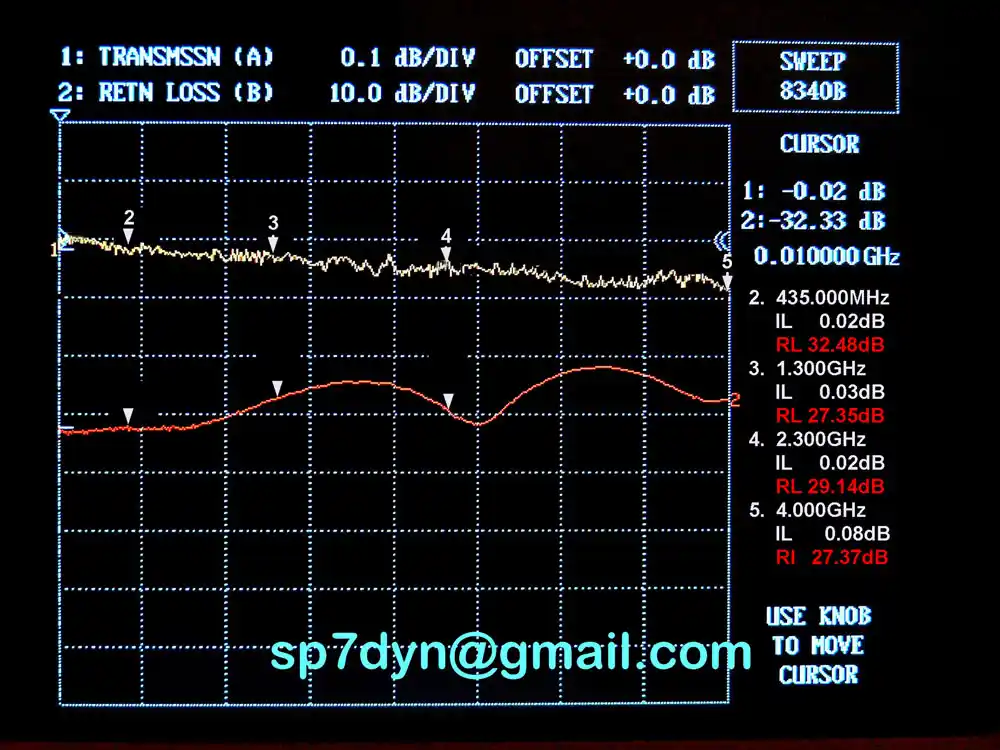

tested for Insersion loss and return loss!
Link to —————————————– PDF
Link to —————————————– Diode
–

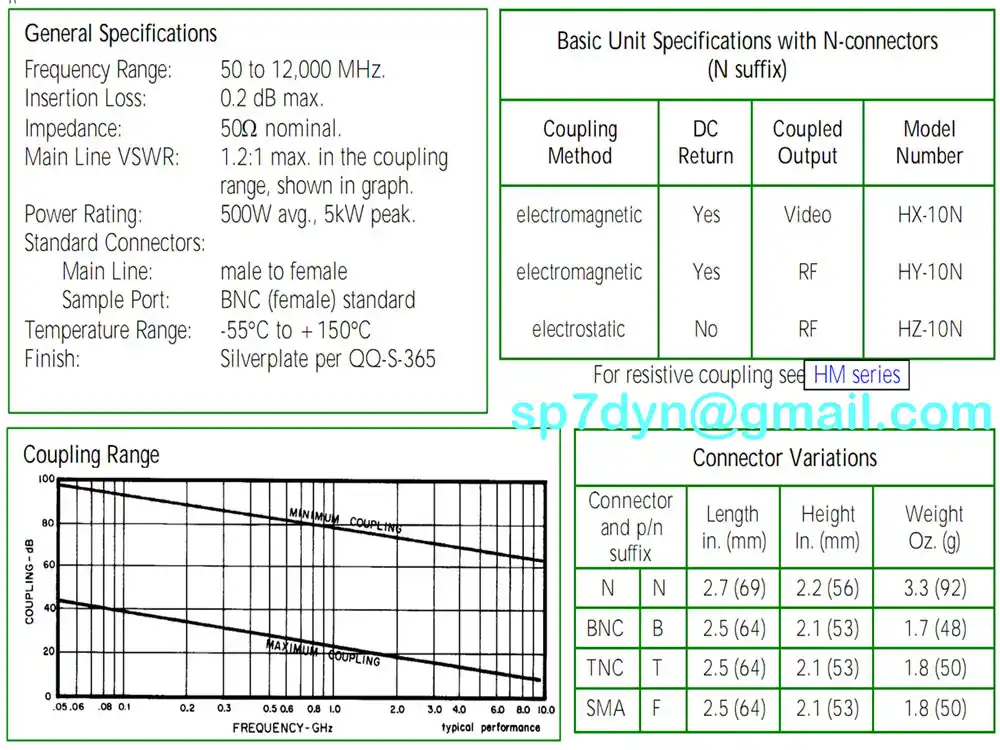

Specifications: Brand ----------------- MICROLAB (military product). Model ----------------- HX-10N Frequency work range -- 50-12000MHzz Couplung output ------- -15 to -95dB Impedance ------------- 50 Ohms Insertion loss max----- 0.08dB Power test ------------ 1000Watts on 50MHz Warning! The diode can easily be damaged! Power test ------------ 500Watts on 2300MHz Connectors line ------- N Connector Cpl --------- BNC Diode detector -------- 1N23 can be replaced (Set includes diode) Link to Diode Housing --------------- Brass Silver Plating Super military production -- High quality & Reliability Weight ---------------- 0.1kg - Price is for ---------- 1 piece
| Brand | Microlab (military product) |
|---|---|
| Model | HX-10N |
| Couplung output | -15 to -95dB |
| Impedance | 50 Ohms |
| Insertion loss max | 0,08dB |
| Power test | 500Watts on 2300MHz |
| Connectors line | N |
| Connector Cpl | BNC |
| Diode detector | 1N23 can be replaced |
| Housing | Brass Silver Plating |
| Weight | 0.1kg |
| Price is for | 1 piece |
| Order - How to place an order | Please place your order via e-mail: |
| Shipping - method and cost | The price of the item does not include the shipping cost! |
