26.5GHz Switch Relay Low Loss 12V
$133,00
SKU: 242
Only price1 left in stock!
1 w magazynie
26.5GHz Switch Relay Low Loss Ducommun

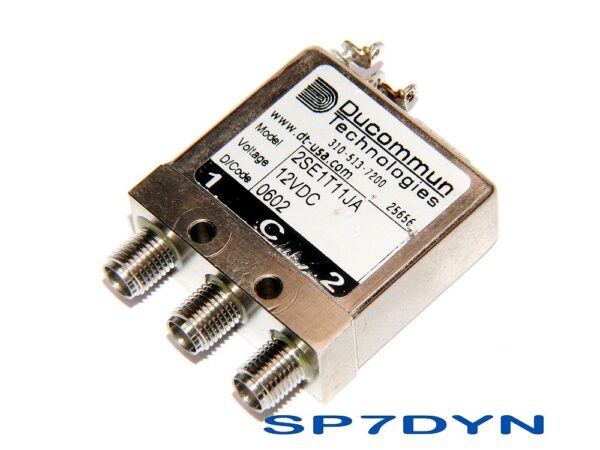

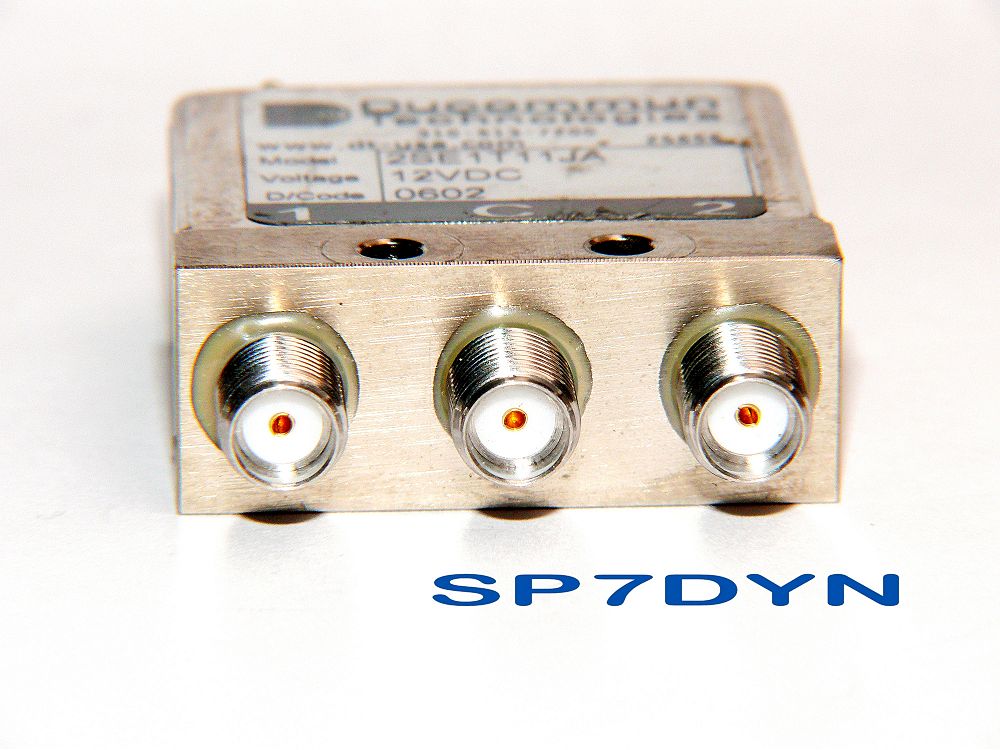

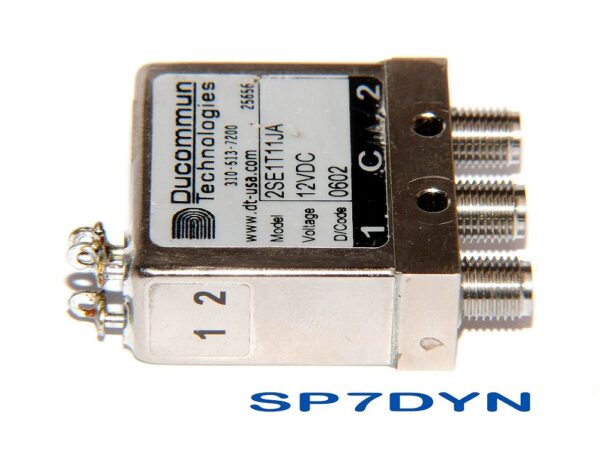

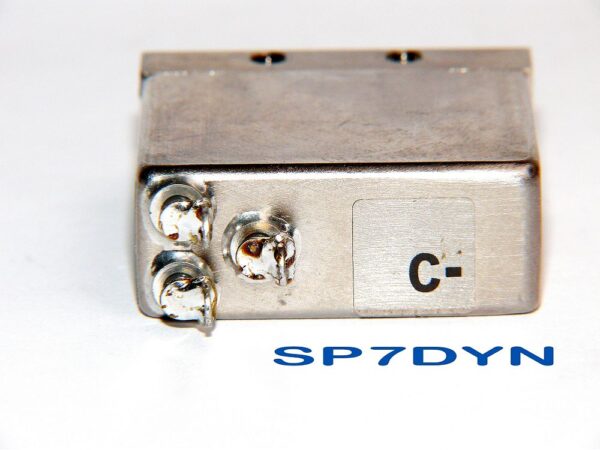

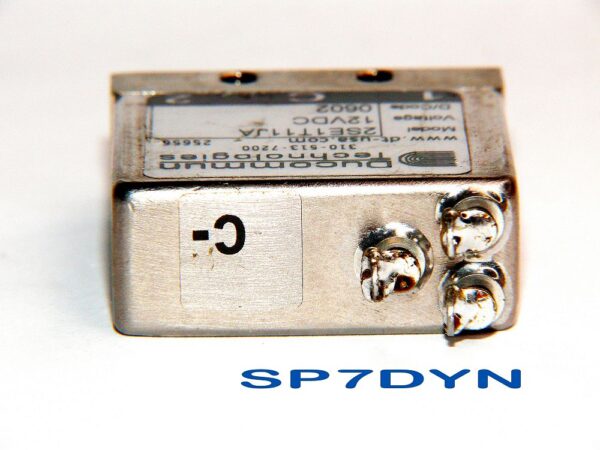

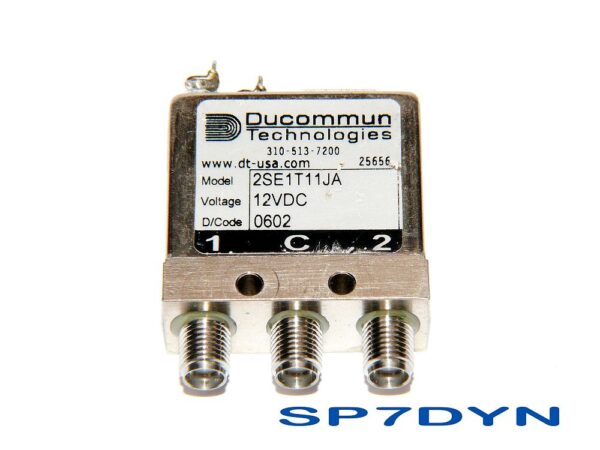

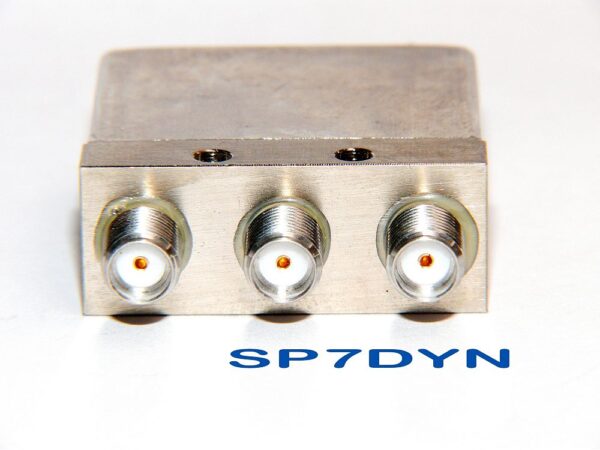

Coaxial Switch Relay (see photos) Used,
Cosmetic Scratches, removed from the new device – real photos!
Switch is great for 24GHz band is fully tested, and
functions in technical good condition – test OK
–

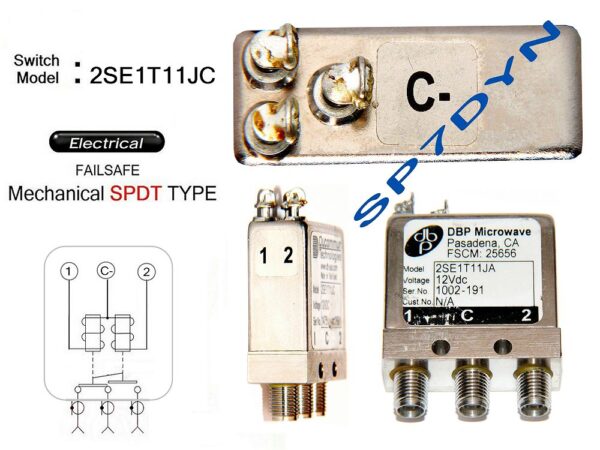

SPECIFICATIONS: Brand --------------------------- Ducommun/DBP Microwave Model --------------------------- 2SE1T11JC Relay Type ---------------------- SPDT Frequency Range ----------------- DC to 26.5GHz Low Loss Voltage ------------------------- 12VDC Nominal Impedance --------------- 50Ohms Insulation ---------------------- Teflon Contacts ------------------------ Beryllium Copper Gold Condition ----------------------- Used tested 100% OK S/N ----------------------------- 0602 Available ----------------------- 3pieces - Price is for -------------------- 1piece
| Marka | Ducommun/DBP Microwave |
|---|---|
| Model | 2SE1T11JC |
| Frequency | DC-26.5GHz |
| Relay Type | Mechanical SPDT |
| Insertion Loss | 0.28dB on 24GHz |
| Operating voltage | 12VDC |
| Connectors Type | SMA |
| Insulation | Teflon |
| Contacts | Beryllium Copper / Gold |
| Order - How to place an order | Please place your order via e-mail: |
| Shipping - method and cost | The price of the item does not include the shipping cost! |
