Glass Piston Trimmer 0.8 – 12pF

Name: Glass Piston Trimmer 0.8 - 12pF
SKU: 002
Price: 88.00 USD
Availability: InStock

$88,00

SKU: 002

100 in stock

Price is for lot of 10 pieces.

100 in stock

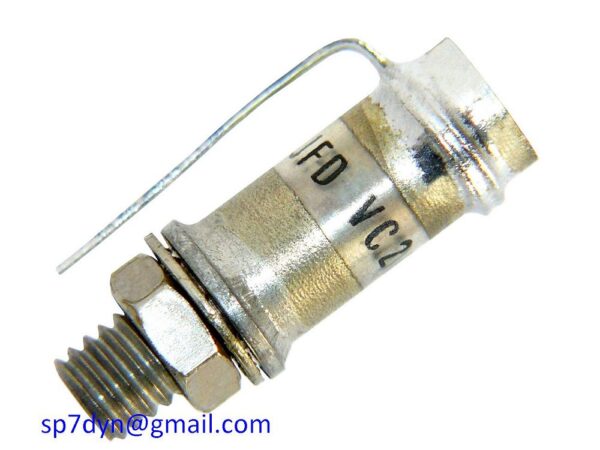

Variable Piston Trimmer Capacitor 0.8 – 12pF JFD VC20GY
Variable Piston Trimmer Sprague Goodman USA Quality 10 pieces

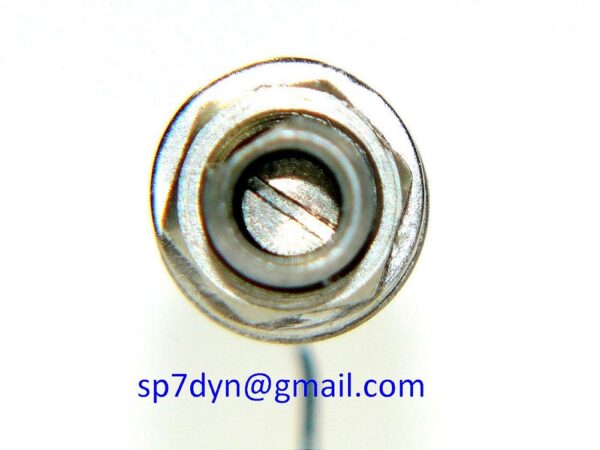

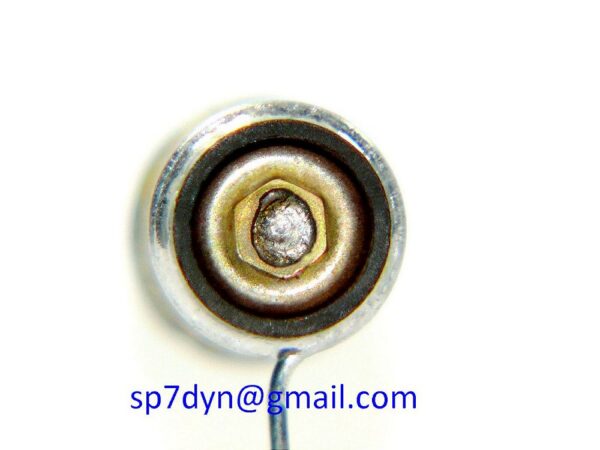

Capacitor is used once – removed from a new device – see real photos

Other model —————————– Click here

Specifications:

Brand ----------------- Sprague-Goodman USA
Type ------------------ Panel Mount Glass Trimmer
Model ----------------- JFD VC20GY
Military Design ------- PC40H120
Capacitance ----------- 0.8 – 12pF
Q --------------------- 500 min
Working Voltage. ------ 750 DCWV
Isolator -------------- Glass open - Embedded Band

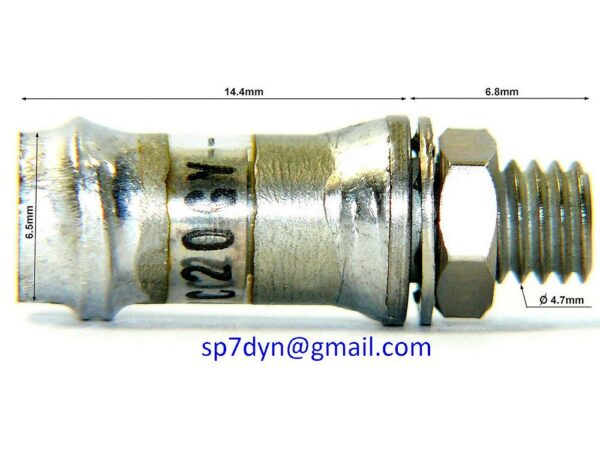

Total Length ---------- 21.2mm
Quality --------------- High quality made for the military
Number of Turns ------- 15
Operating Temperature-- -55°C to +125°C
Condition ------------- Used once - removed from a new device
-

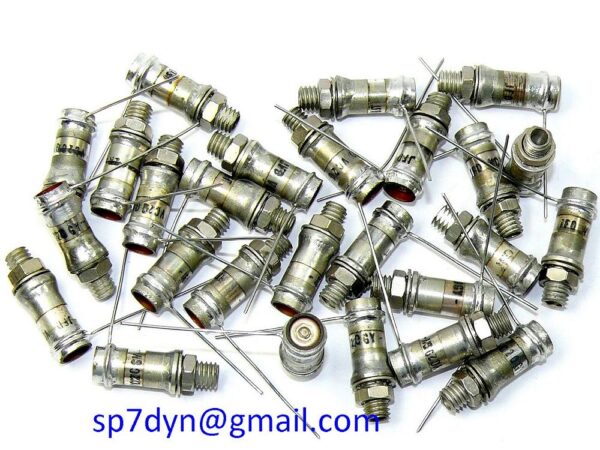

Is available ---------- More than 120 pieces
Price for ------------- lot of 10 pieces

Model	JFD VC20GY
Type	Glass Piston Trimmer Capacitor
Capacity	08-12pF
Turns Adjustment	15
Q Factor	500(20MHz)
Wire diameter	0.8mm Tinned Copper

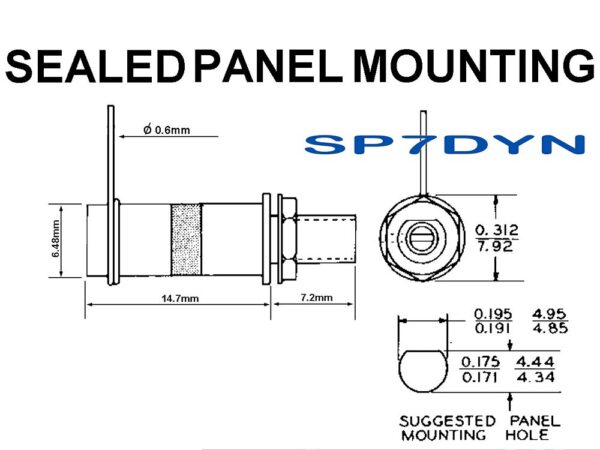

Mounting hole - Ø	5mm
Important Notes	Tested, Real Photos, Capacitor includes a washer and a nut, Price is for Lot of 10 Pieces
Stan	Capacitor is used once (like new) – removed from a new device – see real photos
Is available	More than 120 pieces
Price for	lot of 10 pieces
Order - How to place an order	Please place your order via e-mail: contact@sp7dyn.com sp7dyn@gmail.com In your order, please provide the title of the item, the SKU number and the link to the item on my website.
Shipping - method and cost	The price of the item does not include the shipping cost! Before ordering, ask about shipping costs! I combine purchases – with multiple purchases, you pay for shipping once Ask for STNDARD or PRIORYTET shipping costs and delivery time. After ordering, please give me exact shipping address with phone number.
