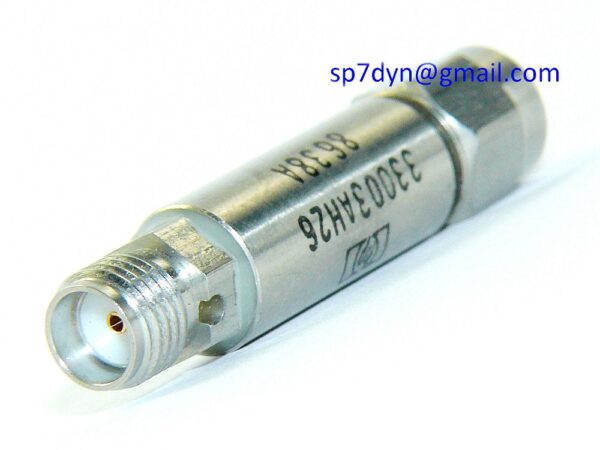

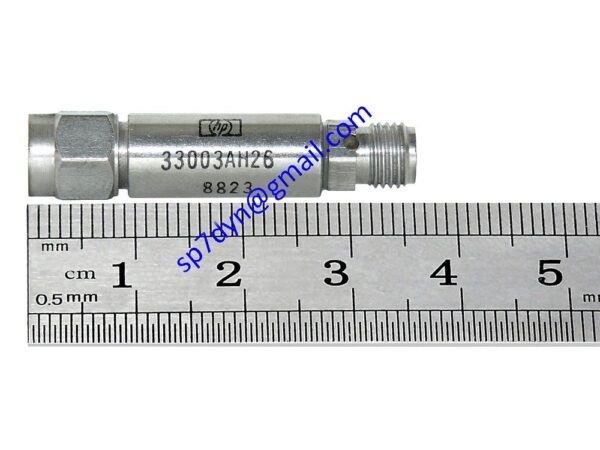

HP 33003AH26 Generator Diode 26.5GHz
$218,00
SKU: 165
Only price2 left in stock!
2 in stock

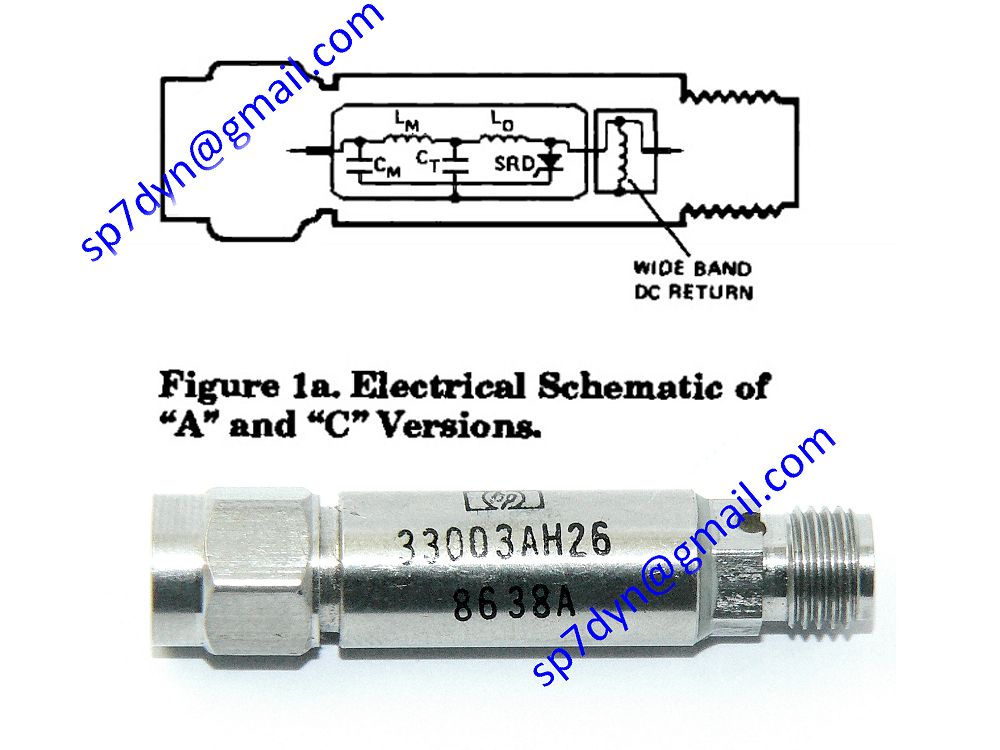

HP 33003AH26 Generator
Step Comb Harmonics
Train Step Recovery Diode 26.5GHz
This diode Is great for applications:
———————————————————
Impulse Generator
Frequency Multipliers
Frequency Synthesizers
Built-In-Self-Test Sources
equipment, and guaranteed to your satisfaction, real photos!
here have been chosen and selected from among many
items, and work up to 26.5GHz.
–
Read parameters from measurements in my lab – see description.
–

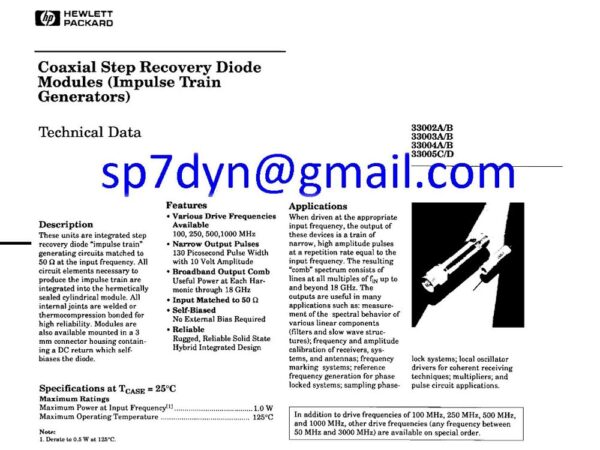

Helpful Links:
http://hparchive.com/PARTS/HP-Catalog-1973-74-Comps-RF-Microwave.pdf
https://hpmemoryproject.org/an/pdf/an_920.pdf
–

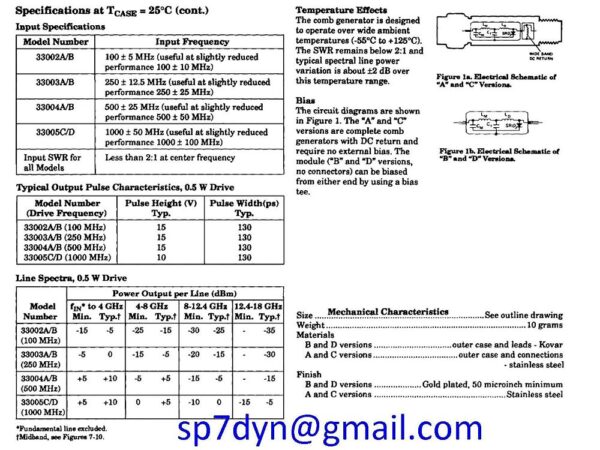

Specifications:
Note: This is not exactly HP33003 !
Offered It has a slightly lower output level!
Brand -------------------- HP USA
Model -------------------- HP33003AH26
Input Frequency ---------- 250MHz +- 25MHz
Output Frequency --------- 0.25 to 26GHz

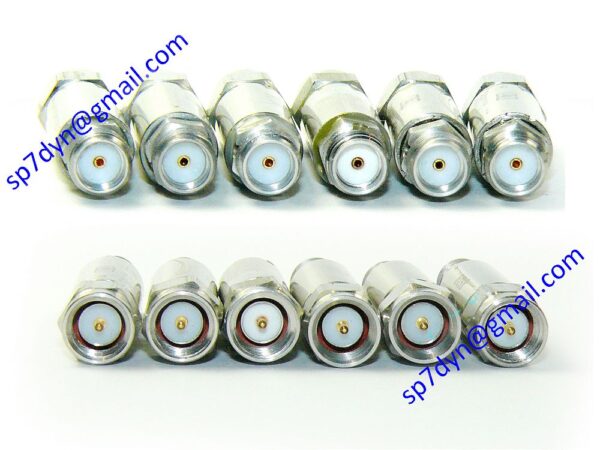

Input Output Connectror -- SMA Male / Female
Power Input Typ ---------- +27 to +28dBm 630mW
Power Input Max ---------- +30dBm (1W)
Temperature Range -------- -55 to +125°C
-
Power Input / Output on Frequency
---------------------------------
2.5GHz ------------------- -10dBm
5.8GHz ------------------- -20dBm
10GHz -------------------- -35dBm
14GHz -------------------- -45dBm
26GHz -------------------- -58dBm
Measurements may contain an error of +10% -20%
-
Test done in my lab, with 8 to 15dBm max power
input, this is too low level, but this is the
maximum of my measurement capabilities!
-
Price for 1piece

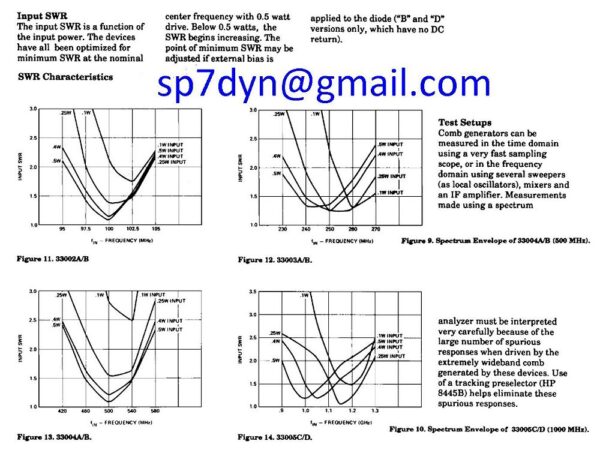

| Model | HP33003AH26 |
|---|---|
| Input Frequency | 250MHz +- 25MHz |
| Output Frequency | 0.25 to 26GHz |
| Input Output Connectror | SMA Male / Female |
| Power Input Typ | +27dBm |
| Power Input | +30dBm (1W) Max |
| Temperature Range | -55 to +125°C |
| Additional information | Test done in my lab, with 8 to 15dBm max power input, |
| Order - How to place an order | Please place your order via e-mail: |
| Shipping - method and cost | The price of the item does not include the shipping cost! |
