Directional Coupler 50-2150MHz WISI SPINNER SN.6
$160,00
SKU: 182
Only price1 left in stock!
1 w magazynie

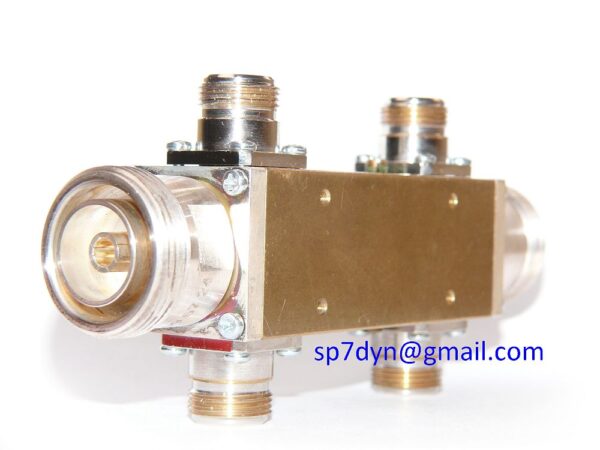

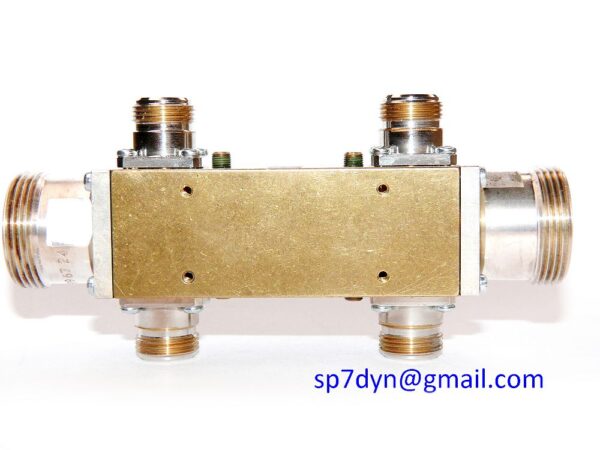

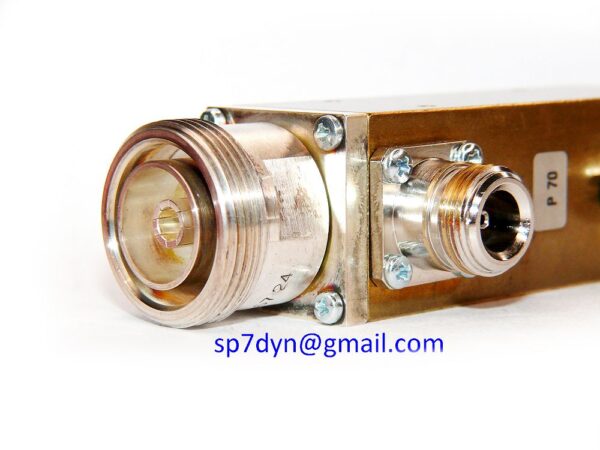

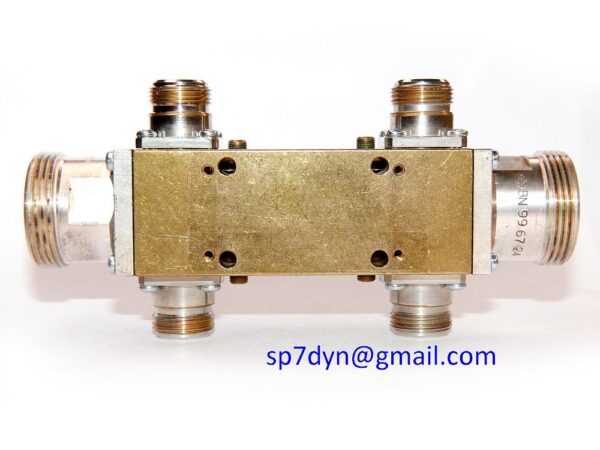

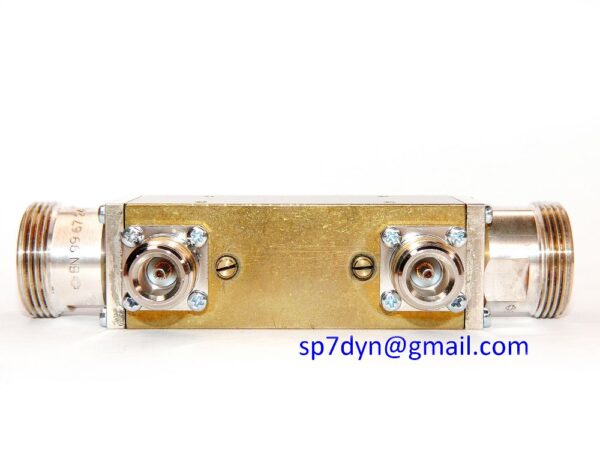

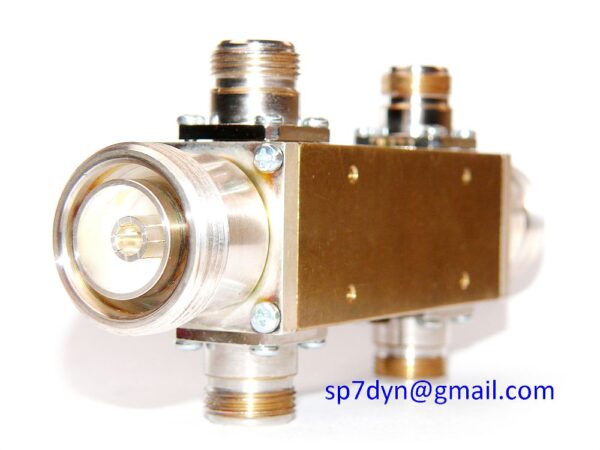

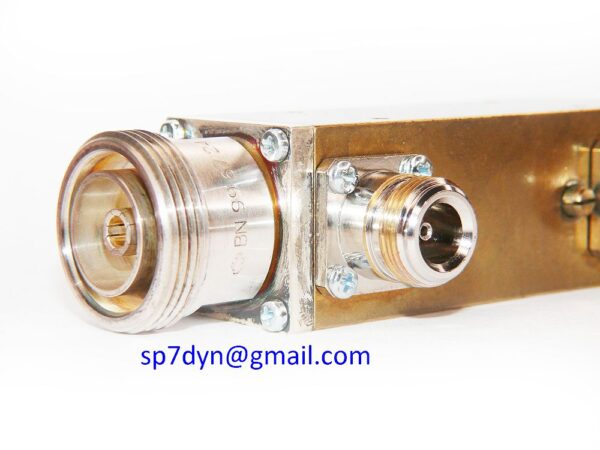

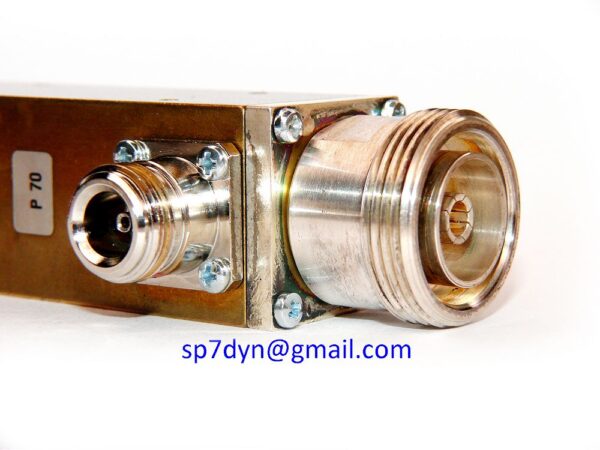

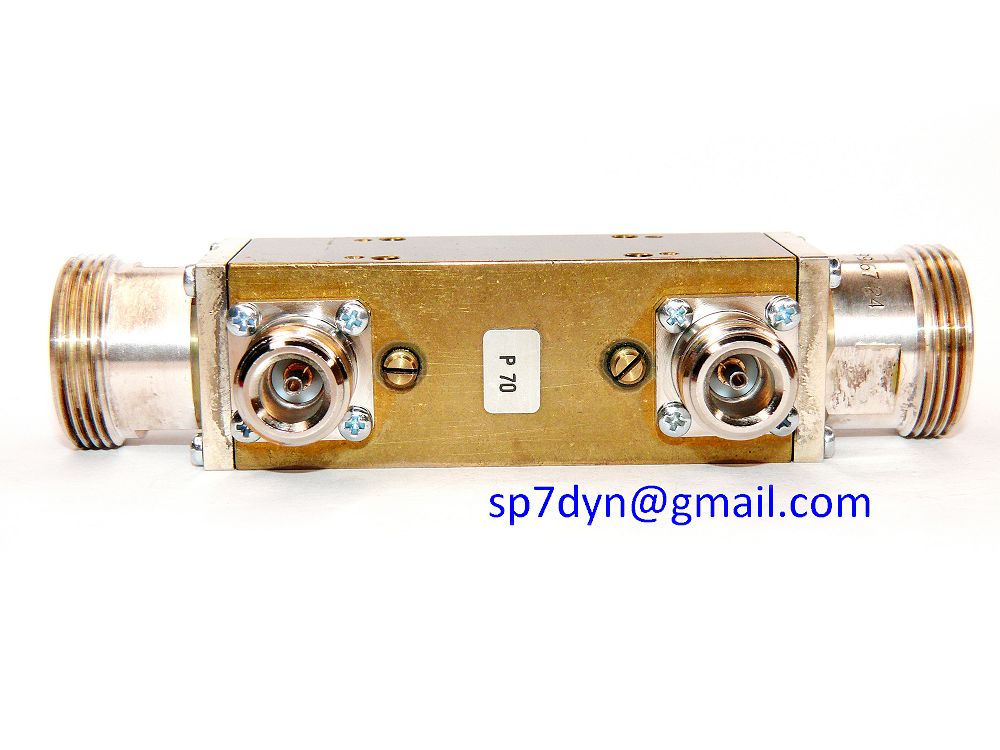

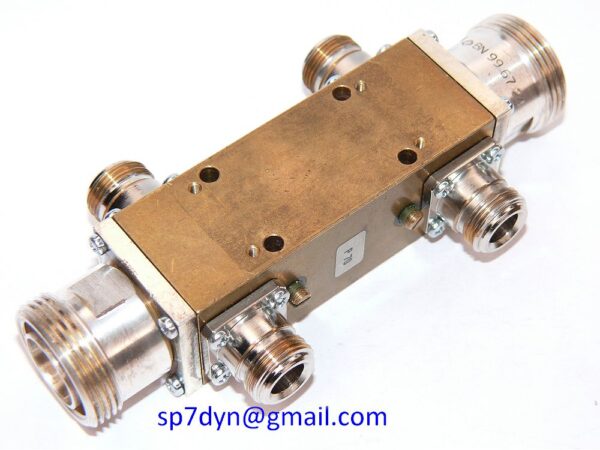

Directional Coupler 50-2150MHz WISI SPINNER
Coupler is used, cosmetic scratches and stains,
tested and functions, removed from TV equipment,
and guaranteed to your satisfaction, real photos, see data!
The device has excellent broad band parameters is great fo ham radio.
See also – click here:
https://sp7dyn.com/?s=coupler&product_cat=0&post_type=product
SPECIFICATIONS:
Brand ------------------- WISI - Professional, high-quality
Frequency --------------- 50 to 2150MHz - tested
Type -------------------- High Power Diretctional Coupler
Coupling ---------------- -33 to -52dB see data
Line Coupler head ------- With impedance correction
Frequency --------------- 50 to 2150MHz - tested
Directivity ------------- 24-28dB

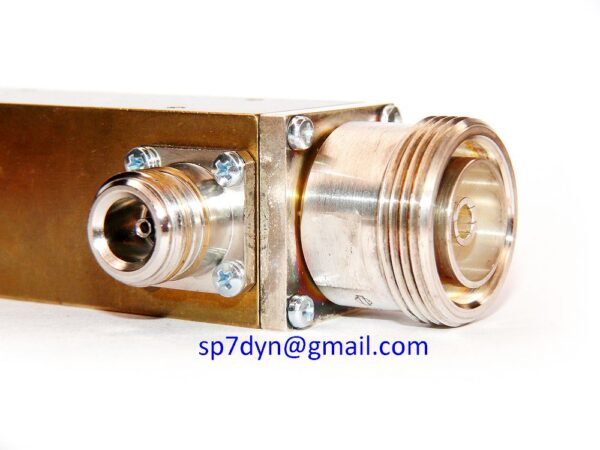

Main Connectors --------- 7/16 - SPINNER
CPL Connectors ---------- N - SPINNER
Power ------------------- Lots of kilowatts
Condition --------------- Used, tested and
functions - dark spots on silver - see real photos
The coupler is very clean from the inside!
Main line material ------ Silvered brass
Main body material--------Silvered brass
Dimesions --------------- L17.5 x H6.5cm
Weight ------------------ 1.3kg
S/N --------------------- 6
-
Price is for ------------ 1piece
Data High Power Diretctional Coupler 50MHz to 2150MHz Frequency Coupling Mainline RL Mainline Loss Directivity MHz dB dB dB dB --------------------------------------------------------------- 50.00 -52 53 0.003 28 70.00 -50 53 0.003 28 145.00 -46 53 0.030 28 435.00 -35 52 0.040 28 1296.00 -33 37 0.050 28 2150.00 -41 33 0.070 24
| Marka | WISI/SPINNER Professional, high-quality |
|---|---|
| Frequency | 50-2150MHz |
| Type | High Power Diretctional Coupler |
| Coupling | -33 to -52dB see data |
| Line Coupler head | With impedance correction |
| Directivity | 24-28dB |
| Mainline Loss | 0.003-0.07dB |
| Mainline Return Loss | 33-53dB |
| Main Connectors | 7/16 – SPINNER |
| CPL Connectors | N – SPINNER |
| Stan | Used, tested and |
| Main line material | Silvered brass |
| Main body material | Brass |
| Dimesions | L17.5 x H6.5cm |
| Weight | 1.3kg |
| Order - How to place an order | Please place your order via e-mail: |
| Shipping - method and cost | The price of the item does not include the shipping cost! |
