Name: DC Block 7GHz SMA Aeroflex Inmet
SKU: 424
Availability: InStock

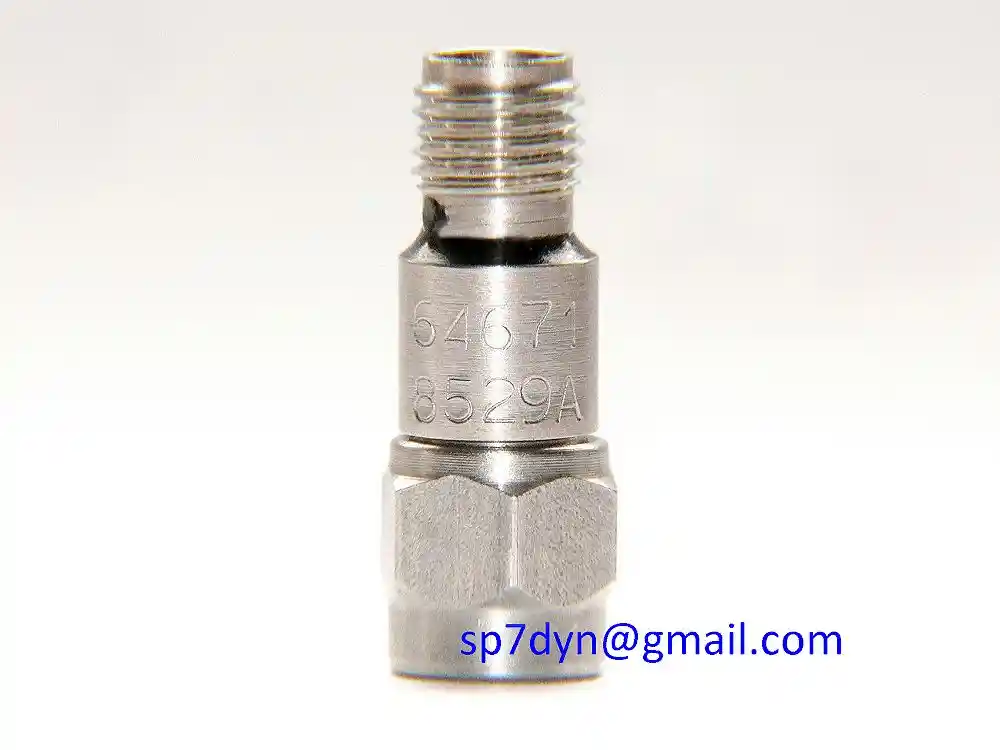

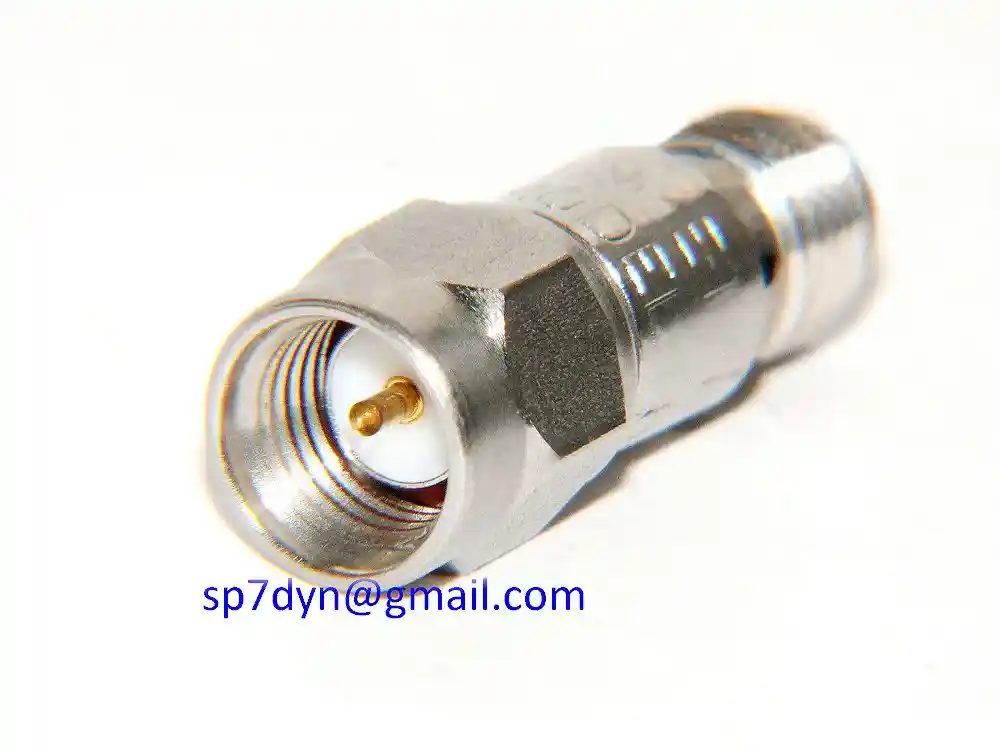

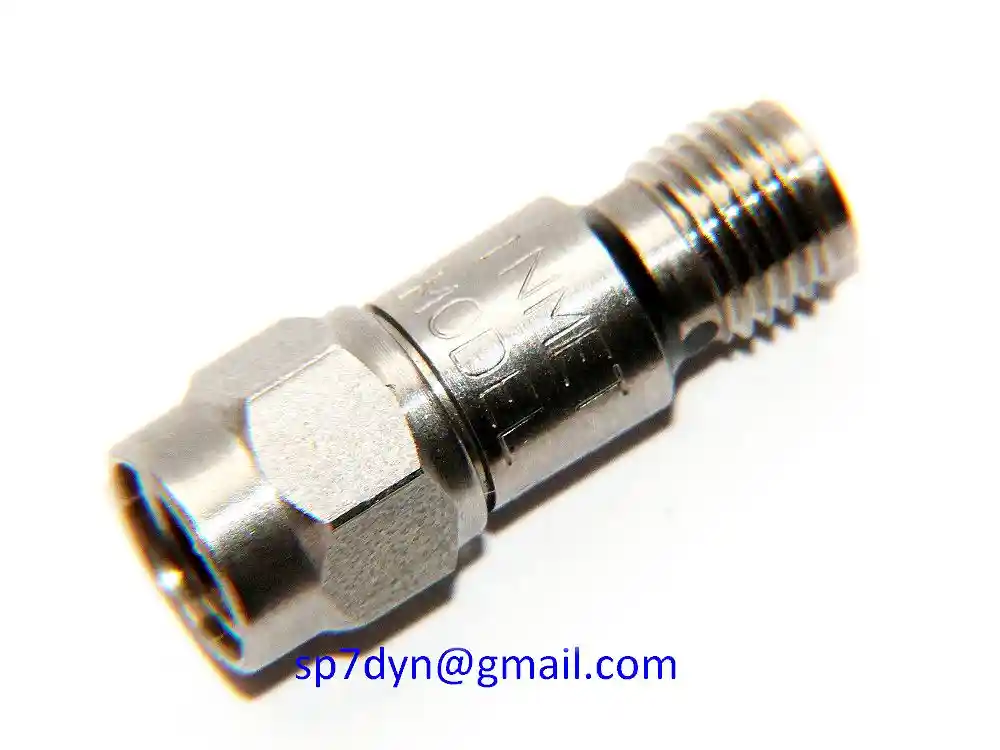

DC Block 7GHz SMA Aeroflex Inmet

DC Block SMA is once used like new, are
in beautiful condition is tested and functions.
Each DC Block has been tested in my lab,
for insersion loss and return loss, is sold as is!

These elements are selected and have better
parameters than specified by the manufacturer!

Link to other dc-blocks ———-– Click Here

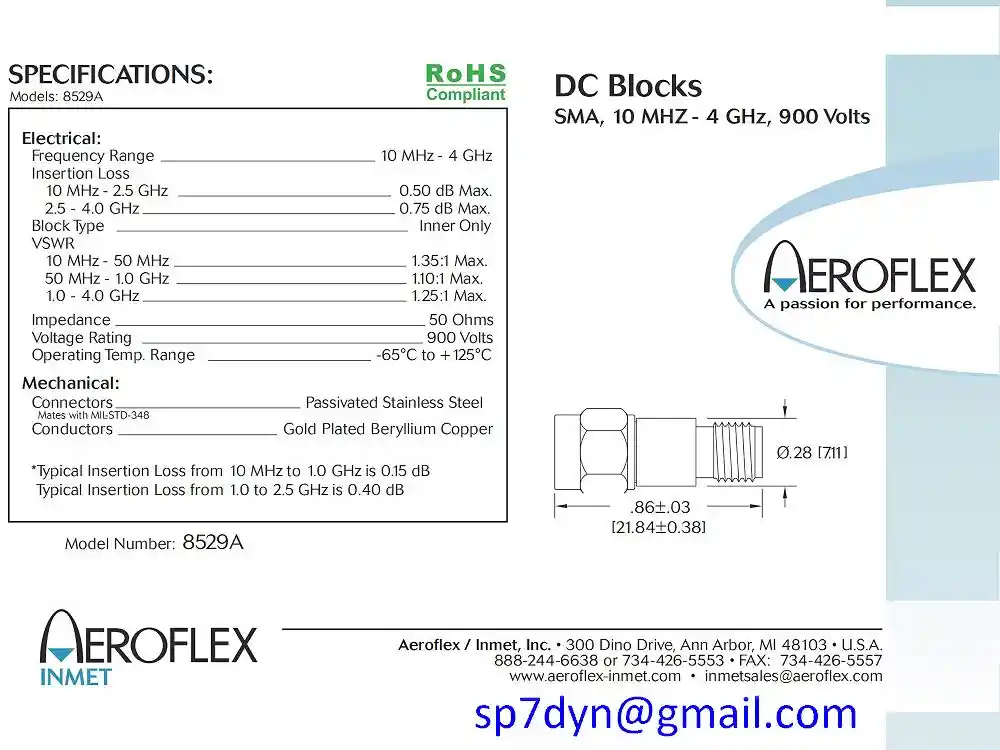

Link to PDF —————————-— Click Here

–

SPECIFICATIONS:

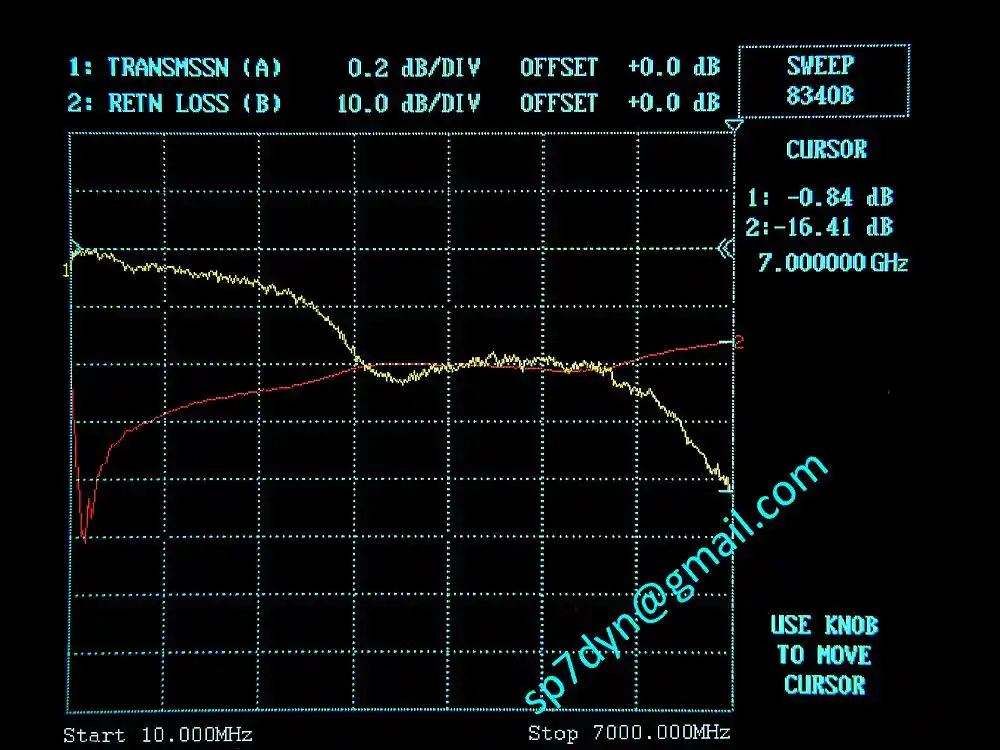

Measurement made in my lab - see data plot

Brand --------------------------- INMET Aeroflex API
Model --------------------------- 8529A
-
Electrical:
Frequency Range ----------------- 10 MHz - 7GHz see photo
Insertion Loss 10MHz to 1.0GHz -- 0.11dB
Insertion Loss 1.0 to 3.0GHz ---- 0.40dB
Insertion Loss 3.0 to 6.0GHz ---- 0.50dB
Insertion Loss 3.0 to 7.0GHz ---- 0.90dB
-
Return loss:
10 MHz - 1.0GHz ----------------- 28dB Min
1.0 - 6.0 GHz ------------------- 19dB Min
6.0 - 7.0 GHz ------------------- 16dB Min
-
Impedance ----------------------- 50 Ohms
Voltage Rating ------------------ 900 Volts
Operating Temp ------------------ -65°C to +125°C
-
Mechanical:

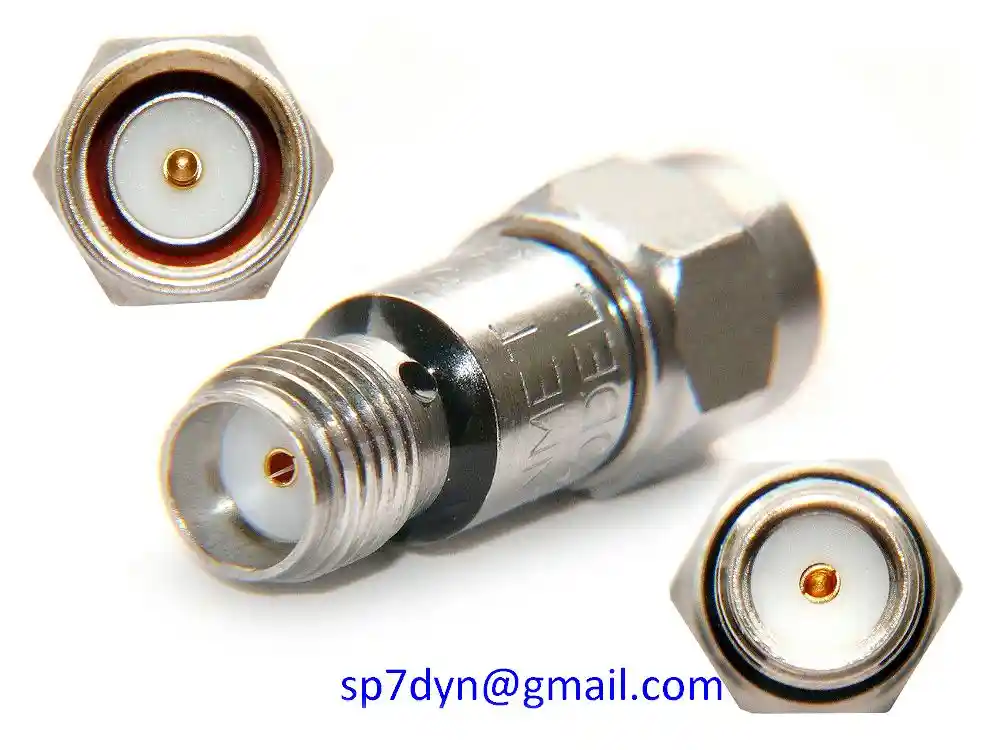

Connectors type ----------------- SMA - Stainless Steel
Mates with ---------------------- MIL-STD-348
Conductors ---------------------- Gold Plated Beryllium Copper
-
Price is for -------------------- 1 piece

Marka	INMET / AEROFLEX / API
Model	8529A
Frequency Range	10 MHz – 7 GHz (see photos)
Insertion Loss	10 MHz to 1.0 GHz – 0.11dB 1.0GHz to 3.0 GHz – 0.40dB 3.0GHz to 6.0 GHz – 0.50dB 6.0GHz to 7.0 GHz – 0.90dB
Impedance	50Ohms
Return loss	10 MHz – 1.0GHz – 28dB min 1.0 GHz – 6.0GHz – 19dB min 6.0 GHz – 7.0GHz – 16dB min
Voltage Rating	900Volts
Operating Temp. Range	-65°C to +125°C
Connectors type	SMA – Passivated Stainless Stee
Mates with	MIL-STD-348
Conductors	Gold Plated Beryllium Copper
Order - How to place an order	Please place an order Please place your order via e-mail: contact@sp7dyn.com sp7dyn@gmail.com In your order, please provide the title of the item, the SKU number and the link to the item on my website.
Shipping - method and cost	and cost The price of the item does not include the shipping cost! Necessarily before placing an order check the shipping costs and the STANDARD or PRIORITY delivery time. I combine purchases, I send all items in one package. With many devices you buy, you pay for shipping once. When placing an order, please provide the exact shipping address along with phone number and email address.
