7GHz DC Block SMA Inmet Aeroflex

7GHz DC Block SMA Inmet Aeroflex
DC Block SMA is once used  like new, are
in beautiful condition is tested and functions.
Each DC Block has been tested in my lab,
for insersion loss and return loss, is sold as is!

These elements are selected and have better
parameters than specified by the manufacturer!

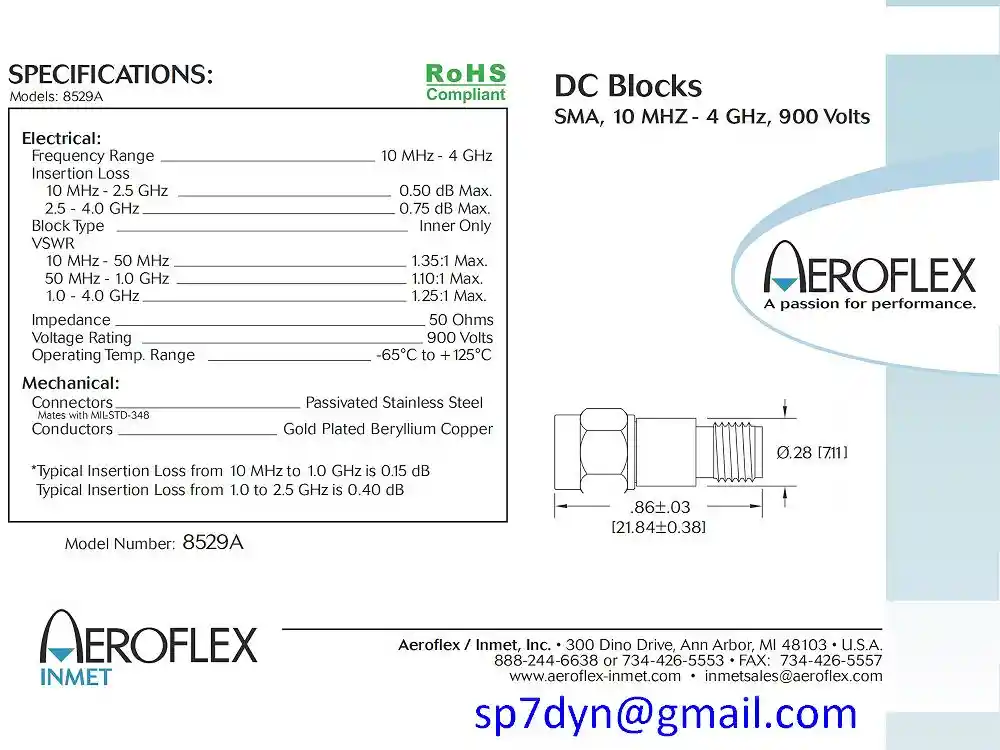

SPECIFICATIONS:

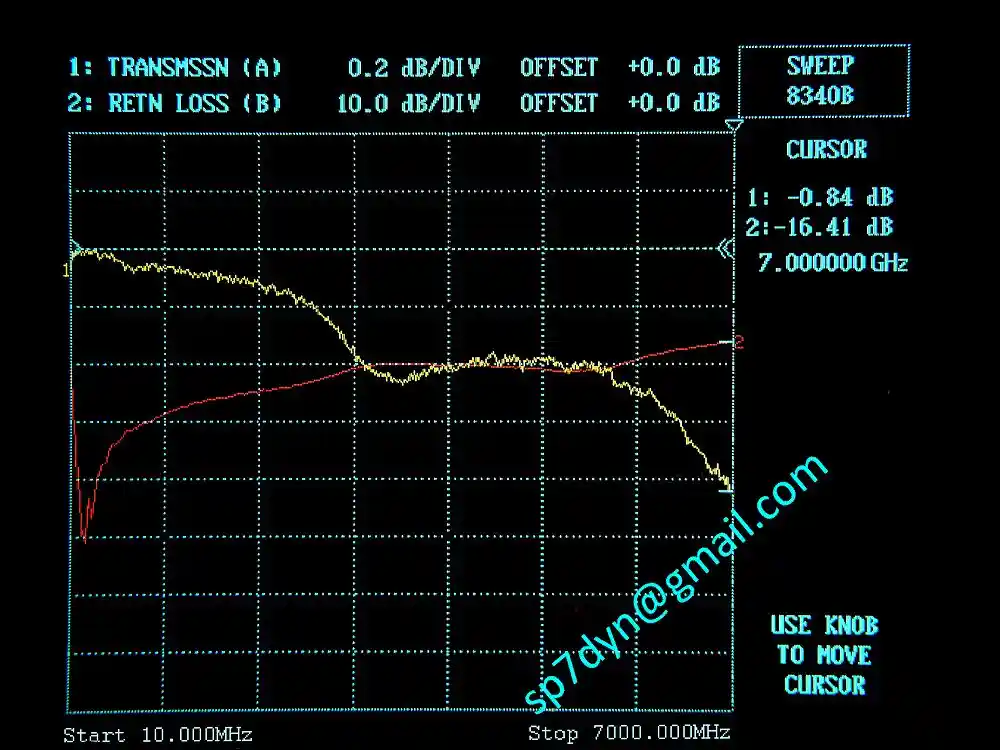

Measurement made in my lab - see data plot

Brand --------------------------- INMET Aeroflex API

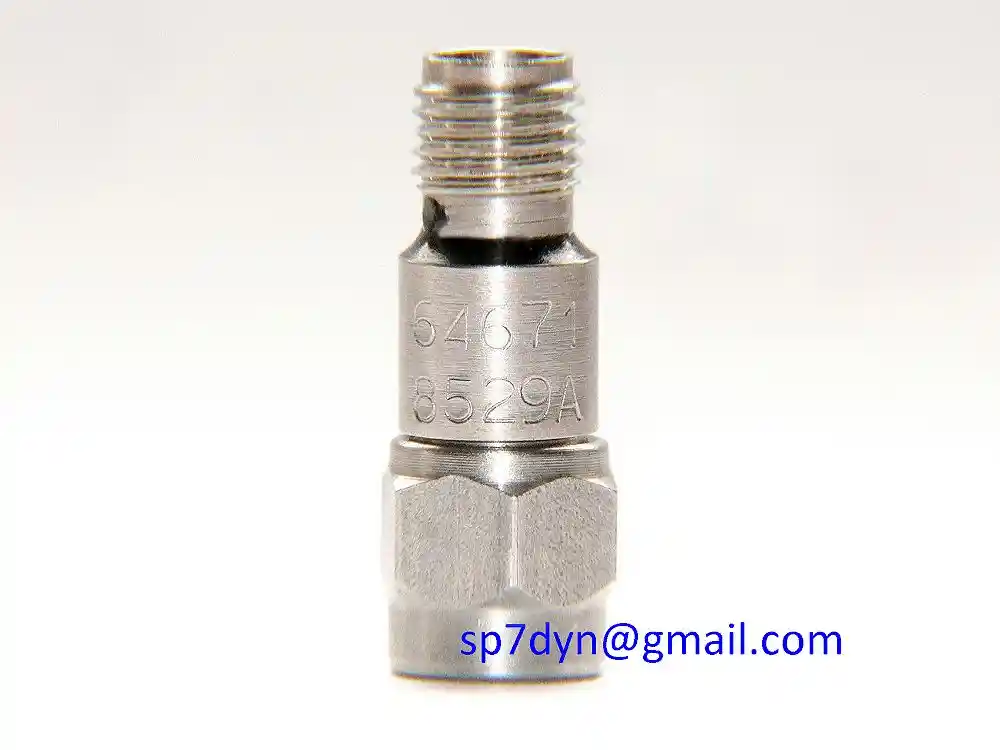

Model --------------------------- 8529A
-
Electrical:
Frequency Range ----------------- 10 MHz - 7GHz see photo
Insertion Loss 10MHz to 1.0GHz -- 0.11dB
Insertion Loss 1.0 to 3.0GHz ---- 0.40dB
Insertion Loss 3.0 to 6.0GHz ---- 0.50dB
Insertion Loss 3.0 to 7.0GHz ---- 0.90dB
-
Return loss:
10 MHz - 1.0GHz ----------------- 28dB Min
1.0 - 6.0 GHz ------------------- 19dB Min
6.0 - 7.0 GHz ------------------- 16dB Min
-
Impedance ----------------------- 50 Ohms
Voltage Rating ------------------ 900 Volts
Operating Temp ------------------ -65°C to +125°C
-
Mechanical:

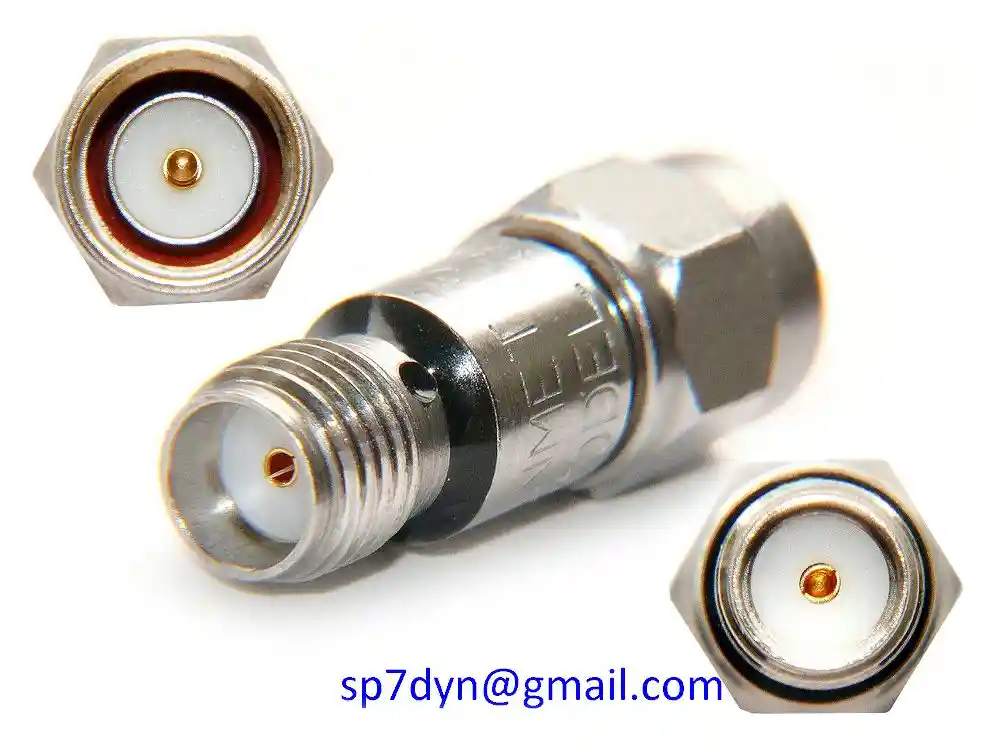

Connectors type ----------------- SMA - Stainless Steel
Mates with ---------------------- MIL-STD-348
Conductors ---------------------- Gold Plated Beryllium Copper
-
Price is for -------------------- 1 piece
