SKU: 079
Only price1 left in stock!
1 in stock

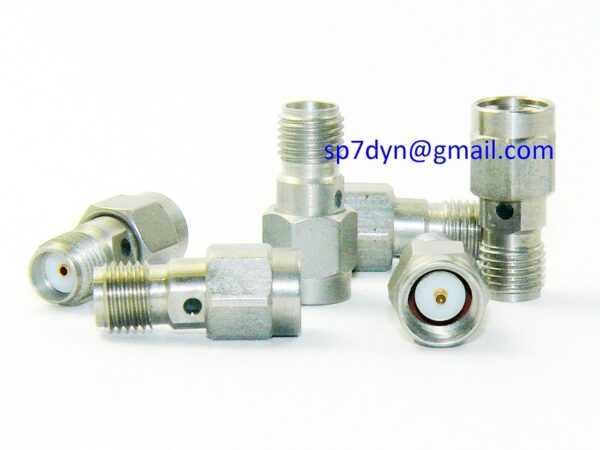

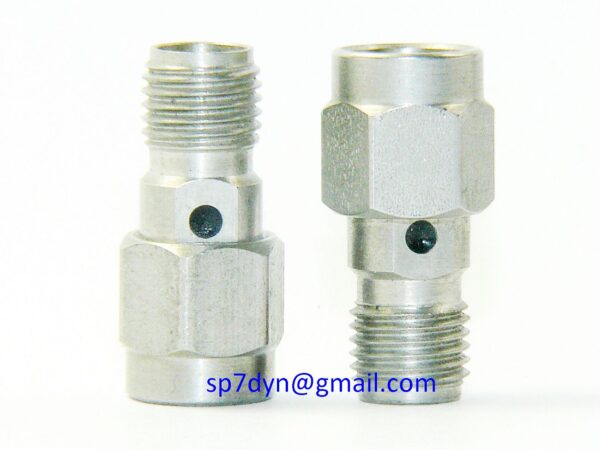

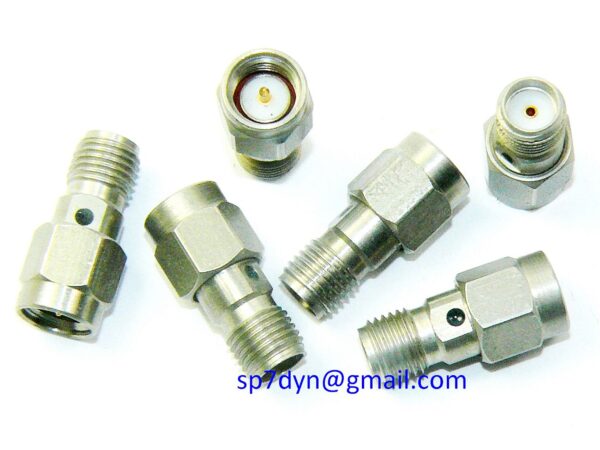

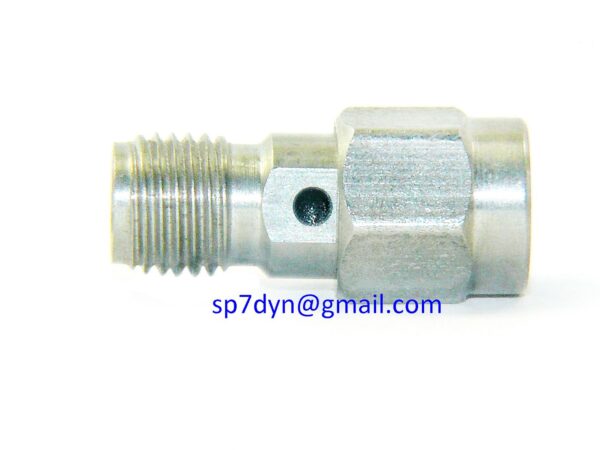

26.5GHz SMA Adapter Connector F M

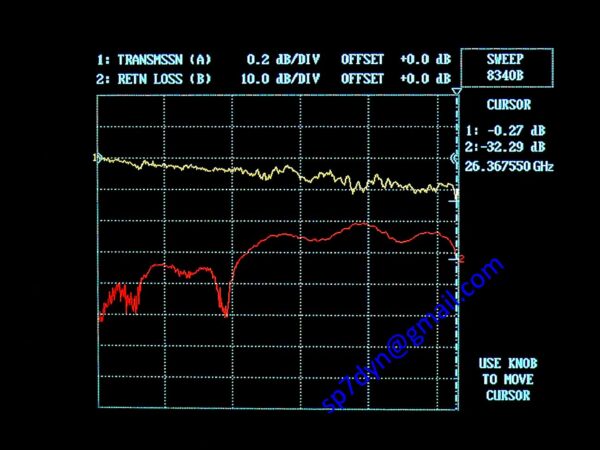

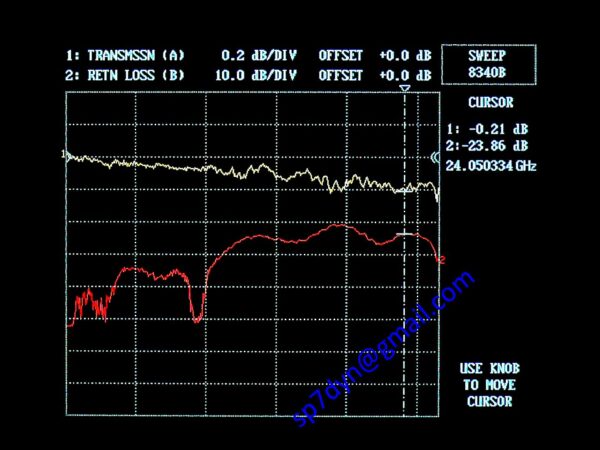

Straight RF Coaxial IL0.24dB Data Plot
Attention!
Each adapter has been tested in my lab,
Offered adapter are special military production,
here have been chosen and selected from
among many items, and work up to 26.5GHz.
The adapter is only twice used , like new,
are in beautiful condition, is tested and functions,
removed from new military equipment,
and guaranteed to your satisfaction, real photos!
–
Specifications: Tested in my lab - see data plotts Manufacturer ----------------- Military Product Frequency Range Work --------- DC - 26.5GHz Nominal Impedance ------------ 50 OHms - Inserion loss DC to 12GHz ---- 0.16dB Max Inserion loss DC to 18GHz ---- 0.24dB Max Inserion loss DC to 26.5GHz -- 0.26dB Max - Return Loss DC to 10.5 GHz -- 31.02dB Min Return Loss DC to 17.5 GHz -- 27.55dB Min Return Loss DC to 26.5 GHz -- 20.51dB Min - Connectors ------------------ SMA Male - Female Insulation ------------------ Teflon Contacts -------------------- Gold Housing --------------------- Stainless Steel Codition -------------------- Very technical good condition ------------------- Very technical good condition - High Quality SN -------------------------- 02 - Price is for ---------------- 1 piece
| Type | SMA Adapter Connector |
|---|---|
| Frequency Range | DC-26.5GHz |
| Insulation | Teflon |
| Contact Pin | Gold |
| Housing | Stainless Steel |
| Codition | Used – Very technical good condition. Like new – High Quality |
| Order - How to place an order | Please place your order via e-mail: |
| Shipping - method and cost | The price of the item does not include the shipping cost! |
