24GHz Dummy Load Variable Attenuator 20dB 4798 NARDA

(1 customer review)

Call for Price

SKU: 009

On request, I can set any dB value!

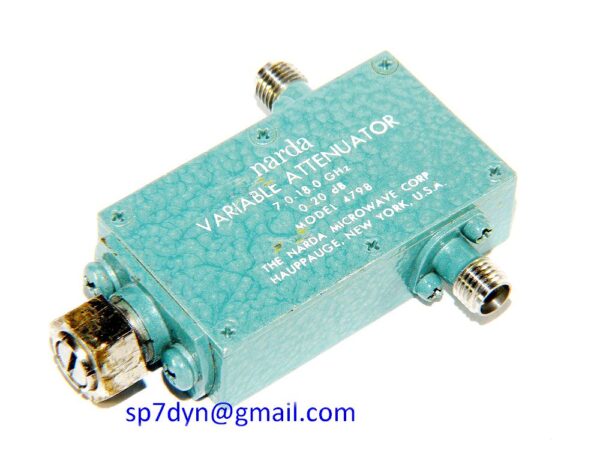

24GHz Dummy Load Variable Attenuator
5,5 – 26,5 GHz 0.7-22dB 4798 NARDA

The device is tested (see measurements) and functions, in
technical good condition, cosmetic scratches – see real photos!

Attenuator – dummy load  is great for 5.8GHz, 10.36GHz and
24GHz(and all the other 5.5-26GHz) band – low VSWR see data – SN-07.

Attention!

The offered attenuators have been chosen and
selected (in my lab) among many items and can
be described by the following specyfications:

Manufacturer ------------- NARDA
Model -------------------- 4798
Connectors --------------- 2x SMA F
Frequency Range --- 5.5-26GHz SWR less than 1.4
Continuous power - 5W (10W-max 1min) Peak max 3KW
Power test --------------- 10.3GHz 10W 1min
Adj. Attenuations range -- 0.7 to 22dB
Impedance ---------------- 50Ohm

Frequency Atten VSWR - Port1   Port2
-----------------------------------------------
5.80GHz    10dB        1.28    1.28   Typ. 1.25
5.80GHz    20dB        1.37    1.37   Typ. 1.33
10.36GHz   10dB        1.22    1.22   Typ. 1.20
10.36GHz   20dB        1.28    1.28   Typ. 1.25
24.05GHz   10dB        1.08    1.08   Typ. 1.06
24.05GHz   20dB        1.21    1.21   Typ. 1.19

At other frequencies the attenuation change!
-
Price for 1 piece
Brand

Condition

The attenuators offered here have been chosen and selected from among many items.The device is removed from the new device. Cosmetic Scratches. Tested (see measurements)and functions in technical good condition – see real photo!
