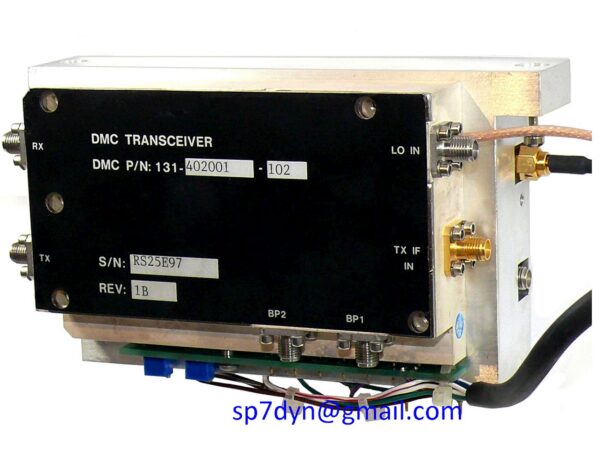

22-23GHz Transverter Transceiver DMC P/N: 131-402001-102
$254,00
SKU: 028
Only price2 left in stock!
2 in stock
22-23GHz Transceiver Transverter DMC P/N: 131-402001-102
Transverter 22 to 23GHz with module IF 50-1300MHz
The device is tested and functions (test OK) in technical
good condition, cosmetic scratches, outside corrosion.
Transverter – is sold as is!
–
Local oscillator can buy one of my other auction.
–
TRX tested only in the original radio link 100% OK.
–
SPECIFICATIONS: No datasheet! Useful links: Link to --------------- F5DQK Link to --------------- F5DQK - DMC Caution! Voltage sequencing required -5V Must be connected first, disconnecting -5V causes permanent damage TRX! Model: ---------------- DMC P/N: 131-402001-102 This is not a version DMC P/N:131 -402001-101! Frequency ------------- 22-23GHz - without internal bandpass filters - see photos! Power input TX (BP2) -- +3dBm max about 1.5 - 2mW IF input / uotput ----- 50MHz tp 1.3GHz IF Original frequency - 1.2GHz LO input -------------- 0dBm to +10dBm Supply ---------------- +5V, -5V, +8.4V AGC input ------------- 0 to +5V Power consumption ----- +5V 500mA max Connectors ------------ SMA Nominal impedance ----- 50 Ohm Power output ---------- 100 mW max Condition ------------- Device is tested - OK - Price is for 1 piece
| Model | DMC P/N:131-402001-102 |
|---|---|

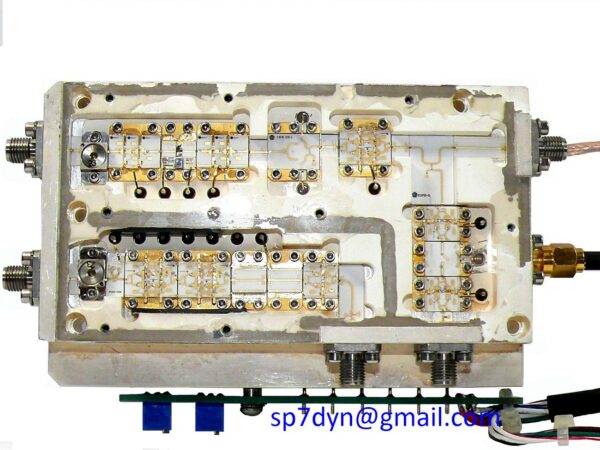

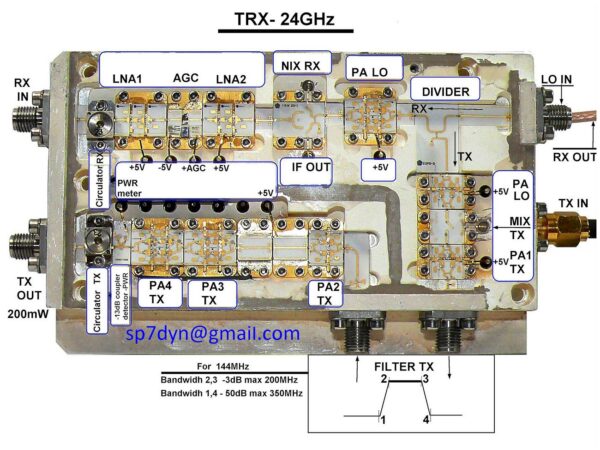

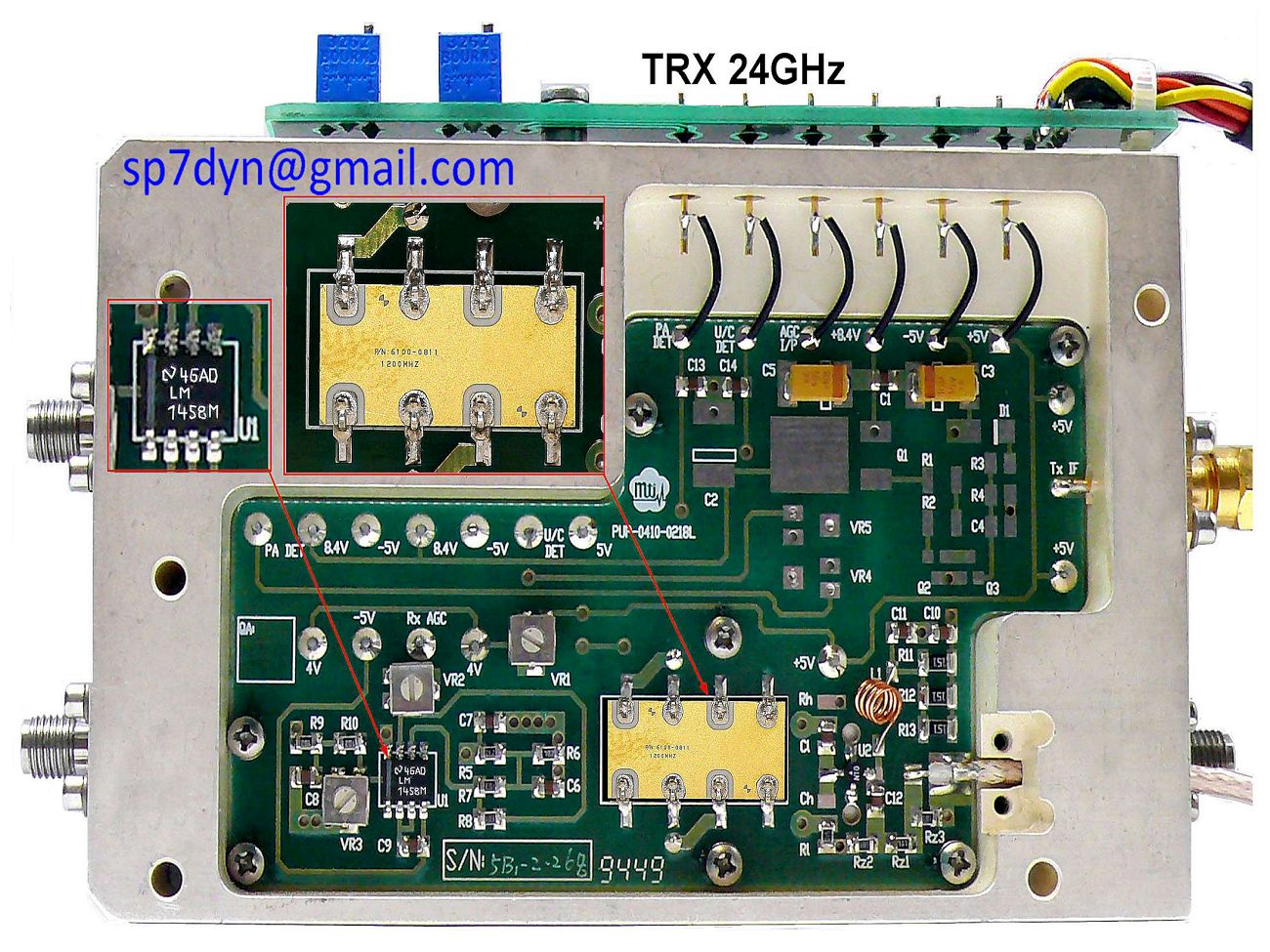

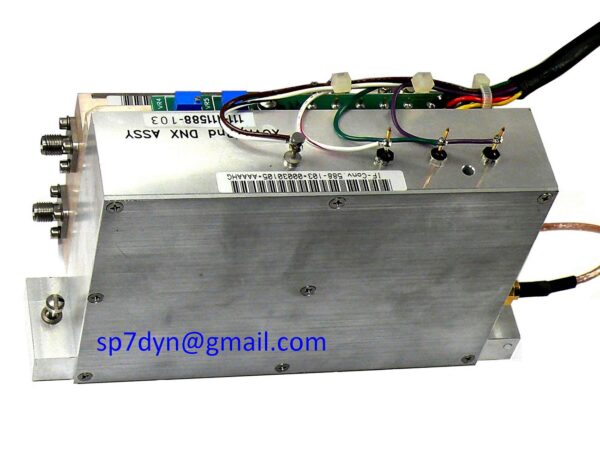

| Frequency | 22-23GHz – without internal bandpass filters – see photos! |
| Power input | TX (BP2) +3dBm max (about 1.5 to 2mW) |
| IF input / uotput | 50MHz tp 1.3GHz (will work with the appropriate TX filter) original frequency was 1.2GHz |
| LO input | 0dBm to +10dBm |
| Supply | +5V, -5V, +8.4V (-5VDC always first!!) |
| AGC input | 0 to +5V |
| Power consumption | +5V 500mA max |
| Connectors | 7x SMA |
| Nominal impedance | 50Ohms |
| Power output | 100 mW max |
| Order - How to place an order | Please place your order via e-mail: |
| Shipping - method and cost | The price of the item does not include the shipping cost! |
