Name: WR42 Waveguide Bandpass Filter 22 GHz Data
SKU: 314
Price: 46.00 USD
Availability: InStock

WR42 Waveguide Bandpass Filter 22 GHz Data
WR42 Waveguide Bandpass Filter

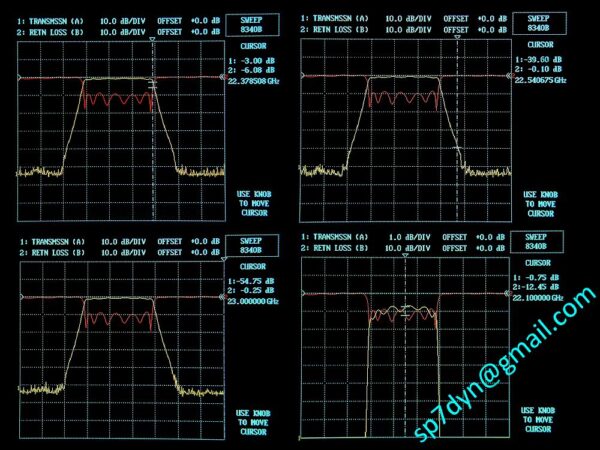

CF22.076GHz + data plot
The device is used, cosmetic scratches,
tested and functions in technical
good condition – see real photos + data plots

Link to ————————————– 23GHz Filter

Specifications:

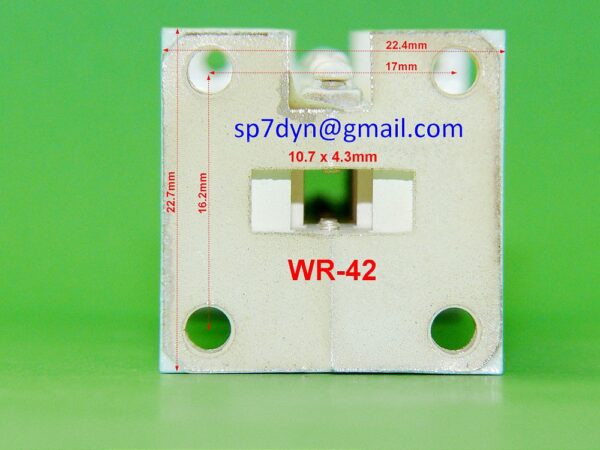

Waveguide Connectors -- WR-42
Filter Type ----------- Bandpass Filter
Center Frequency ------ 22.076GHz
Bandwitch -3dB -------- 604MHz
Bandwitch -40dB ------- 915MHz
Insertion loss -------- 0.77dB
Condition ------------- Used, tested and functions
-
Price is for ---------- 1 piece

Waveguide Connectors	WR-42
Filter Type	Bandpass Filter
Center Frequency	22.076GHz
Bandwitch -3dB	604MHz
Bandwitch -40dB	915MHz
Insertion loss	0.77dB
Stan	The device is used, cosmetic scratches, tested and functions in technical good condition – see real photos + data plots
Price is for	1 piece
Order - How to place an order	Please place your order via e-mail: contact@sp7dyn.com sp7dyn@gmail.com In your order, please provide the title of the item, the SKU number and the link to the item on my website.
Shipping - method and cost	The price of the item does not include the shipping cost! Necessarily before placing an order check the shipping costs and the STANDARD or PRIORITY delivery time. I combine purchases, I send all items in one package. With many devices you buy, you pay for shipping once. When placing an order, please provide the exact shipping address along with phone number and email address.
