WR42 Waveguide Straights
$35,00
SKU: 107
10 in stock
10 w magazynie

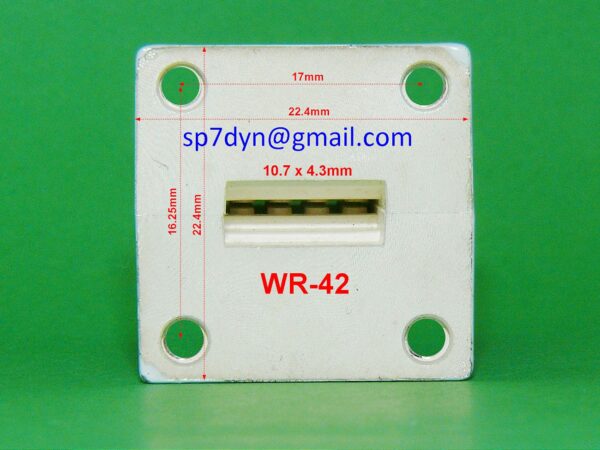

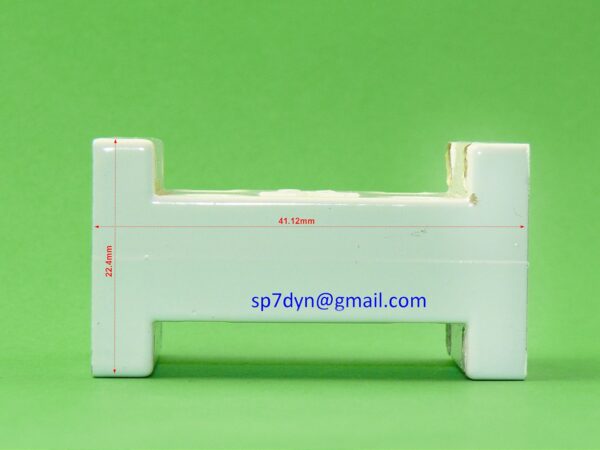

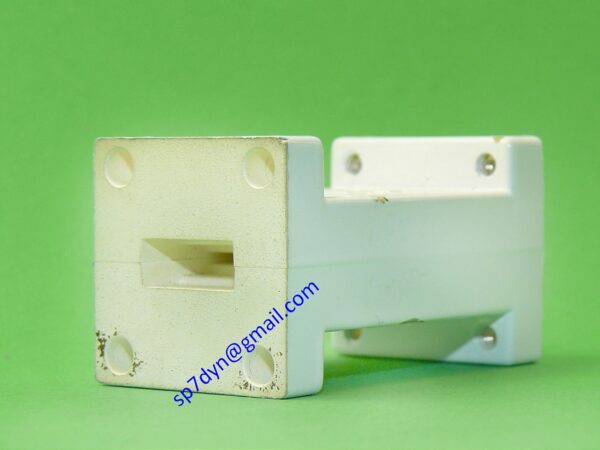

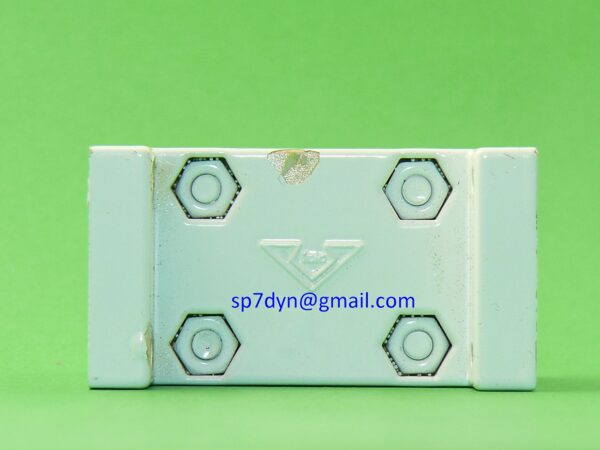

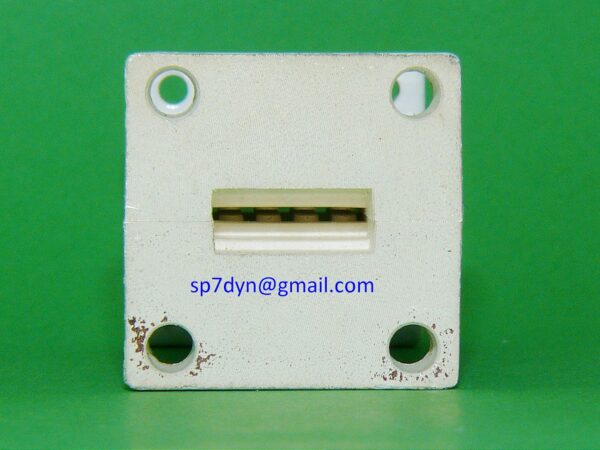

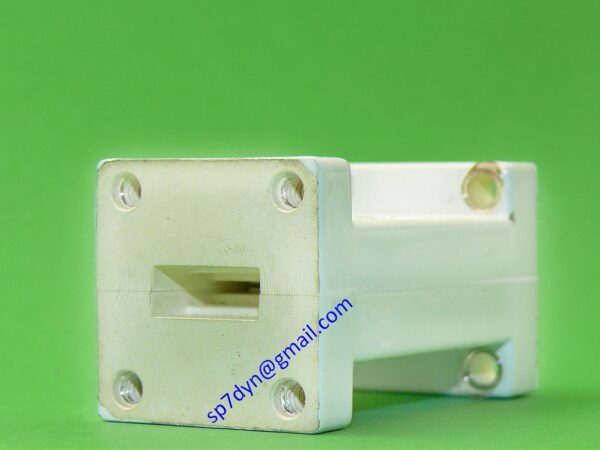

WR42 Waveguide Straights Adapter
24GHz IL0.04dB RL 26dB Low Loss
–
–
Specifications: Waveguide Connectors -------- WR-42 Frequency Range -------------- 18.5-25.5 GHz Return Loss on 24.050GHz -- 26dB Insertion loss on 24.05GHz -- is less than 0.1 dB - Price for 1piece
| Type | Waveguide Connectors WR42 |
|---|---|
| Frequency Range | 18.5-25.5 GHz |
| Return Loss on 24.050GHz | 26dB |

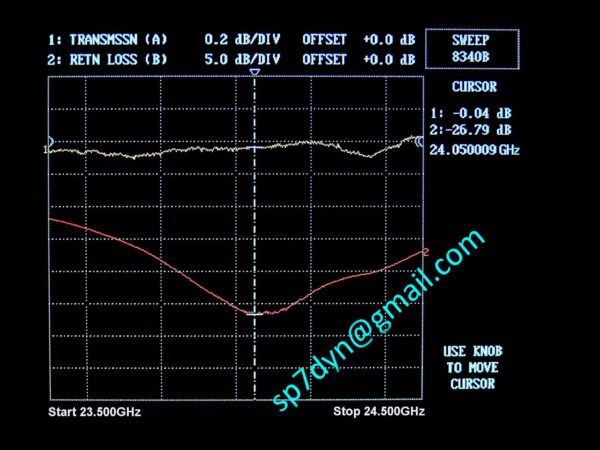

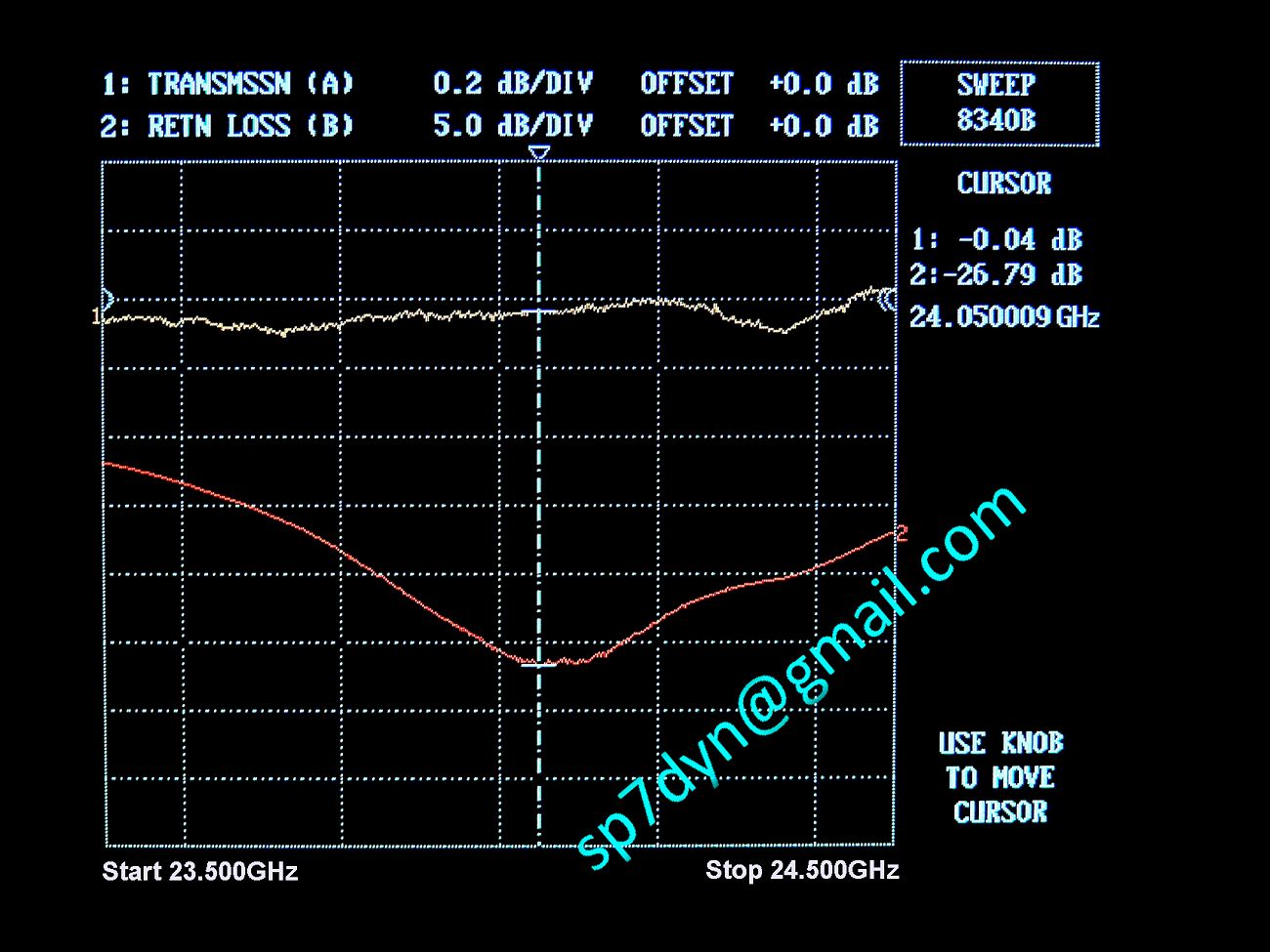

| Insertion loss on 24.05GHz | is less than 0.1 dB See photo! |
| Housing material | silvered aluminum |
| Stan | The device is used, tested and functions |
| Price for | 1 piece |
| Order - How to place an order | Please place your order via e-mail: |
| Shipping - method and cost | The price of the item does not include the shipping cost! |
