26.5GHz Switch Relay Low Loss K&L 9332/2
$80,00
SKU: 210
Only price1 left in stock!
1 w magazynie

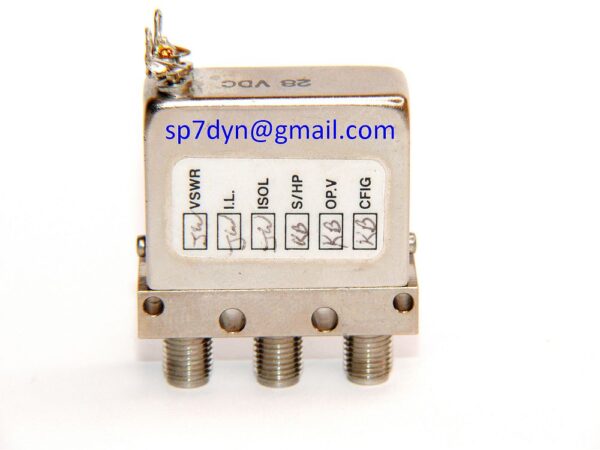

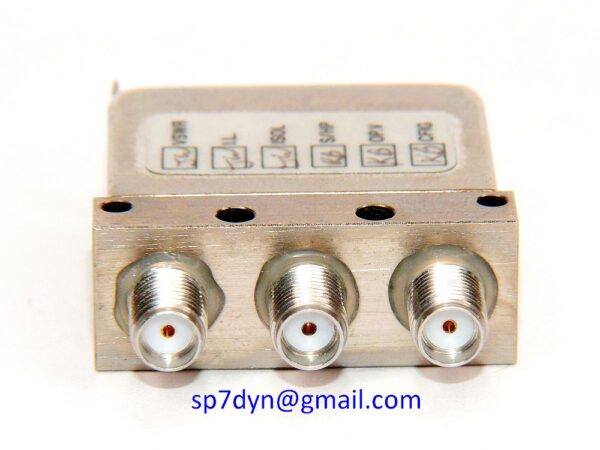

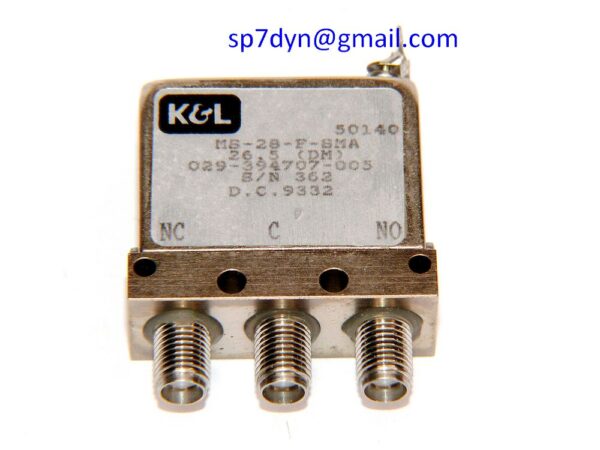

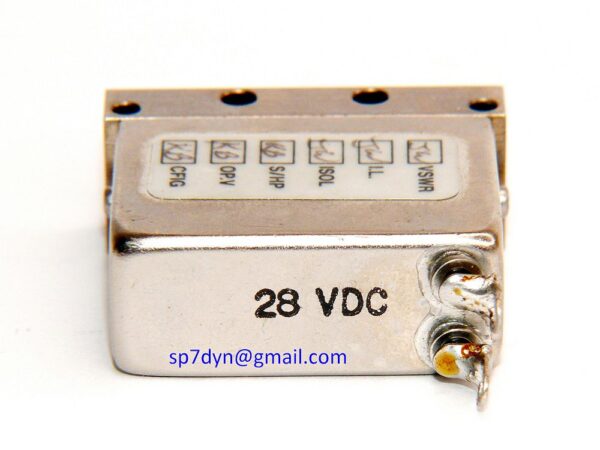

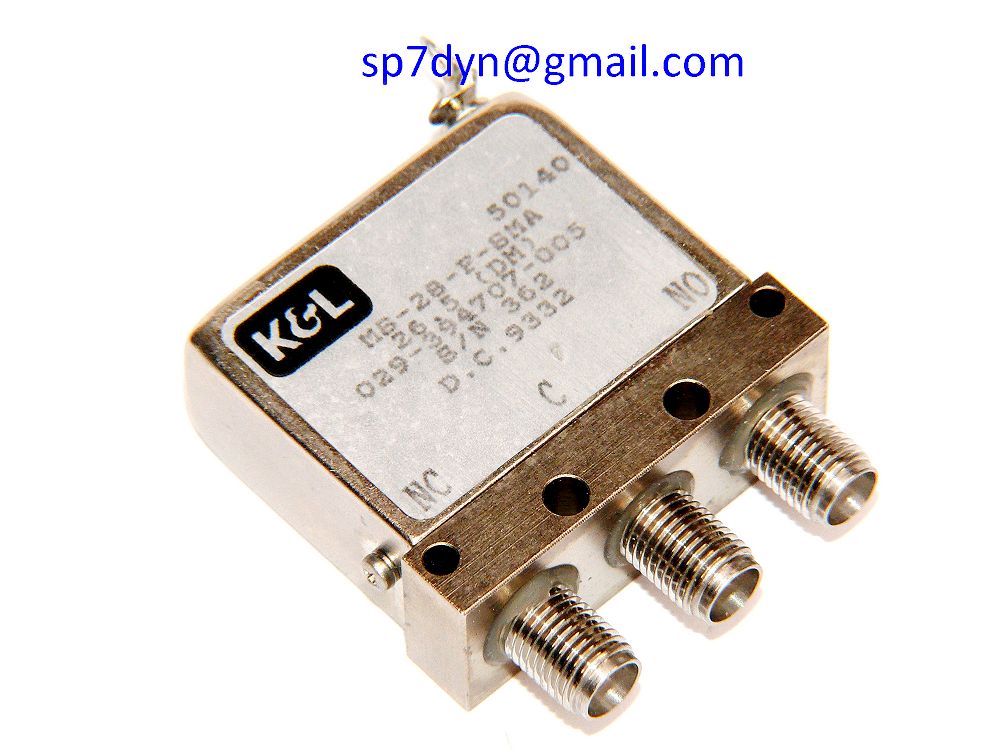

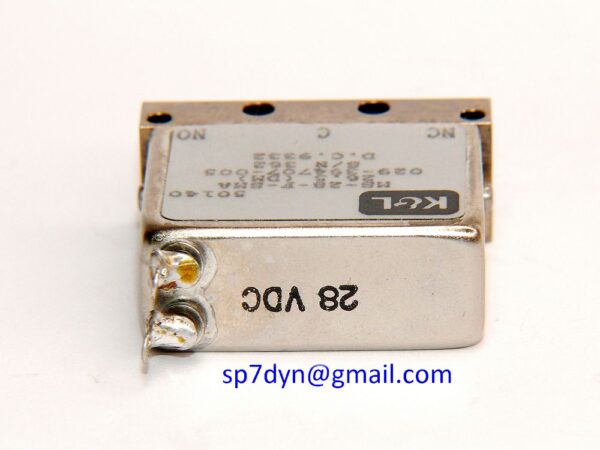

26.5GHz Switch Relay 28V Low Loss K&L 9332/2
Coaxial Switch Relay Failsafe (see photos) Used,
Cosmetic Scratches, removed from the new device – real photos!
Switch is great for 24GHz band is fully tested, and
functions in technical good condition – test OK
–
SPECIFICATIONS: Brand --------------------------- K&L Model --------------------------- MS-28-F-SMA-26.5 Relay Type ---------------------- SPDT Frequency Range ----------------- DC to 26.5GHz Low Loss Nominal Impedance --------------- 50Ohms Insulation ---------------------- Teflon Contacts ------------------------ Beryllium Copper Gold Condition ----------------------- Used tested 100% OK S/N ----------------------------- 9332/2 Available ----------------------- 5pieces - Price is for -------------------- 1piece
| Marka | K&L |
|---|---|
| Frequency | DC-26.5GHz |

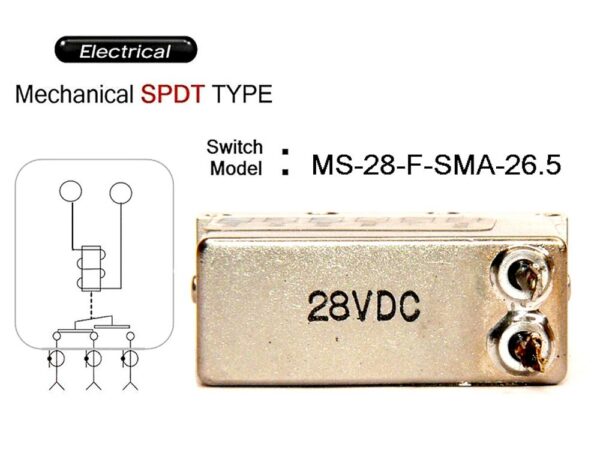

| Relay Type | Mechanical SPDT |
| Insertion Loss | 0.28dB on 24GHz |
| Operating voltage | 15-28VDC |
| Connectors Type | SMA |
| Insulation | Teflon |
| Contacts | Beryllium Copper / Gold |
| Stan | |
| Order - How to place an order | Please place your order via e-mail: |
| Shipping - method and cost | The price of the item does not include the shipping cost! |
