SN12 26.5GHz Attenuator 20dB 5W Mini-Circuits
$165,00
SKU: 152
Only price1 left in stock!
1 w magazynie

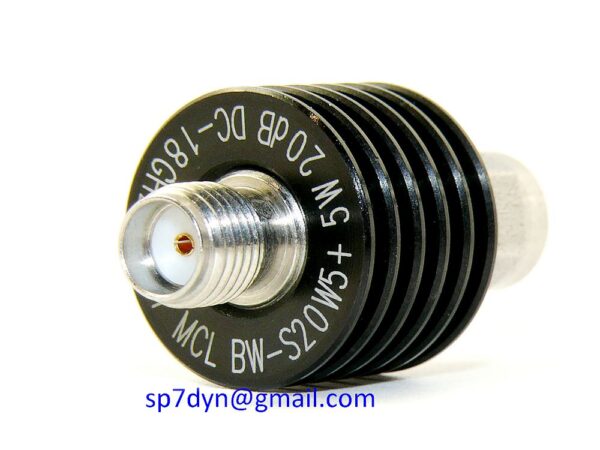

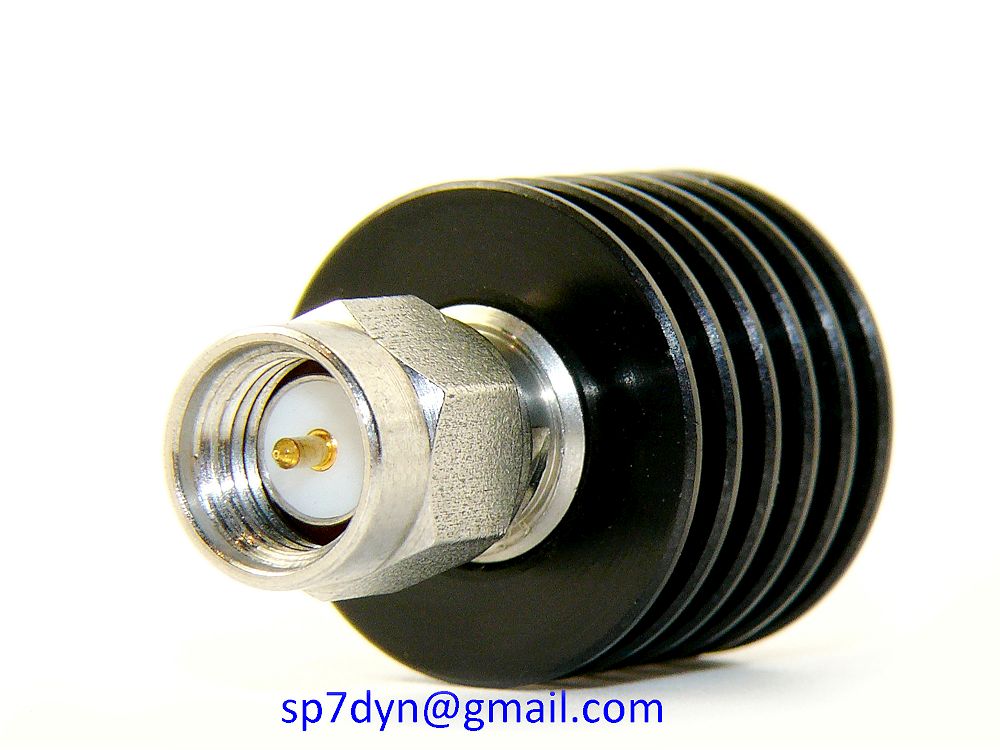

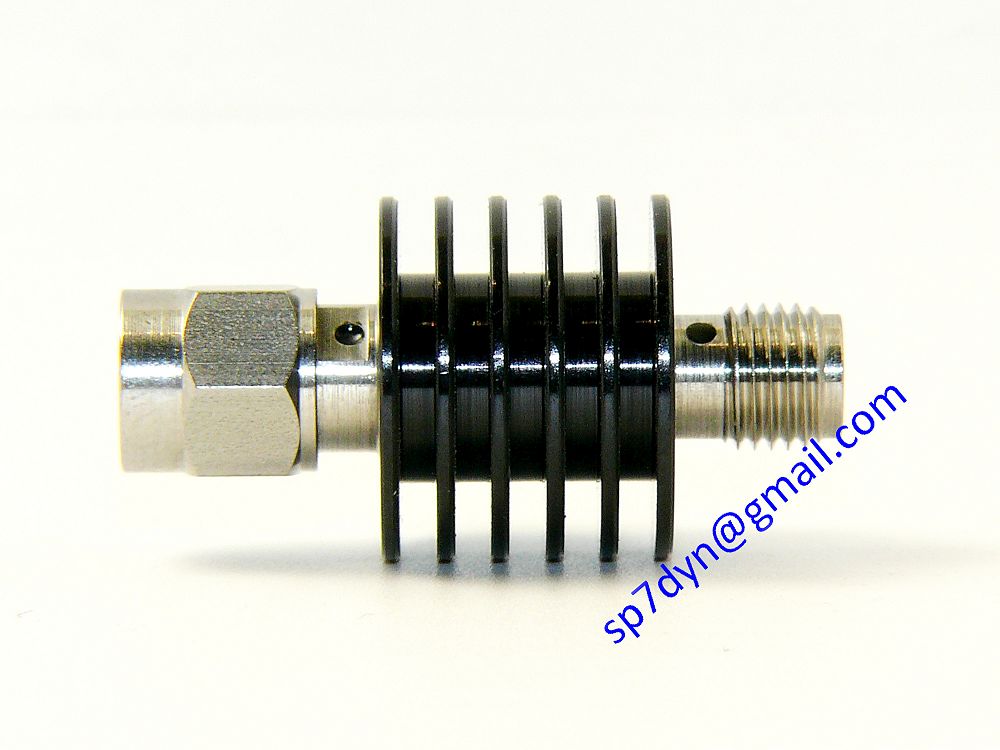

SN12 26.5GHz Attenuator 20dB 5W Mini-Circuits
The attenuator was used for testing once.
The device is tested and functions in very technical
good condition – like new – see data plotts!
Need more or different ask!
Attention!
Each attenuator has been tested in my lab, for attenuation and return loss!
Offered attenuator here have been chosen and selected
from among many items (170 pieces), and work up to 26GHz.
This attenuator has much better parameters than the manufacturer gives!!
Attenuator is great fo HAM and as a dummy load for 24GHz band.
You will receive from me, a testable verified, excellent quality device -see data plotts.
SPECIFICATIONS: Brand ----------------------- Mini-Circuits Model ----------------------- BW-S20W5+ Frequency Range ------------- DC - 26GHz see photo data plotts It is much better than stated by the manufacturer Offered attenuator has been chosen and selected from among many elements (170pieces). Attenuation nom ------------ -20dB Attenuation Accuracy ------- -0.28, + 0.20dB SWR ------------------------- 1.02 DC-2GHz SWR ------------------------- 1.09 2-17GHz SWR ------------------------- 1.14 17-24GHz SWR ------------------------- 1.15 24.05GHz SWR ------------------------- 1.15 24-26GHz Impedance ------------------- 50 Power ----------------------- 5Watts Connectors x2 --------------- SMA Male / Female Insulation ------------------ Teflon Contacts -------------------- Gold plated Connecors Material ---------- Stainless Steel Length ---------------------- 22mm Test No --------------------- 012 Price is for ---------------- 1 piece

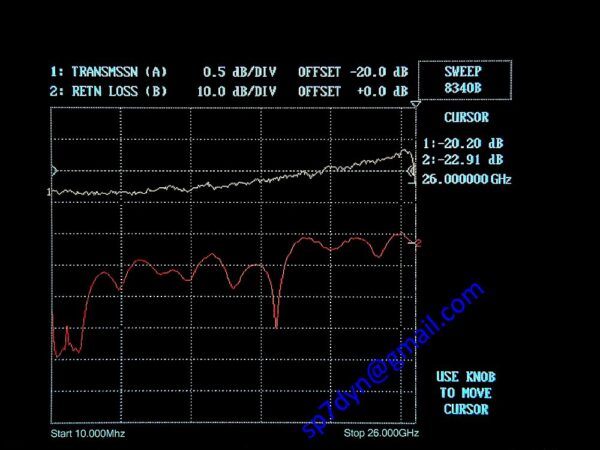

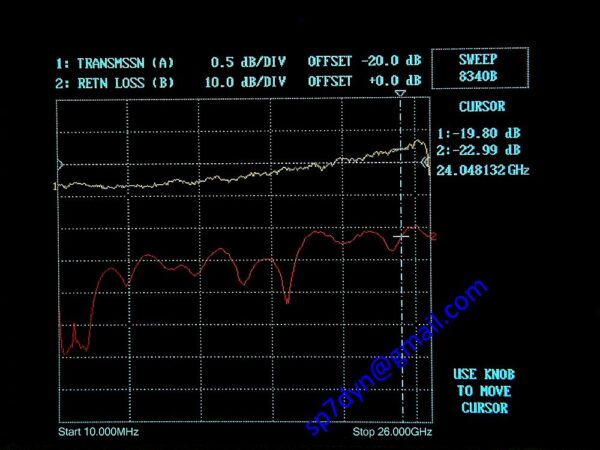

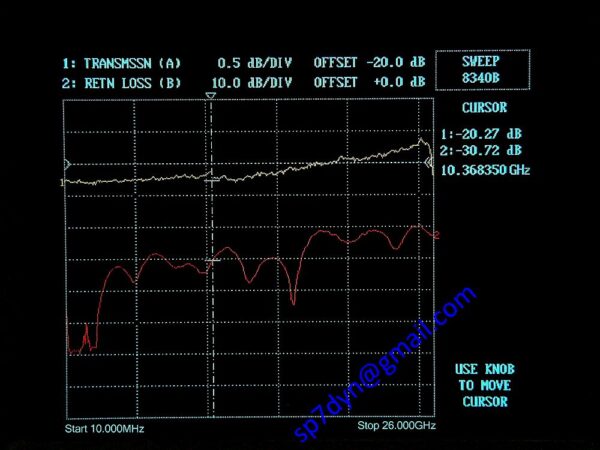

Results of measurement: ----------------------------------- Frequency Attenuation SWR Measured in my lab --------------------------------------------------------- 1.30GHz 20.23dB 1.01 measured 2.40GHz 20.29dB 1.02 measured 5.80GHz 20.26dB 1.05 measured 10.40GHz 20.17dB 1.08 measured 12.00GHz 20.13dB 1.08 measured 14.00GHz 20.04dB 1.06 measured 18.00GHz 19.90dB 1.17 measured 20.00GHz 19.85dB 1.15 measured 24.05GHz 19.65dB 1.15 measured 26.00GHz 20.20dB 1.15 measured
| Model | BW-S20W5+ |
|---|---|
| Frequency Range | DC – 26GHz see photo data plotts |
| Attenuation nom | -20dB |
| Attenuation Accuracy | -0.28, + 0.20dB |
| Results of measurement: | Frequency Attenuation SWR Measured in my lab |
| Impedance | 50Ohms |
| Power | 5W |
| Connectors | SMA M/F |
| Insulation | Teflon |
| Contacts pin | Gold plated |
| Connecors Material | Stainless Steel |
| Length | 22mm |
| Stan | The device is tested and functions in very technical |
| Test No | 012 |
| Order - How to place an order | Please place your order via e-mail: |
| Shipping - method and cost | The price of the item does not include the shipping cost! |
