13GHz Local Oscillator
$173,00
SKU: 147
Only price1 left in stock!
1 w magazynie
13GHz Local Oscillator DMC 13.060GHz
The device is tested and functions in
technical good condition – real photos.
Specifications:
Link to ---------------- RX26GHz
Link to ---------------- RX26GHz
Brand ------------------ P-Com
Frequency Range -------- 12.839 - 13.300GHz
Frequency standard IN -- 10.000MHz
Apparently, you can program this oscillator,
but I have no knowledge of programming this LO
Current frequency ------ 13.060GHz
Power output 1 --------- 18.6dBm
Power output 2 --------- 18.4dBm
Supply voltage --------- 12VDC
Power consumption ------ 360mA
Coax Connectors -------- SMA

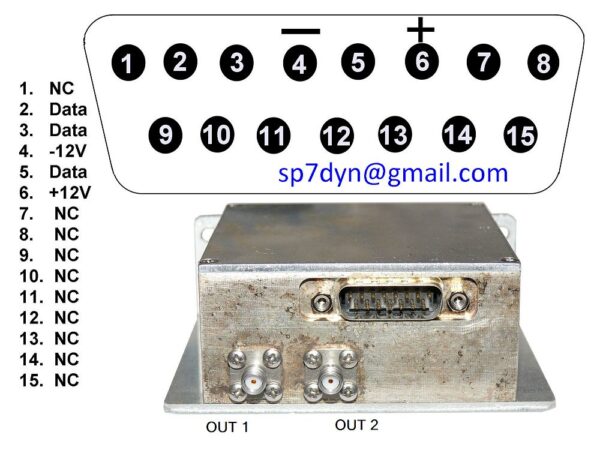

DC Connector ----------- D-Sub (DA-15)

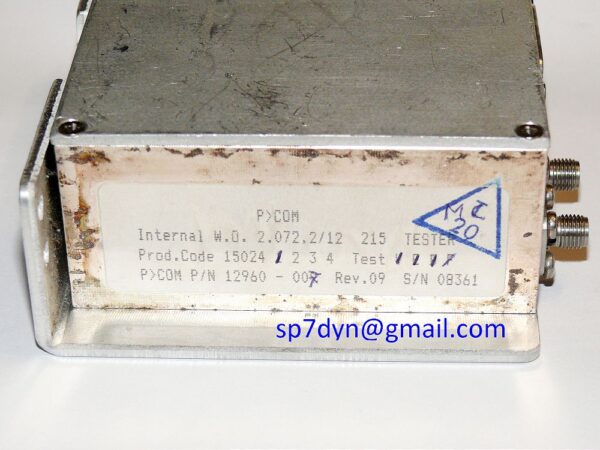

SN --------------------- 07
-
Price is for 1 piece
| Marka | P/Com |
|---|---|
| Frequency Range | 12.839 – 13.300GHz |
| Frequency standard IN | 10,000MHz |
| Current frequency | 13.238GHz |
| Power output 1 | 15.3dBm |
| Power output 2 | 18.2dBm |
| Supply voltage | 12VDC |
| Power consumption | 450mA |
| Coax Connectors | SMA |
| DC conector | D-Sub (DA-15) |
| Order - How to place an order | Please place your order via e-mail: |
| Shipping - method and cost | The price of the item does not include the shipping cost! |
