1-12.4GHz Power Divider 10Watts 2 Way Anaren
$81,00
SKU: 010
10 in stock
10 w magazynie

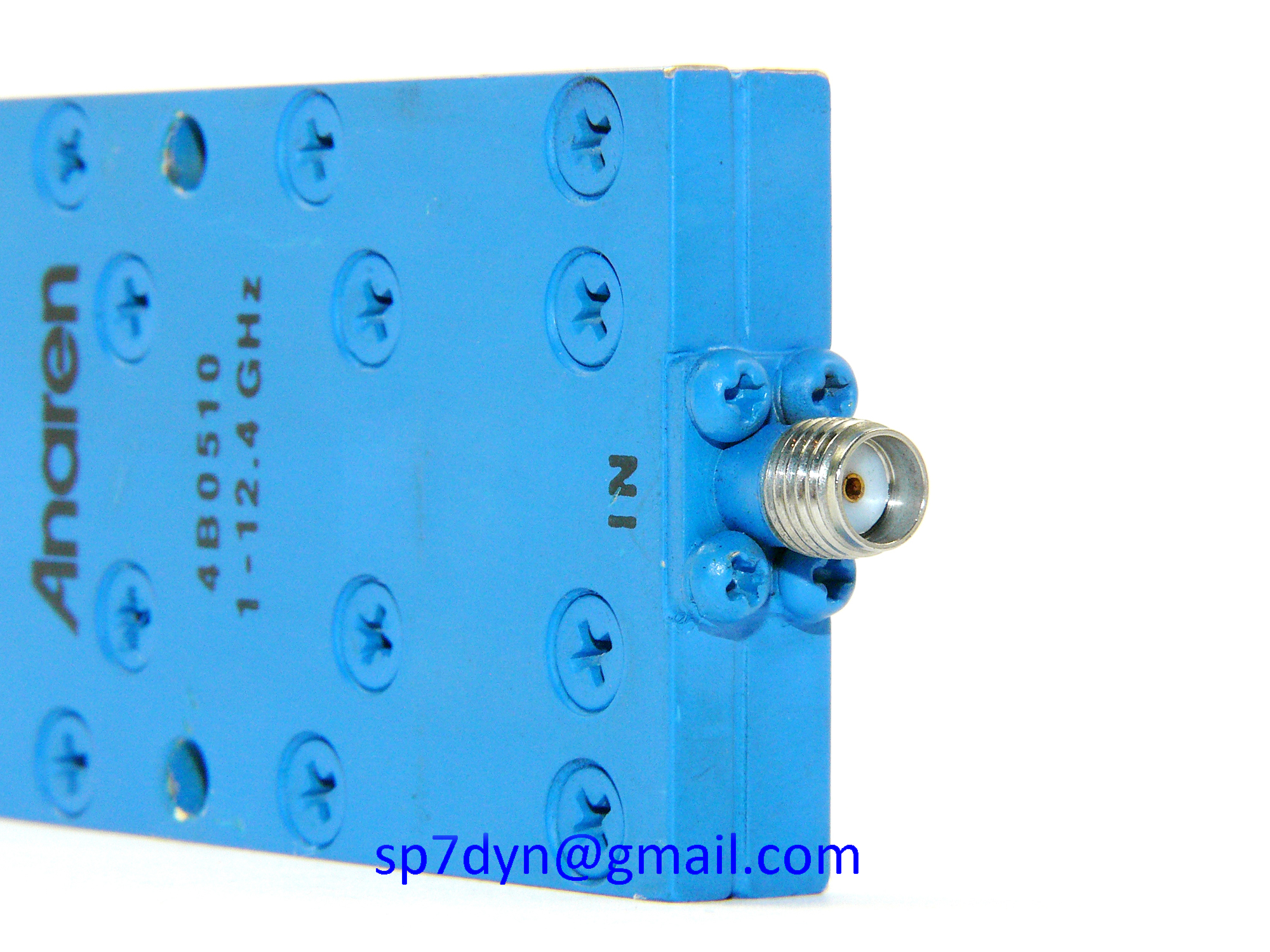

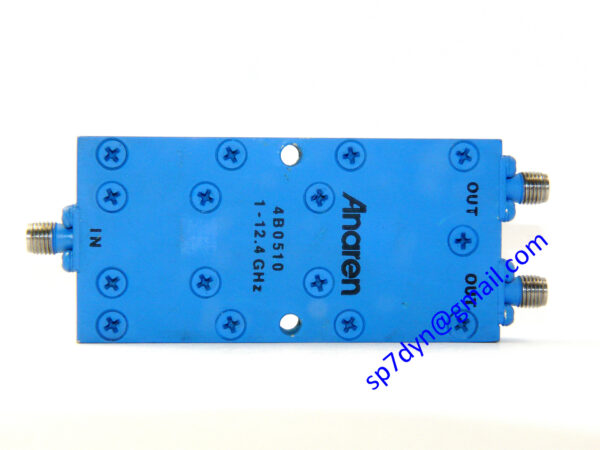

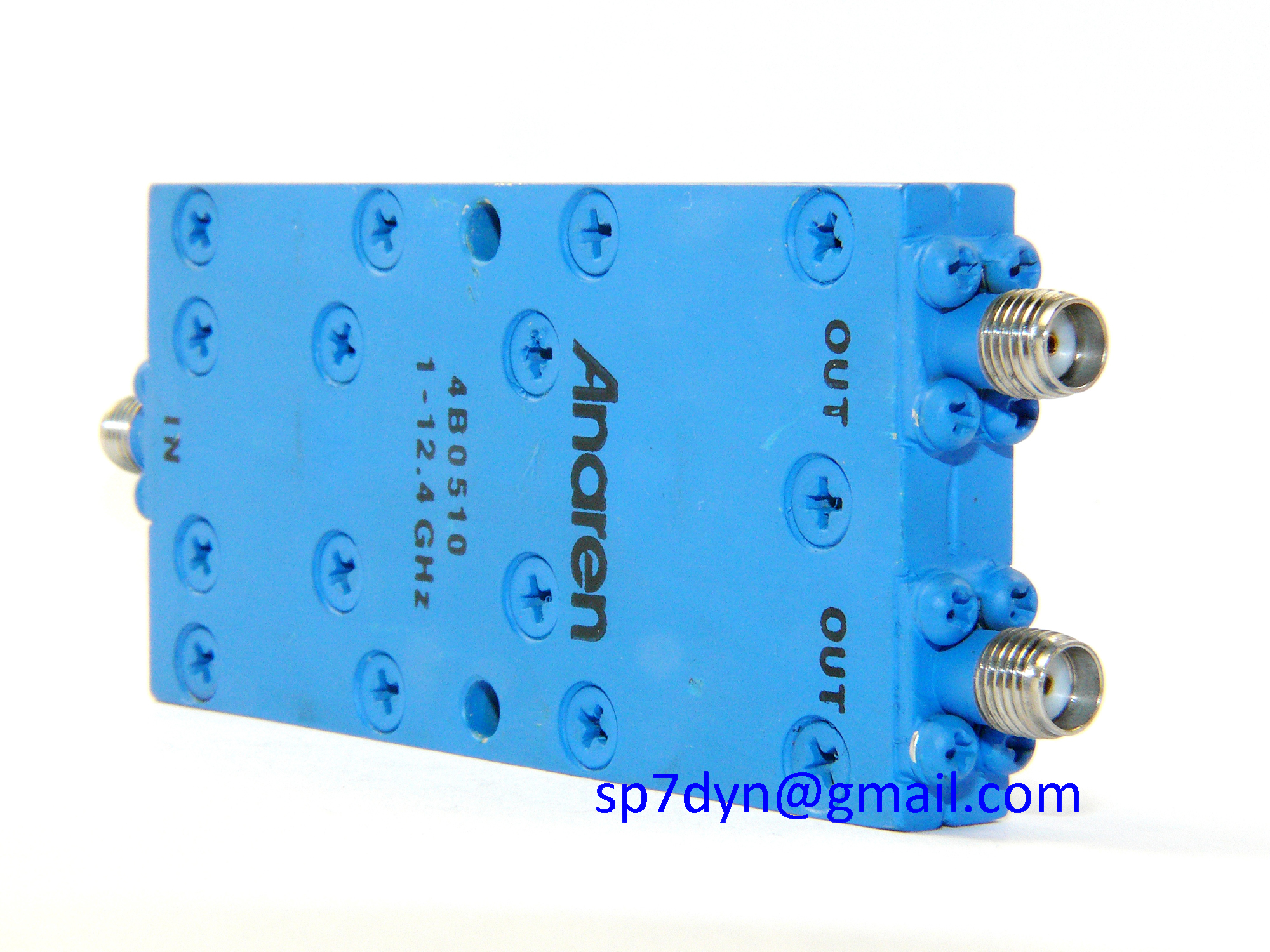

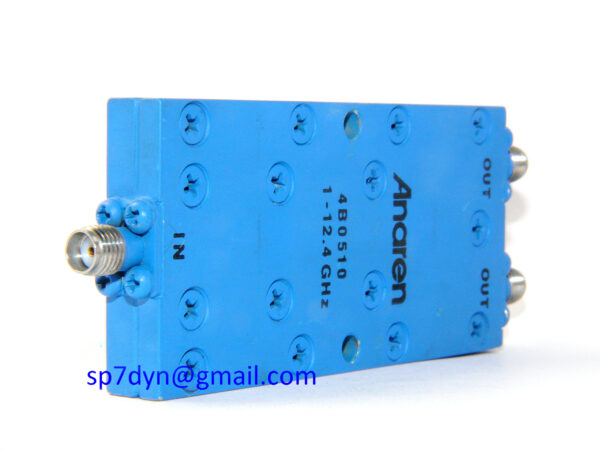

1-12.4GHz Power Divider 10Watts 2 Way
Coaxial Spliter 10W Anaren
The item was used only once for testing is in
very good condition – like new – real photos.
Link to PDF ————————— Click Here
See other power Divider —— Click Here
Specifications: Each divider has been tested for Insersion loss and return loss! Manufacturer ----- ANAREN Model ------------ 4B0510 Frequency range -- 1 to 12.4GHz Impedance -------- 50 Ohms Configuration ---- Coaxial Return Loss ------ Min 25dB Connectors 3x ---- SMA F Power max -------- 10W Isolation -------- 22dB - Price is for ----- 1 piece
| Model | 4B0510 |
|---|---|
| Freguency Range | 1-12.4GHz |
| Impedance | 50Ohms |
| Configuration | Coaxial |
| Return Loss | 25dB Min. |
| Connectors Type | 3x SMA F |
| Power | 10Watts Max. |
| Isolation | 22dB |
| Order - How to place an order | Please place your order via e-mail: |
| Shipping - method and cost | The price of the item does not include the shipping cost! |
