0.5-18GHz Power Divider PS8-16-454/8S PULSAR
Call for Price
SKU: 095
0,5-18GHz Power Divider 8 Way PULSAR Excellent
Power Divider Splitter 0° 0.5-18GHz SMA PULSAR USA
Divider has excellent performance, amplitude balance
0.77dB, VSWR 1.20, Power 30 Watts.
0,5-18GHz Power Divider is used (used only a few times),
removed from the new device (Very clean device),
cosmetic scratches, tested and functions

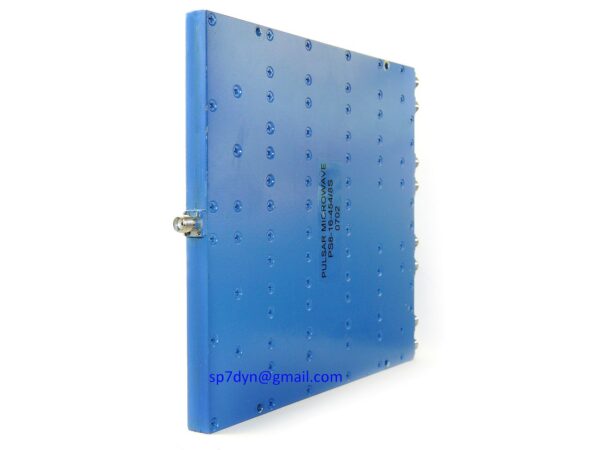

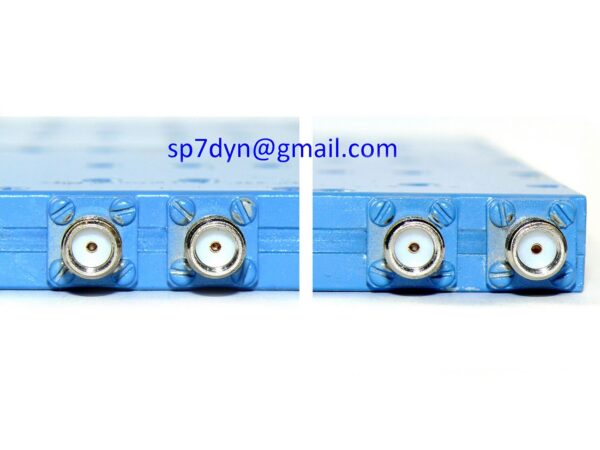

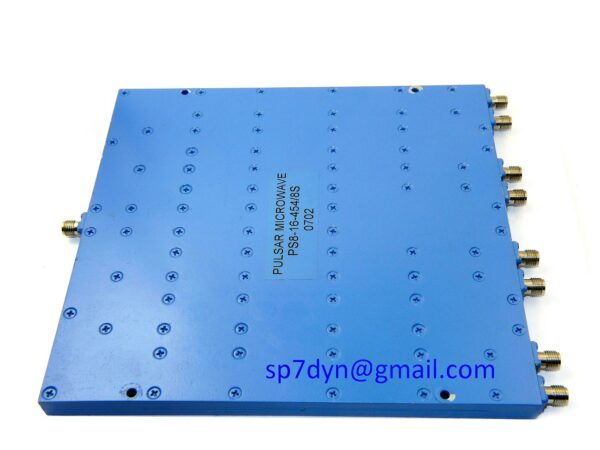

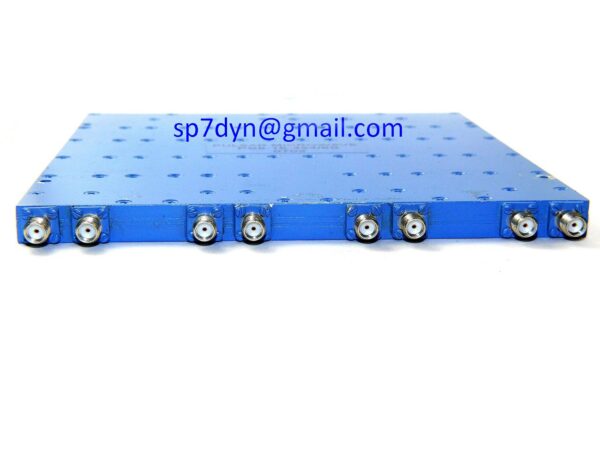

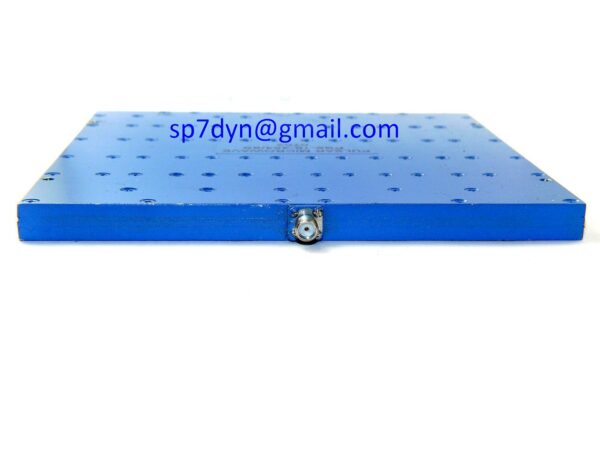

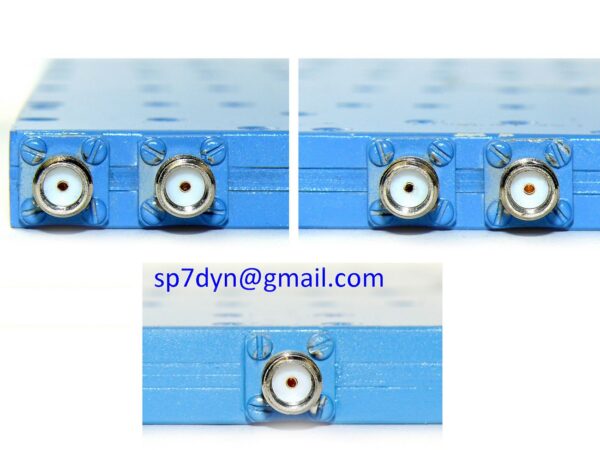

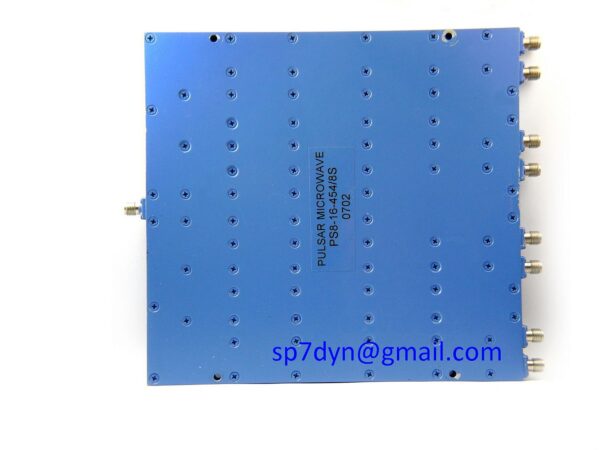

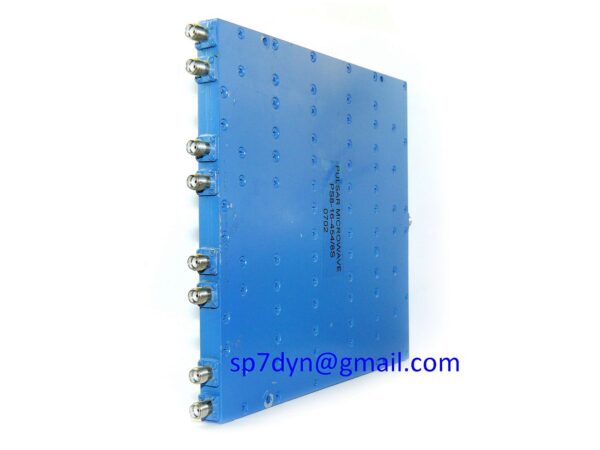

in very technical good condition, test OK real photos!
Link to ——————————— PDF
Link to ——————————— PULSAR
See other power Divider — Click Here
SPECIFICATIONS: Brand -------------- PULSAR MICROWAVE CORPORATION Type --------------- 8-Way Power Divider 0° Model -------------- PS8-16-454/8S Frequency Range ---- 0.5 - 18.0 GHz Insertion Loss ----- 5.5 dB Max Typ. 6dB Isolation ---------- 16 dB Min Typ. 20dB Amplitude Balance -- 0.77 dB Max Typ. 0.9dB Phase Balance ------ 12.0° Max Typ. 10° VSWR --------------- 2-18GHz 1.20 Max Typ. 1.15 Power -------------- 30 Watts Max Dimensions --------- 180 x 150 x 10.7mm Weight ------------- 0.75kg - Price is for ------- 1 piece
| Marka | PULSAR MICROWAVE CORPORATION |
|---|---|

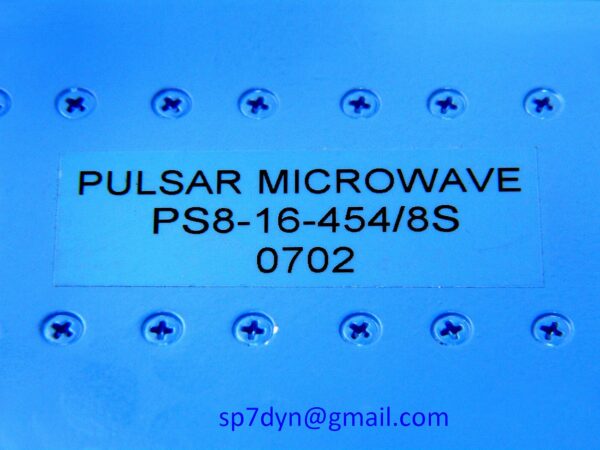

| Model | PS8-16-454/8S |
| Type | 8-Way Power Divider 0° |
| Frequency Range | 0.5 – 18.0 GHz |
| Insertion Loss | 5.5 dB Max Typ. 6dB |
| Isolation | 16 dB Min Typ. 20dB |
| Amplitude Balance | 0.77 dB Max Typ. 0.9dB |
| Phase Balance | 12.0° Max Typ. 10° |
| VSWR | 2-18GHz 1.20 Max Typ. 1.15 |
| Power | 30 Watts Max |

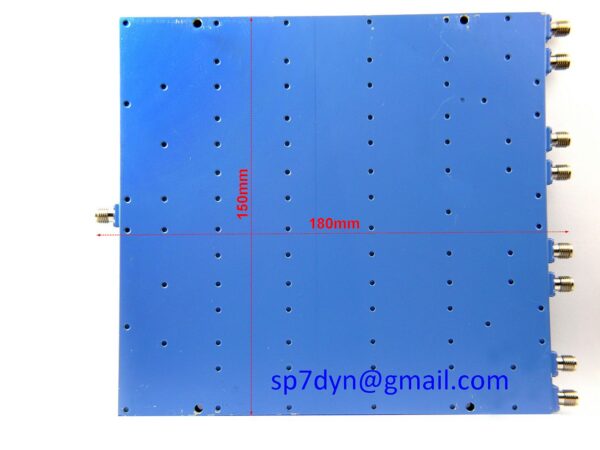

| Dimensions | 180 x 150 x 10.7mm |
| Weight | 0.75kg |
| Stan | The Device is used (used only a few times), removed from the new device (Very clean device), cosmetic scratches, tested and functions in very technical good condition, test OK. Real Photo! |
| Order - How to place an order | Please place your order via e-mail: |
| Shipping - method and cost | The price of the item does not include the shipping cost! |
