0.5-18GHz Power Divider PS2-20-450/10S Pulsar
$335,00
SKU: 094
Only price2 left in stock!
2 w magazynie

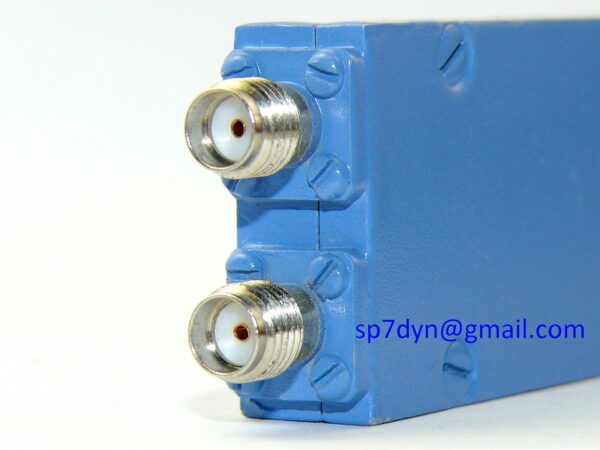

0.5-18GHz Power Divider PS2-20-450/10S Ultra Wideband
High Power 30 Watts 2way SMA PULSAR USA
The Divider has excellent performance, amplitude
balance 0.37dB, VSWR 1.20, power 30 Watts.

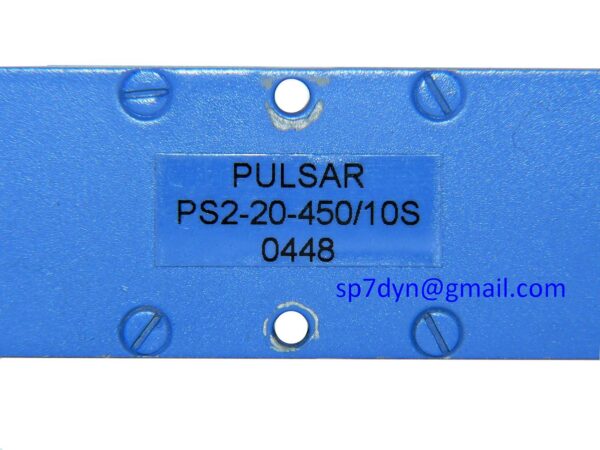

The Device is used (used only a few times), removed
from the new device (Very clean device), cosmetic scratches,
tested and functions in very technical good condition,

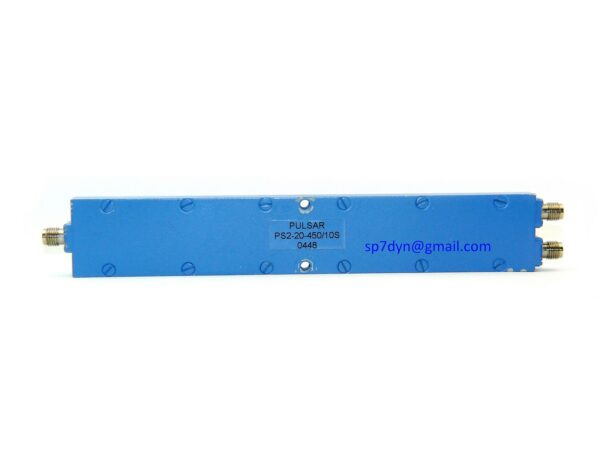

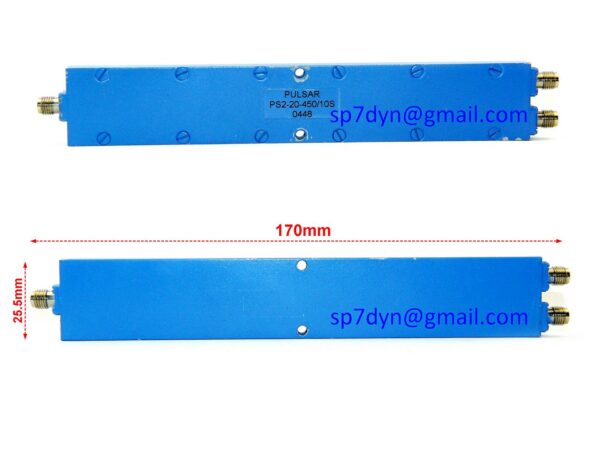

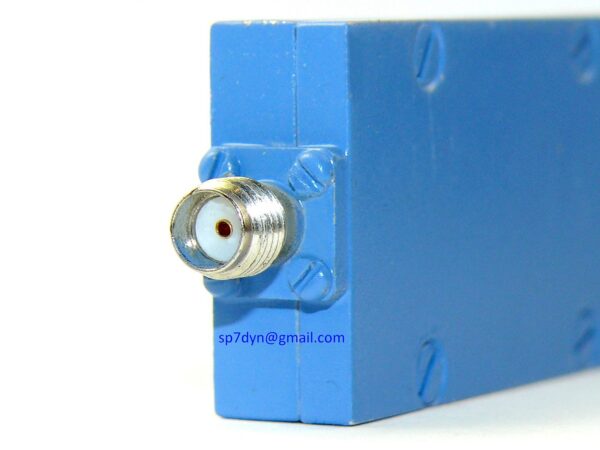

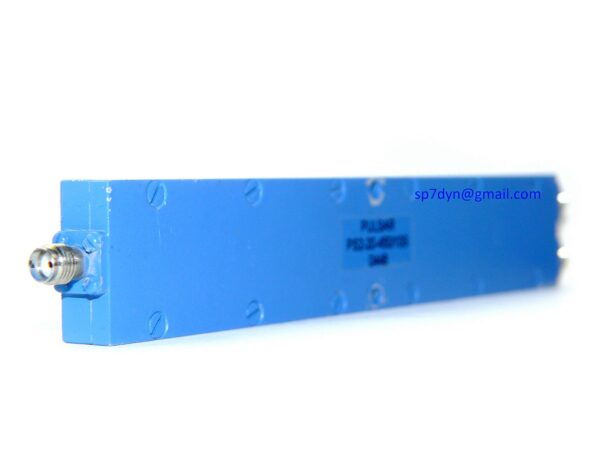

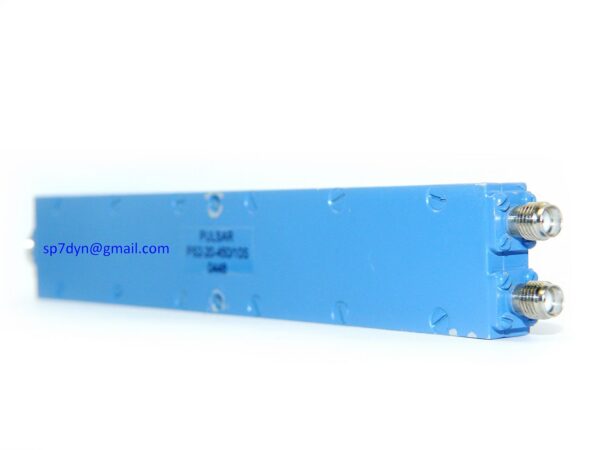

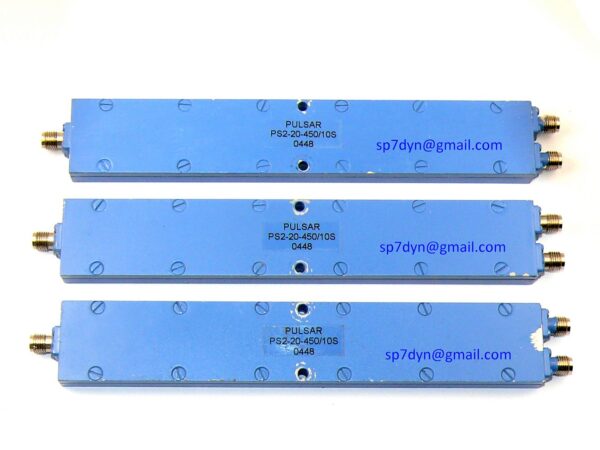

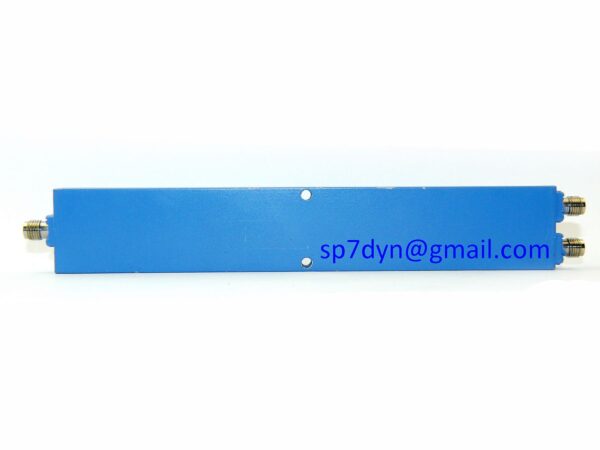

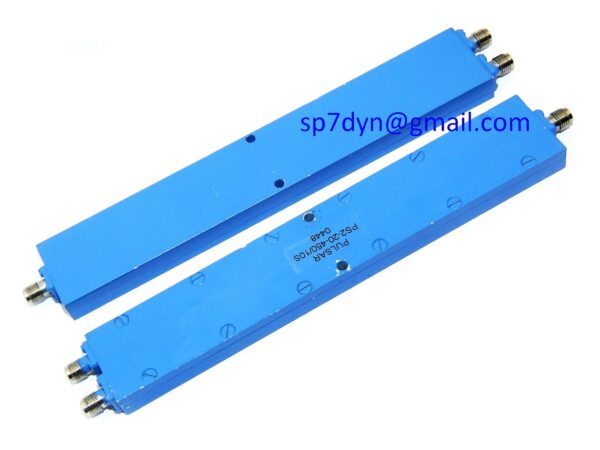

test OK real photos!

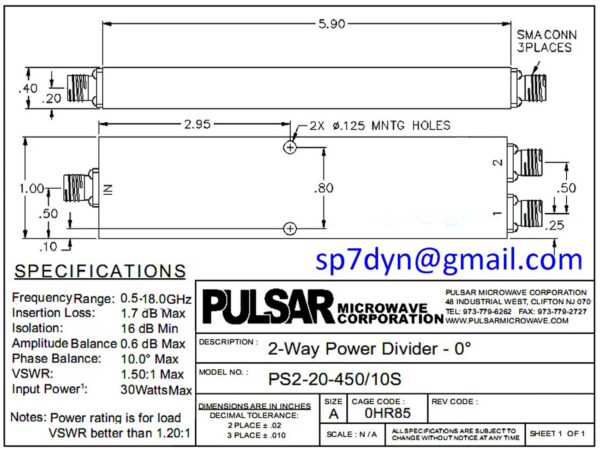

Link to ——————————— PDF
See other power Divider — Click Here
SPECIFICATIONS: Brand -------------- PULSAR MICROWAVE CORPORATION Type --------------- 2-Way Power Divider 0° Model -------------- PS2-20-450/10S Measured parameters in may lab: Frequency Range ---- 0.5 - 18.0 GHz Insertion Loss ----- 1.6 dB Max Typ 2.0dB Isolation ---------- 16 dB Min Amplitude Balance -- 0.37dB Max Typ 0.3dB Phase Balance ------ 10.0° Max Typ 8° VSWR: 2-18GHz ------ 1.20 Max Typ 1.15 VSWR: 24.05GHz ----- 1.25 Max Power -------------- 30 Watts Max - Price is for ------- 1 piece
| Model | PS2-20-450/10S |
|---|---|
| Type | Power Divider 2×1 |
| Frequency Range | 0.5 – 18.0 GHz |
| Insertion Loss | 1.6 dB Max Typ. 2.0dB |
| Isolation | 16 dB Min |
| Amplitude Balance | 0.37 dB Max Typ. 0.3dB |
| Phase Balance | 10.0° Max Typ. 8° |
| VSWR on 2-18GHz | 1.20 Max Typ. 1.15 |
| VSWR on 24.05GHz | 1.25 Max |
| Power | 30 Watts Max |
| Conditon | The Device is used (used only a few times), removed from the new device (Very clean device), cosmetic scratches, tested and functions in very technical good condition, test OK. Real photos! |
| Price is for | 1 piece |
| Order - How to place an order | Please place your order via e-mail: |
| Shipping - method and cost | The price of the item does not include the shipping cost! |
